Does this switch have eyelets in the underside to wall mount it?

I just grabbed mine to chec, Yes, it has two of the + shaped eyelets, they're a little narrow but a small screw or nail would work.

Will this switch work on 240 AC current?

No. The supplied AC adapter is 100-120V only as marked on it. The switch requires 12VDC@1A, 5.5mm center positive power source.

Can I connect this switch to wirelessly to my router so that I have a wired connection for my Xbox One?

No this will not connect wirelessly to anything. This is a switch that can be connected to a router through a wire to give you more ports. If your router has 4 ports and you connect this to one of the ports you would then have 11 available ports to plug devices in. If you need something for an XBox to live wirelessly on the one I have seen people use a device from linksys which I cannot find and it looks like some people are using Netgear wnce3001. That device will connect to a wireless router and then provide an ethernet jack to connect to your xbox.

If this is unmanaged or you can't control the ports is this a switch or a hub?

It's unmanaged and is a switch, not a hub. Pretty much nobody sells hubs anymore.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

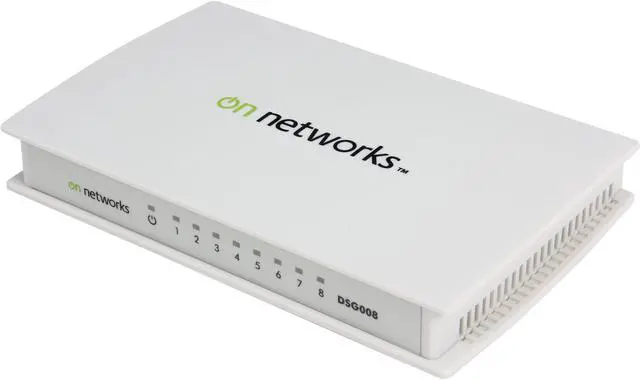

Main image of On Networks DSG008-199NAS Unmanaged 8-port Gigabit Ethernet Switch

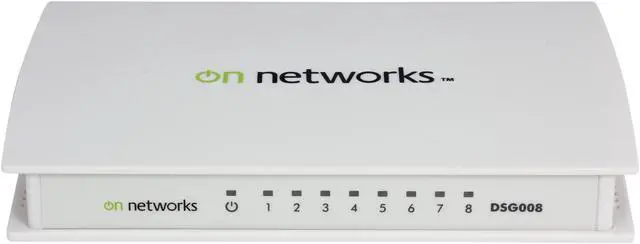

Alt view image 2 of 6 - On Networks DSG008-199NAS Unmanaged 8-port Gigabit Ethernet Switch

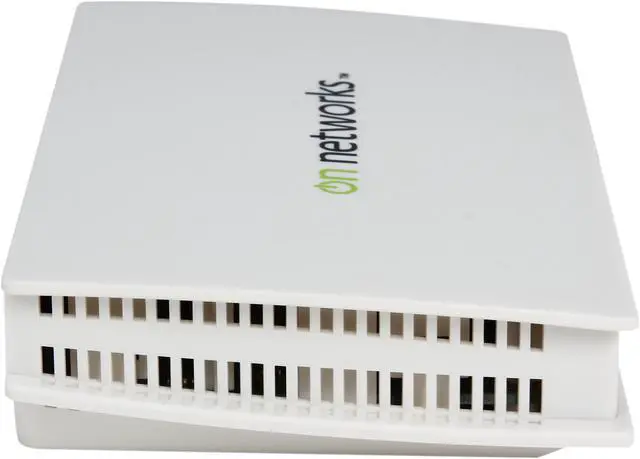

Alt view image 3 of 6 - On Networks DSG008-199NAS Unmanaged 8-port Gigabit Ethernet Switch

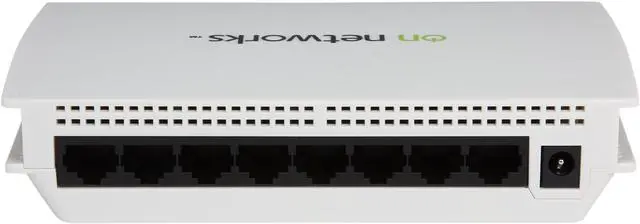

Alt view image 4 of 6 - On Networks DSG008-199NAS Unmanaged 8-port Gigabit Ethernet Switch

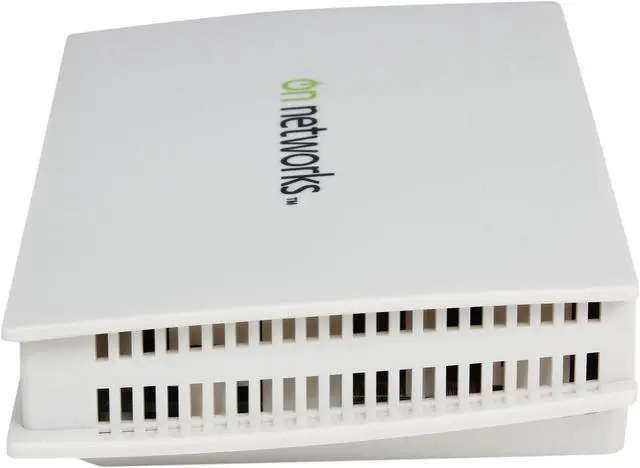

Alt view image 5 of 6 - On Networks DSG008-199NAS Unmanaged 8-port Gigabit Ethernet Switch

Alt view image 6 of 6 - On Networks DSG008-199NAS Unmanaged 8-port Gigabit Ethernet Switch

Shop All On Networks Products

On Networks DSG008-199NAS Unmanaged 8-port Gigabit Ethernet Switch

(36) Write a Review

Unmanaged

Overview

Specs

Reviews (36)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Eight-Port Gigabit Ethernet Switch DSG008

Expand your network and connect up to eight wired devices with wired Ethernet speeds of up to 1000Mbps. The switch features easy plug and play connection, eight gigabit Ethernet auto-sensing ports, and auto-power down mode which saves energy on unused ports. Perfect for adding computers, printers or network storage.

Highlights

Gigabit Ethernet Speed
Auto-power down saves energy on unused ports
Supports Energy Efficient Ethernet for optimal power savings

Tech Specs

Standards

IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3x Flow Control
IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Network Interface

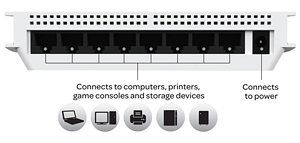

RJ-45 connector for 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet interface

Power and Power Consumption

Power: 12W and 12V @ 1ADC input
Power Consumption: 3.65W (max)

Power and Power Consumption

Power: 12W and 12V @ 1ADC input
Power Consumption: 3.64W (max)

Physical Specifications

Dimensions: 6.18 x 3.74 x 1.25in. (157 x 95 x 32mm)
Weight: 0.44lbs (0.2kg)
Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: 10% to 90% relative humidity, non-condensing

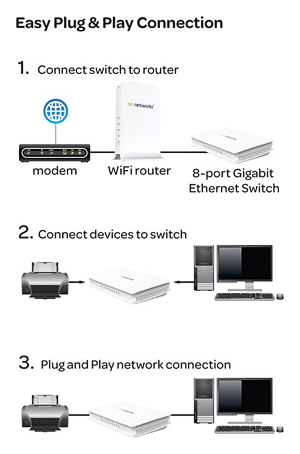

How to Connect

Connecting is simple. Use the diagram to easily and securely connect your On Networks product to the Internet or to other devices. For more information visit the product support page.

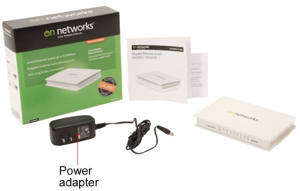

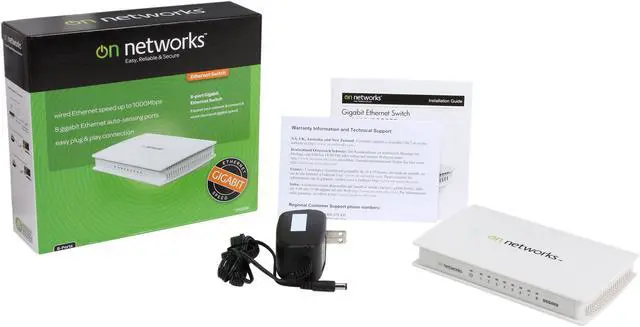

Package Includes

8-port Gigabit Ethernet Switch (DSG008)
Power Adapter
Installation Guide

Choose the Right Switch

Product	Speed	Number of Ports	Computers / Printers
	Features		Applications
DSF005	Up to 100Mbps	5
DSF008	Up to 100Mbps	8
DSG005	Up to 1000Mbps	5
DSG008	Up to 1000Mbps	8

Model
Brand	On Networks
Model	DSG008-199NAS

Format & Standards
Format	External
Standards	IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3x Flow Control IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Network Management Type	Unmanaged

Ports & Interface
Primary Ports	8 x RJ45
Primary Port Speed	10/100/1000Mbps

Power Supply
Power	Power: 12W and 12V @ 1A DC input Power consumption: 3.64W (max)

Dimensions & Weight
Dimensions	6.18" x 3.74" x 1.25"
Weight	0.44 lbs.

Environmental
Temperature	0°C to 40°C (32°F to 104°F)
Humidity	90% Maximum, Non-condensing

Features
Features	Gigabit Ethernet Speed Auto-power down saves energy on unused ports Supports Energy Efficient Ethernet for optimal power savings

Packaging
Package Contents	8-port Gigabit Ethernet Switch (DSG008) Power adapter Installation Guide

Additional Information
First Listed on Newegg	January 03, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
