Images from RETAIL item, box contents may vary.
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Onkyo DVSP502
| Brand | Onkyo |
|---|---|
| Model | DVSP502 |
| Player Type | DVD Player |
|---|
| Disc Changer | 1-Disc |
|---|---|
| File Playback Formats | CD-R/RW, DVD-R/RW, VCD, MP3, WMA, JPG |
| Video D/A Converter | Playback DAC 192 kHz/24-Bit Video DAC 108 MHz/12-Bit |
| Decoder | DTS, Dolby Digital |
| Audio | Linear Velocity Single layer 3.49 m/s Dual layer 3.84 m/s Frequency Response (DVD Linear Sound) 48 kHz sampling 4 Hz to 22 kHz 96 kHz sampling 4 Hz to 44 kHz 192 kHz sampling 4 Hz to 88 kHz (DVD Audio) Frequency Response (Audio CD) 44.1 kHz sampling 4 Hz to 22 kHz S/N Ratio (Digital Audio) 106 dB Audio Dynamic Range (Digital Audio) 96 dB Harmonic Distortion (Digital Audio) (1 kHz) 0.003 % Wow and Flutter Below threshold of measurability |
| Power Supply | 120 V AC 60 Hz, 11W |
|---|

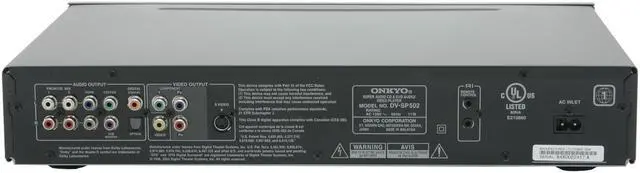

| Connectors | Video Output 1.0 V p-p, 75 ohms, negative sync. S-Video Output (Y) 1.0 V p-p 75 ohms, (C) 0.286 V p-p 75 ohms, negative sync., Mini DIN 4-pin Component Signal Output (Y) 1.0 V p-p, 75 ohms, negative sync., pin jack x 1, (Pb)/(Pr) 0.7 V p-p, 75 Ohms Audio Output 2.0 V RMS, 440 ohms, pin jack (5.1 ch) x 1, pin jack (L/R) x 2 Optical Audio - 22.5 dBm x 2 Digital Audio 0.5 V p-p, 75 ohms, pin jack x 1 Analog Audio 2.0 V RMS, 440 ohms, pin jack (5.1 ch) x 1, pin jack (L/R) x 2 |
|---|
| Feature | DVD Audio Decoding SACD Decoding Direct Digital Path VLSC (Vector Linear Shaping Circuitry) 96 kHz-48 kHz Selectable Digital Output 2:3 Pulldown Video Circuit On/Off Control Dynamic Range Control Video Black Level Control Passes PLUGE Signals Programmed Memory Playback Multichannel Output 8-Language Soundtrack Capability |
|---|
| First Listed on Newegg | December 26, 2006 |
|---|
