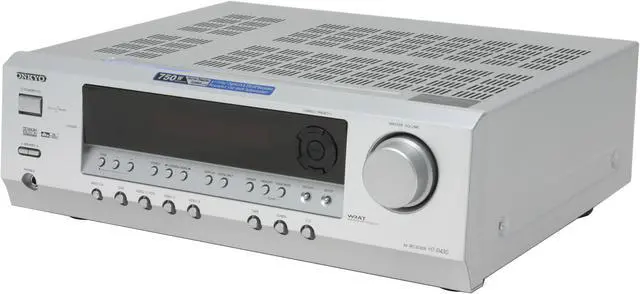

ONKYO HT-S680S Silver 6.1CH Home Theater System w/o DVD Player
- DVD Player not included
- 6.1 Channels
- Speaker Type Front: Bass Reflex Center: Bass Reflex Surround: Bass Reflex Surround Back: Bass Reflex Subwoofer: Bass Reflex Powered Nominal Impedance Front:
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Onkyo HT-S680S
| Brand | ONKYO |
|---|---|
| Model | HT-S680S |
| Player Type | DVD Player not included |
|---|---|
| Channels | 6.1 |

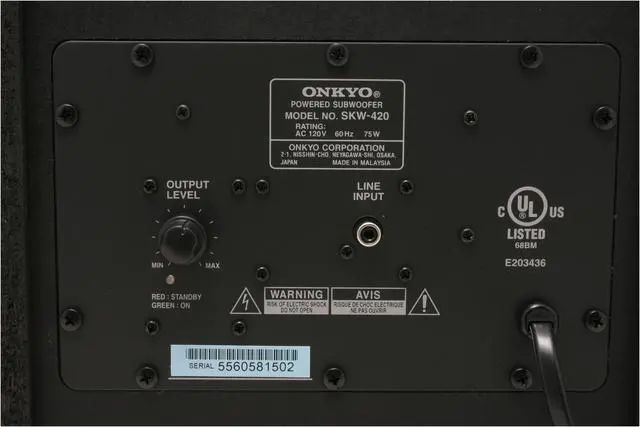

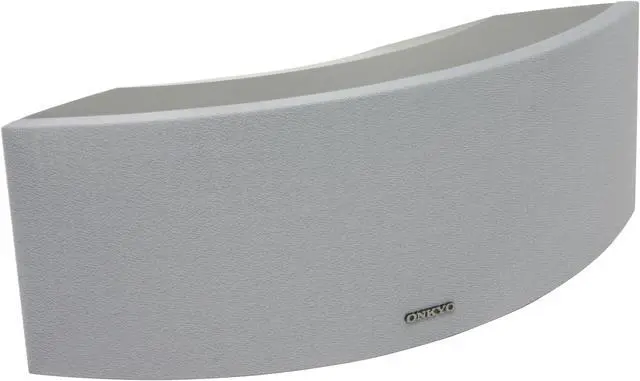

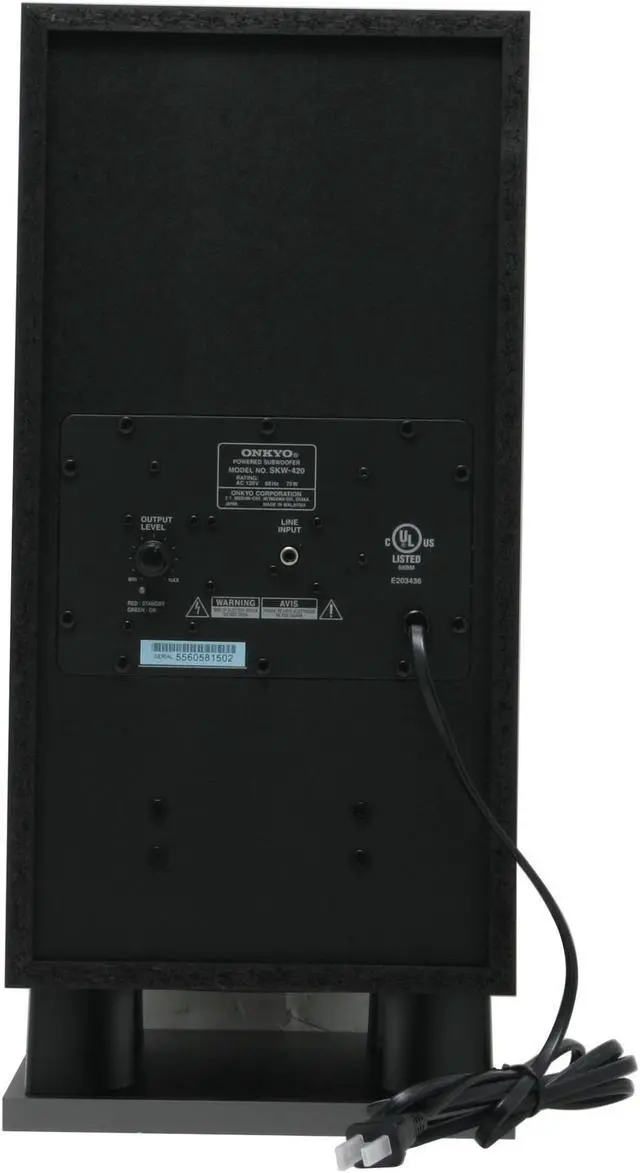

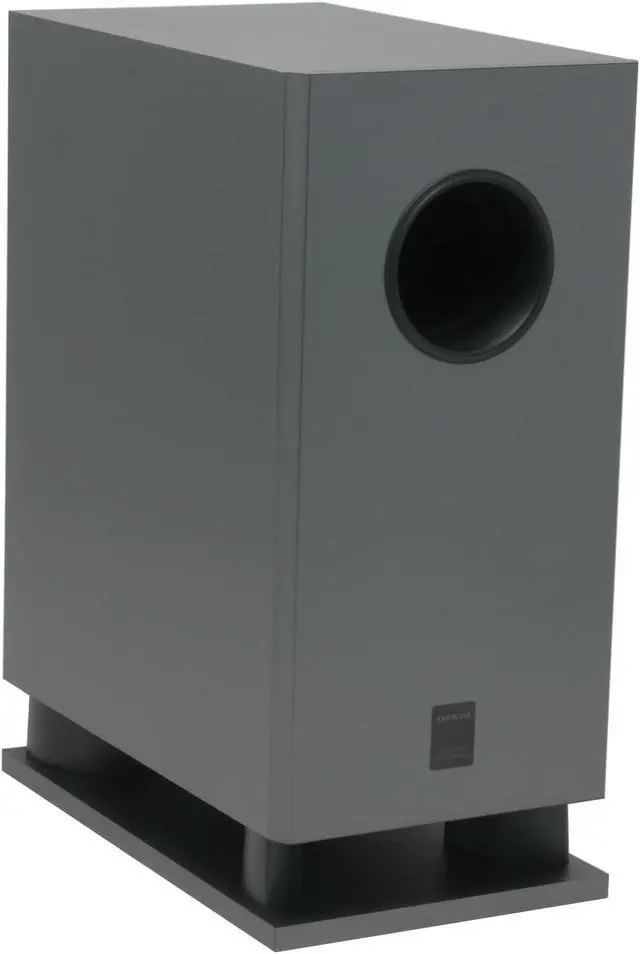

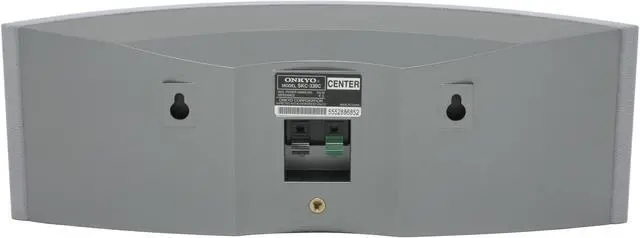

| Speakers Configuration | Speaker Type Front: Bass Reflex Center: Bass Reflex Surround: Bass Reflex Surround Back: Bass Reflex Subwoofer: Bass Reflex Powered Nominal Impedance Front: 8 ohm Center: 8 ohm Surround: 8 ohm Surround Back: 8 ohm Input Impedance(Subwoofer): 15 kohm/Line Frequency Response Front: 80 Hz-22 kHz Center: 80 Hz-22 kHz Surround: 80 Hz-22 kHz Surround Back: 80 Hz-22 kHz Subwoofer: 30 Hz-150 Hz Drivers Front: 3.1" Cone, 0.75" Dome Center: 3.1" Cone x 2, 0.75" Dome Surround: 3.1" Cone, 0.75" Dome Surround Back: 3.1" Cone, 0.75" Dome Subwoofer: 8" Cone |
| Speakers Power Rating | Max. Power Front (Input): 100 W Center (Input): 100 W Surround (Input): 100 W Surround Back: 100 W Subwoofer (Output): 150 W |

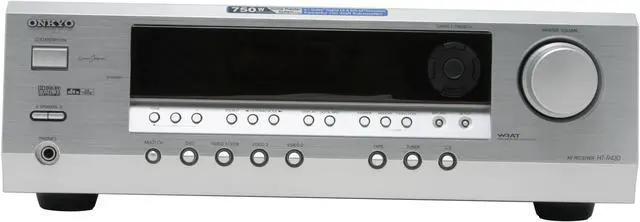

| Receivers Spec | Power Output (8 ohm, 1 kHz, FTC): 100 W/Ch Dynamic Power: 210 W/Ch/155 W/Ch/105 W/Ch THD (Rated Power): 0.08 % (all channels) Frequency Response: 10 Hz-100 kHz (+ 1 dB, - 3 dB) Damping Factor: 60 S/N Ratio: 100 dB (IHF-A) Acoustic Control 1: +/- 10 dB at 50 Hz/+/- 10 dB at 20 kHz Discrete Output Stage Preset Station Naming Automatic/Manual Tuning Sleep Timer RI-Compatible Remote Control |
| AM/FM Tuner | Tuning Range FM: 87.5 to 107.9 MHz (50 kHz steps) AM: 530 to 1,710 kHz (10 kHz steps) Usable Sensitivity FM Mono: 11.2 dBf, 1.0 uV (75 ohm IHF) FM Stereo: 17.2 dBf, 2.0 uV (75 ohm IHF) AM: 30 uV S/N Ratio (FM Mono/FM Stereo/AM): 76 dB (IHF-A)/70 dB (IHF-A)/40 dB THD (FM Mono/FM Stereo/AM): 0.2 %/0.3 %/0.7 % FM Stereo Separation: 45 dB at 1 kHz, 30 dB at 100 Hz-10 kHz |

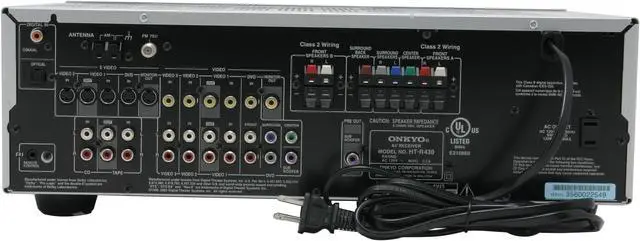

| Input | 5 Audio Input |
| Output | 2 Audio Output Subwoofer Pre Out |
| Features | Let’s be realistic. While today’s home theater can offer an endless list of features, it’s definitely in your interests to focus on the fundamental functions that contribute to sublime sound and pristine video images. This is what we’ve accomplished with the HT-S680. Using Onkyo’s proprietary technology and approach to circuit design—WRAT (Wide Range Amplifier Technology) and Optimum Gain Volume Circuitry—we have the base for a noiseless signal without distortion, even at lower frequencies. The inclusion of 192 kHz/24-bit digital-to-analog converters for all channels also significantly contributes to the accuracy and purity of the signal. Instead of overloading the receiver with surround sound decoders, we’ve included all that you need for your stereo/multichannel audio and video sources (with a superior 32-bit DSP microprocessor for processing). The HT-S680 is equipped for Super Audio CD and DVD-Audio playback, and the HT-S680 is ready for the iPod via RI compatibility* (see features). We think that the proof is in the performance. We think you’ll agree. |
|---|
| Dimensions | Receiver: 17.1" x 5.9" x 14.5" Speaker Front: 5.8" x 7.9" x 4" Center: 14.8" x 5" x 5.2" Surround: 5.8" x 7.8" x 4" Subwoofer: 9.3" x 20.4" x 16.2" Surround Back: 5.2" x 7.9" x 4" |
|---|---|
| Weight | Receiver: 19.6 lbs. Speaker Front: 2.0 lbs. Center: 3.5lbs. Surround: 1.5lbs. Subwoofer: 28.2lbs. Surround Back: 1.5 lbs. |
| Date First Available | August 15, 2005 |
|---|
