Brand | ONKYO |
---|---|
Model | HT-S7409 |
Channels | 5.1 |
---|---|

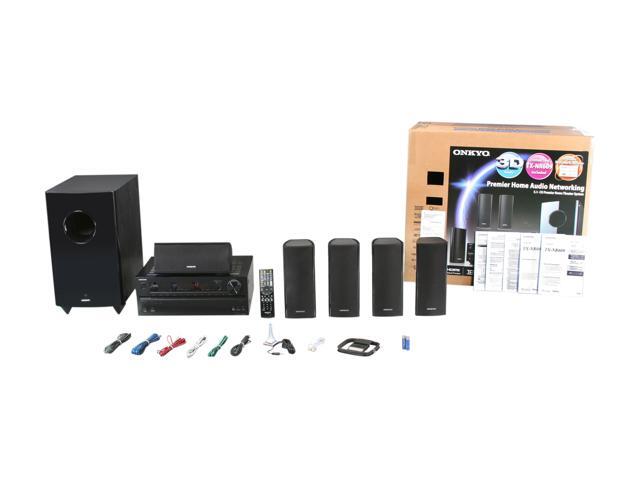

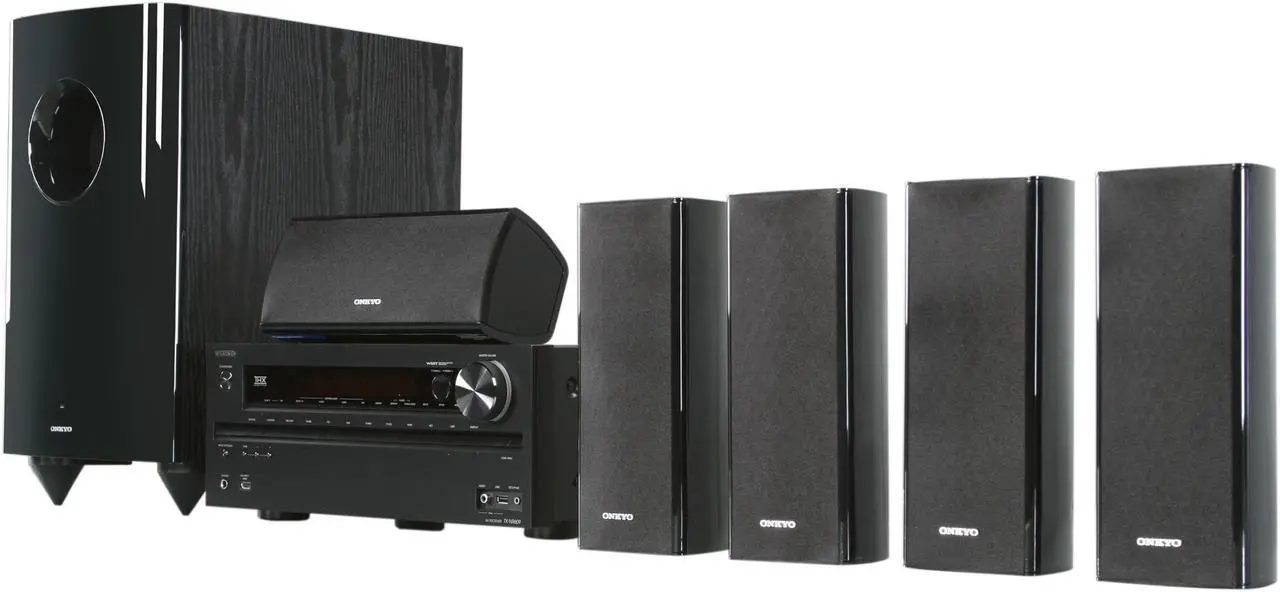

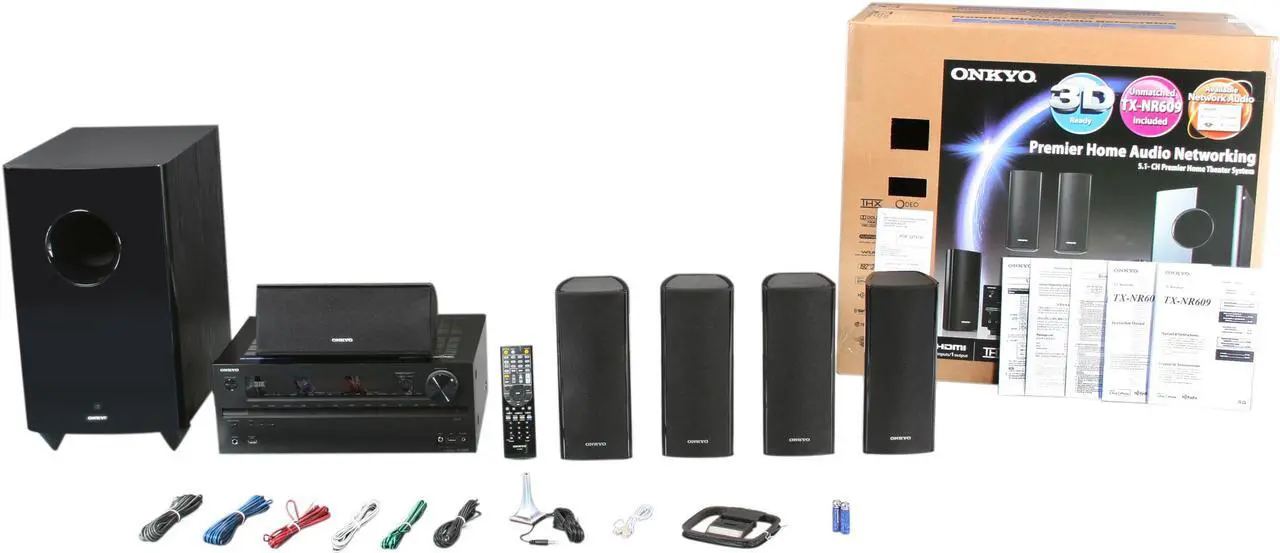

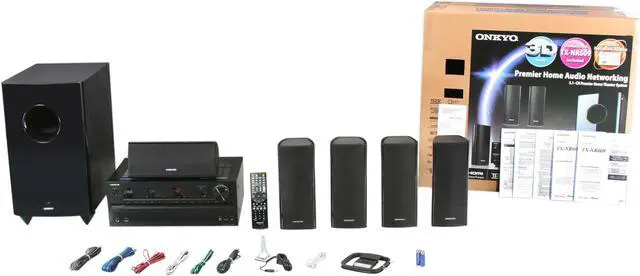

Speakers Configuration | 1 Pair Front L/R Speakers + 1 Center Speaker + 1 Pair Surround L/R Speakers + 1 Subwoofer |

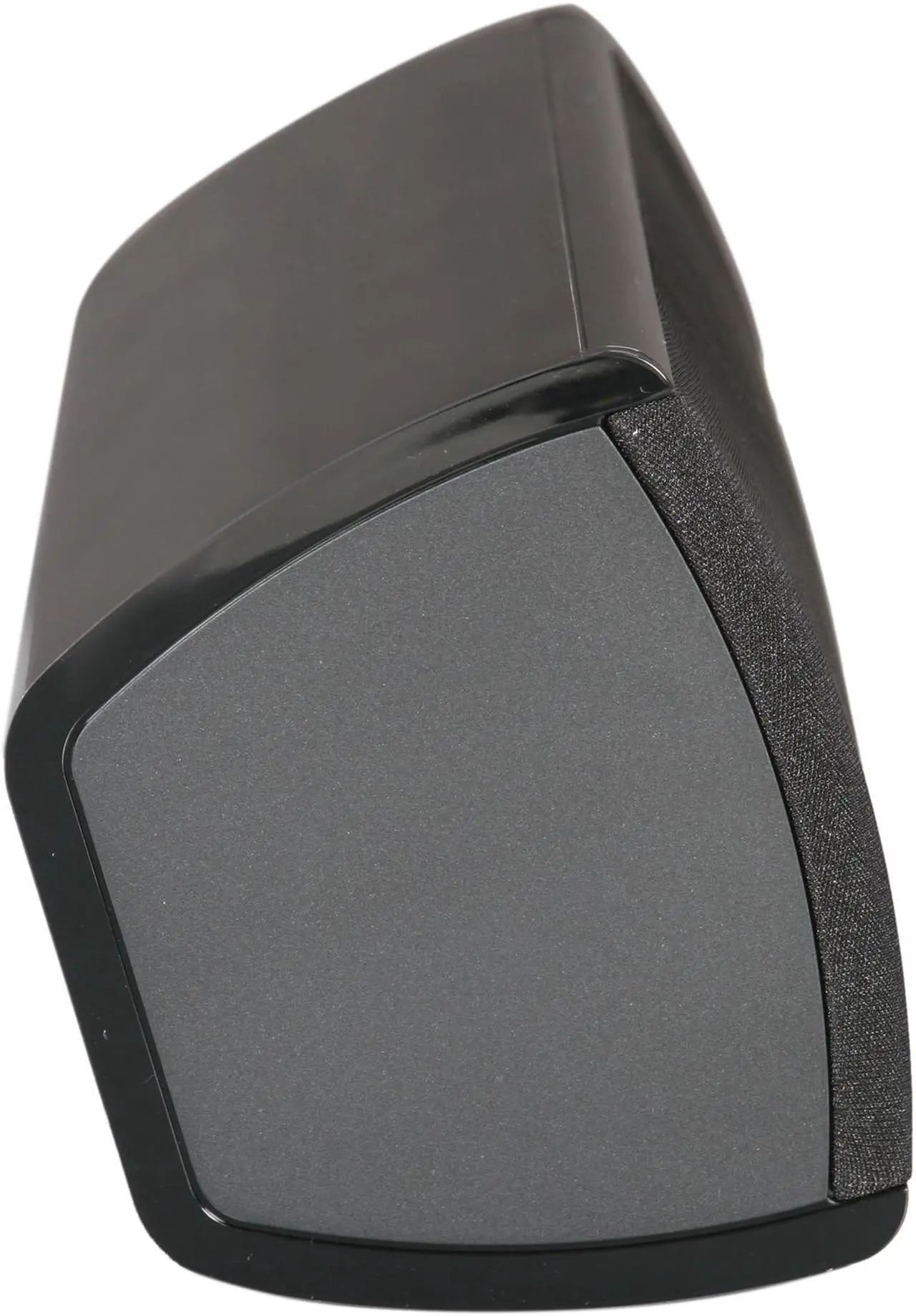

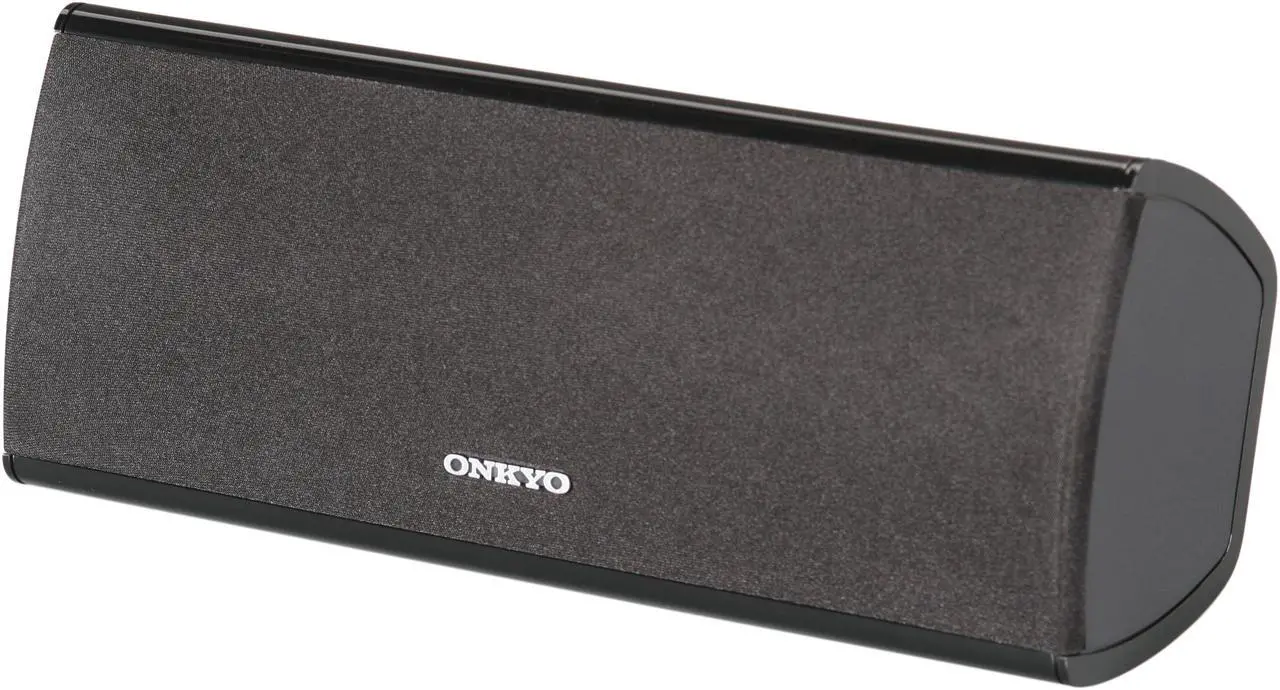

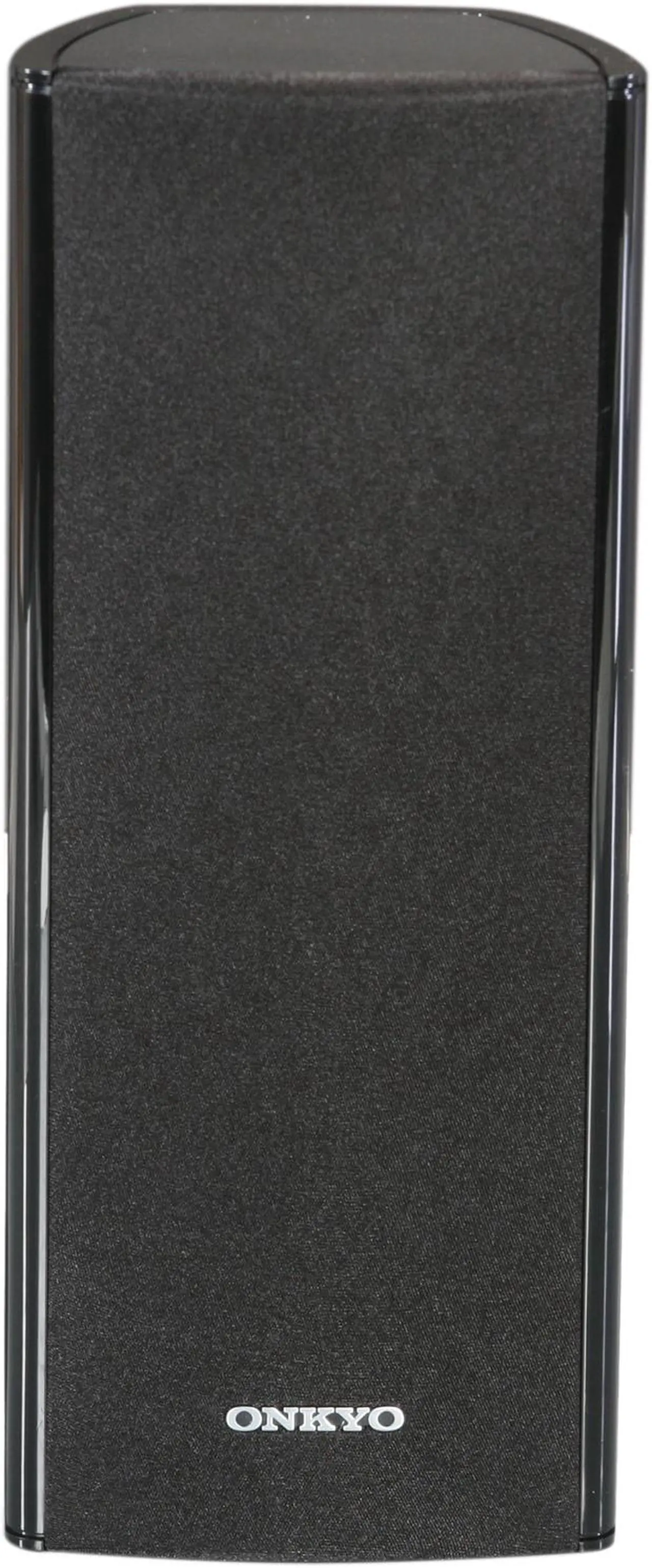

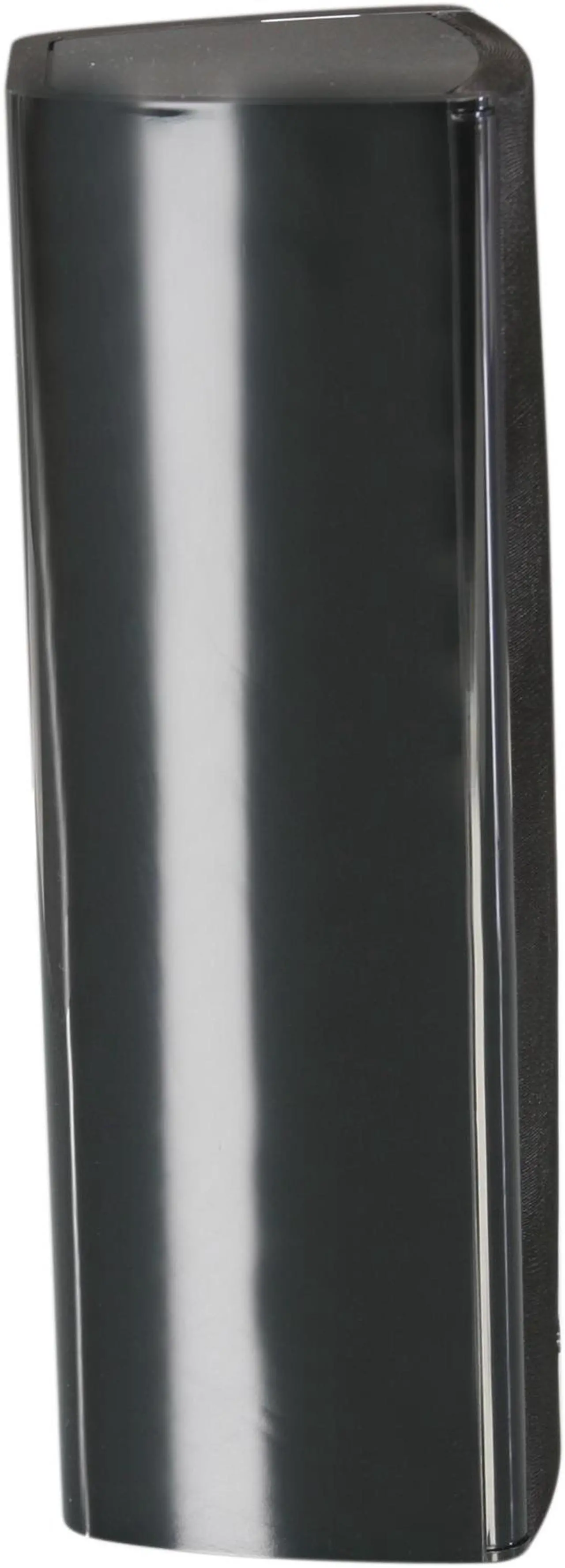

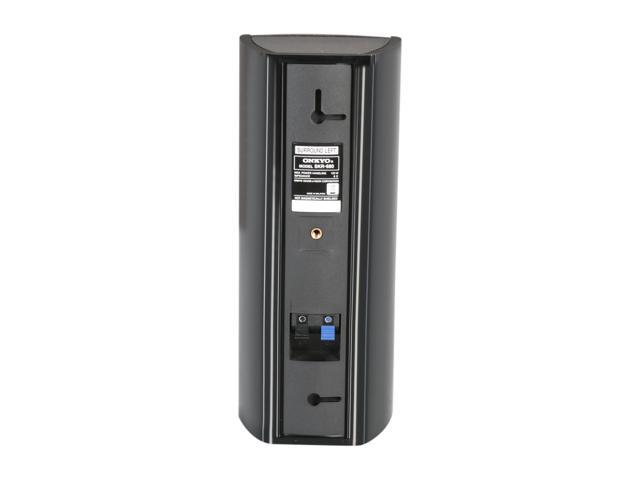

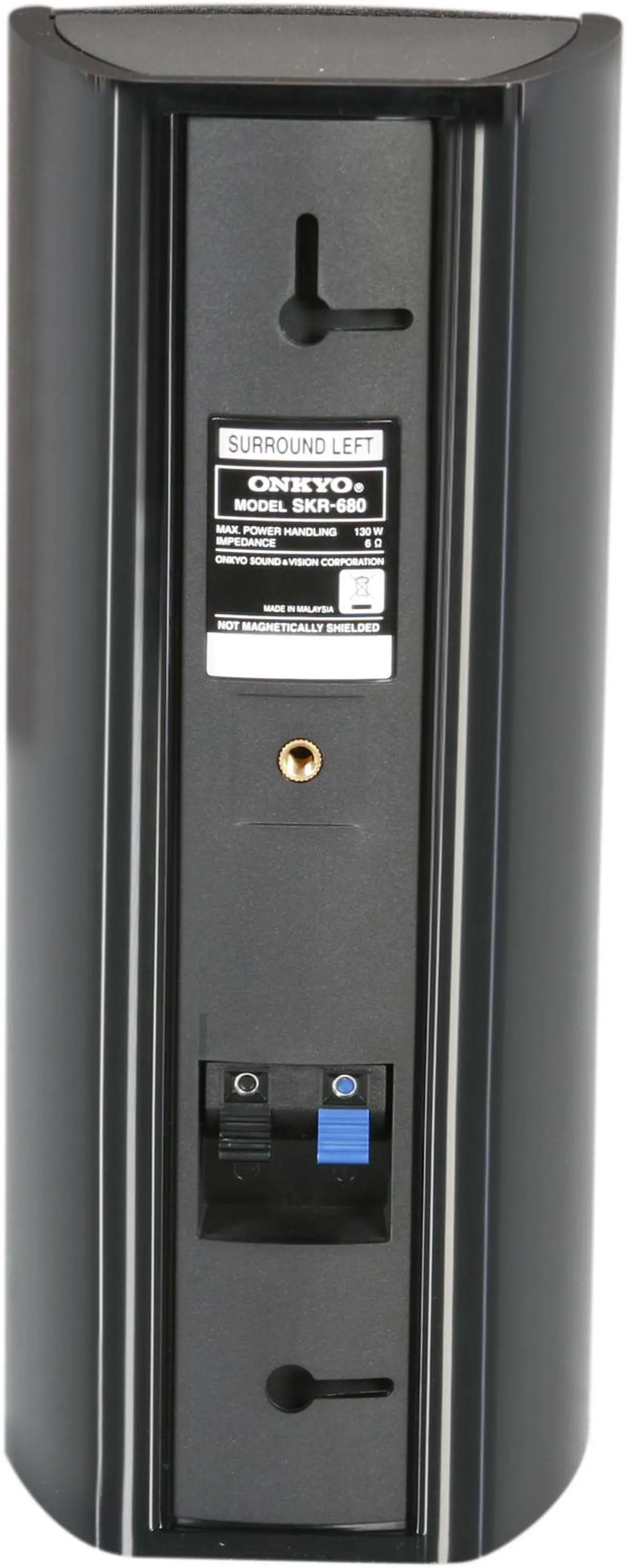

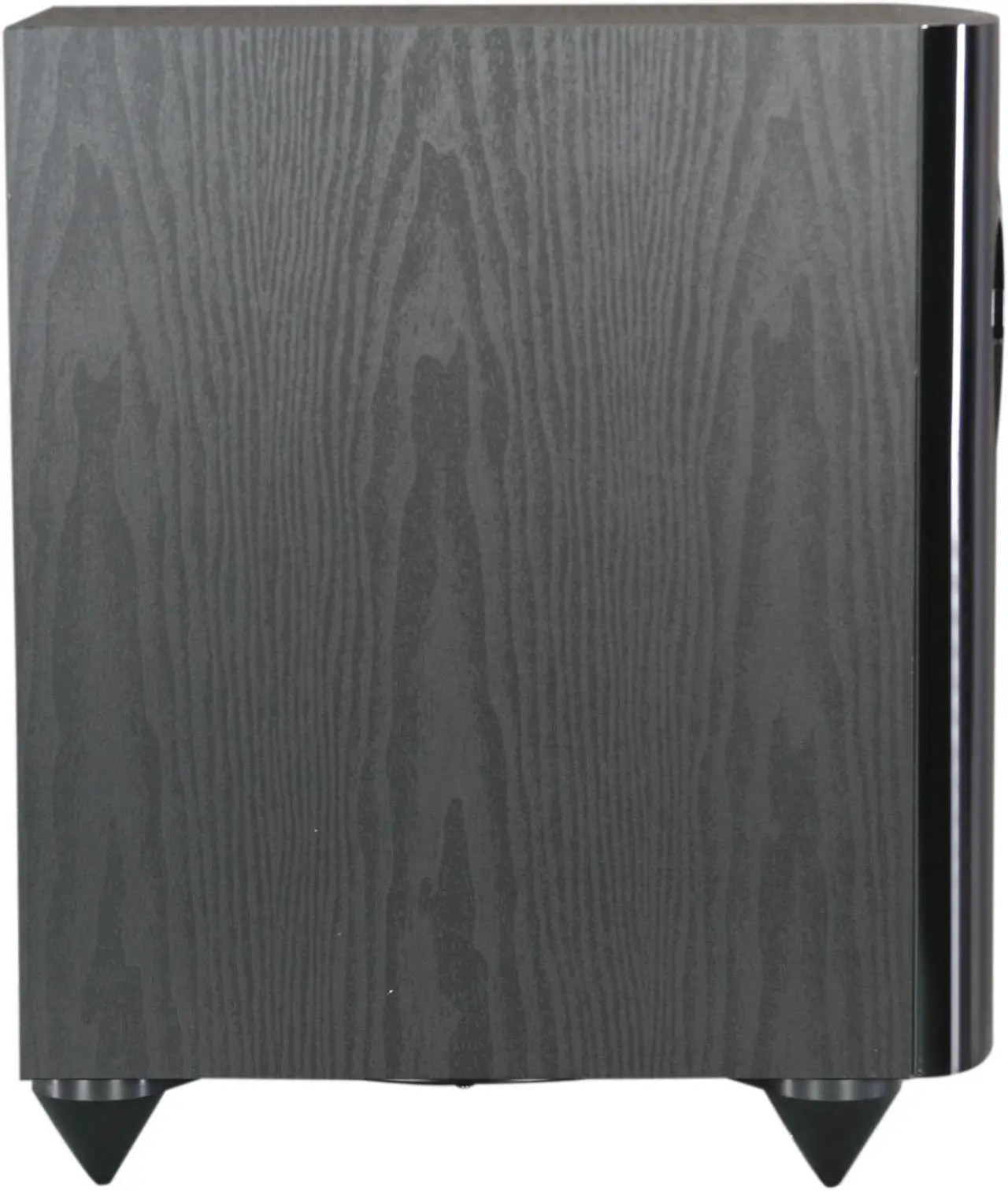

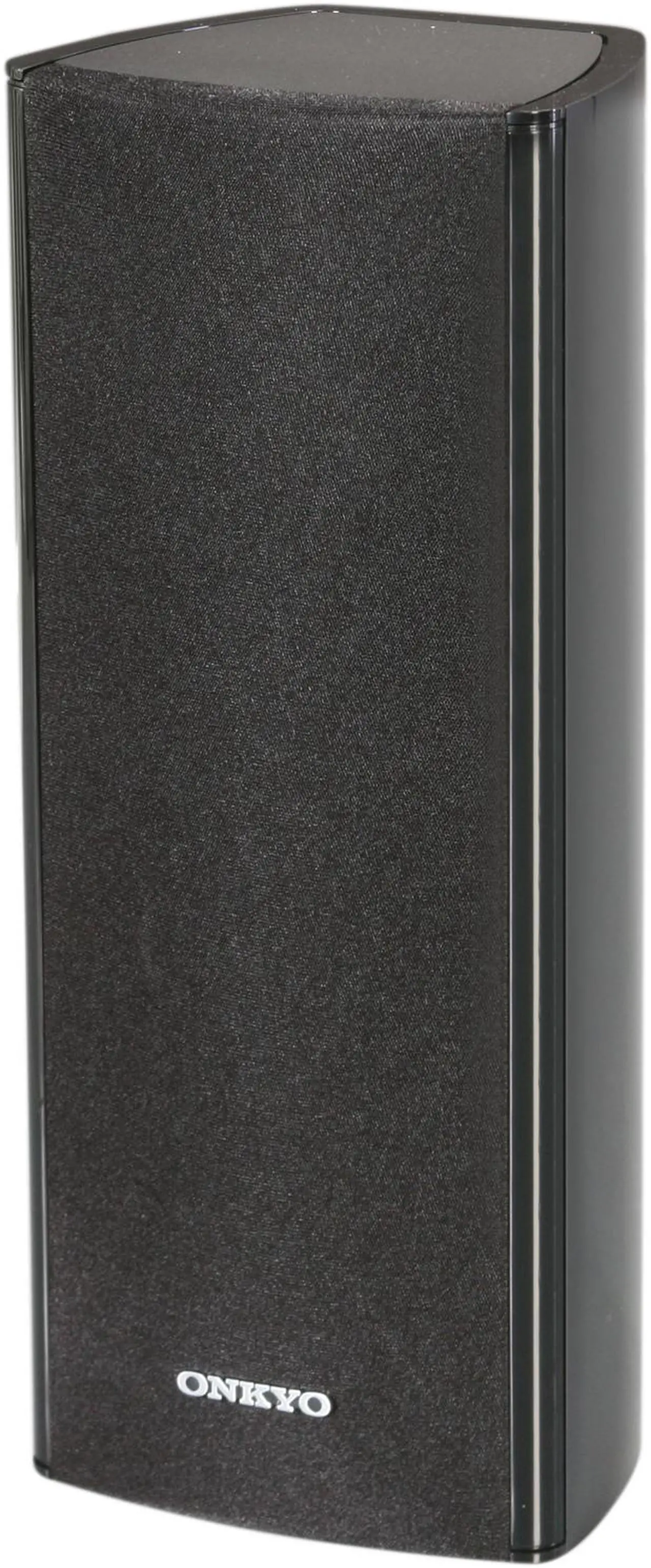

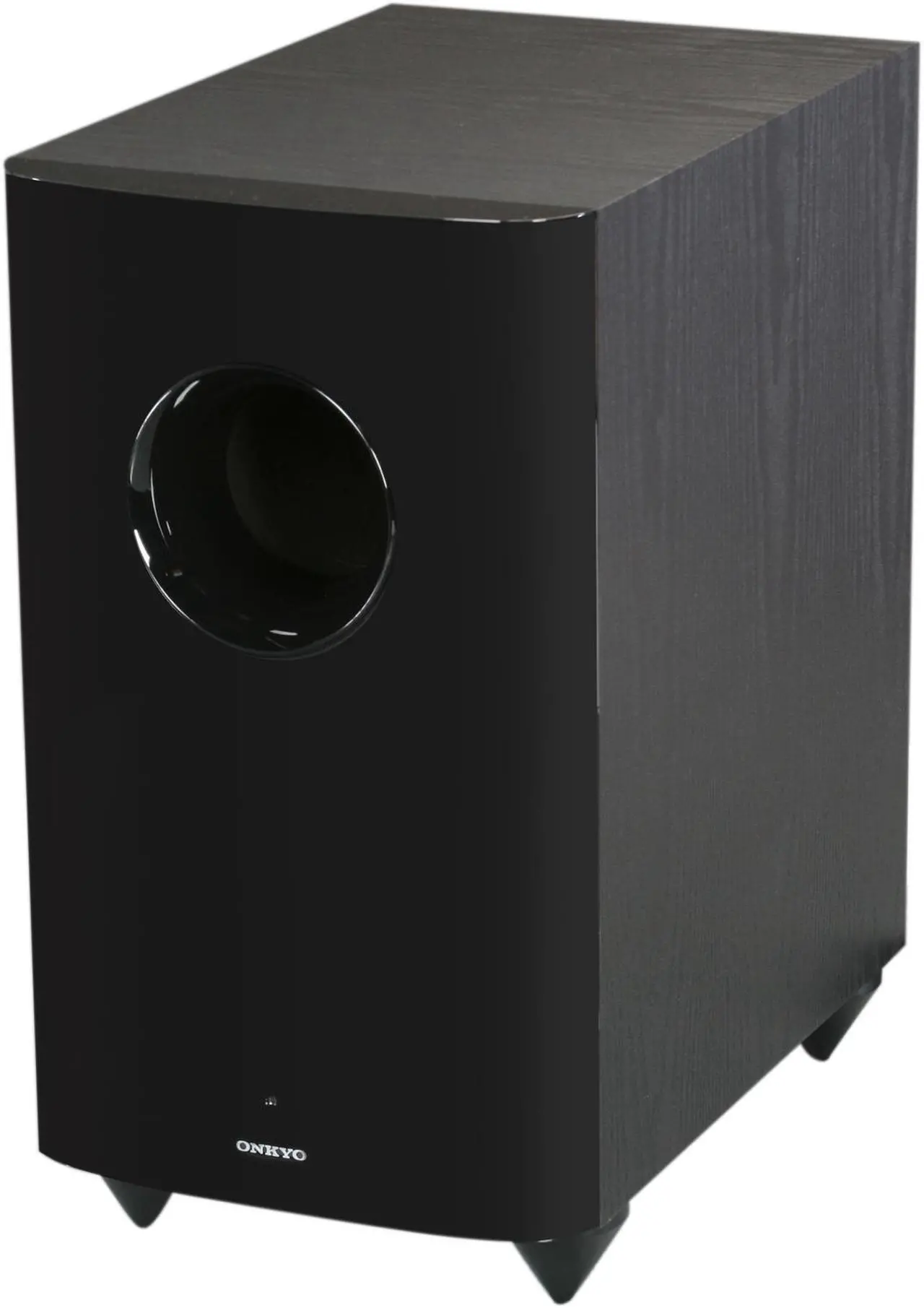

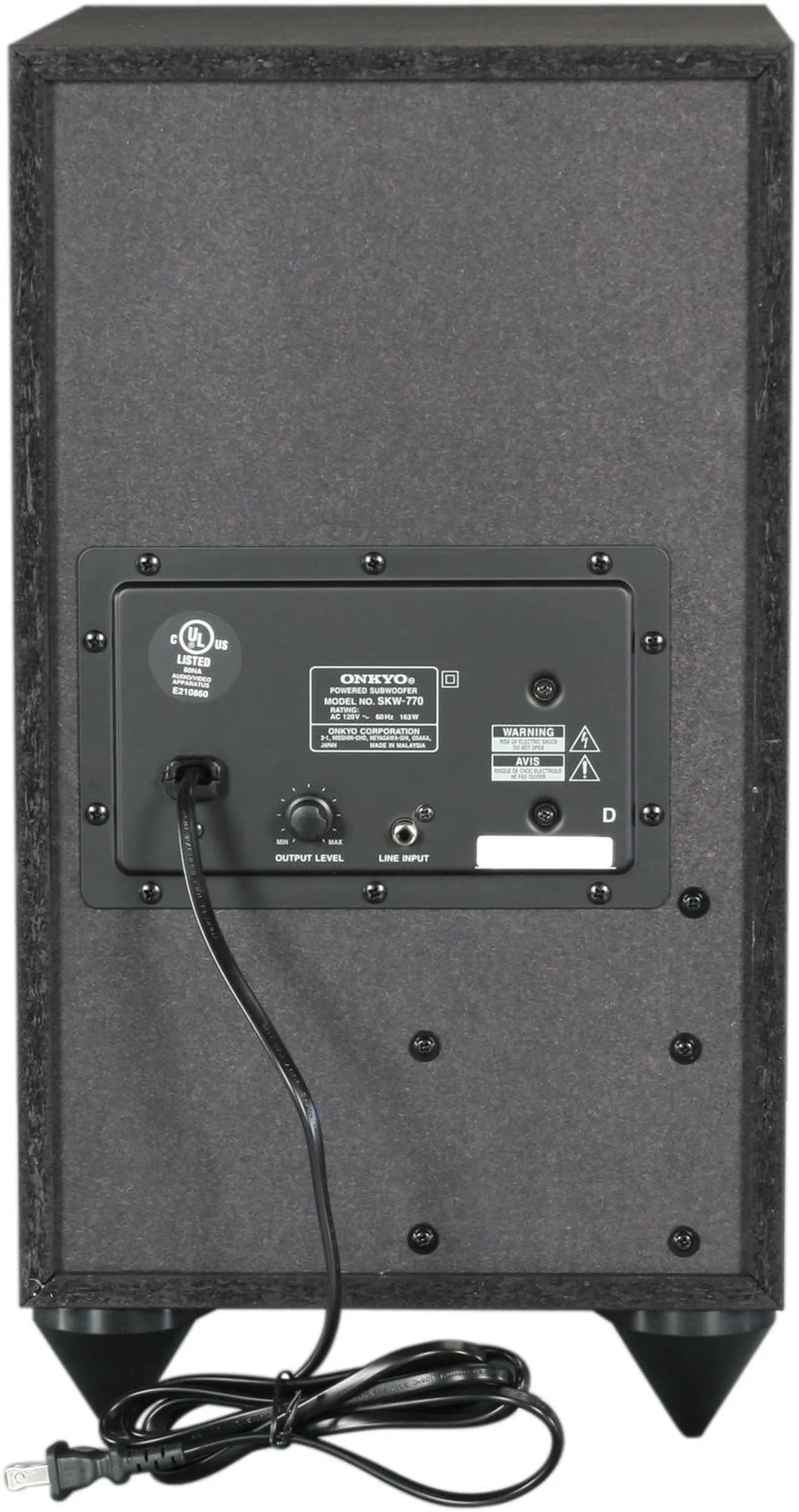

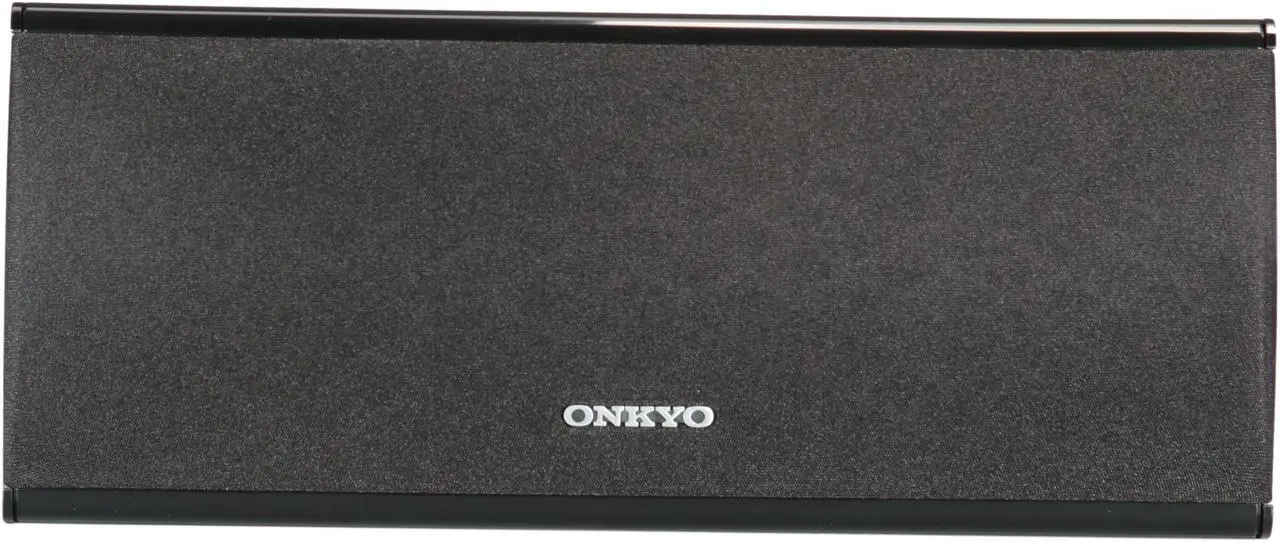

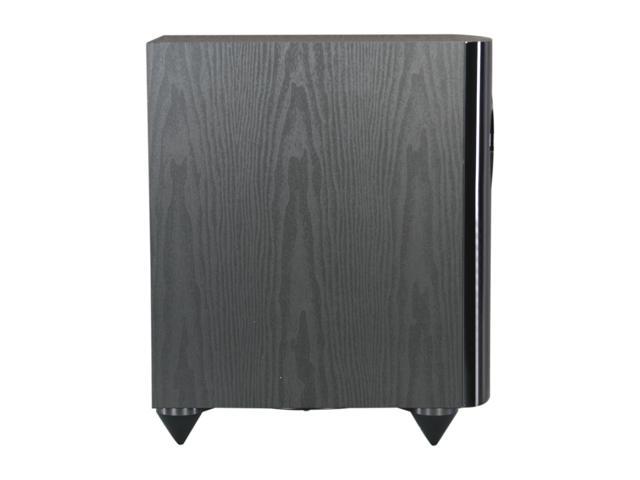

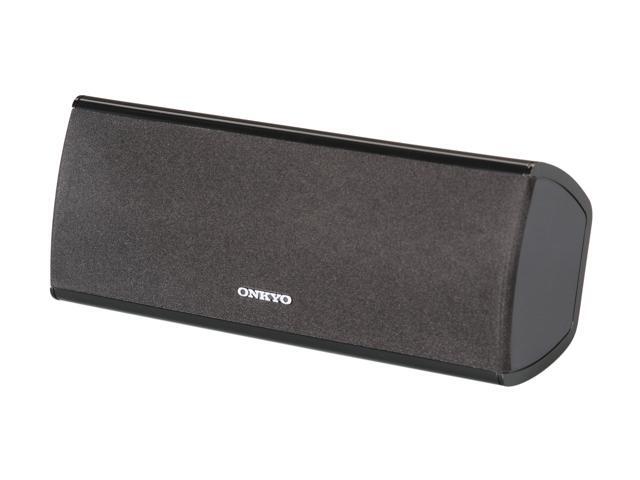

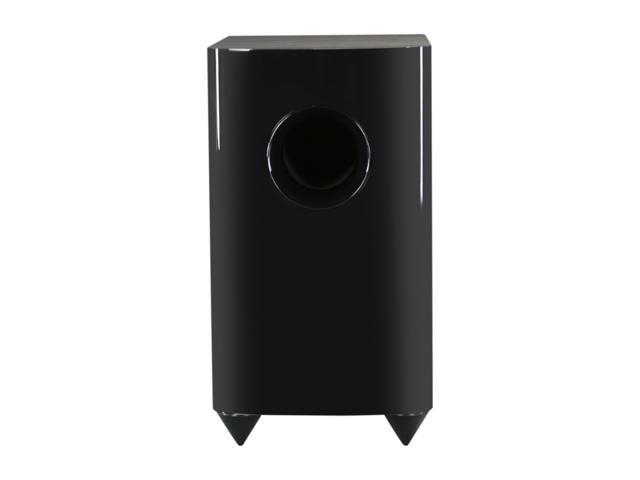

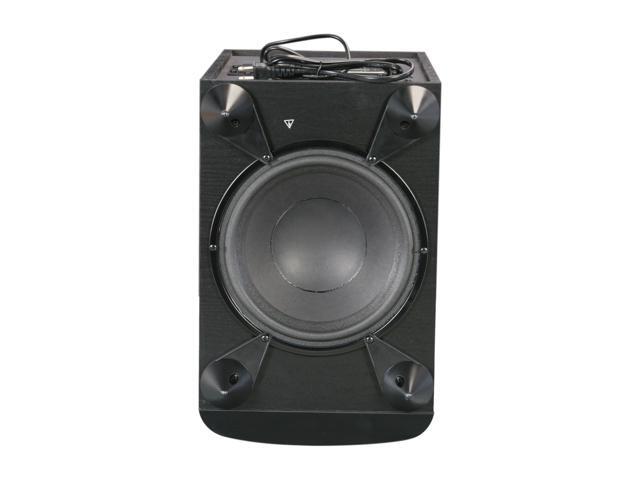

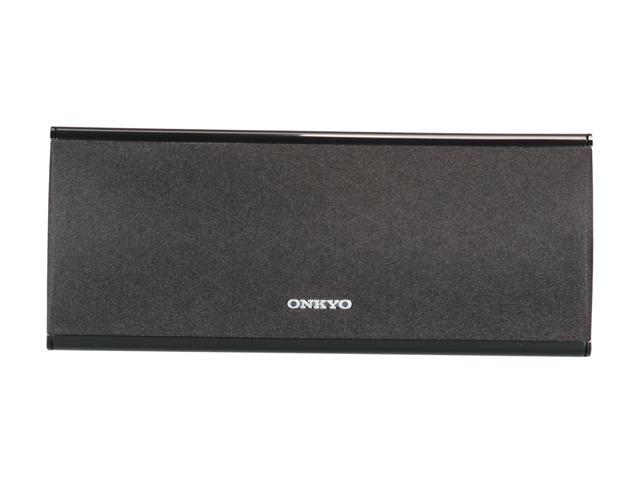

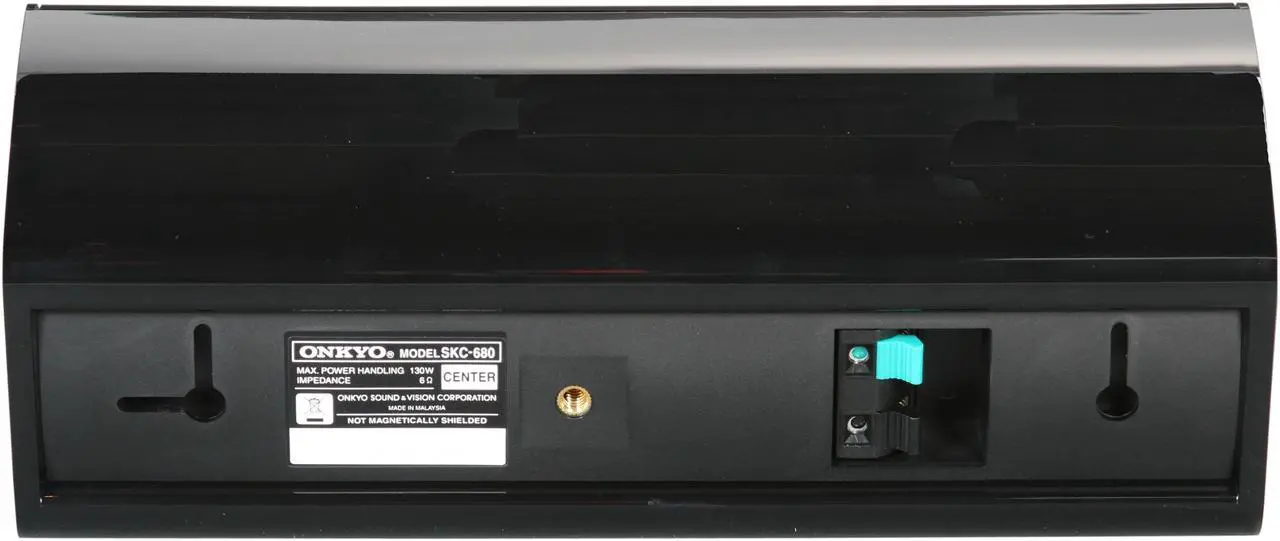

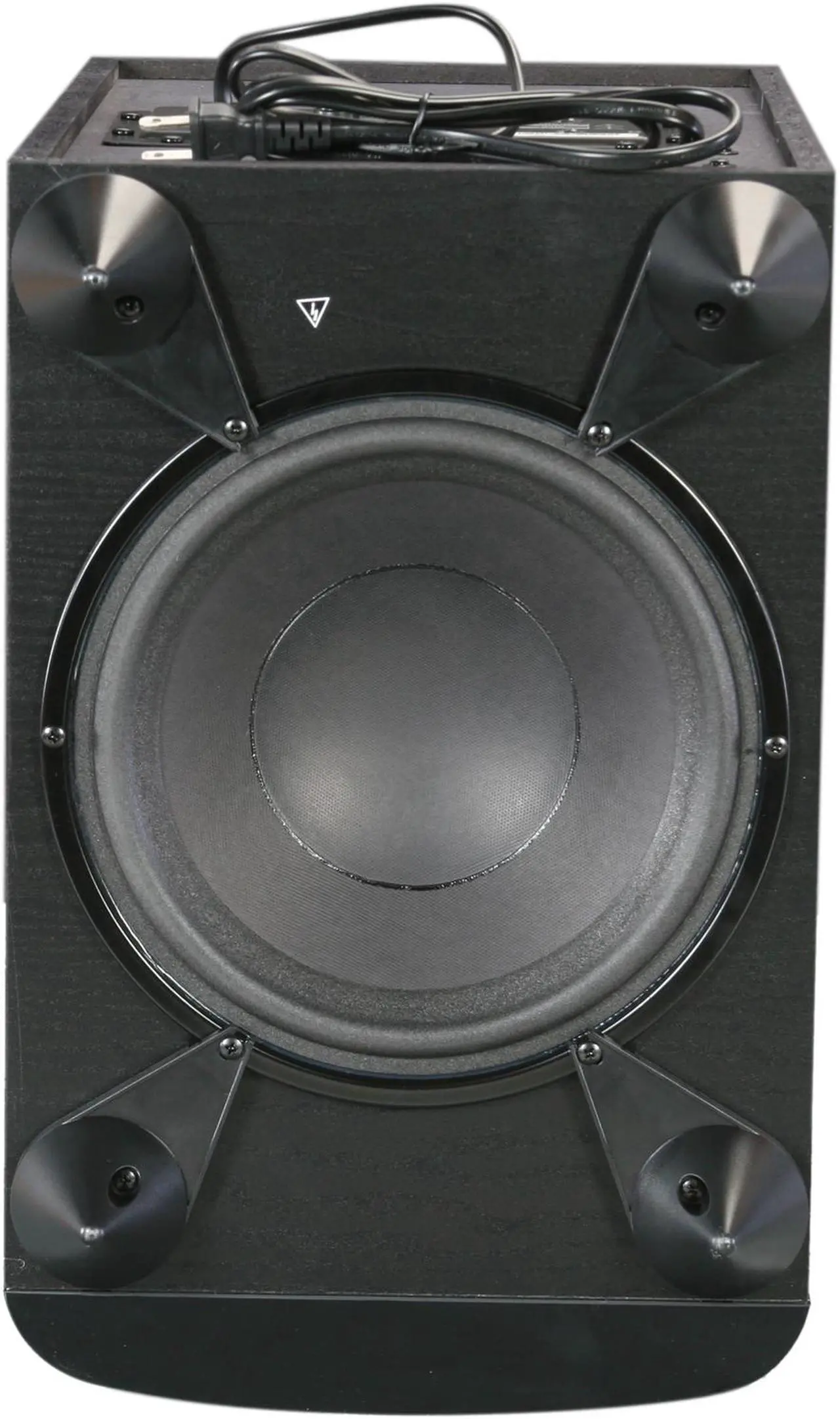

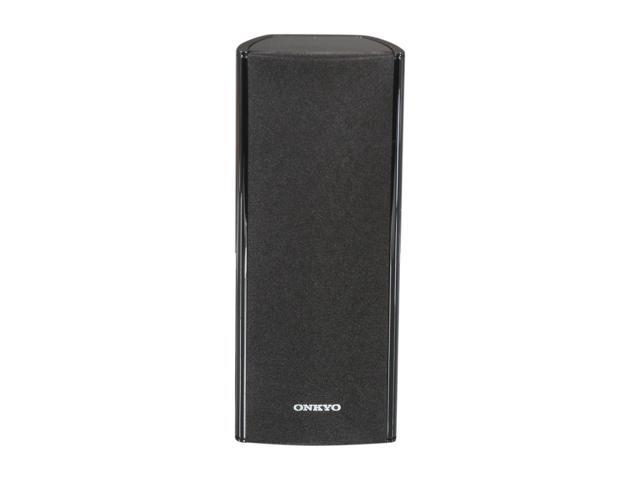

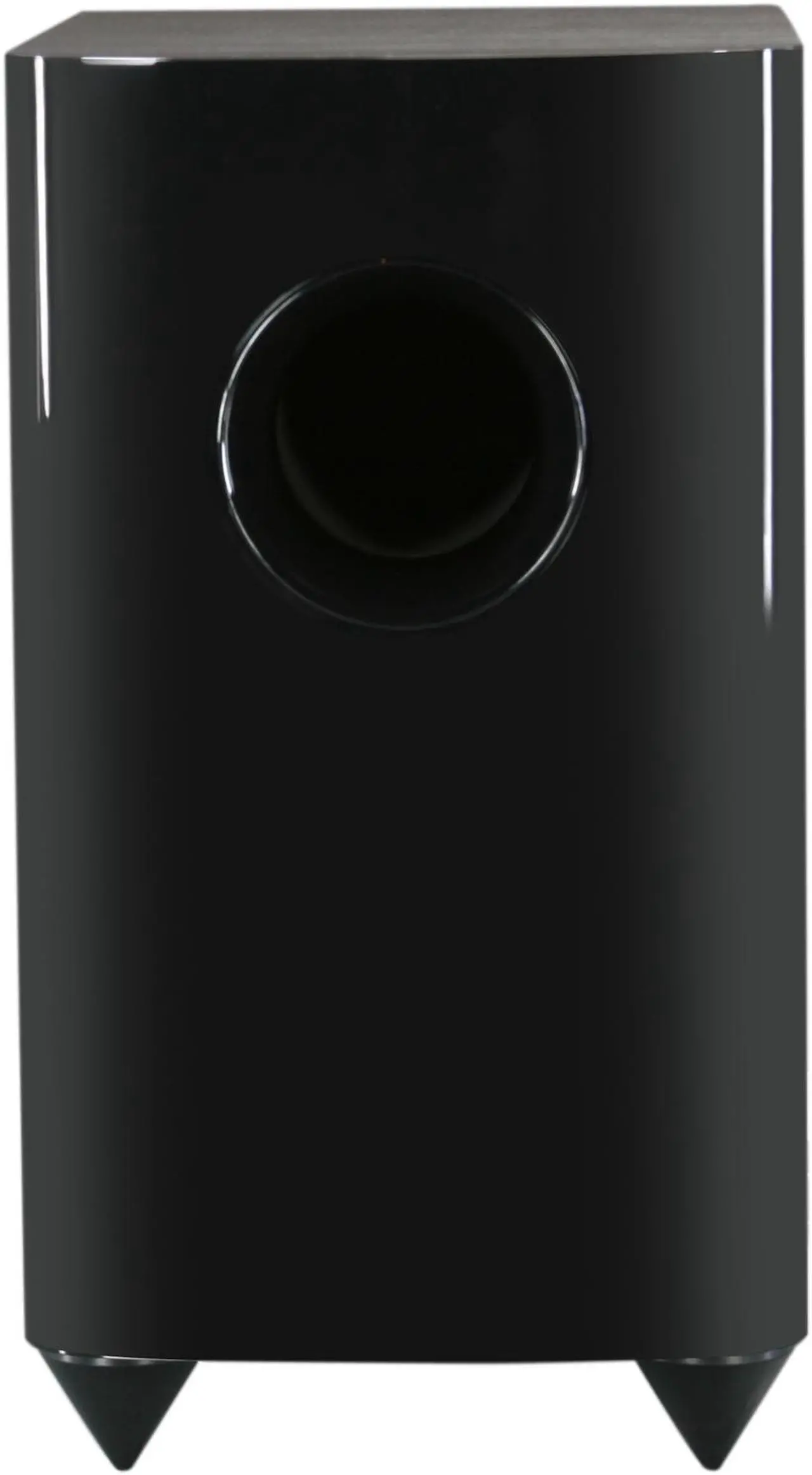

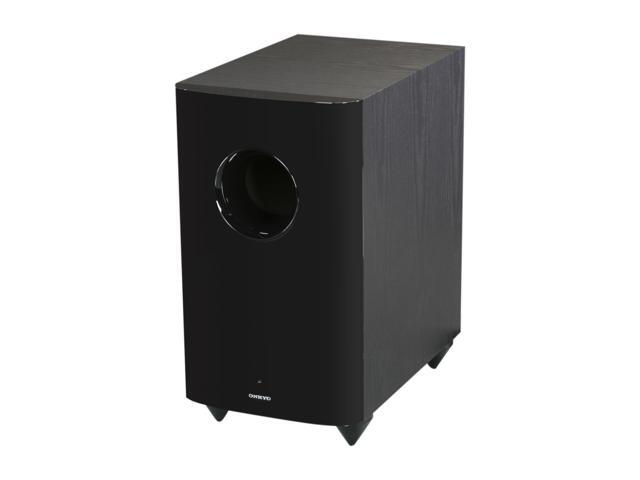

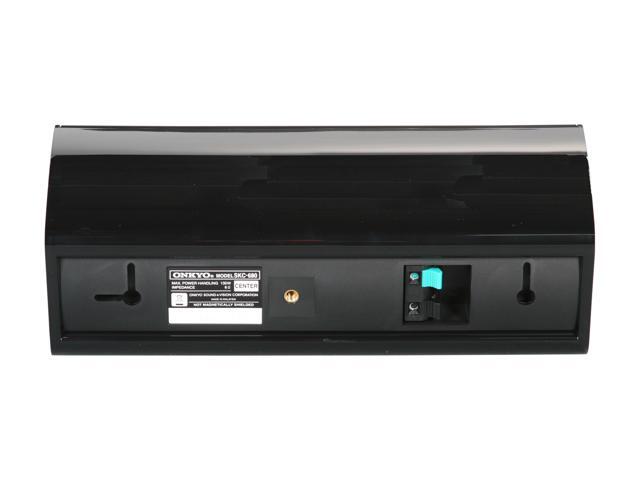

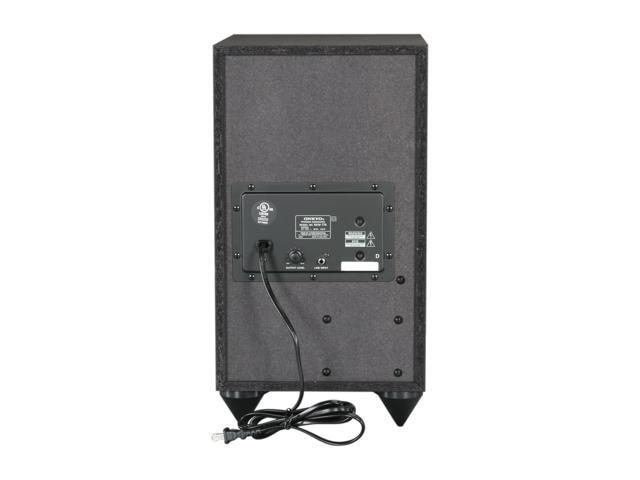

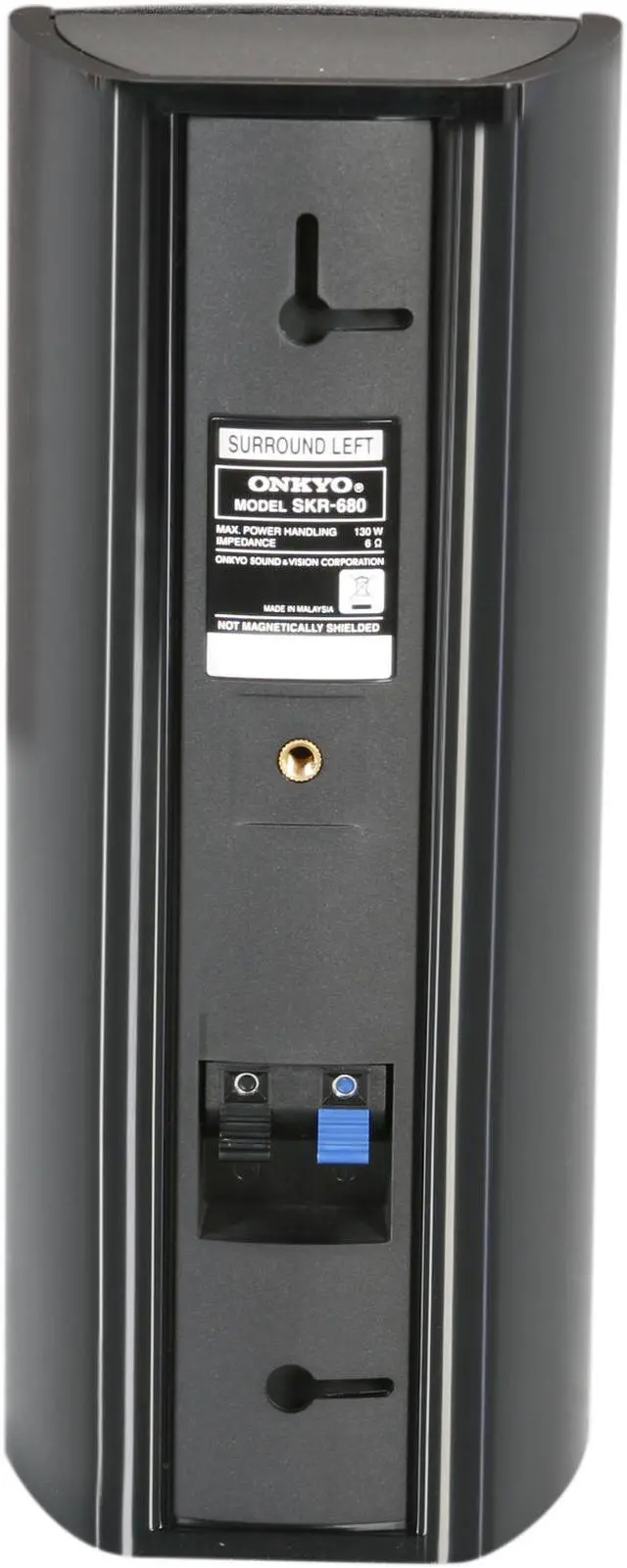

Speakers Driver Unit | Front L/R Speakers: 4" (10 cm) cone woofer, 1" (2.5 cm) balanced-dome tweeter Center Speaker: 4" (10 cm) cone woofer x 2, 1" (2.5 cm) balanced-dome tweeter Surround L/R Speakers: 3.25" (8 cm) cone Subwoofer: 10" (25 cm) cone |
Speakers Power Rating | Front L/R Speakers: 130 W Center Speaker: 130 W Surround L/R Speakers: 130 W Subwoofer: 120 W (Minimum continuous power, 4 ohms, 100 Hz, 1%, FTC) |
Speakers Frequency Response | Front L/R Speakers: 60 Hz–50 kHz Center Speaker: 60 Hz–50 kHz Surround L/R Speakers: 90 Hz–20 kHz Subwoofer: 25 Hz–150 Hz |
Speakers Sensitivity | Front L/R Speakers: 81 dB/W/m Center Speaker: 81 dB/W/m Surround L/R Speakers: 79 dB/W/m |

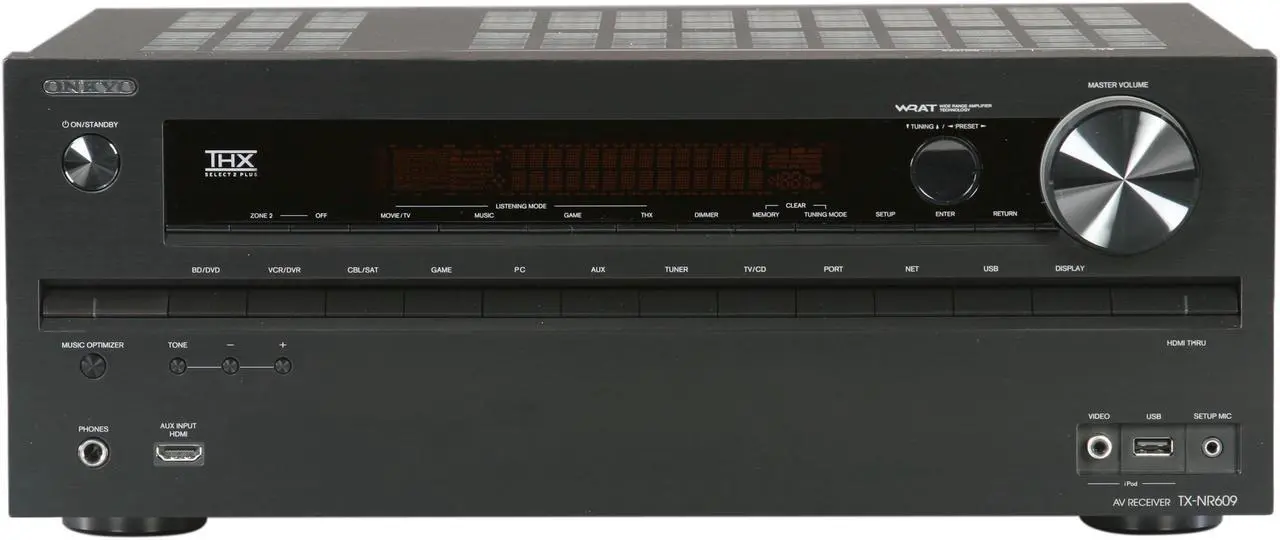

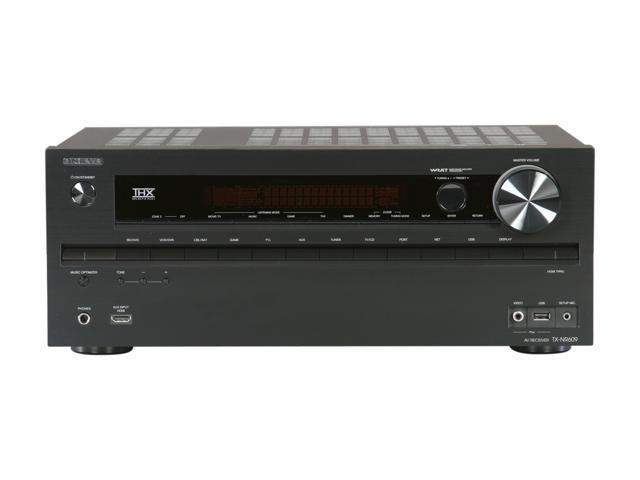

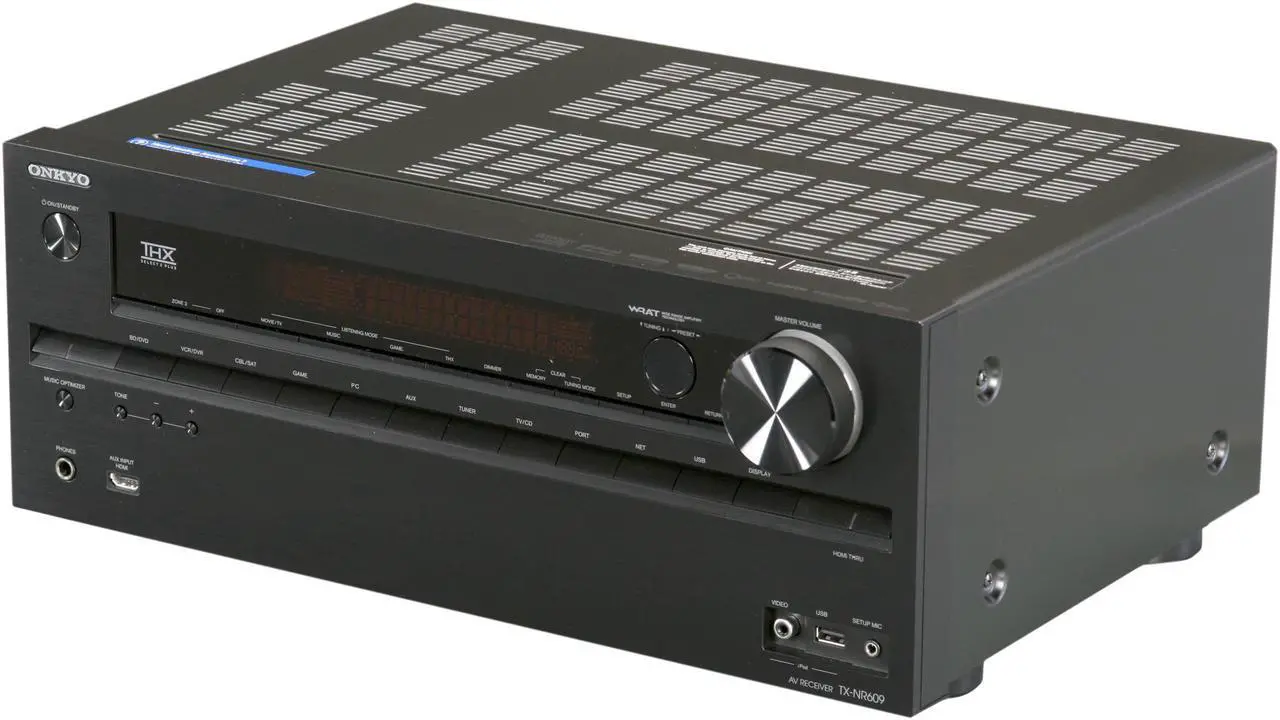

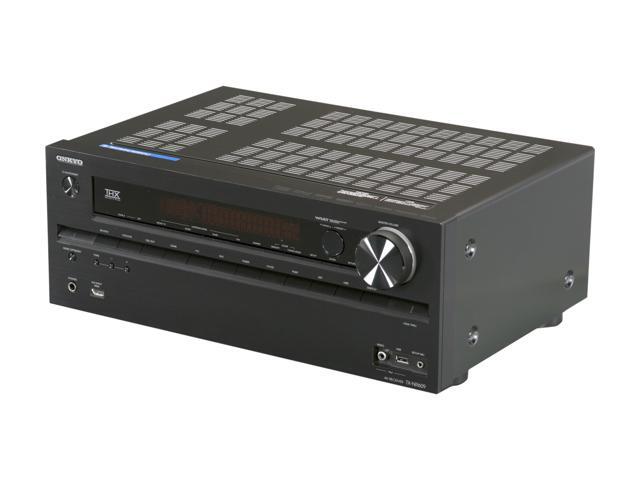

Receivers Spec | Power Output Front L/R: 130 W/Ch (6 ohms, 1 kHz, .07%, 2 channels driven, FTC) / 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.7%, 2 channels driven, FTC) Center: 130 W (6 ohms, 1 kHz, .07%, 2 channels driven, FTC) / 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.7%, 2 channels driven, FTC) Surround L/R: 130 W/Ch (6 ohms, 1 kHz, .07%, 2 channels driven, FTC) / 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.7%, 2 channels driven, FTC) Surround Back L/R or Front High L/R: 130 W/Ch (6 ohms, 1 kHz, .07%, 2 channels driven, FTC) / 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.7%, 2 channels driven, FTC) Dynamic Power: 180 W (3 ohms, Front) / 160 W (4 ohms, Front) / 100 W (8 ohms, Front) THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, Half power) Damping Factor: 60 (Front, 1 kHz, 8 ohms) Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line) Rated RCA Output Level and Impedance: 200 mV/2.2 k-ohms (Rec out) Maximum RCA Output Level and Impedance: 2.0 V/2.2 k-ohms (Rec out) Frequency Response: 20 Hz–50 kHz/+1 dB, -3 dB (DSP bypass) Tone Control: ±10 dB, 50 Hz (Bass) / ±10 dB, 20 kHz (Treble) Signal-to-Noise Ratio: 100 dB (Line, IHF-A) Speaker Impedance: 6 ohms–16 ohms Video Input Sensitivity/Output Level and Impedance: 1.0 Vp–p/75 ohms (Component Y) / 0.7 Vp–p/75 ohms (Component PB/CB, PR/CR) / 1.0 Vp–p/75 ohms (Composite) Component Video Frequency Response: 5Hz - 100MHz/0 dB, -3 dB Power Consumption: 4.5 A |
D/A Converter | 192 kHz/24-Bit Audio D/A Converter |
AM/FM Tuner | Tuning Frequency Range: FM 87.5 MHz–107.9 MHz / AM 530 kHz–1,710 kHz FM/AM Preset Memory: 40 stations |

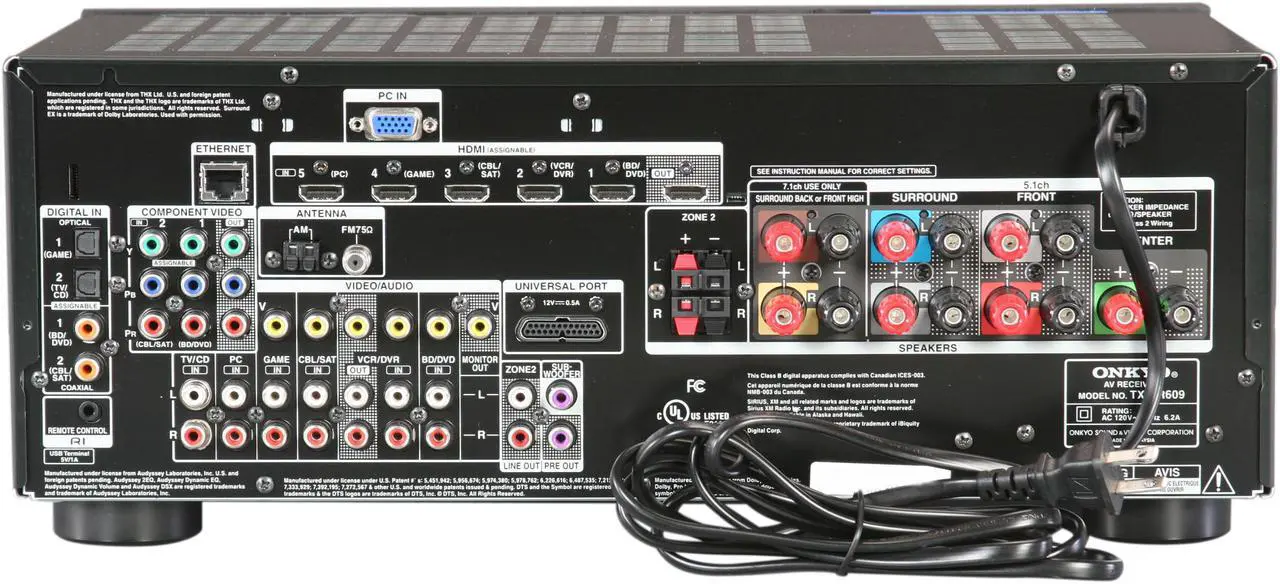

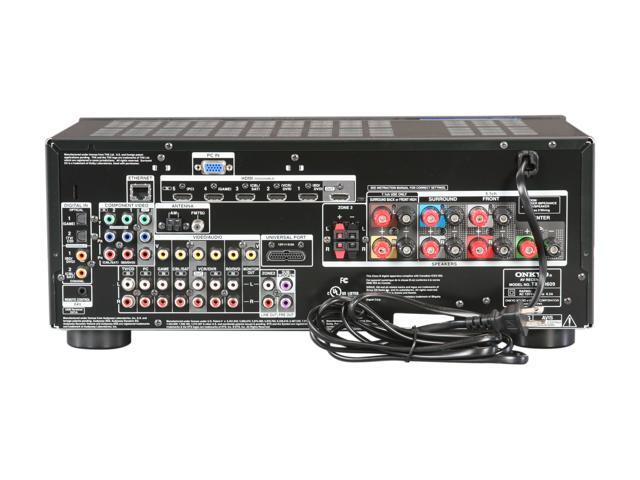

Input | Audio Inputs: 6 Optical Digital Audio Inputs: 2 Coax Digital Audio Inputs: 2 Composite Inputs: 5 Component Video Inputs: 2 Front-Panel USB Input (made for iPod/iPhone): 1 HDMI Inputs: 4 PC Input (15 pin D-sub): Yes Ethernet Input: 1 |
Output | Audio Outputs: 1 Composite Output: 1 Component Video Output: 1 HDMI Output: 1 Analog Pre-Outs: Sub Zone 2 Line Out: Yes Color-Coded Speaker Terminals: Yes |
Power Supply | AC 120 V~, 60 Hz |
Features | HDMI Support for 3 D Video and Audio Return Channel Network Capability Delivers Internet Radio and Network Audio Streaming via Ethernet Direct Digital Connection of iPod/iPhone via Front-Panel USB Port Onkyo Remote App for iPod/iPhone 4K Video Upscaling and Processing via Qdeo Technology A Suite of Audyssey Technologies for the Ideal Listening Environment |
---|

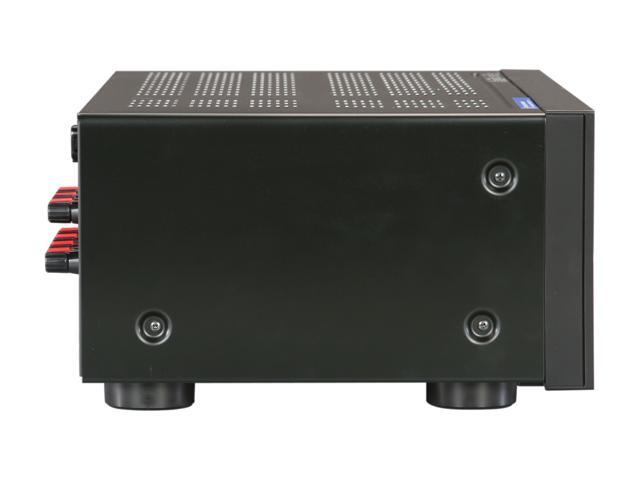

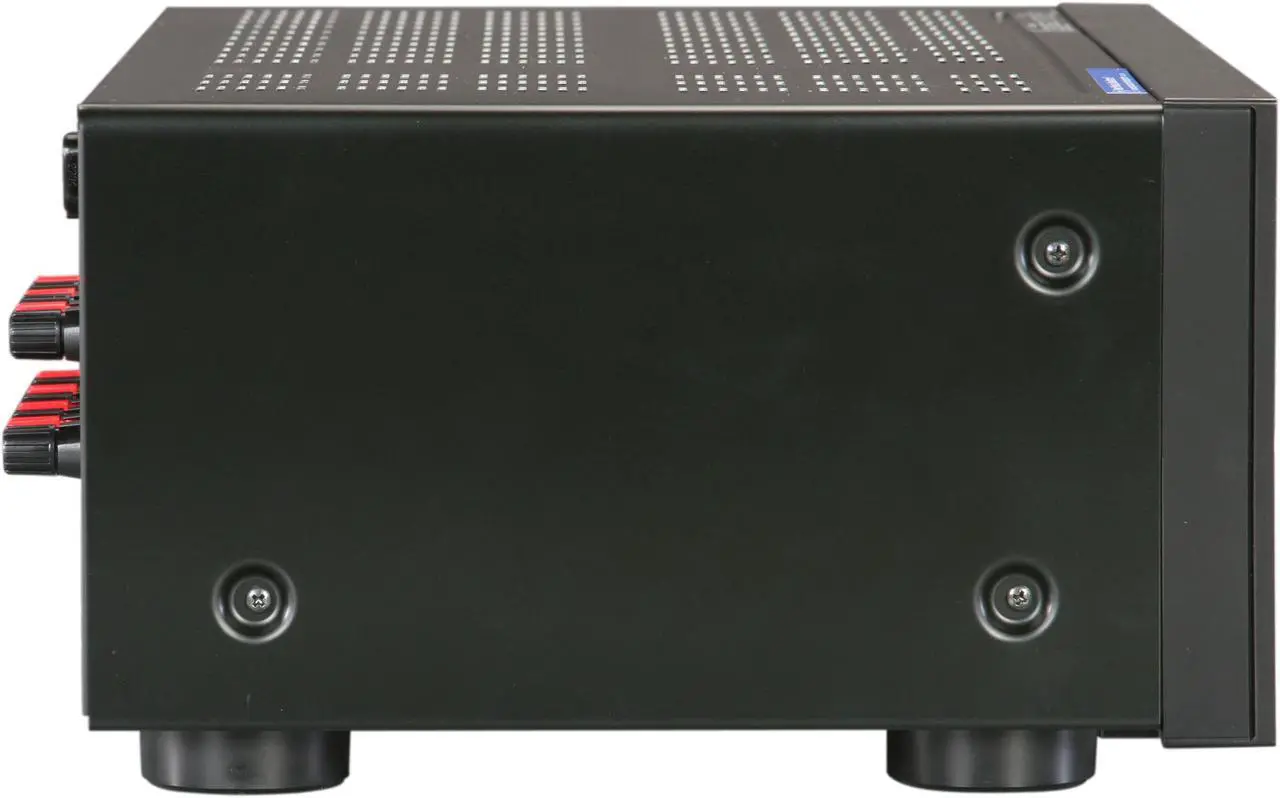

Dimensions | Receiver (W x H x D): 17.1" x 6.8" x 12.9" (435 x 173.5 x 328 mm) Front L/R Speakers (W x H x D): 4.7" x 11.4" x 4.0" (120 x 290 x 102 mm) Center Speaker (W x H x D): 11.4" x 4.8" x 4.5" (290 x 122 x 113 mm) Surround L/R Speakers (W x H x D): 4.7" x 11.4" x 4.0" (120 x 290 x 102 mm) Subwoofer (W x H x D): 10.8" x 20.0" x 16.2" (275 x 507 x 411 mm) |
---|---|
Weight | Receiver: 19.2 lbs. (8.7 kg) Front L/R Speakers: 2.4 lbs. (1.1 kg) Center Speaker: 2.4 lbs. (1.1 kg) Surround L/R Speakers: 1.8 lbs. (0.8 kg) Subwoofer: 25.6 lbs. (11.6 kg) |
Date First Available | November 03, 2011 |
---|
