ONKYO HTS870 6.1CH THX Home Theater System
- DVD Player not included
- 6.1 Channels
- Type Front: Bass Reflex Center: Bass Reflex Surround: Bass Reflex Surround Back: Bass Reflex Subwoofer: Bass Reflex Powered Nominal Impedance Front: 8 ohm Cen
Specs
Reviews
Learn more about the Onkyo HTS870
| Brand | ONKYO |
|---|---|
| Model | HTS870 |
| Player Type | DVD Player not included |
|---|---|
| Channels | 6.1 |
| Speakers Configuration | Type Front: Bass Reflex Center: Bass Reflex Surround: Bass Reflex Surround Back: Bass Reflex Subwoofer: Bass Reflex Powered Nominal Impedance Front: 8 ohm Center: 8 ohm Surround: 8 ohm Surround Back: 8 ohm Input Impedance (Subwoofer): 15 kohm/Line Max. Power Front (Input): 130 W Center (Input): 130 W Surround (Input): 130 W Surround Back: 130 W Subwoofer (Output): 220 W Frequency Response Front: 55 Hz-35 kHz Center: 65 Hz-35 kHz Surround: 65 Hz-35 kHz Surround Back: 65 Hz-35 kHz Subwoofer: 30 Hz-150 Hz Driver (s) Front: 5 1/4" Cone x 2, 1" Dome Center: 4" Cone x 2, 1" Dome Surround: 4"" Cone, 1" Dome Surround Back: 4" Cone, 1" Dome Subwoofer: 8" Cone x 2 |
| Receivers Spec | Power Output (8 ohm, 1 kHz, FTC): 130 W/Ch Dynamic Power (4 ohm): 200 W/Ch THD (Rated Power): 0.08 % (all channels) Frequency Response: 20 Hz-100 kHz (+ 1 dB, - 3 dB) Damping Factor (8): 60 S/N Ratio: 100 dB (IHF-A) Tone Control Acoustic Control 1: +/- 10 dB at 50 Hz/+/- 10 dB at 20 kHz Discrete Output Stage: yes Audio Input/Output Terminals: 5/2 Subwoofer Pre Out: yes Preset Station Naming: yes Automatic/Manual Tuning: yes Sleep Timer: yes Headphone Jack: yes RI-Compatible Remote Control: yes |
| AM/FM Tuner | Tuning Range FM: 87.5 to 108.0 MHz (50 kHz steps) AM: 530 to 1710 kHz (10 kHz steps) Usable Sensitivity FM Mono: 11.2 dBf, 1.0 uV (75 ohm IHF) FM Stereo: 17.2 dBf, 2.0 uV (75 ohm IHF) AM: 30 uV S/N Ratio (FM Mono/FM Stereo/AM): 76 dB (IHF-A)/70 dB (IHF-A)/40 dB THD (FM Mono/FM Stereo/AM): 0.2 %/0.3 %/0.7 % FM Stereo Separation: 45 dB at 1 kHz, 30 dB at 100 Hz-10 kHz |

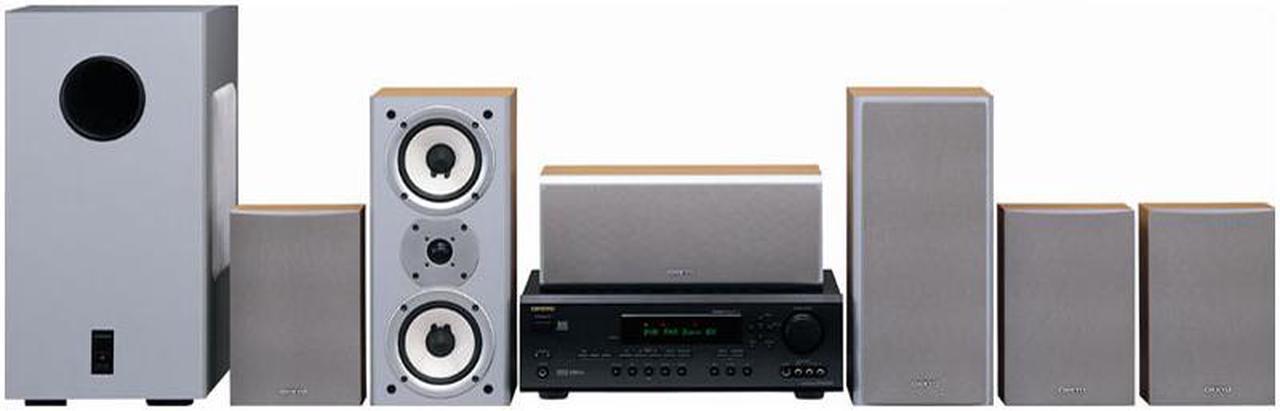

| Features | If you’re going to own a DVD player that takes your video experience to unprecedented levels, it makes sense to take your sound experience to the same level—especially in this era of integrated home theater. With the HT-S870 receiver/speaker package, Onkyo has paired the 6.1- channel THX Select HT-R820THX A/V receiver with the HTP-820 speaker system to achieve a pitch perfect sound quality that will complement the sharpest of video images available. Dolby Digital EX / Pro-Logic IIx, DTS, WRAT, THX Surround EX |
|---|
| Date First Available | May 25, 2005 |
|---|
