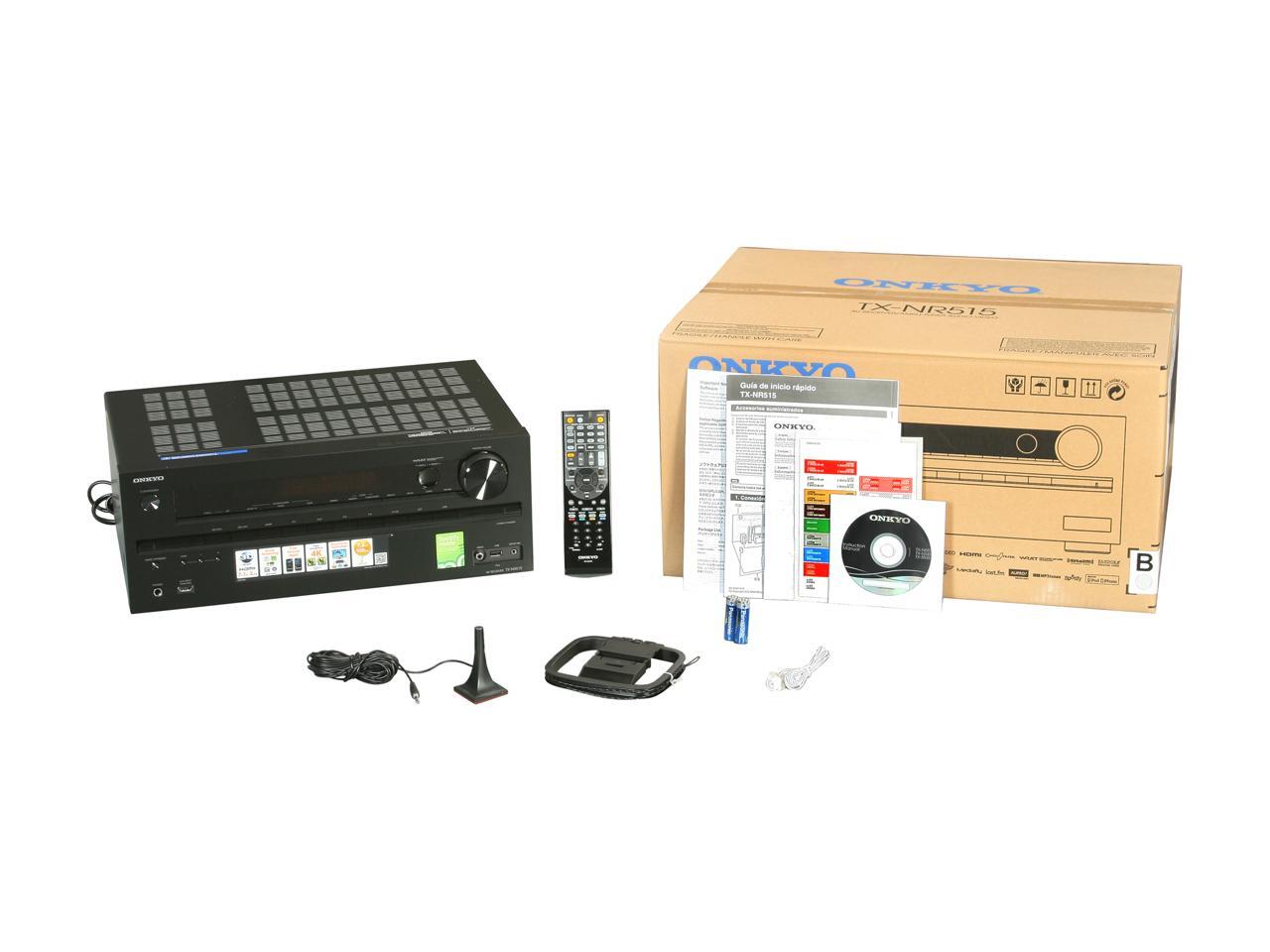

The TX-NR515 receiver checks off every box on your home theater wishlist.


	Unequaled Audio Performance
	100 watts of power per 7.2 channels Onkyo’s acclaimed WRAT amplifier with three-stage inverted Darlington circuitry delivers cinema-like power Dolby® Pro Logic® IIz expansion Audyssey DSX™ expansion to add extra Wide or Height channels Audyssey 2EQ for optimal performance in any room
	Unmatched Connectivity That's Easy To Use
	Eight HDMI® inputs / 2 out Home networking & Wireless-ready(with optional UWF-1) the MOST internet radio services and music streaming Intuitive system control, including multiple room playback Onkyo’s remote apps for iPod touch®/iPhone®, Android and Kindle Fire Direct Digital Connection of iPod/iPhone
	Unrivaled Video Performance
	The versatile Qdeo video processor upscales standard video sources on a compatible 4K wide-screen display InstaPrevue provides a live video thumbnail of the available content on your devices connected via HDMI MHL allows you to display full 1080p video and still images from your smartphone on your HDTV

Watch the introductory video for the TX-NR515
and scroll down for more highlights about the top features inside this A/V receiver.

Easy, Live Source Selection This receiver incorporates InstaPrevue visual port management technology, making input source selection much easier. InstaPrevue provides a live video thumbnail of the available content on your devices connected via HDMI. You no longer have to remember that your gaming console is connected to Port 3, or your BD player to Port 1, for example- you can see what's playing and choose accordingly.

MHL

Watch Your Smartphone Content on TV The front-panel HDMI port is designed for the connection of mobile phones and other portable electronic devices using the new MHL standard. MHL allows you to display full 1080p video and still images on your HDTV with up to 7.1 channels of surround sound. Use the receiver's remote to control playback from your phone as it receives a handy recharge.

made for iphone

Direct Digital Connection: The Cleanest Your iPod Can Sound The front-panel USB port lets you play MP3 and AAC stored in an iPod/iPhone, and MP3, WMA, AAC, and FLAC audio files stored on a flash-memory device, and you can use the system's own remote for track selection and playback. Your music will sound much cleaner and clearer, as the audio signal is transported in digital rather than analog form through the direct digital connection.

Have an Apple TV? The Onkyo remote is preset to control Apple TV.
Use it with your Onkyo A/V Receiver. It's all integrated, and it all works together beautifully.

apple tv friendly

Free Apps: Seamless Control & Streaming The Onkyo Remote App 2 for iPod touch/iPhone¹ and Onkyo Remote for Android² and Kindle Fire provide an intuitive way to operate Onkyo network A/V receivers. Control input sources, adjust settings, and play audio stored in a smartphone wirelessly (Android and Kindle Fire only) using the application's interactive graphical display. The Remote Apps are available separately as free downloads.

Audyssey for Onkyo

Audyssey Room Correction: You'll Hear The Difference

Audyssey 2EQ tailors multi-channel audio for your home theater speaker set-up by measuring three room positions and applying a resolution filter to the satellite speakers to correct for room acoustics.
Audyssey Dynamic EQ® maintains a consistent bass response, tonal balance, and surround-sound effect at different volume levels, so you can enjoy the natural dynamics of your content regardless of the volume.
Audyssey Dynamic Volume® automatically compensates for volume fluctuations in different audio content, for example, during commercial breaks, while optimizing the dynamic range.

Save Power With Hybrid Standby Hybrid Standby provides 'HDMI through' functionality while the receiver sleeps, so you don't have to fully power up to watch a Blu-ray or play a game using just your TV's sound. The receiver also maintains a local network connection when on Hybrid Standby mode, so you can switch the unit on at any time using the Onkyo remote apps for iPod touch/iPhone and Android.

Comparison Data

	TX-NR616	TX-NR515	TX-NR414	TX-SR313
Power Output (per channel)	115 W	100 W	80 W	65 W
Channels	7.2	7.2	5.1	5.1
THX Certified	Select2 Plus	—	—	—
3D-ready: HDMI In/Out	7+1/2	7+1/2	6/1	4/1
WRAT (Wide Range Amplifier Technology)	?	?	?	?
Surround Sound Formats	Audyssey DSX, Dolby Pro Logic IIz, Dolby TueHD, DTS-HD Master Audio	Dolby Pro Logic IIz, Dolby TueHD, DTS-HD Master Audio	Dolby TueHD, DTS-HD Master Audio	Dolby TueHD, DTS-HD Master Audio
Audyssey Room Calibration	2EQ	2EQ	—	—
Cloud Audio Streaming	?	?	?	—
Internet Radio	?	?	?	—
Remote App for iPhone / Android / Kindle Fire	?	?	?	—
HDMI Video Upscaling	Up to 4K	Up to 4K	—	—
Video Upconversion (Analog to HDMI)	?	?	—	—
InstaPrevue Technology	?	?	?	—
MHL (Mobile High-Definition Link)	?	?	—	—
Multi-Zone Playback	Powered Zone 2, Zone 2/3 Line Outs	Powered Zone 2, Zone 2 Line Out	Zone 2 Line Out	—
WRAT (Wide Range Amplifier Technology)	?	?	?	?
Hybrid Standby Energy Saving State	?	?	?	—
On-Screen Display via HDMI	1080p	1080p	Text	Text
USB Ports	2 (Front/Rear)	2 (Front/Rear)	1 (Front)	1 (Front)
Wireless Ready	?	?	?	—

© Copyright 2012 Onkyo USA Corporation. All rights reserved.
¹ Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later.
All models require iOS 4.2 or later. ² Requires Android OS 2.1 or later.
Onkyo features and specifications subject to change without notice.

FIRMWARE UPDATE

A firmware update for the TX-NR515 and TX-NR616 is now available. This update is available ONLY via USB. This update addresses the HDMI video output issue some customers have been experiencing. The update also includes enhancements to both the TX-NR515 and TX-NR616. More details can be found on their respective product pages, in the support section on www.onkyousa.com , by contacting Customer Support via email at onkyoadmin@us.onkyo.com or by phone at 1-800-229-1687
