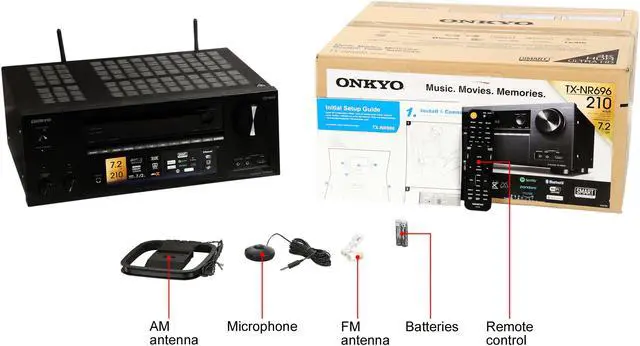

Images from RETAIL item, box contents may vary.

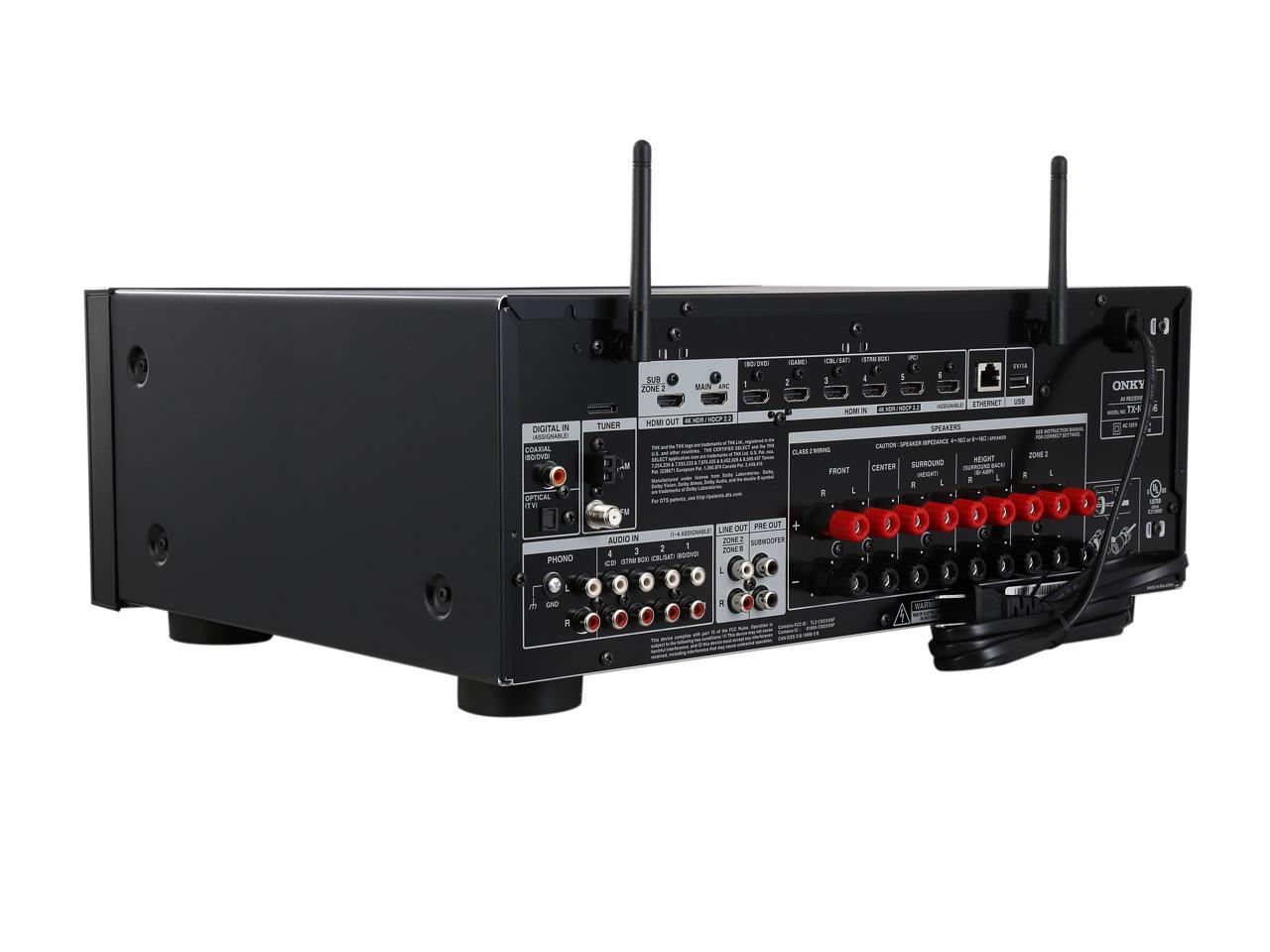

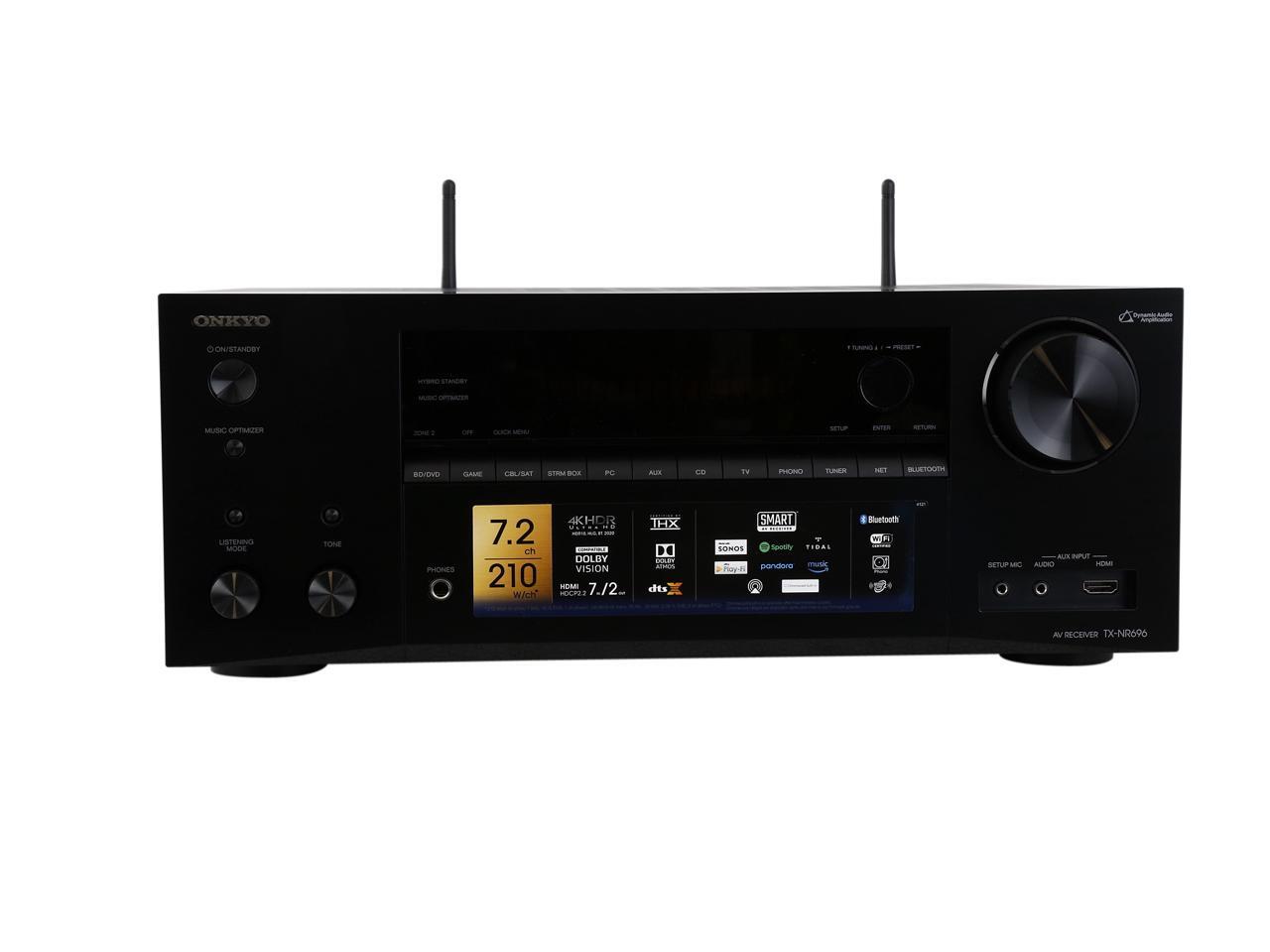

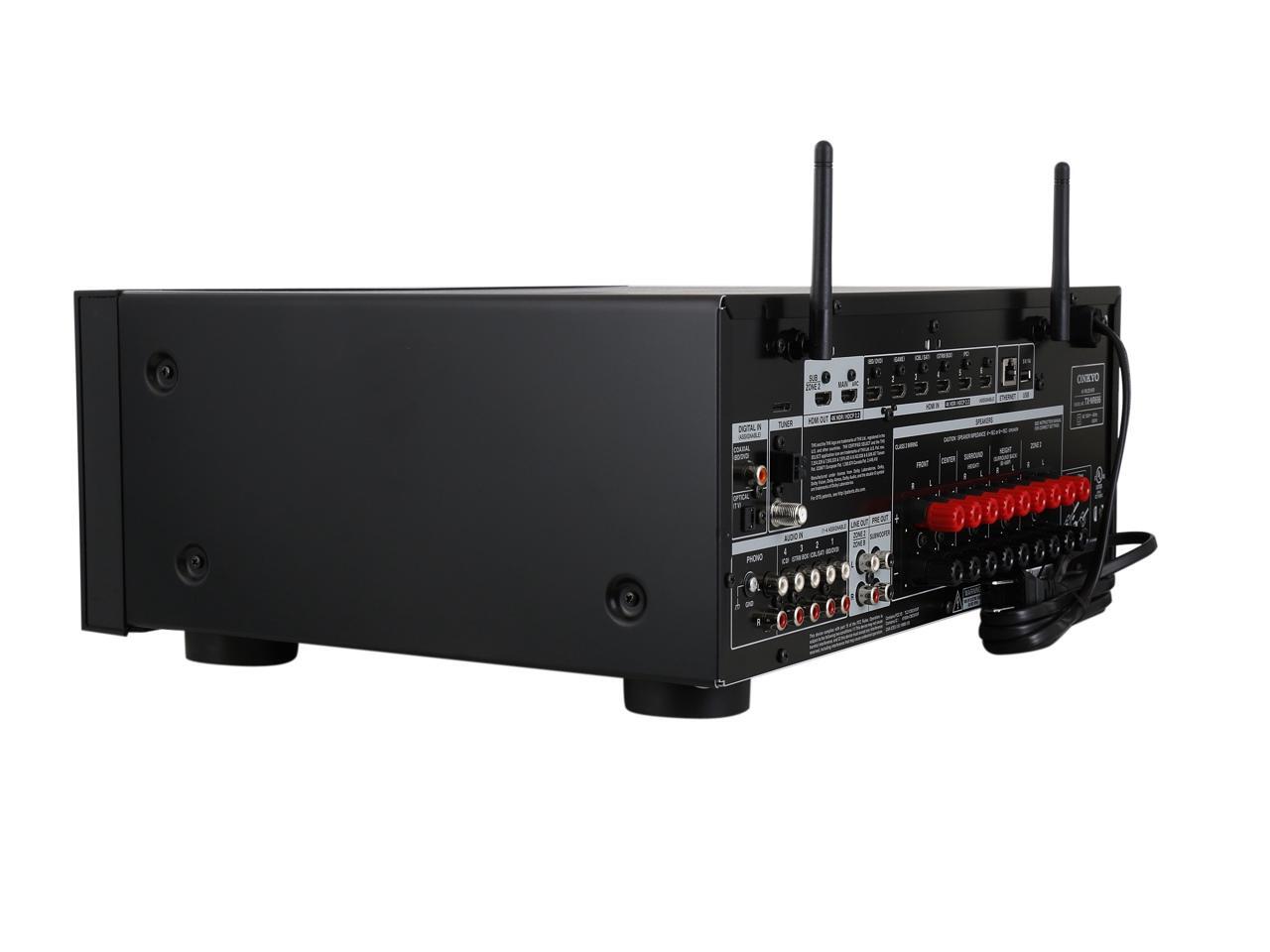

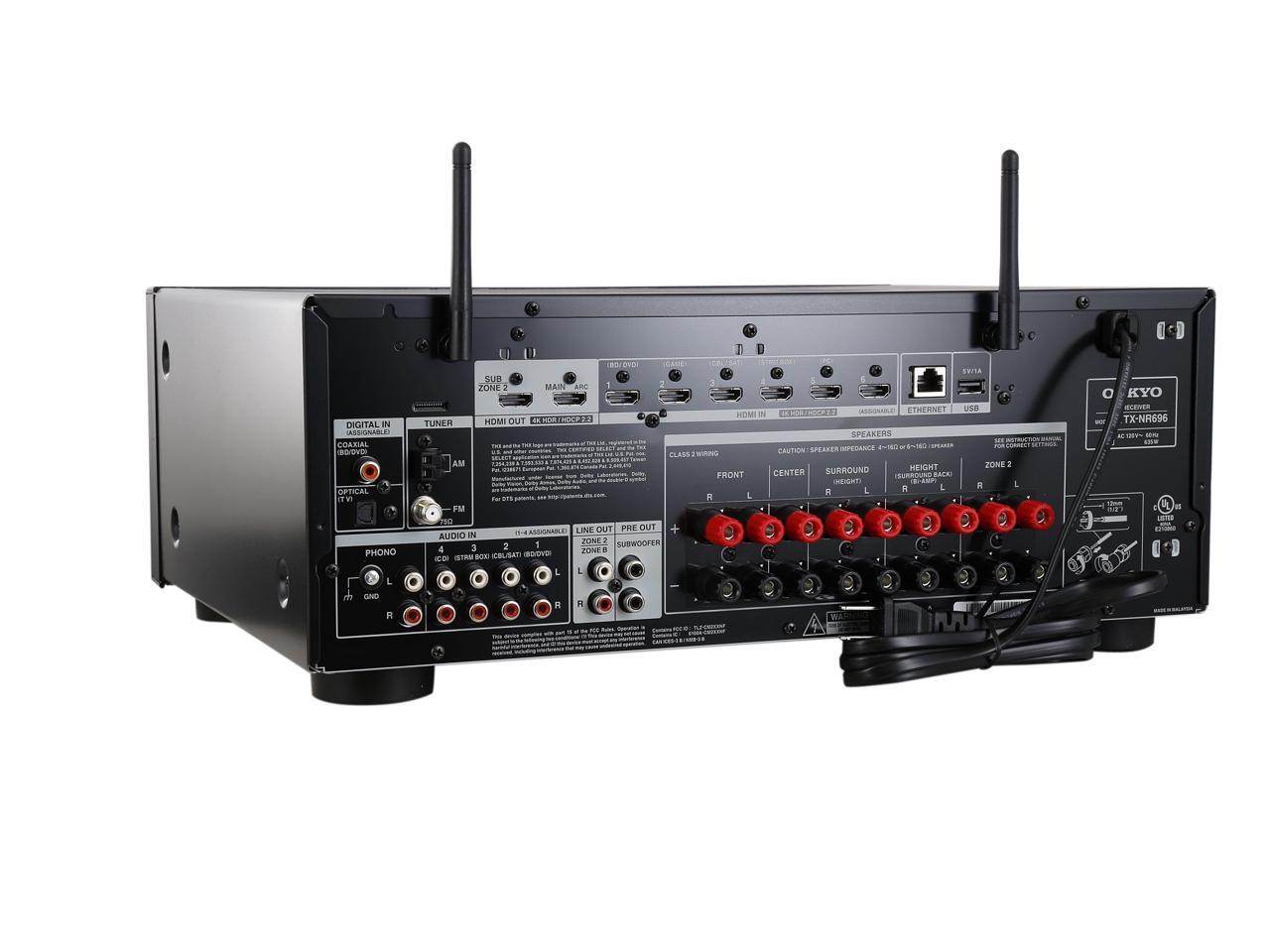

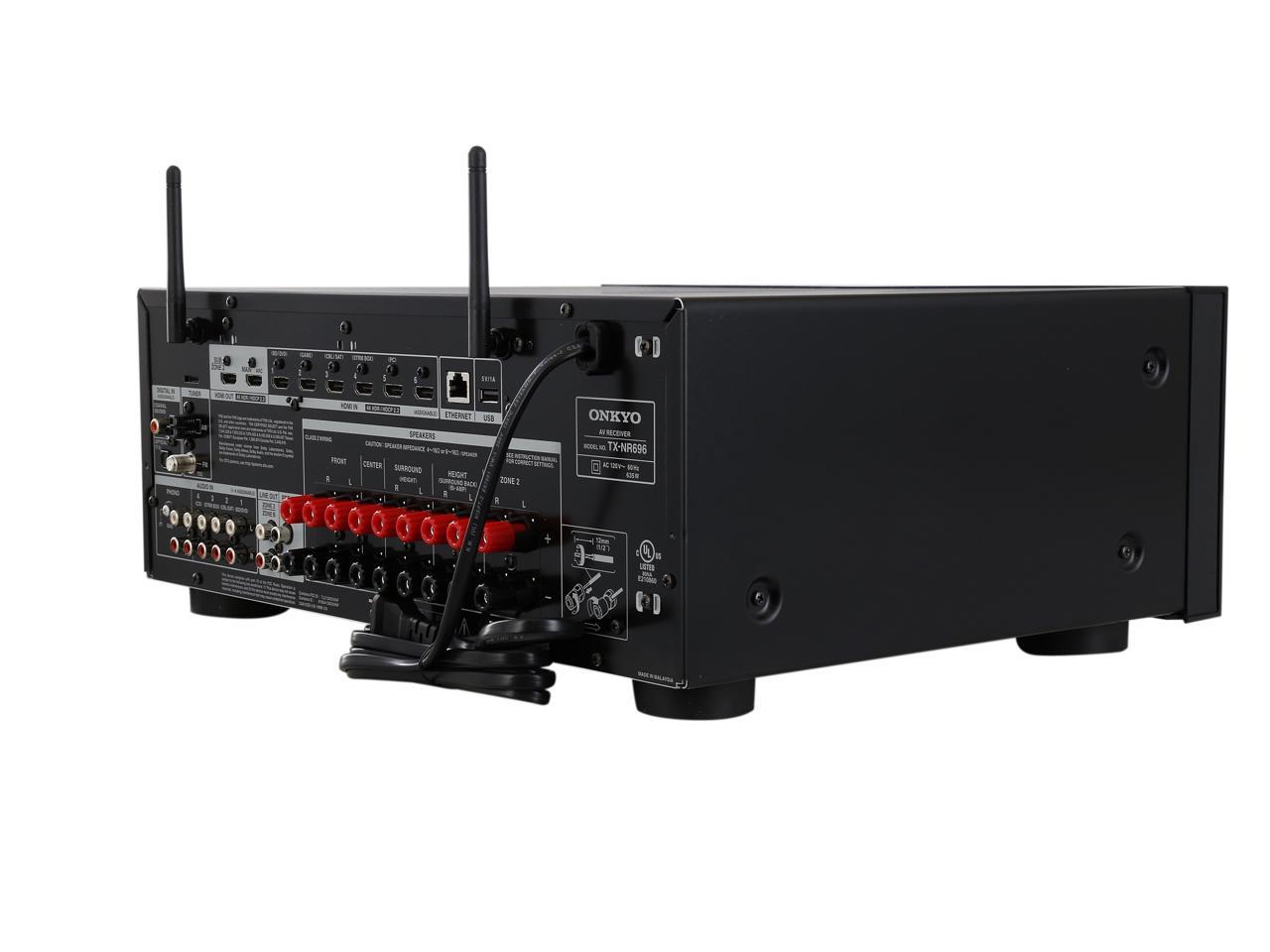

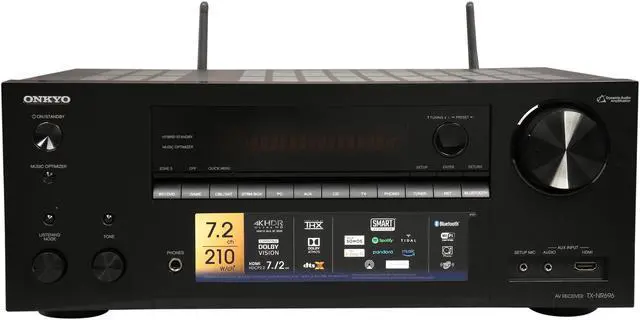

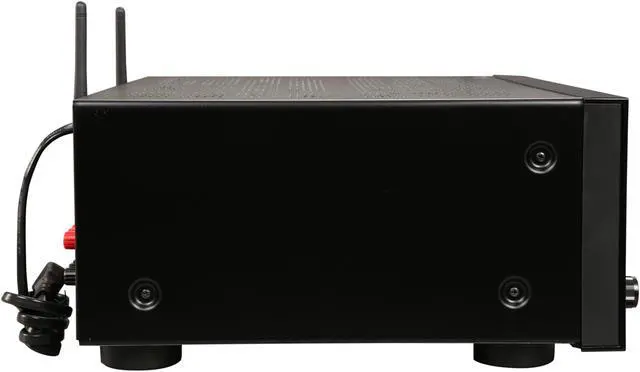

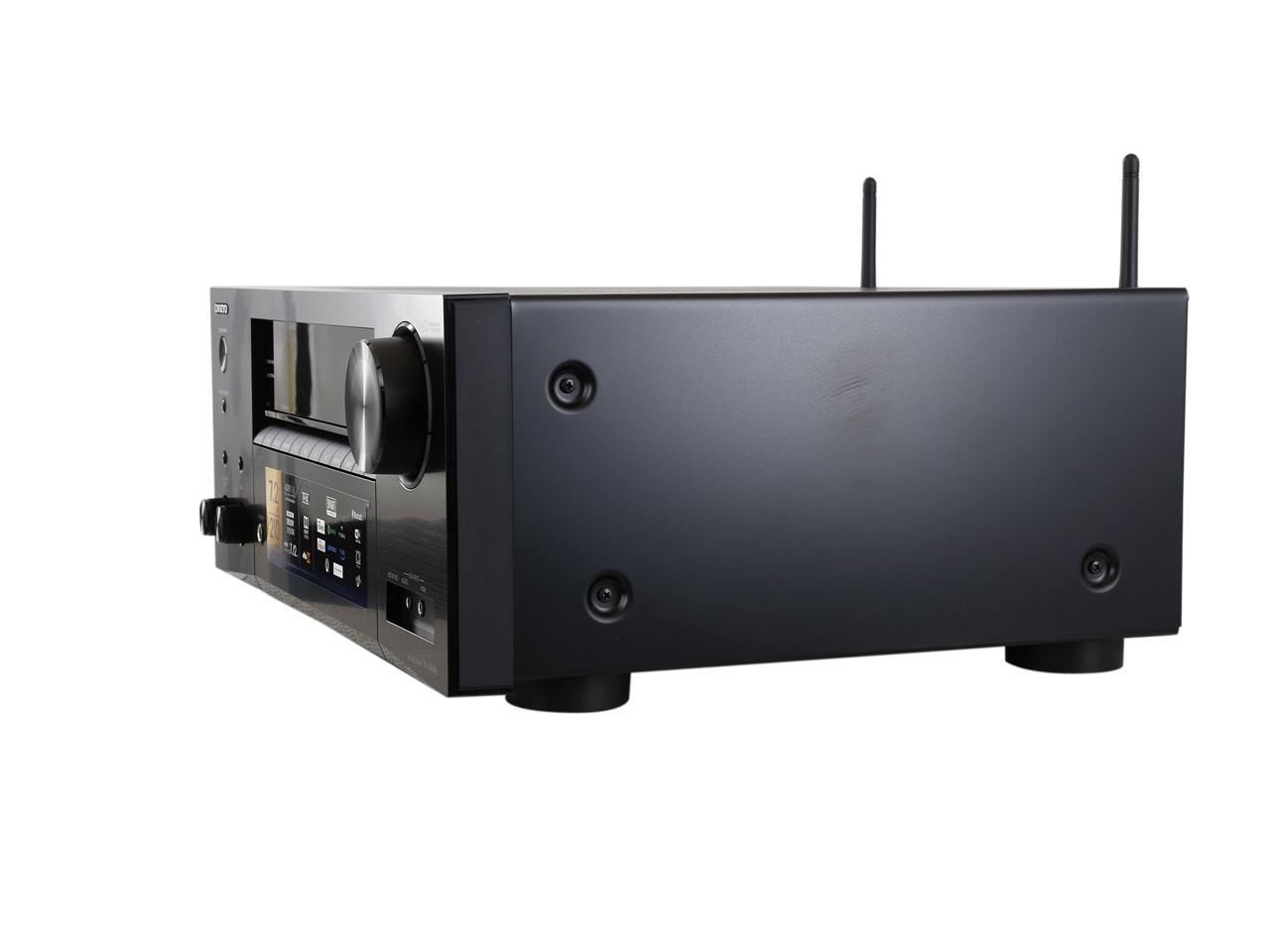

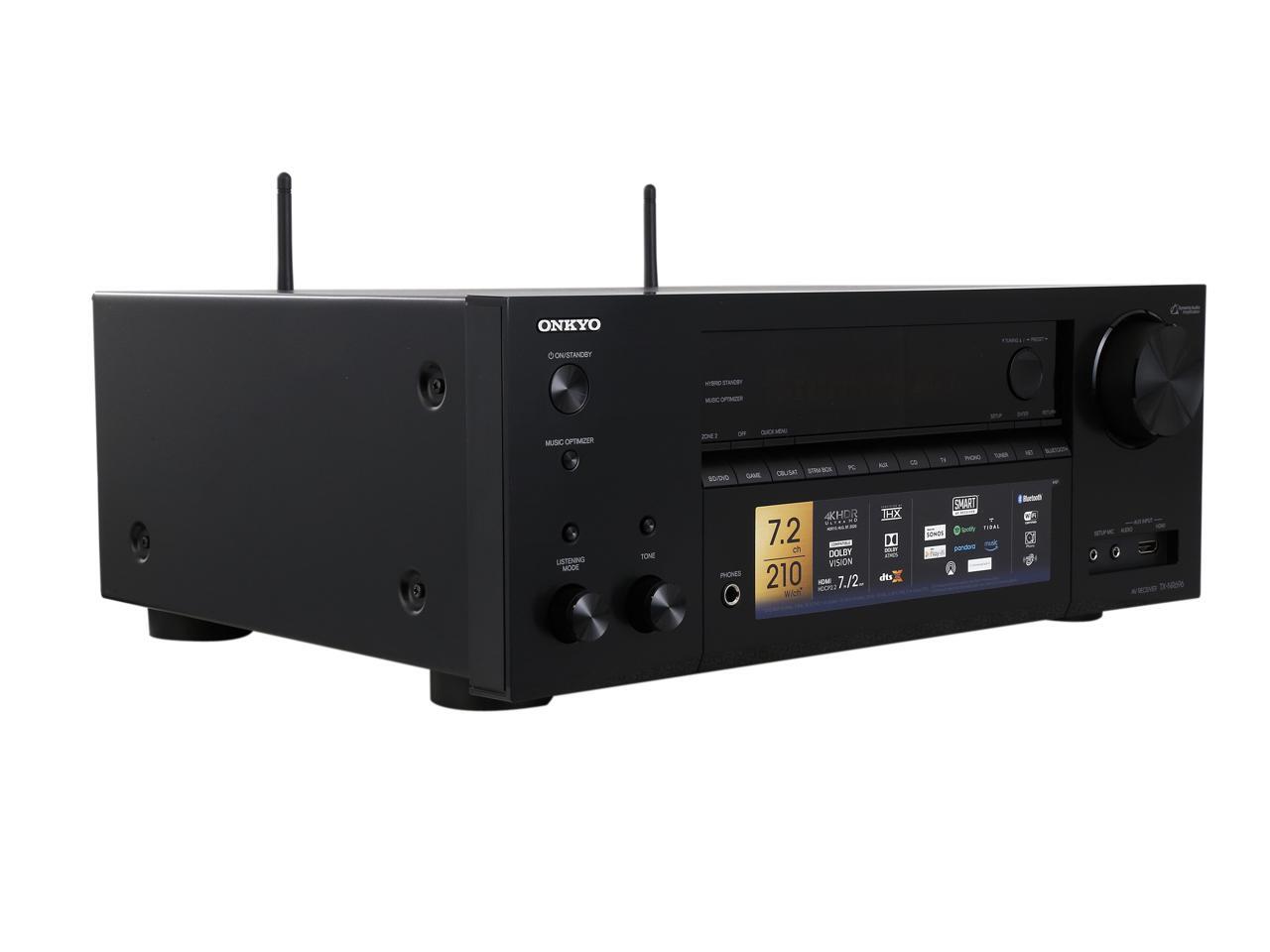

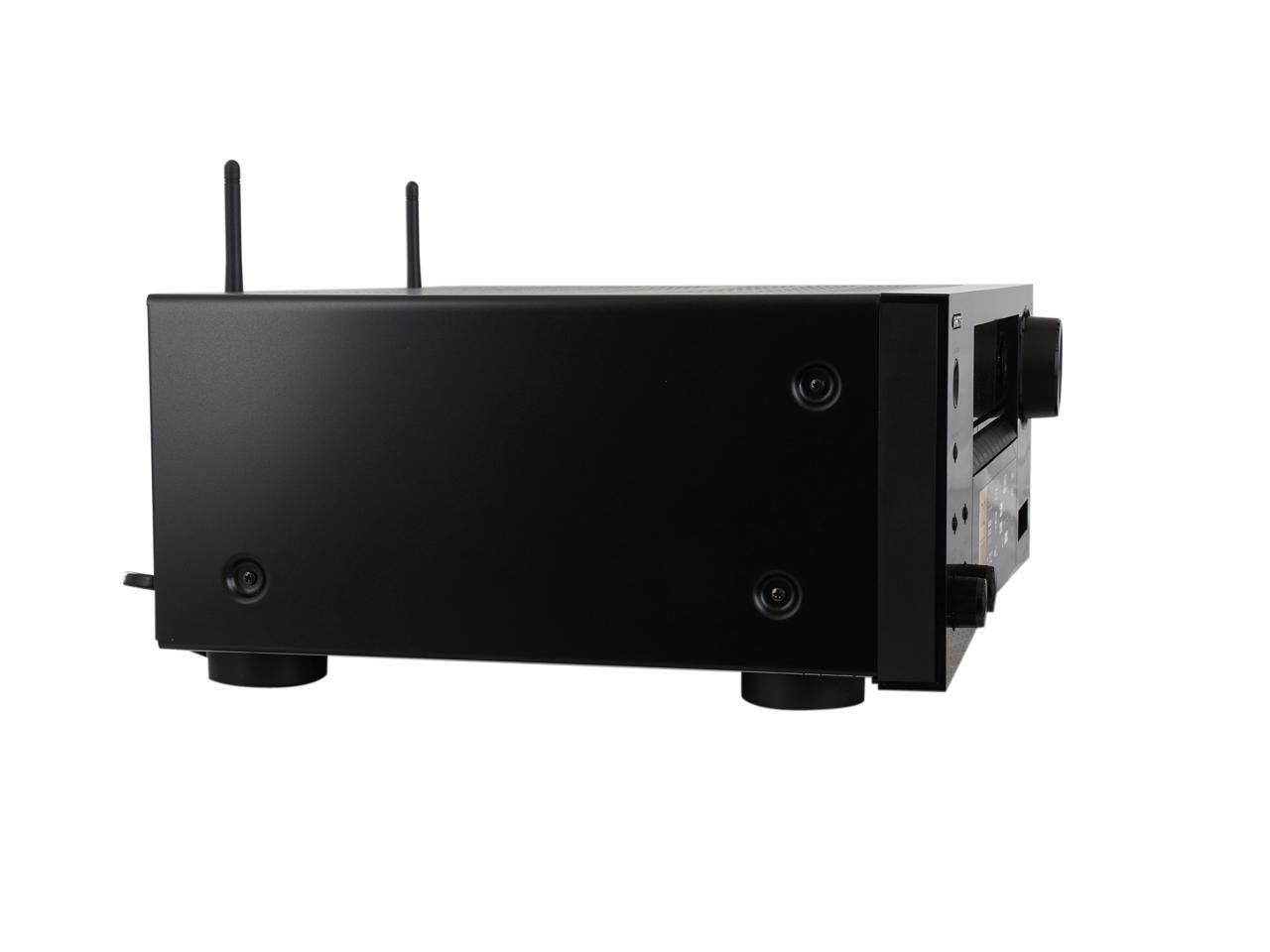

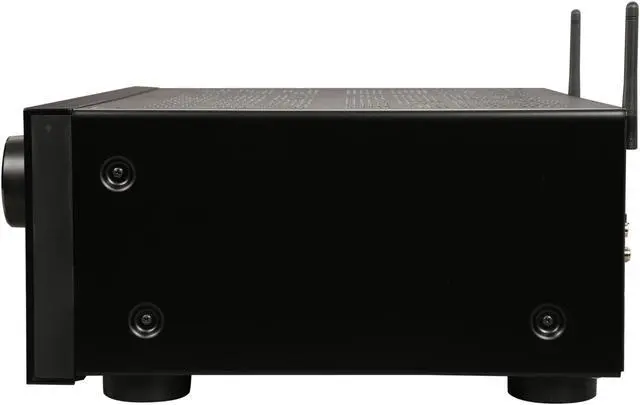

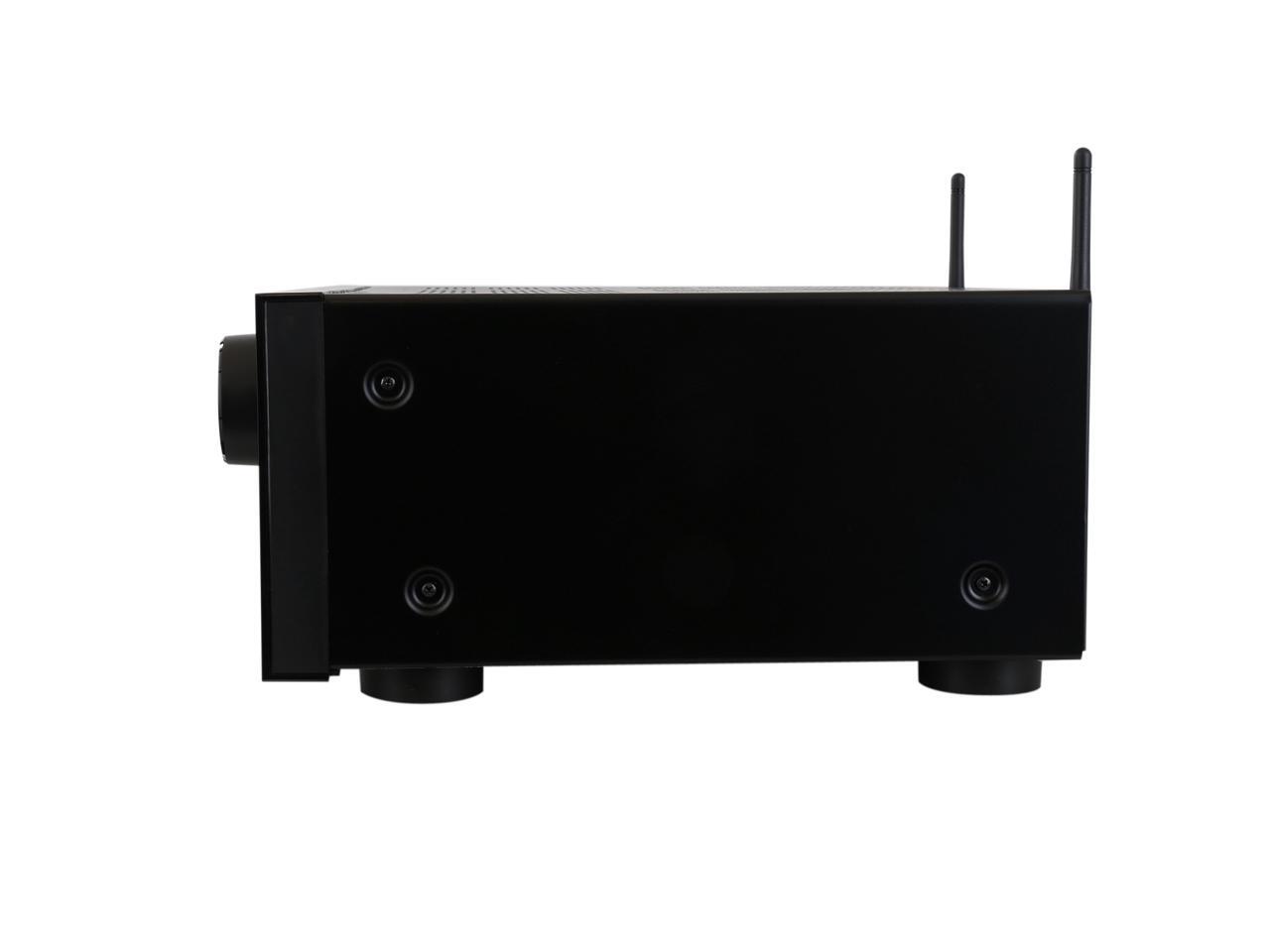

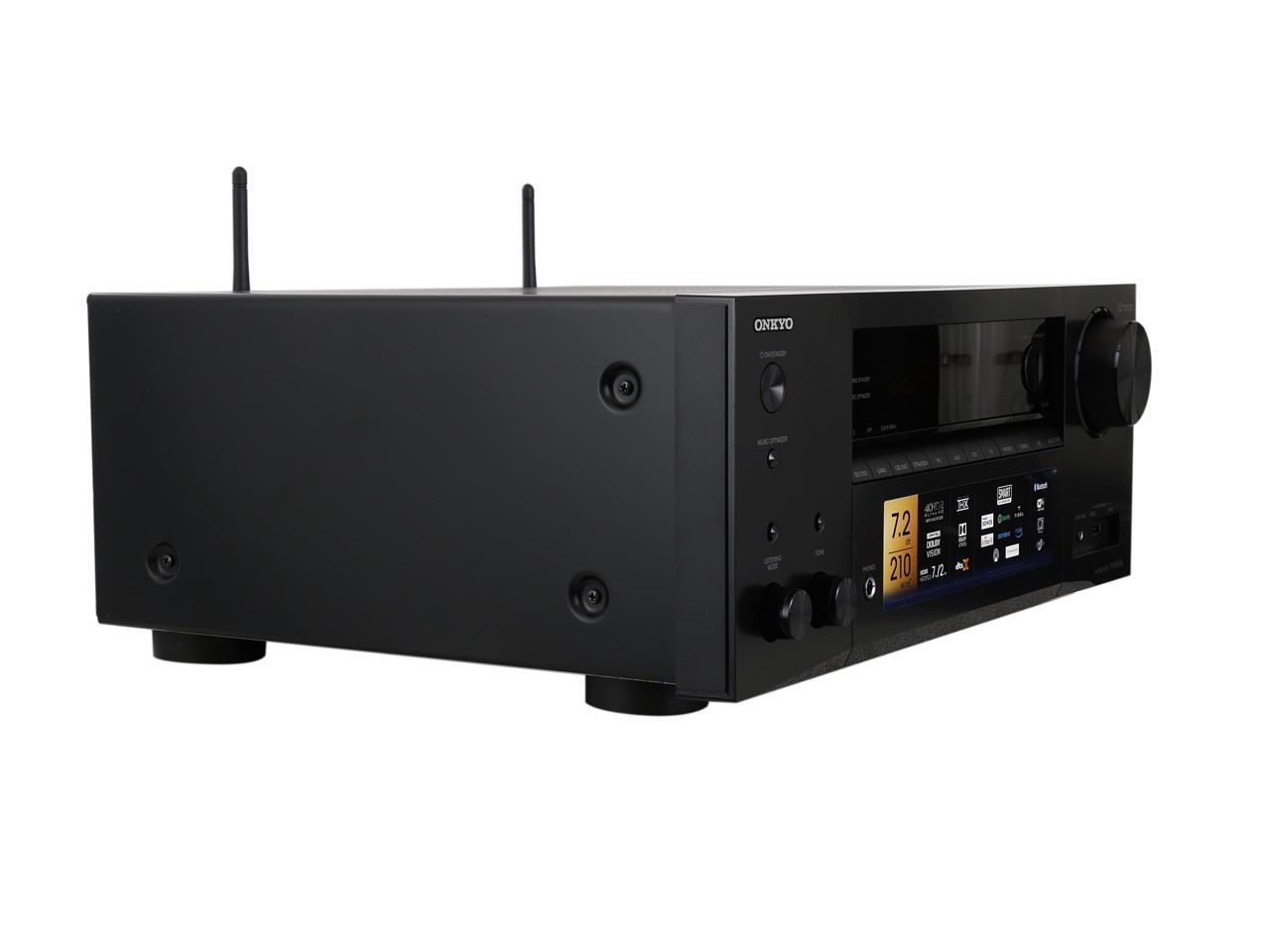

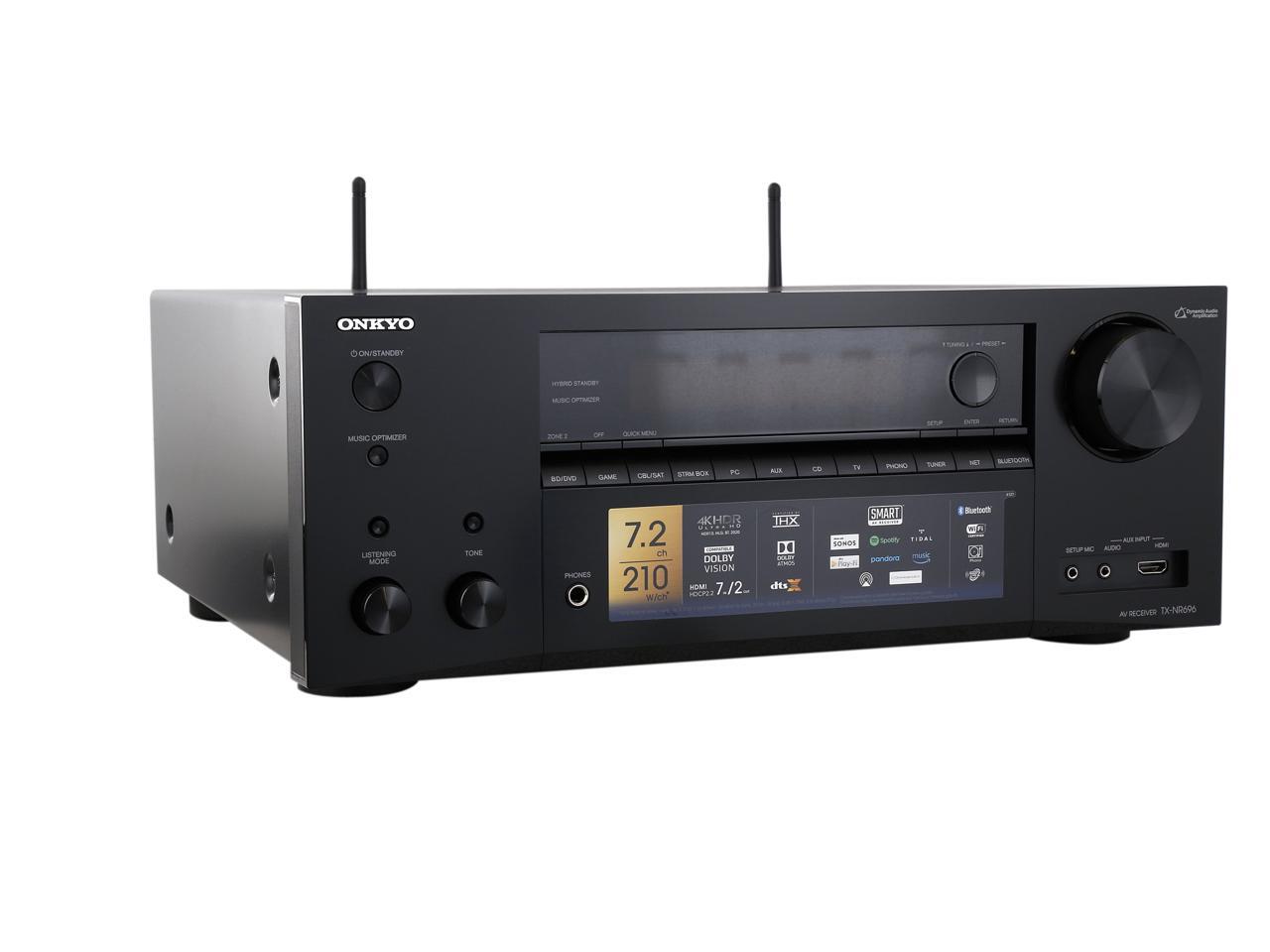

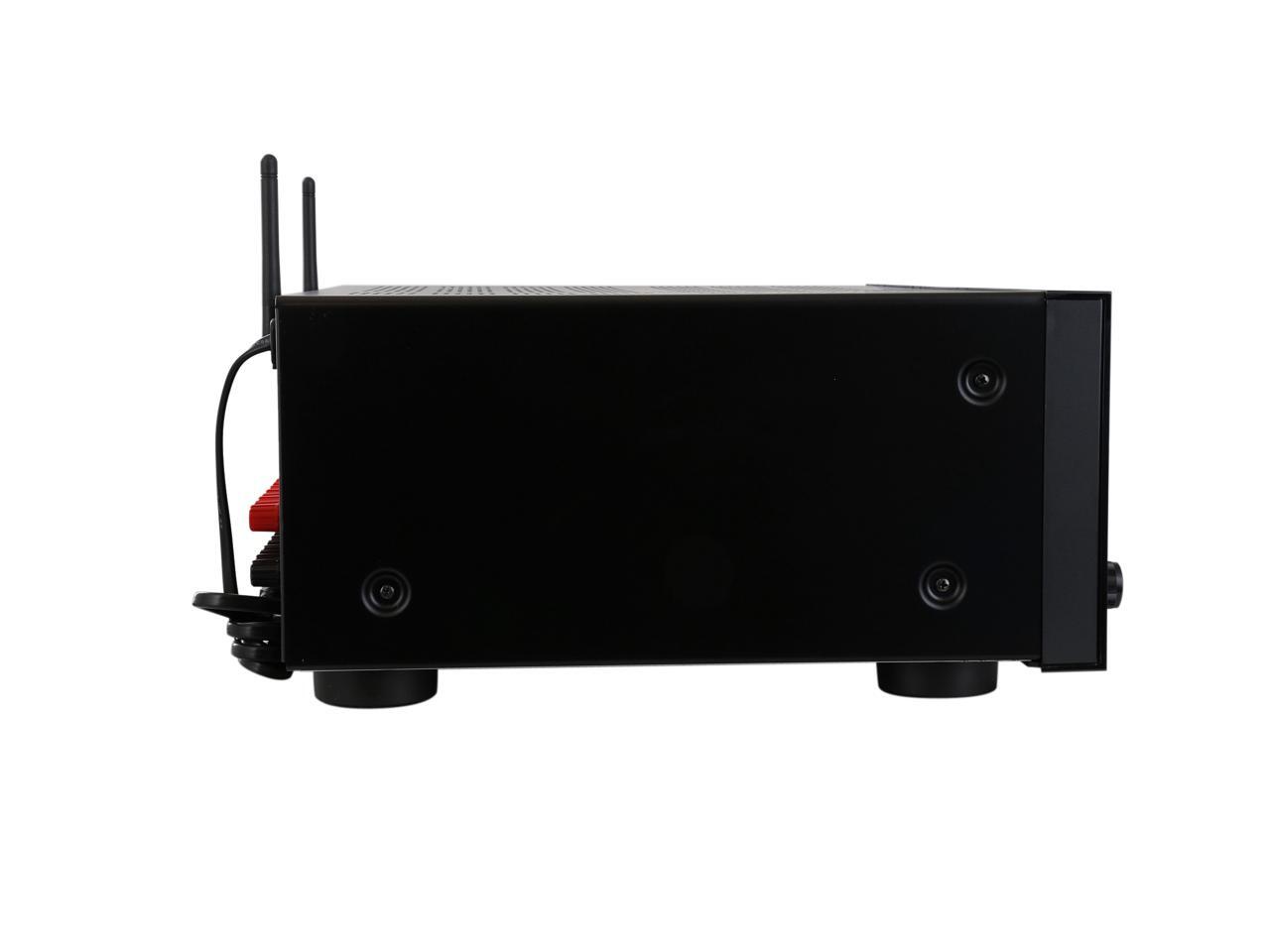

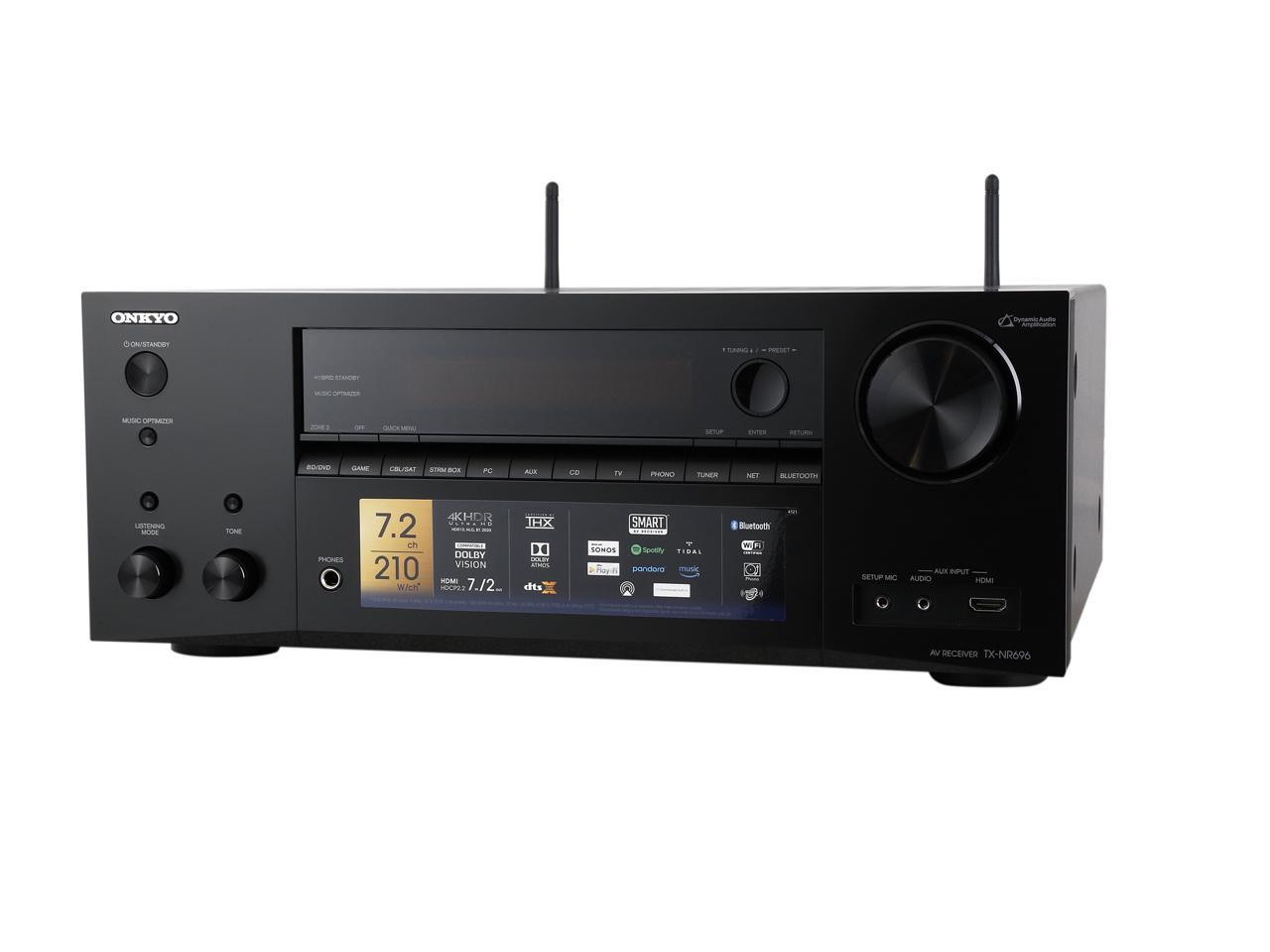

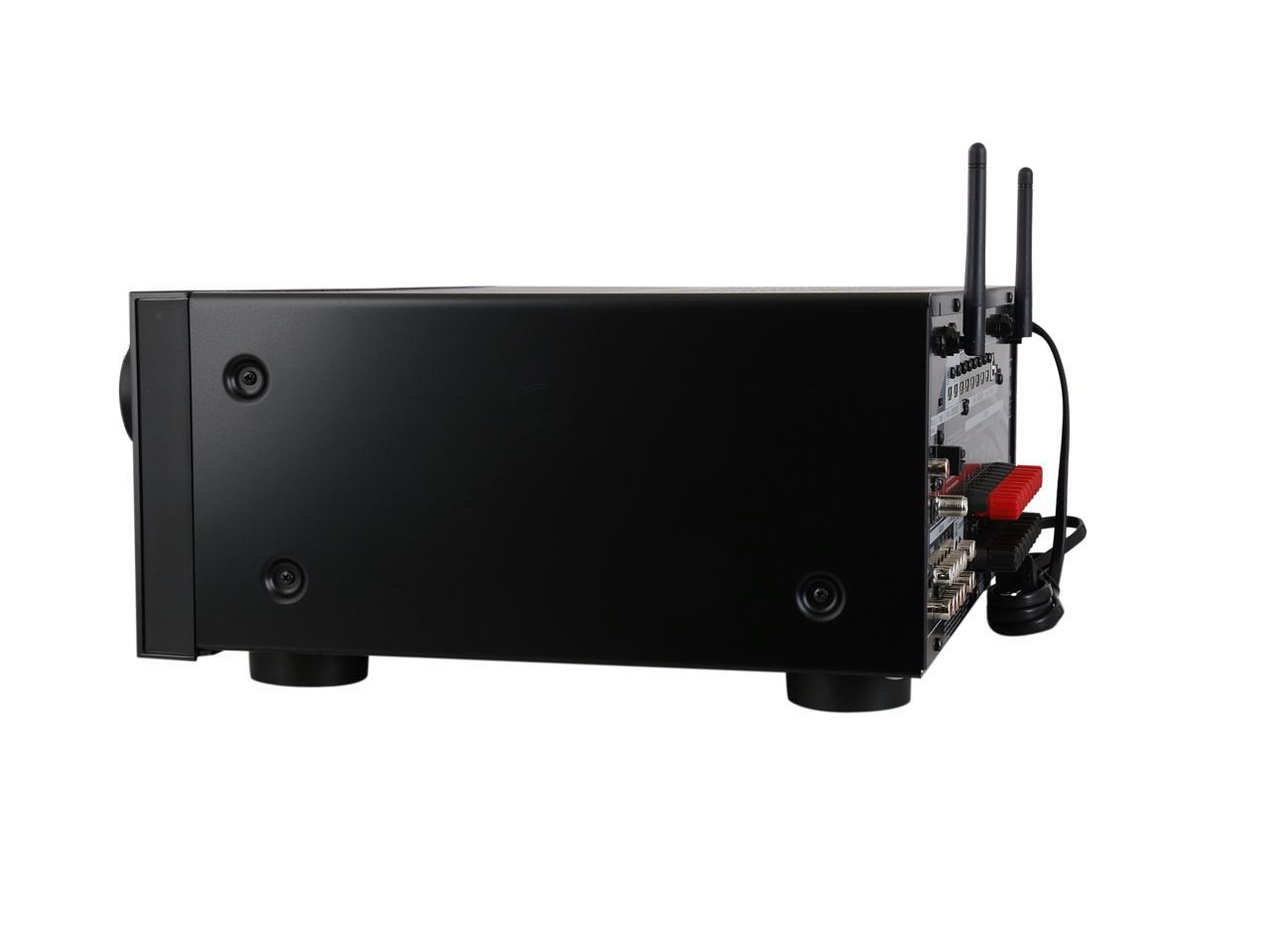

Onkyo TX-NR696 7.2-Channel Network A/V Receiver
OPEN BOX Product Type
- Channels: 7.2
- 100 W/Ch (8 Ohms), 210 W/Ch (6 Ohms) THX Certified Select DAA system
- SMART AV Receiver Works with Sonos, Chromecast built-in, AirPlay 2, DTS Play-Fi, FlareConnect, Spotify, Amazon Music, Pandora, TIDAL, Deezer, TuneIn
- Dolby Atmos Height Virtualizer and DTS Virtual:X
- Refined HDMI grounds, separate SoC board, enhanced
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Onkyo TX-NR696
| Brand | ONKYO |
|---|---|
| Model | TX-NR696 |
| Type | Receiver |
|---|---|
| Channels | 7.2-Channel |
| Power Output | 210 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven), 100 W/Ch (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2 channels driven, FTC) |
|---|---|
| Frequency Response | 10 Hz-100 kHz / +1 dB, -3 dB (Direct Mode) |
| THD | 0.08% (20 Hz-20 kHz, Half Power) |
| Decoder | Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio decoding Dolby Atmos Height Virtualizer and DTS Virtual:X 3D processing Dolby Surround and DTS Neural:X upmixing technology |
| Audio | THX Certified Select certified Dynamic Audio Amplification Custom High-Current Low-Noise Power Transformer Large custom-made audio power capacitors Non-phase-shift amp topology with discrete output stage Strengthened power-supply line for high-current dynamics Refined HDMI grounds, short signal paths reduce noise SoC board remote from audio paths to reduce noise High-current drive handles 4-ohm speaker loads High-grade AKM (AK4458) 384 kHz/32-bit multichannel D/A conversion VLSC (Vector Linear Shaping Circuitry) filtering (Front L/R) PLL (Phase Locked Loop) anti-jitter technology for S/PDIF audio Tone controls (bass/treble) for front L/R channels Sound optimization for games (Rock, Sports, Action, and RPG) SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel) Theater-Dimensional virtual surround-sound function |
| Video | Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG), BT.2020, 4:4:4 color-space, 3D Video, ARC (Audio Return Channel), DeepColor, x.v.Color, and LipSync via HDMI THX listening modes for movies, music, and games |
| FM/AM Tuner | 40 FM/AM random presets |
|---|
| HDMI | 7 In / 2 Out |
|---|---|
| Digital Optical Audio | 1 In |
| Digital Coaxial Audio | 1 In |
| Headphone Jack | 1/4" (6.35 mm) headphone jack (front) |
| USB Port | USB input (5 V/1 A) for audio playback (rear) |
| Network Ready | Ethernet terminal for network connection and IP control |
| Wireless Connectivity | Airplay |

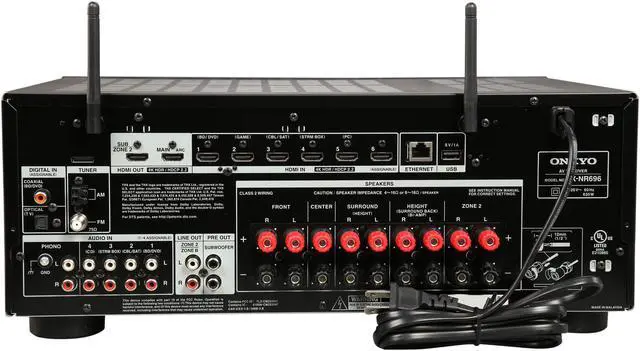

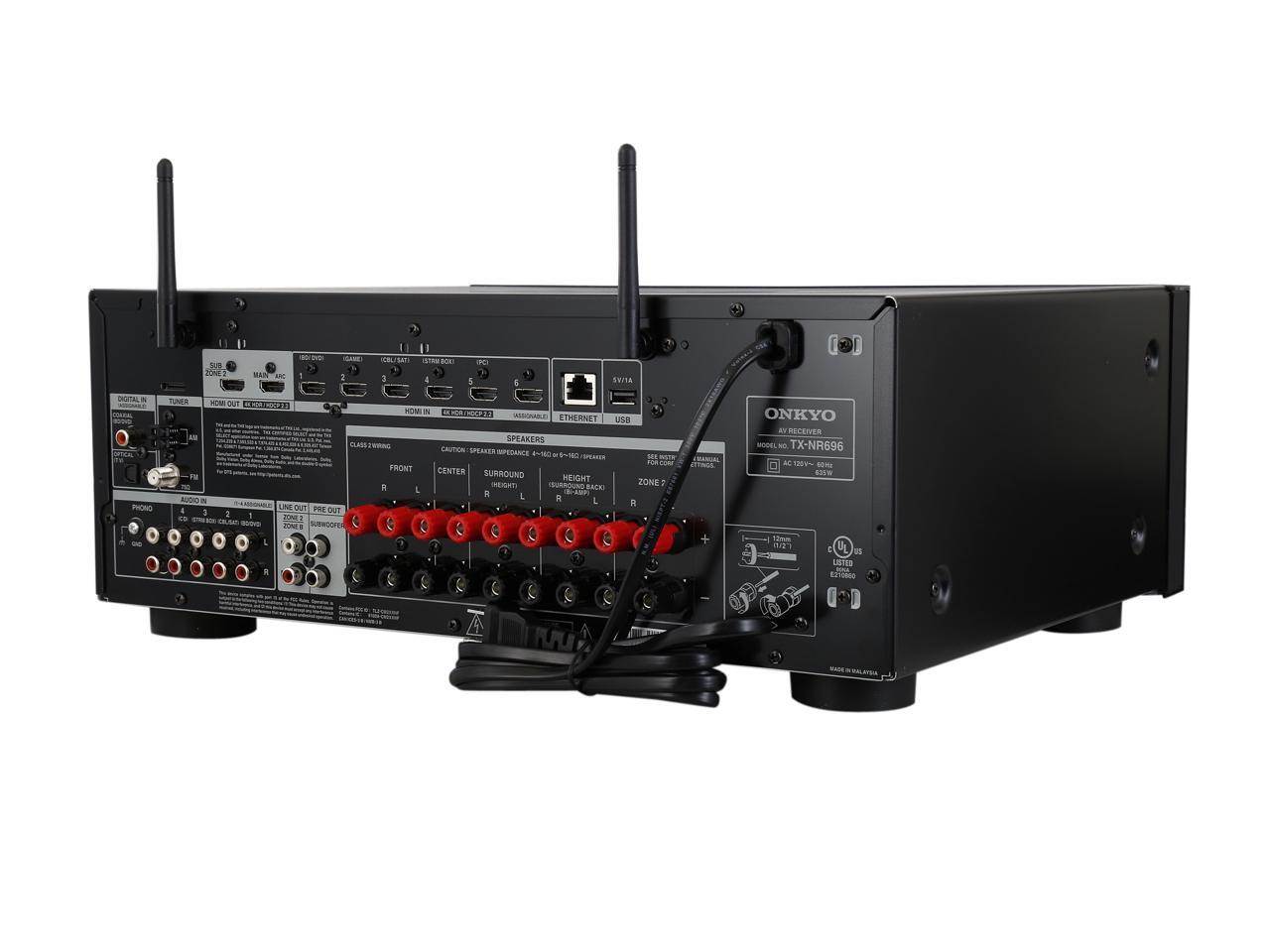

| Other Connectors | 4 analog RCA inputs (assignable) 1/8" (3.5 mm) mini-stereo analog input (front) 1 phono input with built-in MM equalizer for turntable 1/8" (3.5 mm) setup mic input for AccuEQ (front) 2 subwoofer pre-outs Zone 2/Zone B analog RCA line-level output 9 banana-plug-ready speaker posts (including Zone 2 outputs) |
| Power Supply | AC 120 V~, 60 Hz |
|---|---|
| Consumption | 635 W |
| Standby Consumption | 0.15 W |
| Features | NETWORK FEATURES SMART AV Receiver with wireless multi-room audio platforms, streaming service integration, and remote app control Works with Sonos certified for the Sonos Home Sound System Chromecast built-in and voice control with the Google Assistant AirPlay 2 multi-room audio and voice control with Siri DTS Play-Fi multi-room audio via Onkyo Music Control App FlareConnect multi-zone audio with compatible components Quad-core SoC processing evolves network functions and supports high-speed 802.11ac (2x2 MIMO) Wi-Fi specification Supports Onkyo Controller remote and music streaming app Hi-Res Audio playback via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz; FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit) ADVANCED FEATURES AccuEQ Room Acoustic Calibration and AccuReflex DSP Vocal Enhancer boosts dialog audibility via remote keys or front panel Bluetooth wireless technology and Wake on Play Standby with auto input selection supporting select smart speakers Advanced Music Optimizer improves compressed audio playback Zone 2 outputs enable 7-ch Main + Zone 2 connection, 7-ch / 5.2 + Zone 2 switching, Zone 2 DAC for multi-source D/A audio distribution (including HDMI/SPDIF); output via Zone 2 and Zone 2 line-out Front/Height/Surround Back switching (layout dependent) for ambient listening in Stereo Assign Mode Zone 2/Zone B line-out (analog RCA) with Zone 2 DAC connects compatible audio systems for synced/independent D/A playback (including HDMI/SPDIF) in Main and Zone 2; connects compatible transmitters for wireless headphones One-touch volume memory-presets for A/V inputs via front panel 1080p to 4K upscaling and GUI with overlaid OSD via HDMI Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz) A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz) Various standby modes and HDMI pass-through IP control for home automation systems via LAN 3-Mode display dimmer (Normal/Dim/Dimmer) Redesigned simple remote contro |
|---|
| Dimensions | 6.81" x 17.13" x 14.94" |
|---|---|
| Weight | 22.00 lbs. |
| First Listed on Newegg | September 02, 2019 |
|---|
