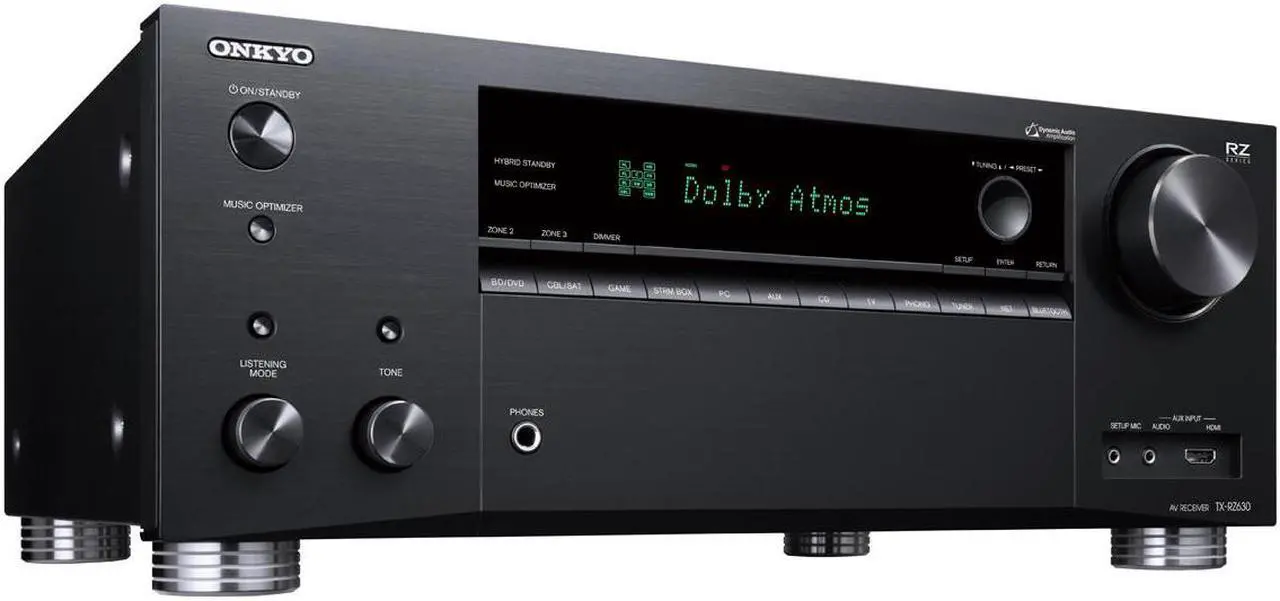

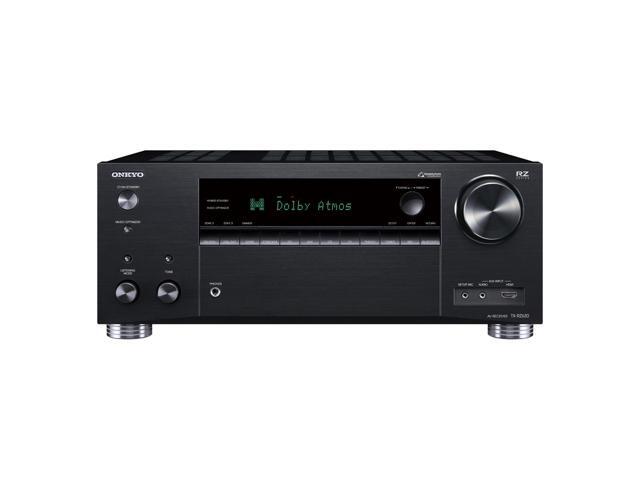

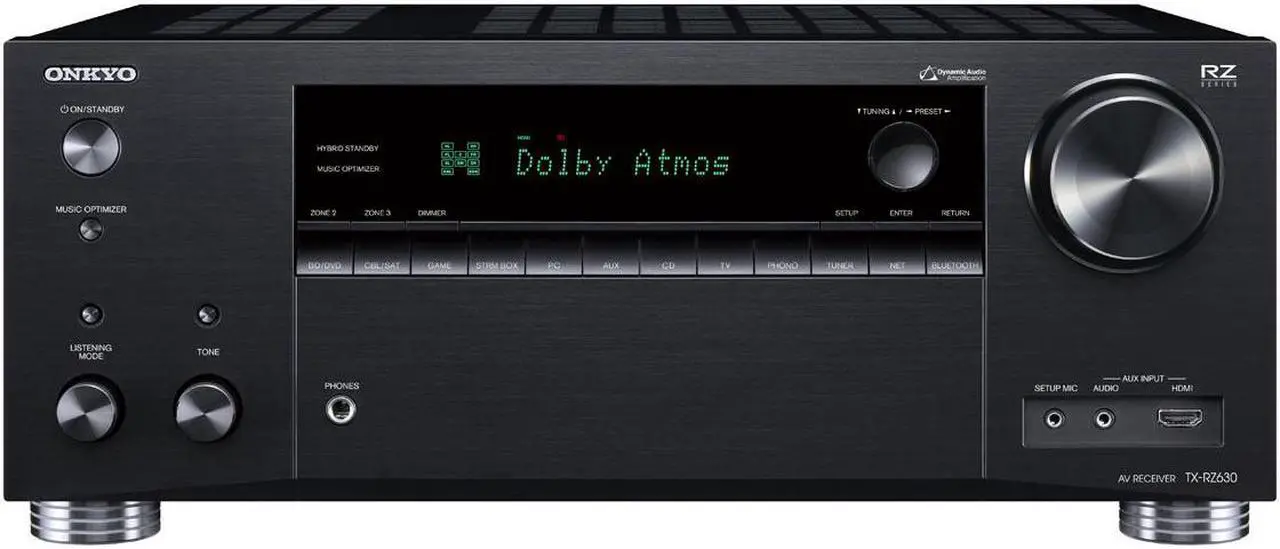

Onkyo TX-RZ630 9.2-Channel Network AV Receiver

Name: Onkyo TX-RZ630 9.2-Channel Network AV Receiver
Brand: Onkyo
SKU: 0MJ-003H-001G2
Rating: 5 (1 reviews)

90 W/Ch. (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2 Ch. Driven, FTC) and 215 W/Ch. (6 ohms, 1 kHz, 10% THD, 1 Ch. Driven)
Dolby Atmos and DTS: X playback through 5.2.4 or 7.2.2 channels
Your Onkyo receiver can now be part of your existing Sonos Home Sound System, or the start of a new one. Instantly upgrade the music streaming capability of your home theater receiver with Sonos Connect and a free firmware update.
HDMI 7 in (rear), main out, and Sub/zone 2 out supporting 4K/60 Hz, HDR10, hlg, Dolby vision, BT.2020, and HDCP 2.2 pass-through/ 1 front HDMI for convenience

Overview

Specs

Reviews (1)

Onkyo TX-RZ630 Multi-Zone Audio & Video Component Receiver Black

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Color	Black
Channels	9.2
Remote Control	Yes
Other Specifications	THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, half power) Input sensitivity and impedance: 200 mV/47 k-ohms (Line) 3.5 mV/47 k-ohms (Phono) Rated RCA output level and impedance 1 V/470 ohms (Subwoofer pre-out) 1 V/2.3 k-ohms (Zone pre-out) 1 V/200 mV/470 ohms (Zone pre/line-out) Tone control: +/-10 dB, 20 Hz (Bass) +/-10 dB, 20 kHz (Treble) Signal-to-Noise ratio: 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) Speaker impedance: 4 ohms - 16 ohms

Power Output	All channels: 215 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) 90 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC) Dynamic power: 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front)
Frequency Response	5Hz-100kHz /+1 dB, -3 dB (Direct Mode)
Video	Input sensitivity/output level and impedance: 1.0 Vp–p/75 ohms (Component Y) 0.7 Vp–p/75 ohms (Component B/R) 1.0 Vp–p/75 ohms (Composite)

Bluetooth	Yes
Wireless Connectivity	Yes

Dimensions	17.13"W x 14.94"D x 6.97"H
Weight	22.50 lbs.

Model
Brand	ONKYO
Model	TX-RZ630
