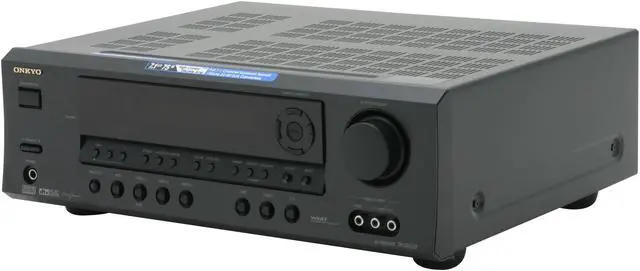

ONKYO TX-SR503 7.1-Channel Black Home Theater Receiver
- 7.1-Channel 75 Watts / ch (8 ohm, 20 Hz-20 kHz, FTC)
- DTS 96/24 DTS, DTS-ES Discrete/Matrix 6.1, DTS Neo:6 Dolby ProLogic IIx Dolby Digital, Dolby Pro Logic II Dolby Digital EX
- FM/AM Tuner
Specs
Reviews
Learn more about the Onkyo TX-SR503
| Brand | ONKYO |
|---|---|
| Model | TX-SR503 |
| Type | Receiver |
|---|---|
| Color | Walnut |
| Channels | 7.1-Channel |
| Power Output | 75 Watts / ch (8 ohm, 20 Hz-20 kHz, FTC) |
|---|---|
| Frequency Response | 10 Hz-100 kHz (+ 1 dB, - 3 dB) |
| THD | 0.08 % (all channels) |
| Decoder | DTS 96/24 DTS, DTS-ES Discrete/Matrix 6.1, DTS Neo:6 Dolby ProLogic IIx Dolby Digital, Dolby Pro Logic II Dolby Digital EX |
| D/A Converter | 192 kHz/24-Bit x 7 |
| Speaker Switching | Speaker A and B |
| FM/AM Tuner | 30 Presets (FM/AM) |
|---|
| Digital Optical Audio | 3 In |
|---|---|
| Digital Coaxial Audio | 1 In |
| Headphone Jack | Yes |
| Multi Channel Input | 5.1-Channel |
| Pre-Amp Out | Subwoofer |
| Other Connectors | S-Video: 4 In / 2 Out |
| Features | Color Coded Speaker Terminals 5 ch Identical Full-Bandwidth Reduced NFB (Negative Feedback) Design WRAT (Wide Range Amplifier Technology) Non-Scaling Configuration High Current Low Impedance Drive All Discrete Output Stage Amplifiers Optimum Gain Volume Circuitry A-Form Listening Mode Memory CinemaFILTER 9 mode Digital Soundfield Processing Late Night Mode Crossover Adjustment Dot-Matrix Display DS-A1 Compatible Dual Banana Plug Compatible Speaker Terminals Sleep Timer (90 minutes; 10-min steps) |
|---|
| Dimensions | 17.13" x 5.88" x 14.75" |
|---|---|
| Weight | 20.7 lbs. |
| First Listed on Newegg | June 13, 2005 |
|---|
