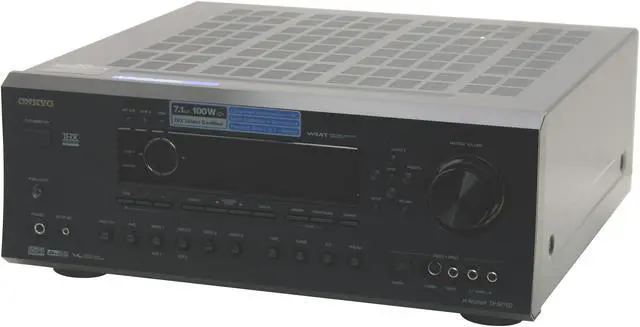

ONKYO TX-SR702 7.1-Channel Home Theater Receiver

Be the first to review this product...
  • 7.1-Channel 100W/CH
  • DTS, DTS-ES Discrete/Matrix 6.1, DTS Neo:6 DTS 96/24 Dolby Digital, Dolby Pro Logic II Dolby ProLogic IIx Dolby Digital EX
  • FM/AM Tuner
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Onkyo TX-SR702

Model
Brand ONKYO
Model TX-SR702
Details
Type Receiver
Color Walnut
Channels 7.1-Channel
Remote Control RI-Compatible Remote Control: Prepro/Learning/Backlit
Macro Function
On Screen Display Yes
Processing
Power Output 100W/CH
Frequency Response Extended Frequency Response (+ 1 dB, - 3 dB): 10 Hz-100 kHz
Decoder DTS, DTS-ES Discrete/Matrix 6.1, DTS Neo:6
DTS 96/24
Dolby Digital, Dolby Pro Logic II
Dolby ProLogic IIx
Dolby Digital EX
D/A Converter 192 kHz/24-Bit
Multi Zone Yes
Radio
FM/AM Tuner 40 Presets

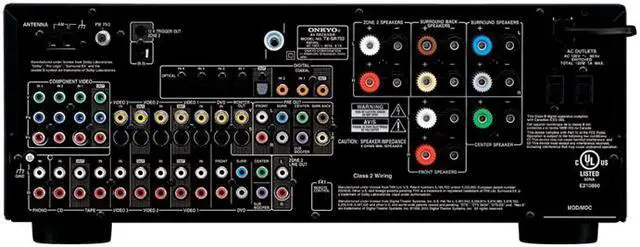

Connectivity
Component Video 3 In / 1 Out
Digital Optical Audio 5 Optical(1 Front Panel) In / 1 Out
Digital Coaxial Audio 2 In / 1 Out
Headphone Jack Yes
Multi Channel Input 5.1-Channel
Zone Terminals Zone 2 Composite Video
Zone 2 (Multisource) Line Out: Line/Pre Out
Powered Zone 2
IR Yes
12V Trigger 1 (Zone 2)
Other Connectors Audio and AV Inputs: 3/5
Front-Panel Video Input (with S-Video)
S-Video Compatible Jacks Input/Output: 5/3
Phono Input
Features
Features Color Coded Speaker Terminals
Identical Full-Bandwidth Channels: 7
Reduced NFB (Negative Feedback) Design
WRAT (Wide Range Amplifier Technology)
Non-Scaling Configuration
High Current Low Impedance Drive
All Discrete Output Stage Amplifiers
Optimum Gain Volume Circuitry
Cinema Re-EQ
A-Form Listening Mode Memory
Composite and S-Video to Component Video Upconversion
Composite to S-Video Conversion
Late Night Mode
Crossover Adjustment
Dot-Matrix Display
Display Dimmer: 3 Levels
Pure Audio Mode
DS-A1 Compatible
Dual Banana Plug Compatible Speaker Terminals: All Terminals
Intelli Volume
Sleep Timer (90 minutes; 10-min steps)
Dimensions & Weight
Dimensions 17.2" x 6.9" x 16.9"
Weight 33.5 lbs
Additional Information
First Listed on Newegg November 11, 2004
