| Brand | ONKYO |
|---|---|
| Model | TX-SR705 |
| Type | Receiver |
|---|---|
| Color | Walnut |
| Channels | 7.1-Channel |
| Power Output | 100 Watts / ch (8ohms 20-20kHz 0.08%) 115 Watts / ch (8ohms 1kHz 0.7%) |
|---|---|
| Frequency Response | 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode) |
| THD | 0.08% (Rated power) |
| Decoder | DD Plus, TrueHD DTS-HD Master Audio |
| D/A Converter | 192K/24 Bit |
| Video | 1 Vp-p/75 ohms (Component and S-Video Y) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 0.28 Vp-p/75 ohms (S-Video C) 1 Vp-p/75 ohms (Composite) |
| FM/AM Tuner | 40 Preset |
|---|
| HDMI | 3 In / 1 Out |
|---|---|
| Digital Optical Audio | 3 In / 1 Out |
| Digital Coaxial Audio | 2 In |
| Multi Channel Input | 7.1-Channel |
| Pre-Amp Out | 7.1-Channel |
| RS-232 | Yes |
| IR | Yes |
| 12V Trigger | Yes |

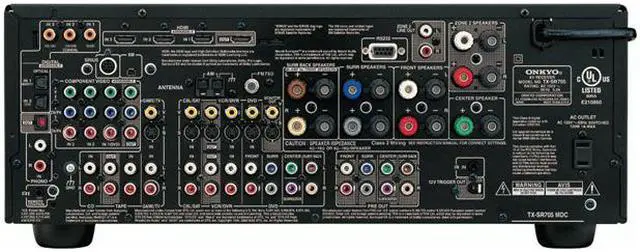

| Other Connectors | S-Video: 5 In / 1 Out |
| Power Supply | AC 120 V, 60 Hz |
|---|
| Features | Select2 THX Certified Continuous 6ohms Rated All Discrete Circuitry Absolute Ground Plate Optimum Gain Volume Linear Optimum Gain Volume Non-Scaling Configuration Bi-amp Capability For Front Neural Surround DSD Processing Direct Mode 3 x 32 bit DSP 7 Band Speaker EQ Phono Input Pre-Pro/Learning Remote Color-Coded Speaker Terminals OSD Out Input Name Edit Permanent Memory Storage Solid Aluminum Front |
|---|
| Dimensions | 17.13" x 6.88" x 14.81" / (435 x 174 x 377 mm) |
|---|---|
| Weight | 28.4 lbs. (12.9 kg) |
| First Listed on Newegg | November 11, 2008 |
|---|
