THX Ultra2 Plus Certified, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, DTS-HD High-Resolution Audio Decoding
XM & SIRIUS Satellite Radio Ready
FM/AM Tuner
Overview
Specs
Reviews (8)
Any questions? Our AI beta will help you find out quickly.
Try me now

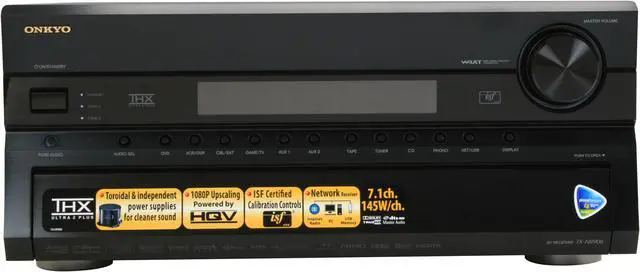

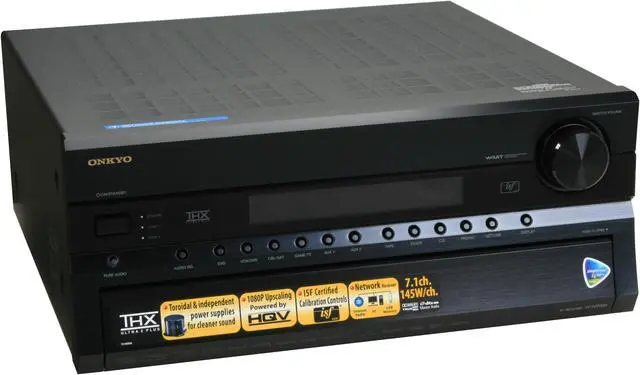

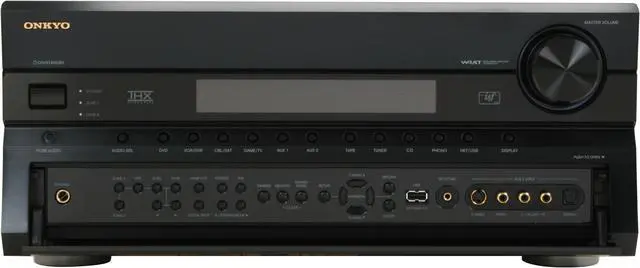

Onkyo delivers home theater the way it was meant to be with the TX-NR906. This advanced home theater receiver has both audio and video processors that work together to deliver an immersive experience. The number and variety of inputs position the receiver as the hub of your home entertainment network. The receiver is Microsoft PlaysForSure certified, so you can play DRM encoded music from your PC or a portable music player.
Its ability to deliver great sound to large rooms earned the receiver THX Ultra2 certification. The Advanced Speaker Array technology will digitally reconfigure the speakers and settings for movies, music or games. Audyssey MultEQ XT measures room acoustics and takes them into account when setting up crossovers, levels and delays. Then Audyssey's Dynamic EQ automatically adjusts settings when you change input sources.
The TX-NR906 uses the HQV Reon-VX processor to automatically scale all signals to 1080p, eliminating jaggies, mosquitoes and other artifacts. With four HDMI 1.3a inputs you can attach all of your video and game equipment to the receiver and send just one HDMI cable up to your TV. Now you don't have to wait while your TV switches inputs.
Onkyo delivers home theater the way it was meant to be with the TX-NR906. This advanced home theater receiver has both audio and video processors that work together to deliver an immersive experience. The number and variety of inputs position the receiver as the hub of your home entertainment network. The receiver is Microsoft PlaysForSure certified, so you can play DRM encoded music from your PC or a portable music player.
Its ability to deliver great sound to large rooms earned the receiver THX Ultra2 certification. The Advanced Speaker Array technology will digitally reconfigure the speakers and settings for movies, music or games. Audyssey MultEQ XT measures room acoustics and takes them into account when setting up crossovers, levels and delays. Then Audyssey's Dynamic EQ automatically adjusts settings when you change input sources.
The TX-NR906 uses the HQV Reon-VX processor to automatically scale all signals to 1080p, eliminating jaggies, mosquitoes and other artifacts. With four HDMI 1.3a inputs you can attach all of your video and game equipment to the receiver and send just one HDMI cable up to your TV. Now you don't have to wait while your TV switches inputs.
High Definition Up-Conversion with HDMIWhen connected to an HDMI-compatible TV via an HDMI cable, the Onkyo TX-NR906 up-converts video content up to 1080p resolution for high-quality high definition images.
Accurate Surround SoundWith the integrated DTS-HD and Dolby TrueHD decoders, enjoy powerful and immersive surround sound like it was meant to be.
THX Surround EX Ultra 2 Plus CertifiedThe Onkyo TX-NR906 carries the THX Ultra2 Plus and THX Surround EX certification -- a powerful endorsement of the receiver's ability to deliver optimal audio and video presentations to high-end home theaters. THX Surround EX decoding expands 5.1-channel sources to 7.1 channels for reference-standard playback of music and movies.
XM Radio ReadyWith your subscription to XM Radio, enjoy satellite radio service in Neural Surround sound using the Onkyo TX-NR906! Neural Surround is a proprietary audio format that embeds the rich envelopment and discrete image detail of surround sound and is 100% compatible with stereo content.
Sirius Satellite Radio ReadyThe Onkyo TX-NR906 is Sirius Radio ready so you can enjoy all channels of programming on Sirius including music, sports, news, and various entertainment programming.
Remote InteractiveWith Onkyo-exclusive RI (Remote Interactive) system capability, integrate and operate all compatible components using a single remote control.
Learn more about the Onkyo TXNR906
Model
Brand
ONKYO
Model
TXNR906
Details
Type
Receiver
Color
Walnut
Channels
7.1-Channel

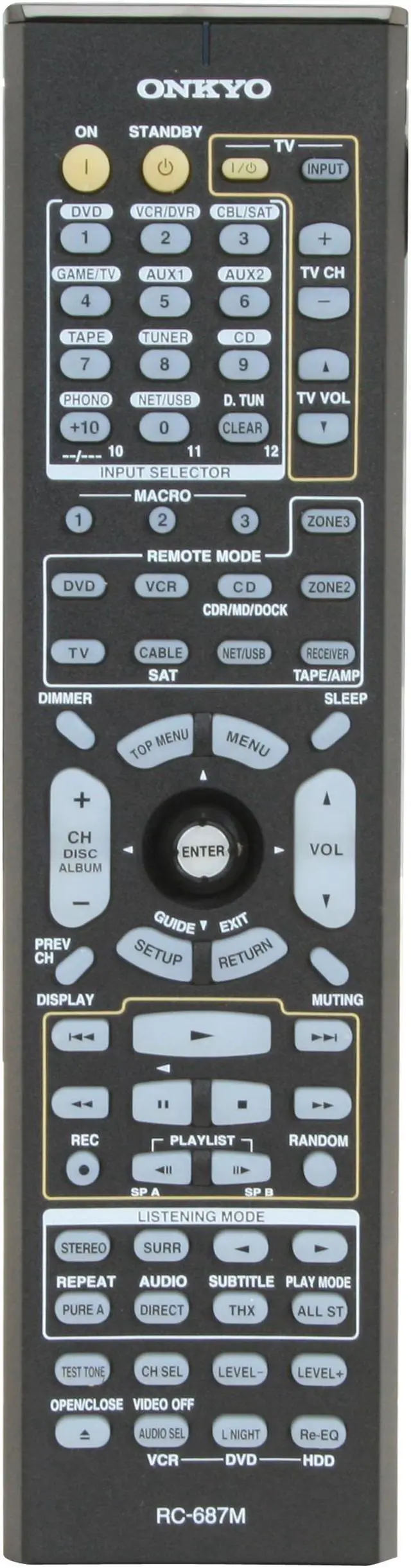

Remote Control
Pre-Pro/Learning Remote
Back-Lit Remote
On Screen Display
Yes
Processing
Power Output
145W/Ch
Frequency Response
5 Hz–100 kHz/+1 dB, -3 dB
THD
0.05%
Decoder
THX Ultra2 Plus Certified, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, DTS-HD High-Resolution Audio Decoding
D/A Converter
192K/24 Bit
Speaker Switching
Speaker A/B
Multi Zone
Yes
Video Upconversion
1080p
Radio
FM/AM Tuner
Preset Memory: 40 stations
HD Radio Ready
Yes
Satellite Radio Ready
XM & SIRIUS
Internet Radio Ready
Yes

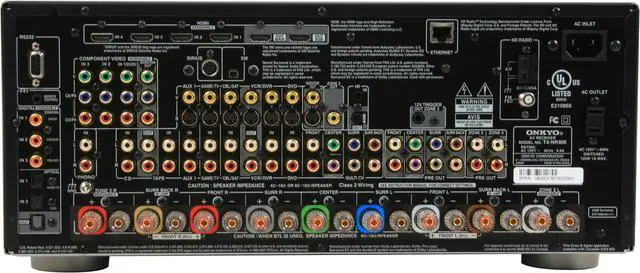

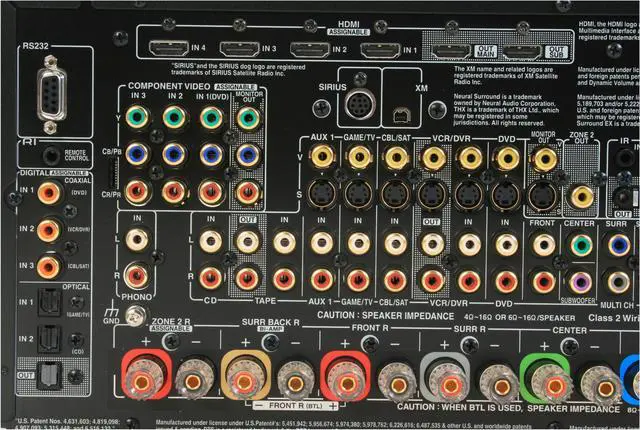

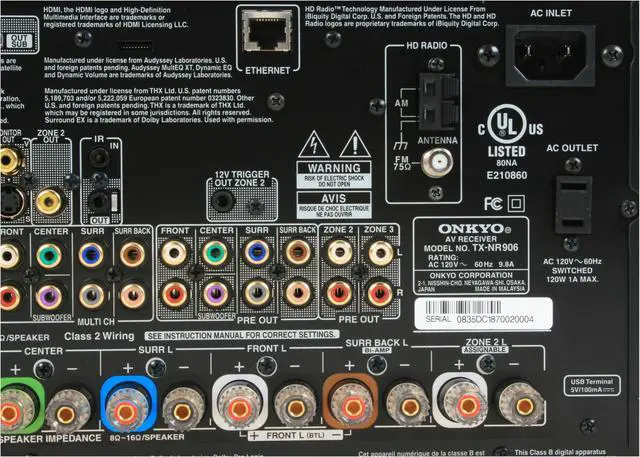

Connectivity
HDMI
4 In / 2 Out
Component Video
3 In / 1 Out
Digital Optical Audio
3 In / 1 Out
Digital Coaxial Audio
3 In
Headphone Jack
Yes
Multi Channel Input
7.1-Channel
Pre-Amp Out
7.1-Channel
Zone Terminals
Powered Zone2
Zone 2 Line Out
Zone 2 Video Out
Zone 3 Line Out

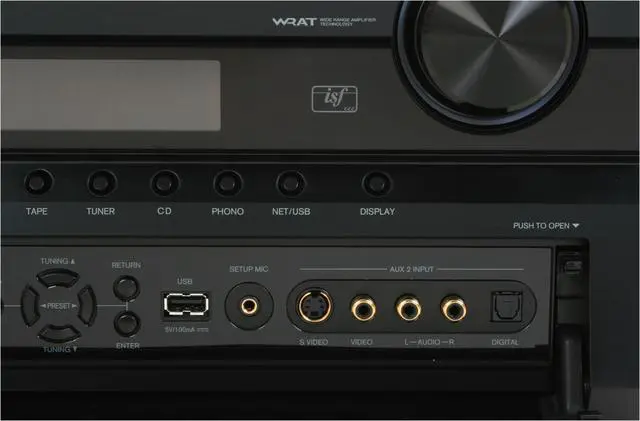

USB Port
1
Network Ready
Yes
iPod Compatibility
Yes
RS-232
Yes
IR
Yes
12V Trigger
Yes
Other Connectors
Analog Audio: 8IN/3OUT Analog Audio/Video: 5IN/3OUT Speaker Terminals: Binding Post and Spring Zone Speaker Terminals: SPRING Zone Power Switching: Yes
Power
Power Supply
AC 120 V, 60 Hz
Consumption
9.8 A
Features
Features
THX Ultra2 Plus Certified Network Capability for Streaming Audio Files and Internet Radio (with vTuner and SIRIUS Satellite Radio Portals) Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, DTS-HD High-Resolution Audio Decoding Massive Toroidal Transformer and Two Separate Transformers for Audio and Video Processing VLSC (Vector Linear Shaping Circuitry) for All Channels Burr Brown 192 kHz/24-Bit Audio DACs (PCM1796) for All Channels HDMI (v.1.3a to Support Deep Color, x.v. Color, LipSync, Dolby TrueHD, DTS-HD Master Audio, DVD-Audio, Super Audio CD) HDMI Audio and Video Processing (1080p; 4 Inputs and 2 Outputs) HQV Reon-VX Video Processing with 1080p Upscaling of All Video Sources via HDMI RIHD (Remote Interactive over HDMI) for System Control HDTV-Capable (to 720p/1080i) Component Video Upconversion and Switching (3 Inputs and 1 Output) Parallel Push-Pull Amplifier Design with 3-Stage Inverted Darlington Circuitry WRAT (Wide Range Amplifier Technology) Microsoft PlaysForSure Certified and Certified for Windows Vista USB Port for a Mass USB Storage Device (Audio Only) Three TI (Aureus) 32-Bit DSP Chips for Advanced Processing Audyssey MultEQ XT to Correct Room Acoustic Problems and to Calibrate Speakers Audyssey Dynamic EQ for Loudness Correction HD Radio Reception Capability XM Satellite Radio and SIRIUS Satellite Radio Connectivity* Neural-THX Surround Decoding Technology Powered Zone 2 (Audio and Video); Zone 2 and Zone 3 Pre-Outs; Independent Control for Volume, Balance (Zone 2 and Zone 3) and Bass/Treble (Zone 2 Only) RS232, IR and 12V Trigger Connectivity Bi-Amping and BTL (Bridged Transless or Bridging) Capability Music Optimizer for Compressed Music Files Color-Coded 7.1-Multichannel Inputs and Pre Outs Gold-Plated A/V Inputs and Outputs Customized Gold-Plated Transparent Speaker Posts Independent Crossover Adjustment for F/C/S/SB (40/50/60/70/80/90/100/120/150/200 Hz) ISF (Imaging Science Foundation) Video Calibration Func
