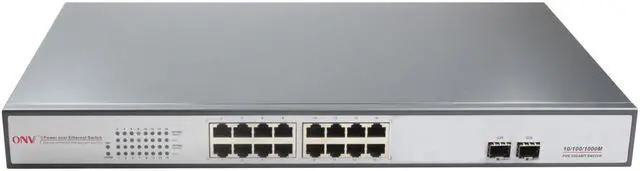

ONV-POE33016PF 18-Port Gigabit PoE Switch with 16 Gigabit PoE Ports and 2 Gigabit Fiber Ports IEEE 802.3af Standard 15.4W

Features:? Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)? Port1 to Port16 compatible with IEEE 802.3 af standard? Maximum power of each port is 15.4W, 250W for total? 16x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports, 2x 10/100 /1000Mbps SFP fiber uplink ports? Meets the standards of the IEEE 802.3 af/ IEEE 802.3 10i and IEEE 802.3 u standard? The packet forwarding speed of the wire-speed port is 1.488M bps? Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)? All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed? 1U Rack mounted design, easy to install and use? Automatic adjustment, plug and play, no need software and protocol conversion
Ordering Information: Product
Model: ONV-PoE33016PF
Product Description: 18-Port gigabit PoE switch with 16 gigabit PoE ports and 2x gigabit SFP fiber ports; port1 to port16 supports POE IEEE 802.3 af international standard, each port power is 15.4W, the total power is 250W
Ordering Note: The even number port is end-span (1/2+, 3/6- line pair) power supply, the odd number port is mid-span(4/5+, 7/8- line pair) power supply Technical Specification Product Name 18-Port Gigabit PoE Switch with 16 Gigabit PoE Ports 15.4W Product Model POE33016PF Connector Type 16x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment); 2x 10/100 /1000Mbps SFP fiber uplink ports Forwarding Mode 1000M line speed forwarding;
Packet Length: 10K;
Packet Buffer: 4.1M
Network Medium 10BASE-T: Cat3, 4, 5
UTP(=100 meters) 100BASE-TX: Cat5 or more
UTP(=100 meters) 1000BASE-TX: Cat5 or more UTP(=100 meters) Performance
Specifications Backplane Bandwidth: 52Gbps
Network Delay: less than 20 microsecond
Packet Buffer: 96KB
Address Address Database: 8K
MTBF: 190, 000 hours (about 21 years) PoE Description IEEE 802.3 af, each port power is 15.4W; Port1 to Port16 support PoE power; The even number Port(1/3/5/7/9/11/13/15) is end-span(1/2+, 3/6- line pair) power supply, the odd number port(2/4/6/8/10/12/14/16) is mid-span(4/5+, 7/8- line pair) power supply PoE Power Port output power is 15.4W (IEEE 802.3 af) Power Supply Type End-span type(Mid-span optional) Network Protocols IEEE 802.3; IEEE 802.3 u; IEEE 802.3 x Flow Control; IEEE 802.3 af LED Indicator Status Power, Network, PoE working status Power IEEE 802.3 af standard, each port power is 15.4W, total power is 250W
Voltage Input: AC100~240V 50/ 60Hz

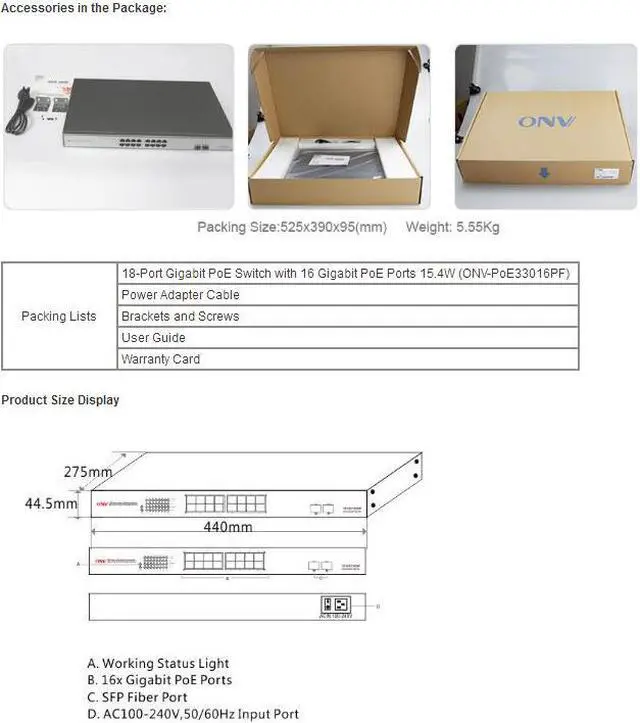

Dimension Dimension (LxWxH): 440 x 275 x 44.5 mm Working
Environment Working temperature: -20°C ~ 75°C;
Storage temperature: -40° ~ 85°C;
Working Humidity: 10% ~ 90%, no condensation;
Storage Humidity: 5% ~ 90%, no condensation;
Working Altitude: 3000 meters (10, 000ft);
Storage Altitude: 3000 meters (10, 000ft) Radiation CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Safety CE Mark, commercial CE/LVD EN60950, RoHS Warranty 1 Year Warranty, Life-time Maintenance
