ONV-POE33018PFM-at 16 * 10/100/1000M PoE ports + 2 * Gigabit SFP optical ports POE Switch

Feature
16 * 10/100/1000M PoE ports + 2 * Gigabit SFP optical ports.
L2+ function with better performance of management, safety & QoS etc.
Supprt Layer 2 switching function, including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.
Support spanning tree STP(802.1D) and RSTP(802.1W).
Support Jumbo frames at 9.6K kilobtyes.
Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
Support cable diagnosis
IEEE802.3af/at. Support PoE configuration function for each port.

This L2+ managed POE+ switch, provides a reliable infrastructure for your business network. It offers you more intelligent features that improving the availability of your critical business applications, protecting your
sensitive information, and optimizing the network bandwidth to transmit information and applications more effectively. It also provides the ideal combination of affordability and capabilities for entry level network
solution to industrial business, small business and large scale of enterprises which requests for surveillance, IP Phone, IP Camera or Wireless applications and then helps you create a more efficient workforce.
Target Industries

?HD monitor transmission and power supply
?Wireless AP layout transmission and power supply
?Network telephone transmission , intelligent house and home system
?Intelligent transportation supervisory system(ITS)
? High-speed Way supervisory/Tele-Communication System
? Security protection system, TV medical treatment
? Long-distance Muti-media Schooling, Campus monitoring
? Long-distance broadcast television transmission system
? High-building Security Protection, Military Tele-Com projects

Ordering Information
Model: ONV-POE33018PFM-at
Description: 18-Port Full Gigabit Managed PoE Switch, 16 * 10/100/1000M PoE ports + 2 * Gigabit SFP optical ports. IEEE802.3af/at. Total power is 400W.
NOTE: Default power supply pin type is end-span(1/2+, 3/6-)
Technical parameter list
Product Name 18-Port Full Gigabit Managed PoE Switch
Model ONV-POE33018PFM-at
Connector Type 16 * 10/100/1000M PoE ports + 2 * Gigabit SFP optical ports.
Bandwidth 256G
Address Database Size 8K
MTBF 100,000 hours
Forwarding Mode Store and Forward
Buffer Memory 26.78M
Power Input AC100-240V, 50/60Hz
PoE Ports 16*PoE Ports
PoE Port Power 30W(Max)
PoE Standard IEEE802.3af/at
Working Environment Operating temperature: -20 to 55 ?; Storage temperature: -20? to 75 ?; Operating humidity: 10% to 90% , relative, non-condensing
Certification FCC, CE, RoHS
Transmission Distance 100 meters
Power Supply Type End-span
QoS Yes
VLAN Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ;?Port-based VLAN; 802.1Q tag-based VLAN

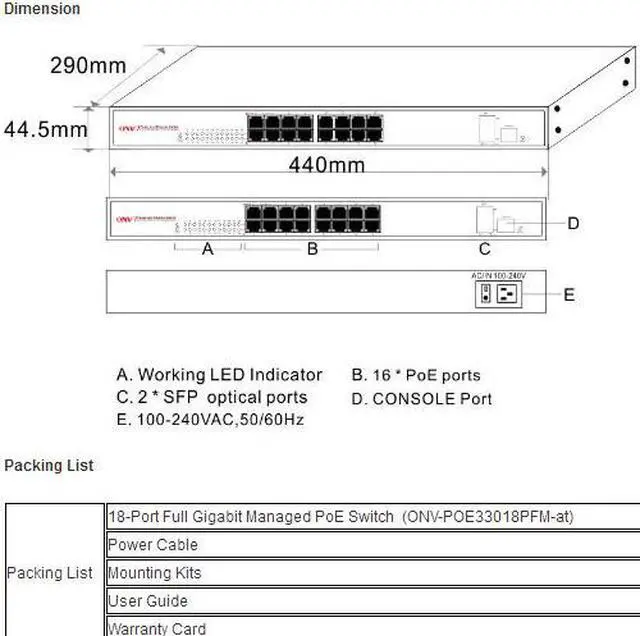

Product Size 440 * 290 * 44.5mm
Warranty 1 year
