ONV-POE33048PFM 48-port Full Gigabit Managed Ring PoE Switch compliant with both IEEE 802.3af/at standard

Feature? 48x 10/100/1000M RJ45 (PoE1-48) + 4x Gigabit SFP? L2+ features provide better manageability, security, QoS, and performance? Support L2+ Switching features, including VLAN, TRUNK, Mirroring, Port isolation/flow control/speed limit, Storm control, QOS, ACLs etc.? Support spanning tree STP and RSTP.? Jumbo frames support up to 9.6K kilobytes? Support enhanced management through WEB, CLI, TELNET, SNMP? Support cable diagnosis? 48 ports support PoE. Compliant with both IEEE 802.3 af and 802.3 at. Allow PoE configuration for each PoE port Target Industries? HD monitor transmission and power supply? Wireless AP layout transmission and power supply? Network telephone transmission, intelligent house and home system? Intelligent transportation supervisory system (ITS)? High-speed Way supervisory/Tele-Communication System? Security protection system, TV medical treatment? Long-distance Muti-media Schooling, Campus monitoring? Long-distance broadcast television transmission system? High-building Security Protection, Military Tele-Com projects Ordering Information
Product Model: ONV-POE33048PFM
Product Description: 48-port Full Gigabit Managed Ring PoE Switch, 48x 10/100/1000M RJ45 (PoE) + 4x Gigabit SFP, Port 1-48 supports PoE, compliant with both IEEE 802.3 af/at standard.
Max PoE port power: 30W, can be set by management system. Total input power is 600W.

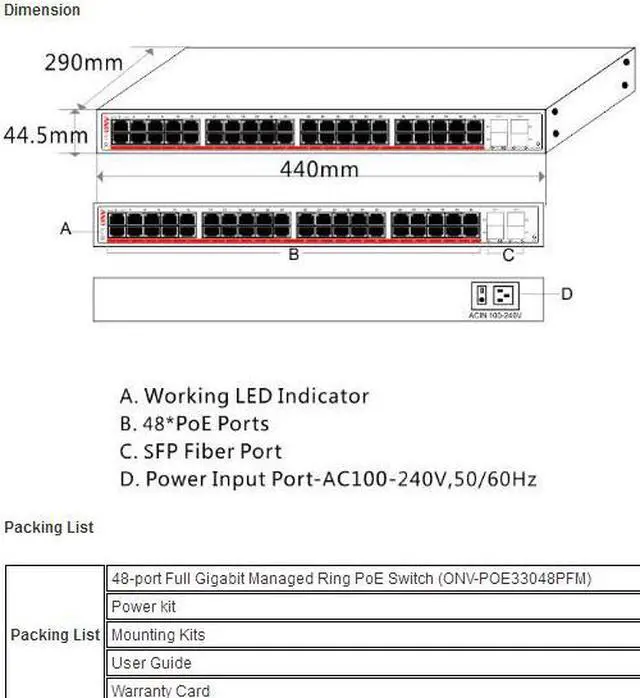

Note: Default power supply pin type is end-span(1/2+, 3/6-), mid-span(4/5+, 7/8- ) is optional Technical parameter list Product Name 48-port Full Gigabit Managed Ring PoE Switch Model ONV-POE33048PFM Connector Type 48x 10/100/1000M RJ45 ports 4x Gigabit SFP 1x Console port 1x Reset key, for restore default settings Bandwidth 368G Address Database Size 32K MTBF 100, 000 hours Forwarding Mode Store and Foward
Power Input AC: 110~240V/50~60Hz PoE Ports 48*PoE Ports PoE Port Power 30W (Max) PoE Standard IEEE 802.3 af/at Certification FCC, CE, RoHS Transmission Distance 100 meters QoS Yes VLAN Yes Product Size 440*290* 44.5 mm Warranty 1 year
