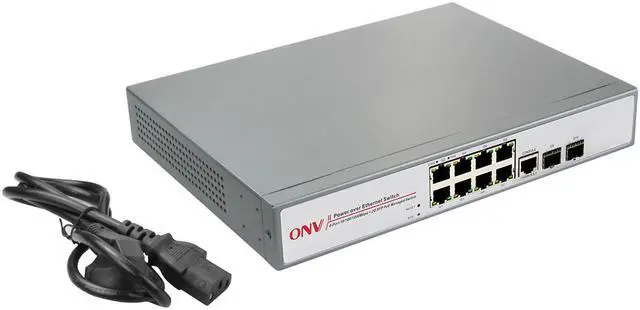

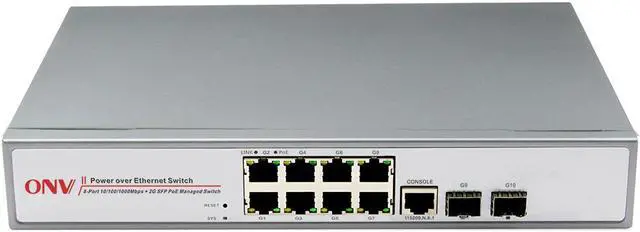

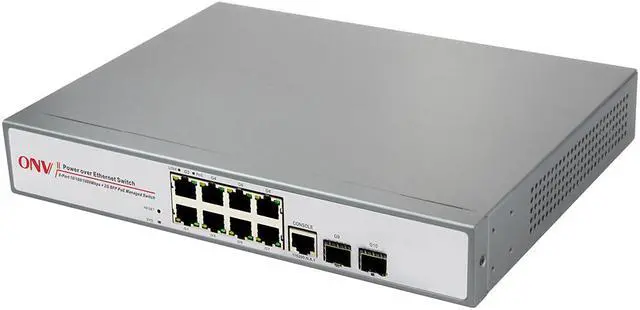

ONV-POE33108PFM 10-port Gigabit Managed PoE Switch Support L2+ Switching features including 802.1Q VLAN

Features
? All gigabit design, 8x gigabit Ethernet RJ45 ports with AutoUplink, 1x console port, and 2x gigabit SFP slots.
? 8 PoE ports support power over Ethernet for PDs
? Meet IEEE 802.3 af PoE standard. Supports per port PoE configuration function
? L2+ features provide better manageability, security, QoS, and performance.
? Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.
? Support spanning tree STP( 802.1D ) and RSTP( 802.1W ).
? Jumbo frames support up to 9.6K kilobtyes.
? Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
? Support cable diagnosis
? G. 8032, support <50ms industrial quick ring protection

All Gigabit Ports
All gigabit ports provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the 8x 10/100/1000 Mbps ports and 2x optional fiber SFP slots, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 20Gbps switching capacity. All RJ45 ports can auto adjust the highest connection speed for a normal working, Auto Uplink technology can ensure proper network connection.
Application Situations
? Million HD surveillance transmission and power supply
? Wireless AP distribution transmission and power supply
? VoIP transmission, intelligent home systems
? City intelligent traffic monitoring system (ITS), safe city, and wireless city
? Highway surveillance system, electronic road surveillance, snapshot system
? large industrial factory& enterprise security surveillance system, network multifunction system
? Remote multimedia teaching & campus surveillance, video conferencing systems
? Building intercom, wireless communications, video surveillance

Order Information
Product Model: ONV-POE33108PFM
Product Description: 10-port Gigabit Managed PoE Switch, with 8x 10/100/1000Base-T RJ45 Ethernet ports, 1x console port, and 2x gigabit SFP slots. 8 RJ45 ports support PoE power supply function, IEEE 802.3 af/at standard. Max. Power per
PoE Port: 30W;
Switchs total power: 130W.
Ordering Note: Default PoE power type is end-span(12, 36 line pair),; SFP module is not included, need to order it separately
Technical parameter list
Product Name 10-port Gigabit Managed PoE Switch
Model ONV-POE33108PFM
Connector Type 8-Port 10/100/1000Base-T + 2x gigabit SFP slots + 1 console port
Bandwidth 192G
Address Database Size 8K
MTBF 100, 000hours
Forwarding Mode Store-and-Forward
Buffer Memory 4M
Power Input AC100-240V, 50/60Hz.
PoE Ports 8 PoE ports
PoE Port Power Max. Power per
PoE Port: 15.4W
PoE Feature End-span
Power Consumption 130W
Working Environment Operating temperature: -20 to 55?;
Storage temperature: -40? to 85?;
Operating humidity: 5% to 95%, relative, non-condensing
Certification CE, FCC, Rohs
Transmission Distance Max. 100meters (UTP); 0.5 -120km (Otpic fiber), depends on which SFP module used
Power Supply Type Default PoE power supply type is end-span, mid-span optional

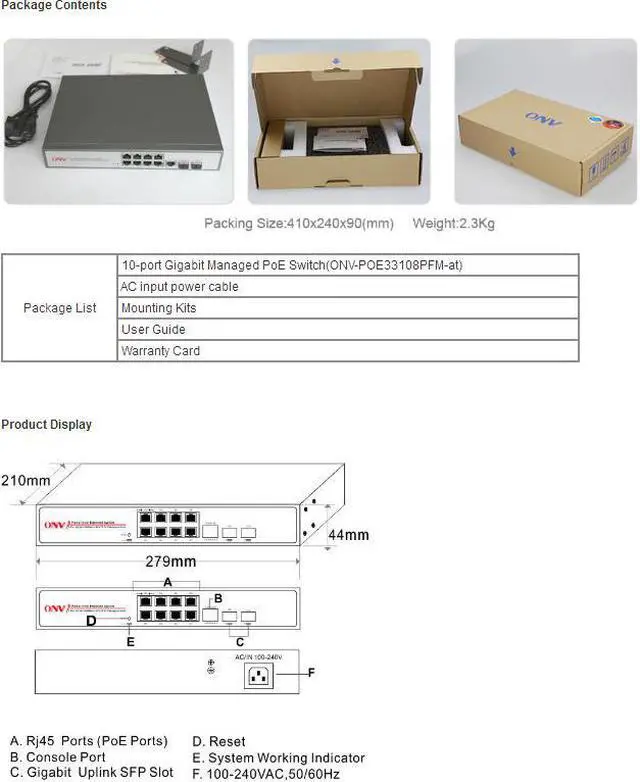

Product Size
