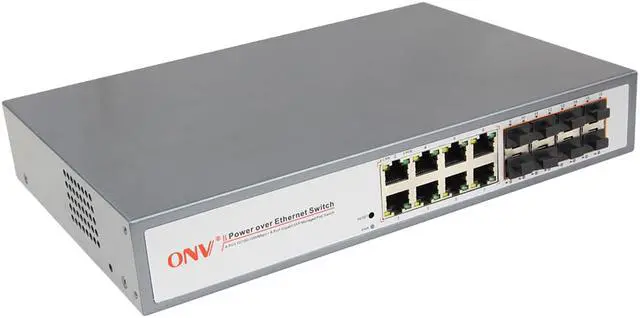

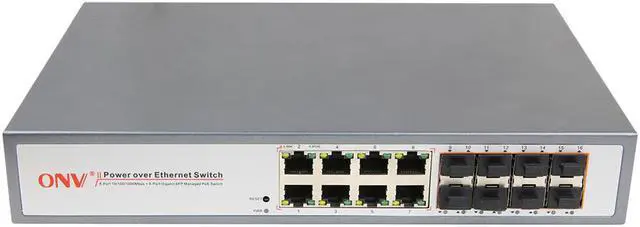

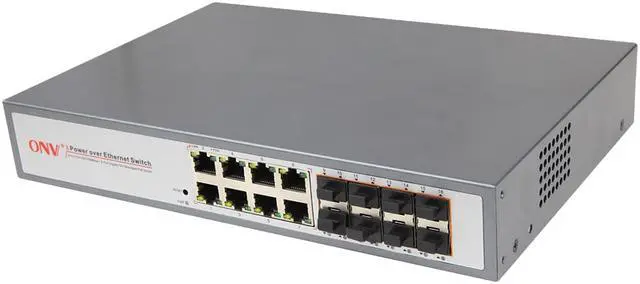

ONV-POE33168PFM 16-Port Full Gigabit L2+ Managed PoE Switch HD monitor transmission and power supply

ONV-POE33168PFM managed PoE switch comes with 8*10/100/1000M PoE ports + 8* Gigabit SFP ports. It can supply power to network equipment such as weather-proof IP cameras with windshield wiper and heater, high-performance AP and IP telephone. This managed PoE switch are highly flexible, the transmission distance of the SFP fiber port can be up to 120km, and with high resistance to electromagnetic interference. ONV-POE33168PFM product components were rigorous screened, have superior performance in stability, environmental adaptability. Metal shells have better resistance ability to corrosion and electromagnetic interference, ensure stability and security of this Ethernet Switch.

Power input also chooses a suitable and reliable types of power, to get more powerful suitability to environment. Feature? All gigabit design, 8*10/100/1000M PoE ports + 8*Gigabit SFP ports? 8 PoE ports support power over Ethernet for PDs? Meet IEEE 802.3 af/at PoE standard. Supports per port PoE configuration function? L2+ features provide better manageability, security, QoS, and performance.? Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.

? Support spanning tree STP( 802.1D ) and RSTP( 802.1W ).? Jumbo frames support up to 9.6K kilobtyes.? Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.? Support cable diagnosis? G. 8032, support <50ms industrial quick ring protection Target Industries?HD monitor transmission and power supply?Wireless AP layout transmission and power supply?Network telephone transmission, intelligent house and home system?Intelligent transportation supervisory system(ITS)? High-speed Way supervisory/Tele-Communication System? Security protection system, TV medical treatment? Long-distance Muti-media Schooling, Campus monitoring? Long-distance broadcast television transmission system? High-building Security Protection, Military Tele-Com projects Ordering Information Product Model: ONV-POE33168PFM Product Description: 16-Port Gigabit Managed PoE Switch, 8*10/100/1000M PoE ports + 8*Gigabit SFP port. IEEE802.3af/at standard. Max Power per PoE Port: 30W. Total power is 130W. Built-in power supply. Order note:
1. Default PoE power supply type is 1, 2(+), 3, 6(-) 2. SFP module is not included, need to order it separately? Technical parameter list Product Name 16-Port Full Gigabit L2+ Managed PoE Switch Model ONV-POE33168PFM Connector Type 8*10/100/1000M PoE ports + 4*Gigabit SFP ports
Network Media 10BASE-T: UTP Cat 3, 4, 5 (=100
Meters) 100BASE-TX: UTP Cat 5 or more (=100
Meters) 1000BASE-T: UTP Cat 5 or more (=100 Meters) Bandwidth 256G Address Database Size 8K MTBF 100, 000 hours Forwarding Mode Store and Forward Network Protocols IEEE 802.3; IEEE 802.3 u; IEEE 802.3 ab; IEEE 802. x Flow Control; IEEE 802.3 af/at Power Input AC100~240V 50/ 60Hz PoE Ports 8*PoE Ports PoE Port Power Max 30W PoE Standard IEEE 802.3 af/at Working
Environment Operating temperature: -20 to 55?;
Storage temperature: -20? to 75?;

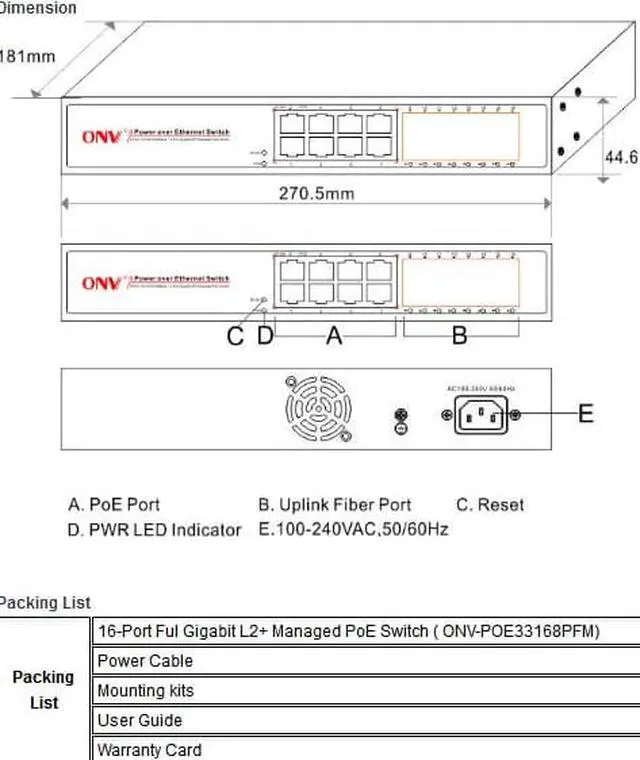

Operating humidity: 5% to 95%, relative, non-condensing Certification CE Mark, commercial CE/LVD EN60950, RoHS Radiation CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B Transmission Distance 100 meters for RJ45 port Power Supply Type end-span(1/2+, 3/6- line pair) QoS Yes VLAN Yes Product Size 270.5 *181*44mm Warranty 1 year
