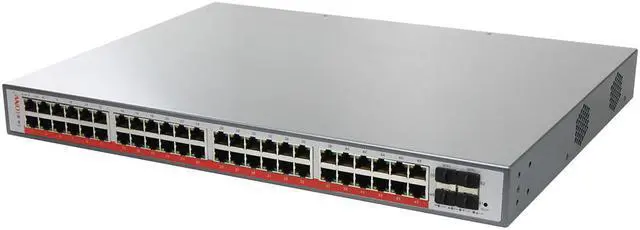

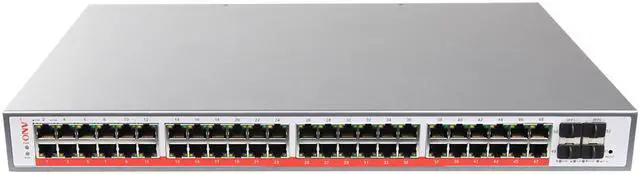

ONV-POE36048PFM 48-port 10G Managed Ring PoE Switch Support spanning tree STP and RSTP

Features? 48x 10/100/1000M RJ45 (PoE) + 4x 10G SFP+? L2+ features provide better manageability, security, QoS, and performance? Support L2+ Switching features, including VLAN, TRUNK, Mirroring, Port isolation/flow control/speed limit, Storm control, QOS, ACLs etc.? Support spanning tree STP and RSTP.? Jumbo frames support up to 9.6K kilobytes? Support enhanced management through WEB, CLI, TELNET, SNMP? Support cable diagnosis? 48 ports support PoE. Compliant with both IEEE 802.3 af and 802.3 at. Allow PoE configuration for each PoE port Ordering Information
Product Model: ONV-POE36048PFM
Product Description: 48-port 10G Managed Ring PoE Switch, 48x 10/100/1000M RJ45 (PoE) + 4x 10G SFP+, Port 1-48 supports PoE, compliant with both IEEE 802.3 af/at standard.
PoE port power: 30W (Max), can be set by management system. Total input power is 650W.
Note: Default power supply pin type is end-span(1/2+, 3/6-), mid-span(4/5+, 7/8- ) is optional Technical parameter list Product Name 48-port 10G Managed Ring PoE Switch Model ONV-POE36048PFM Connector Type 48x 10/100/1000M RJ45 ports, 4x 10G SFP+, 1x Console port Bandwidth 368G Address Database Size 32K MTBF 100, 000 hours Forwarding Mode Store and Forward Buffer Memory 32M Network Protocols IEEE 802.3, 10BASE-T Ethernet; IEEE 802.3 u, fast Ethernet Standard; IEEE 802.3 ab, gigabit Ethernet Standard; IEEE 802.3 z, gigabit Ethernet Fiber Standard; (AOC fiber cable) IEEE 802.3 ae, 10G Ethernet Standard; IEEE 802.3 x, full-duplex Ethernet data link layer flow control; Power Input AC100-240V, 50~60Hz PoE Ports 48 * PoE ports PoE Port Power Max 30W PoE Standard IEEE 802.3 af/at Power Consumption 650W Certification FCC, CE, RoHS Transmission Distance 100 meters Product Size 440*275* 44.5 mm Warranty 1 year
