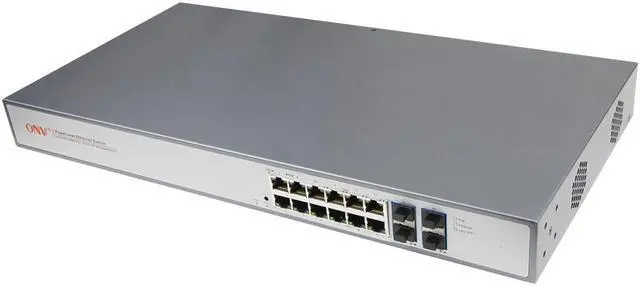

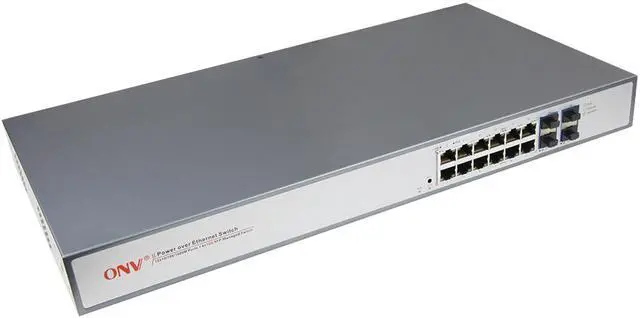

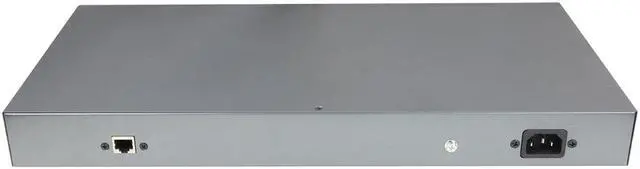

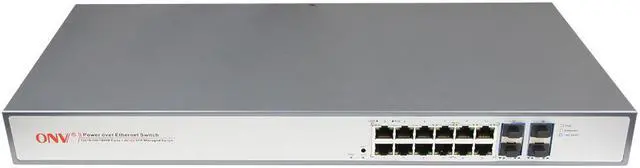

ONV-POE36168PFM 8*10/100/1000M PoE ports + 4*10/100/1000M RJ45 ports + 4*10G SFP+ ports POE Switch

ONV-POE36168PFM managed PoE switch comes with 8*10/100/1000M PoE ports + 4*10/100/1000M RJ45 ports + 4*10G SFP+ ports. It can supply power to network equipment such as weather-proof IP cameras with windshield wiper and heater, high-performance AP and IP telephone. This managed PoE switch are highly flexible, the transmission distance of the SFP fiber port can be up to 120km, and with high resistance to electromagnetic interference.

ONV-POE36168PFM product components were rigorous screened, have superior performance in stability, environmental adaptability. Metal shells have better resistance ability to corrosion and electromagnetic interference, ensure stability and security of this Ethernet Switch. Power input also chooses a suitable and reliable types of power, to get more powerful suitability to environment.

Feature
? All gigabit design, 8*10/100/1000M PoE ports + 4*10/100/1000M RJ45 ports + 4*10G SFP+ ports
? PoE ports support power over Ethernet for PDs
? Meet IEEE 802.3 af/at PoE standard. Supports per port PoE configuration function
? L2+ features provide better manageability, security, QoS, and performance.
? Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.
? Support spanning tree STP( 802.1D ) and RSTP( 802.1W ).
? Jumbo frames support up to 9.6K kilobtyes.
? Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
? Support cable diagnosis

Target Industries
? HD monitor transmission and power supply
? Wireless AP layout transmission and power supply
? Network telephone transmission, intelligent house and home system
? Intelligent transportation supervisory system (ITS)
? High-speed Way supervisory/Tele-Communication System
? Security protection system, TV medical treatment
? Long-distance Muti-media Schooling, Campus monitoring
? Long-distance broadcast television transmission system
? High-building Security Protection, Military Tele-Com projects

Ordering Information
Product Model: ONV-POE36168PFM
Product Description: 16-Port Gigabit Managed PoE Switch, 8*10/100/1000M PoE ports + 4*10/100/1000M RJ45 ports + 4*10G SFP+ ports. IEEE 802.3 af/at standard. Max Power per
PoE Port: 30W. Total power is 130W. Built-in power supply.
Order note:
1. Default PoE power supply type is 1, 2(+), 3, 6(-)
2. SFP module is not included, need to order it separately.
Technical parameter list
Product Name 16-Port 10G L2+ Managed PoE Switch
Model ONV-POE36168PFM
Connector Type 8*10/100/1000M PoE ports + 4*10/100/1000M RJ45 ports + 4*10G SFP+ ports
Network Media IEEE 802.3; IEEE 802.3 u; IEEE 802.3 ab; IEEE 802. x Flow Control; IEEE 802.3 af/at
Bandwidth 368G
Address Database Size 16K
MTBF 100, 000 hours
Network Latency less than 20 microsecond
Forwarding Mode Store and Forward
Buffer Memory IEEE 802.3; IEEE 802.3 u; IEEE 802.3 ab; IEEE 802. x Flow Control; IEEE 802.3 af/at
Power Input AC100~240V 50/ 60Hz
PoE Ports 12*PoE Ports
PoE Port Power Max 30W
PoE Standard IEEE 802.3 af/at
Working Environment Working temperature: -20°C~55°C;
Storage temperature: -20°~ 75°C;
Working Humidity: 10%~90%, no condensation;
Storage Humidity: 5% ~ 90%
