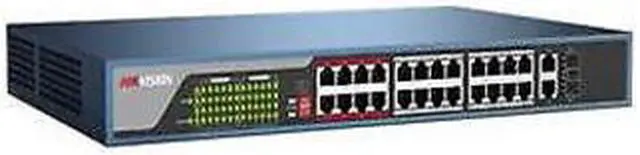

DS-3E0326P-E 24-ports 100Mbps Unmanaged PoE Switch
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ports
Network Ports: 26
PoE Port: 24, 10/100Mbps RJ45 ports
Uplink Port: 2, 1000M Combo Port
Standard
Network Protocol: IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity: 8.8Gbps
Max. Forwarding Rate: 6.55Mpps
High Priority Ports: Ports 1-8
Forwarding Mode: Store-and-forward
MAC Address Table: 4k
Flow Control: IEEE802.3x full duplex
Power Over Ethernet
PoE Standard: IEEE802.3af, IEEE802.3at
PoE Power Budget: 370W
Working Mode: Extend On:250m,10M,CAT 5e
Extend Off:100m
General
Power Supply: 100-240V AC, 50/60Hz
Power Consumption: =440W
Surge Protection: 4KV
Working Temperature: Temperature: 0?-40?
Working Humidity: Humidity: 10%-90% , non-condensing
Storage Temperature: Temperature: -40?-70?
Storage Humidity: Humidity: 5%-90% , non-condensing
Weight:4.29kg
Dimension: 440mm*285mm*43mm
Accessories
SFP modules (Optional):
HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
Network Ports: 26
PoE Port: 24, 10/100Mbps RJ45 ports
Uplink Port: 2, 1000M Combo Port
Standard
Network Protocol: IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity: 8.8Gbps
Max. Forwarding Rate: 6.55Mpps
High Priority Ports: Ports 1-8
Forwarding Mode: Store-and-forward
MAC Address Table: 4k
Flow Control: IEEE802.3x full duplex
Power Over Ethernet
PoE Standard: IEEE802.3af, IEEE802.3at
PoE Power Budget: 370W
Working Mode: Extend On:250m,10M,CAT 5e
Extend Off:100m
General
Power Supply: 100-240V AC, 50/60Hz
Power Consumption: =440W
Surge Protection: 4KV
Working Temperature: Temperature: 0?-40?
Working Humidity: Humidity: 10%-90% , non-condensing
Storage Temperature: Temperature: -40?-70?
Storage Humidity: Humidity: 5%-90% , non-condensing
Weight:4.29kg
Dimension: 440mm*285mm*43mm
Accessories
SFP modules (Optional):
HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
