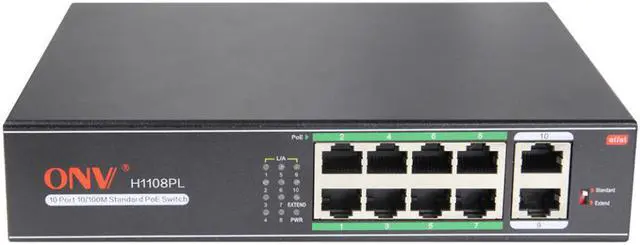

ONV-H1108PL 10-Port 10/100M standard PoE Switch

Technical parameter list
Product Name: 10/100M 10-Port Long Transmission Distance
PoE Switch Model: ONV-H1108PL
Connector Type: 10x 10/100M copper RJ45 Ports (All ports support MDI/MDIX auto sensing)
Port 1-8: PoE port, max PoE power output is 30W.
Transmission Distance: 250 Meters @10M, 100 Meters @ 100M
Network Media:
10BASE-T: Cat3, 4, 5
UTP(=100 meters); 100BASE-TX: Cat5 or later UTP(=100 meters);
Bandwidth: 2G
Address Database Size: 2K
MTBF: 100, 000 hours Network Latency maximum delay less than 20 microseconds
Forwarding Mode: Store-And-Forward
Buffer Memory: 1.25M
Network Protocols: IEEE 802.3 i 10BASET IEEE 802.3 u 100BASETX IEEE 802.3 x Flow Control IEEE 802.3 af/at LED Display PWR L/A
PoE Ports: 8*PoE Ports
PoE Port Power: Max 30W
PoE Standard: IEEE 802.3 af/at Working
Environment Operating Temperature: -20 ° ~ 55 ° C;
Storage Temperature: -20 ° ~ 75 ° C;
Humidity: 10% ~ 90%, non-condensing;
Storage Humidity: 10% ~ 95%, non-condensing;
Working Altitude: 3000 m (10, 000 ft);
Storage Altitude: 3, 000 m (10, 000 ft) Certification CE Mark, commercial
CE/LVD EN60950 Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance: Max 250 meters
Power Supply Type: 1, 2(+)/3, 6(-) (Default); 45(+), 78(-) (Option)
Product Size: 195 * 130 * 40mm
Warranty: 1 year
