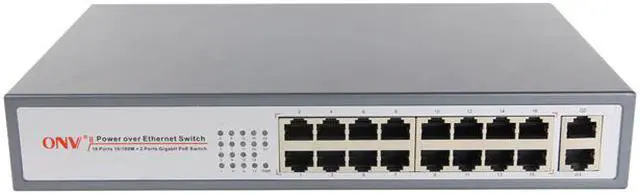

ONV-POE31016PA 16*10/100M PoE ports + 2* 10/100/1000M uplink ports IEEE802.3af/at PoE switch

Technical parameter list
Product Name: PoE Switch with 16 PoE Ports and 2 Gigabit Uplink
RJ45 Model: ONV-POE31016PA
Connector Type: 16x10/100Mbps PoE ports and 2x10/100/1000Mbps auto-sensing
RJ45 ports Network Media:
10BASE-T: Cat3, 4, 5
UTP(=100 meter) 100BASE-TX: 5 classes and more than 5 classes(=100 meter)
Bandwidth: 14.8G
Address Database Size: 16K
MTBF: 100, 000 hours
Network Latency: maximum delay less than 20 microseconds
Forwarding Mode: Store-And-Forward
Buffer Memory: 4M
Network Protocols: IEEE 802.3 i 10BASET IEEE 802.3 u 100BASETX IEEE 802.3 x Flow Control IEEE 802.3 af DTE Power via MDI IEEE 802.3 af/at
LED Display: PWR ACT/LINK
Power Supply: Power
input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports: 16*PoE Ports
PoE Port Power: Max 30W
PoE Standard: IEEE 802.3 af/at
Working Environment: Operating
Temperature: -20 ° ~ 55 ° C
Storage Temperature: -20 ° ~ 75 °
C Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 10% ~ 95%, non-condensing
Working Altitude: 3, 000 m (10, 000 ft)
Storage Altitude: 3, 000 m (10, 000 ft)
Certification: CE Mark, commercial
CE/LVD EN60950 Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance: 100 meters
Power Supply Type: PoE default power supply is end-span (1/2, 3/6 line pair), alternative PoE Power supply is mid-span (4/5, 7/8 line pair)
Product Size: 270.5 *181* 44.5 mm
Warranty: 1 year
