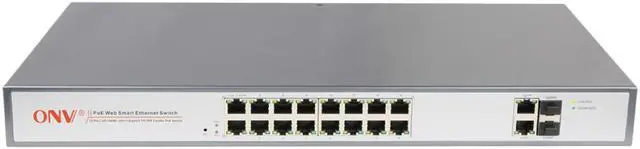

ONV-POE31016PFM-at 16 PoE Ports + 2 Gigabit Combo Electrical and SFP Fiber Ports Intelligent PoE Switch
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical parameter list
Product Name:Intelligent PoE Switch with 16 PoE Ports + 2 Gigabit TP/SFP Combo Ports
Model :ONV-POE31016PFM
Connector Type:16*10/100M copper cable RJ45 ports(all ports support MDI/MDIX) + 2*gigabit combo ports
Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: Cat5 and more UTP(=100 meter) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF
Bandwidth:64Gbps (non-blocking)
Address Database Size:16K
MTBF:100,000 hours
Network Latency:maximum delay less than 20 microseconds
Forwarding Mode :Store-And-Forward
Buffer Memory:4M
Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE802.3ab IEEE802.3z IEEE 802.3af /at
LED Display: System: power supply; Every Port: connecting, Ethernet working status
Power Input:AC 100-240V, 50/60HZ input
PoE Ports :16 PoE ports
PoE Port Power:30W max
Maximum PoE power:400W
PoE Standard :IEEE802.3af/at
Working Environment :Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -40 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft)
Certification:CE, FCC, RoHS
Transmission Distance: Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Product Size:440*225*44mm
Warranty:1 year warranty
Product Name:Intelligent PoE Switch with 16 PoE Ports + 2 Gigabit TP/SFP Combo Ports
Model :ONV-POE31016PFM
Connector Type:16*10/100M copper cable RJ45 ports(all ports support MDI/MDIX) + 2*gigabit combo ports
Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: Cat5 and more UTP(=100 meter) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF
Bandwidth:64Gbps (non-blocking)
Address Database Size:16K
MTBF:100,000 hours
Network Latency:maximum delay less than 20 microseconds
Forwarding Mode :Store-And-Forward
Buffer Memory:4M
Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE802.3ab IEEE802.3z IEEE 802.3af /at
LED Display: System: power supply; Every Port: connecting, Ethernet working status
Power Input:AC 100-240V, 50/60HZ input
PoE Ports :16 PoE ports
PoE Port Power:30W max
Maximum PoE power:400W
PoE Standard :IEEE802.3af/at
Working Environment :Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -40 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft)
Certification:CE, FCC, RoHS
Transmission Distance: Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Product Size:440*225*44mm
Warranty:1 year warranty
