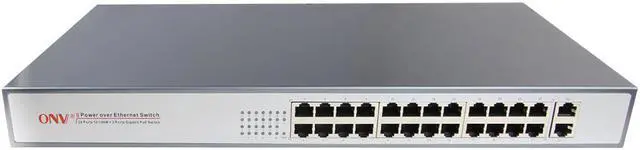

ONV-POE31024PU 24x 10/100M Ethernet PoE ports + 2x gigabit uplink ports IEEE802.3af/at PoE switch

Technical parameter list
Product Name:PoE Switch with 24 PoE Ports and 2 x 10/100/1000M Copper RJ45 ports
Model:ONV-POE31024PU
Connector Type:24x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x 10/100/1000M copper cable RJ45 ports
Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: Cat5 and more UTP(=100 meter)
Bandwidth :14.8G
Address Database Size:16K
MTBF:100,000 hours
Network Latency:maximum delay less than 20 microseconds
Forwarding Mode:Store-And-Forward
Buffer Memory :4M
Network Protocols:IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/at
LED Display: PWR; ACT/LINK
PoE Ports:24*PoE Ports
PoE Port Power: Max 30W
PoE Standard: IEEE802.3af/at
Working Environment:Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft)
Certification:CE Mark ,commercial CE/LVD EN60950
Radiation:CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance:100 meters
Power Supply Type: PoE default power supply is end-span(1/2, 3/6 line pair), alternative PoE Power supply is mid-span(4/5, 7/8 line pair)
Product Size: 440*225*44mm
Warranty:1 year
