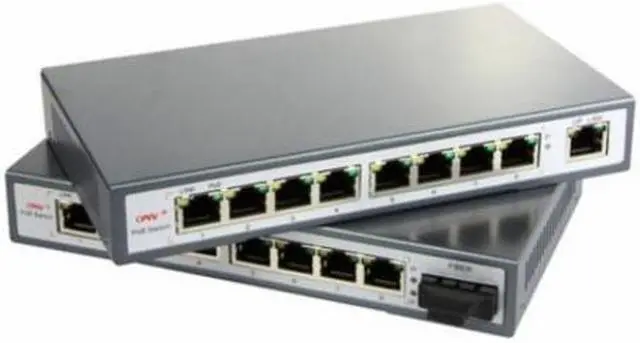

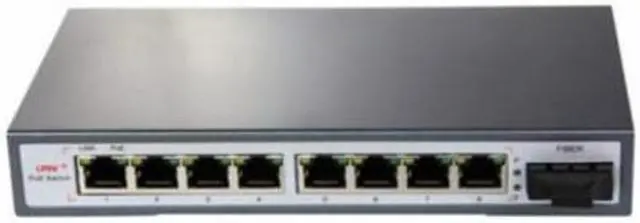

ONV-POE31084PF-at 4E AF PoE Ports and 4E Ports and 1 Fiber Up 9 Port Switch

The PoE Switch ONV-POE31084PF-at provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The nine Fast Ethernet ports can be used for any 10/100 Mbps link and four of 1-4 port can supply industry-standard IEEE 802.3 at power. Advanced auto-sensing algorithm gives power only to IEEE 802.3 at end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch ONV-POE31084PF-at automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.

The affordably priced PoE Switch ONV-POE31084PF-at delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch ONV-POE31804PF-at is ideal for small business networks that need to inexpensively use PoE to deploy wireless access point Main Features 4 PoE ports support IEEE 802.3 at power.

Supply power to wireless access points and surveillance cameras over Cat-5 cabling 8 10/100 Mbps Ports with AutoUplink™ The 9th port is optical fiber SC interface of 155 Mbps Supports PoE power up to 30W for each PoE port Supports PoE power up to 120W for all PoE ports Supports PoE IEEE 802.3 at compliant PDs Supports IEEE 802.3 x flow control for Full-duplex Mode and backpressure for Half-duplex Mode 1K entry MAC address table of the PoE Switch ONV-POE31084PF-at with auto-learning and auto-aging LED indicators for monitoring power, link, activity and speed External power adapter supply
