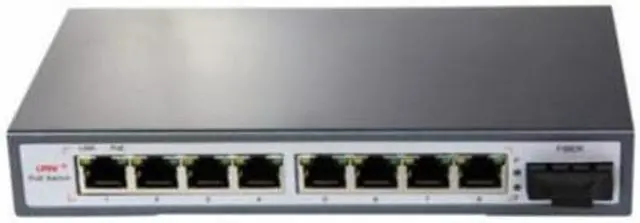

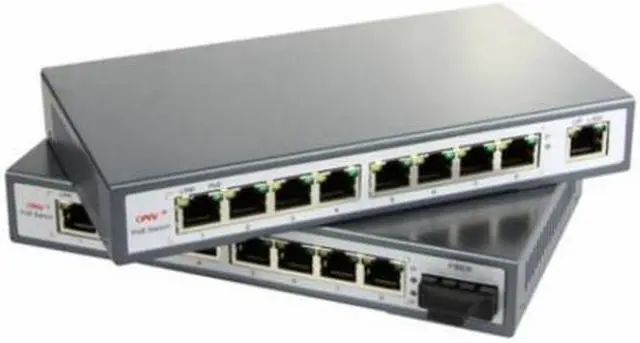

ONV-POE31084PF(4PoE+4E+1EF)4E AF PoE Ports and 4E Ports and 1 Fiber Up 9 Port Switch

The PoE Switch ONV-POE31084PF provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The eight RJ45 network ports + one fiber port can be used for any 10/100 M bps link and four of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch ONV-POE31804PF automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.
The affordably priced PoE Switch ONV-POE31084PF delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch ONV-POE31084PF is ideal for small business networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.

Main Features
?IEEE 802.3af power on up to 4 ports
?Supply power to wireless access points and surveillance cameras over Cat-5 cabling
?8 10/100 Mbps Ports with AutoUplink™
?The 9th port is optical fiber SC interface of 155 Mbps
?Supports PoE power up to 15.4W for each PoE port
?Supports PoE power up to 65W for all PoE ports
?Supports PoE IEEE 802.3af compliant PDs
?Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
?1K entry MAC address table of the PoE Switch ONV-POE31084PF with auto-learning and auto-aging
?LED indicators for monitoring power, link, activity and speed
?External power adapter supply
