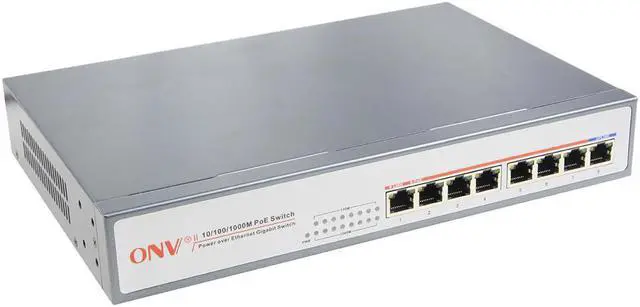

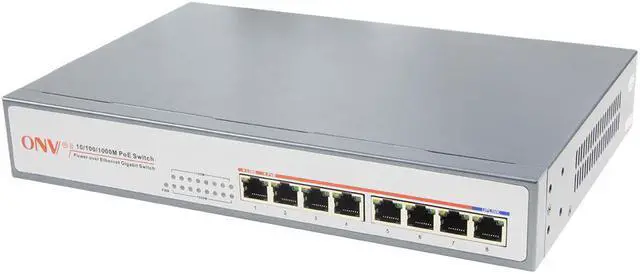

ONV-POE33007PN-at 8-Port Gigabit PoE Switch with 7x 10/100/1000M PoE Ports RJ45 Network Switch
- 8-Port Gigabit PoE Switch with 7x 10/100/1000M PoE Ports and 1x Uplink Port, and Each Port Supports IEEE802.3at Standard(30W)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical parameter list
Product Name: 8-Port Gigabit PoE Switch 30W
Model: ONV-POE33007PN-at
Connector Type: 7 * 10/100/1000M copper cable RJ45 PoE ports + 1 * 10/100/100M Ethernet Uplink Port (All ports support MDI/MDIX automatic adjustment)
Network Media: 1000BASE-TX: Cat5 or more UTP(=100 meters)
Bandwidth: 16Gbps (non-blocking)
Address Database Size: 8K
MTBF: 100,000 hours
Forwarding Mode: Store-and-forward architecture, line speed forwarding
Buffer Memory: 2M
Network Protocols: IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af/at
LED Display: Power, Network, PoE working status
Power Input: Input: AC100~240V 50/ 60Hz
PoE Ports: 7*PoE Ports
PoE Port Power: Max 30W
PoE Standard: IEEE802.3af/at
Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing
Certification :FCC, CE, RoHS
Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B

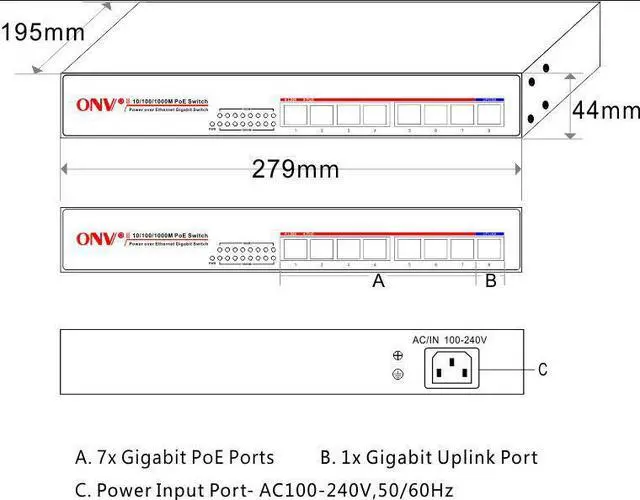

Product Size :279 * 195 * 44mm
Warranty:1 year
Product Name: 8-Port Gigabit PoE Switch 30W
Model: ONV-POE33007PN-at
Connector Type: 7 * 10/100/1000M copper cable RJ45 PoE ports + 1 * 10/100/100M Ethernet Uplink Port (All ports support MDI/MDIX automatic adjustment)
Network Media: 1000BASE-TX: Cat5 or more UTP(=100 meters)
Bandwidth: 16Gbps (non-blocking)
Address Database Size: 8K
MTBF: 100,000 hours
Forwarding Mode: Store-and-forward architecture, line speed forwarding
Buffer Memory: 2M
Network Protocols: IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af/at
LED Display: Power, Network, PoE working status
Power Input: Input: AC100~240V 50/ 60Hz
PoE Ports: 7*PoE Ports
PoE Port Power: Max 30W
PoE Standard: IEEE802.3af/at
Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing
Certification :FCC, CE, RoHS
Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Product Size :279 * 195 * 44mm
Warranty:1 year
