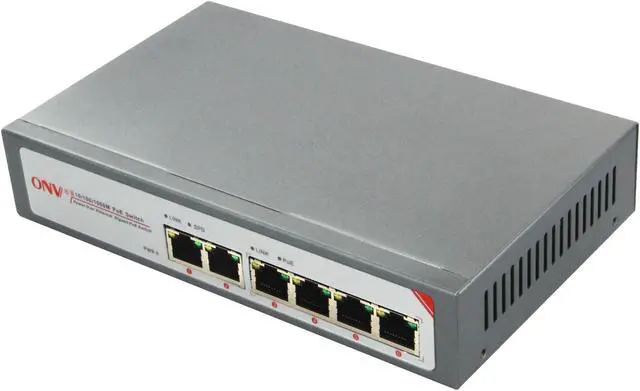

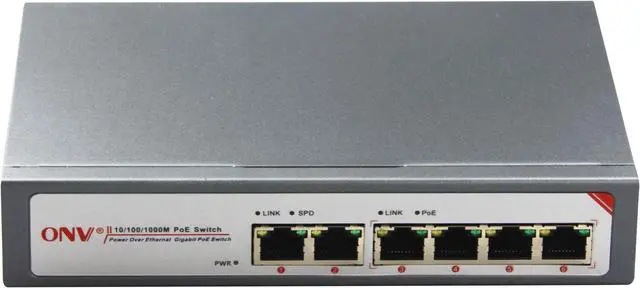

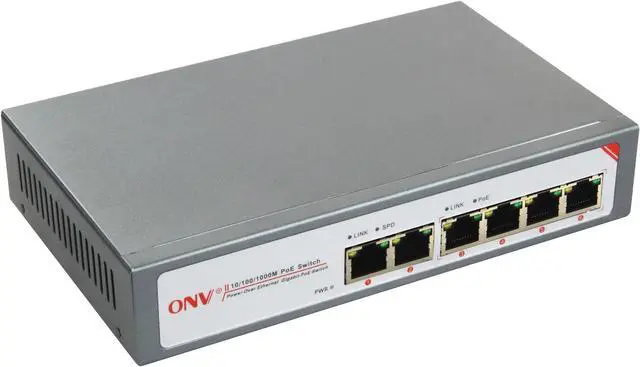

ONV-POE33064PN 6-Port Gigabit PoE Switch with 2 Gigabit Uplink Ports and 4 Gigabit PoE Ports(15.4W)

Technical parameter list
Product Name: 6-Port Gigabit PoE Switch with 4 Gigabit PoE Ports
Model: ONV-POE33064PN
Connector Type: 4x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment), 2x 10/100/1000M Uplink Ports
Network Media: 10BASE-T: Cat3, 4, 5 UTP(=100 meter); 100BASE-TX: Cat5 or more UTP(=100 meter); 1000BASE-TX: Cat5 or more UTP(=100 meter)
Bandwidth: 8.8Gbps (non-blocking)
Address Database Size: 8K
MTBF: 100,000 hours
Forwarding Mode: Store and Forward
Buffer Memory: 2M
Network Protocols: IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af
LED Display: System: Power; Every Port: connection status, PoE working status
PoE Ports: 4 PoE ports
PoE Port Power: 15.4W per PoE port, total is 65W
PoE Standard: IEEE 802.3af
Working Environment Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)
Certification CE, FCC, Rohs
Transmission Distance: 100m
Power Supply Type Default PoE power supply type is end-span (12, 36 line pair), mid-span(45, 78 line pair) is optional
Product Size :118 x 89 x 25mm
Package Size: 250 x 205 x 87mm
Warranty : 1 year warranty
