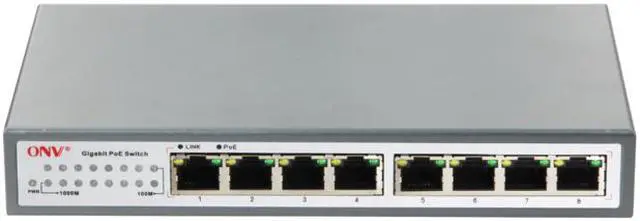

ONV-POE33084P-at 8-Port Gigabit PoE Switch with 4 Gigabit PoE Ports Network Switch
- 8-Port Gigabit PoE Switch with 4 Gigabit PoE Ports, PoE Port Power Can be up to 30W(IEEE802.3at Standard)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical parameter list
Product Name:8-Port Gigabit PoE Switch with 4 Gigabit PoE Ports 30W
Model: ONV-POE33084P-at
Connector Type: 8*10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX)
Network Media: 10Base-T and 100Base-TX (=100m, Cat 5 cable), 100Base-FX
Bandwidth: 16Gbps (non-blocking)
Address Database Size: 8K
MTBF: 100,000 hours
Forwarding Mode: Store-And-Forward
Buffer Memory: 2M
Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3ab 1000BASETX IEEE 802.3x Flow Control IEEE 802.3af/at
LED Display : Power, Ethernet Data, PoE working status
PoE Ports: Port1-4 support PoE
PoE Port Power: 30W
PoE Standard: IEEE802.3af/at
Power Consumption : 110W
Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Operating Humidity: 10% ~ 95%, non-condensing
Transmission Distance: =100 meter
Power Supply Type:1/2+,3/6- (End-span);Optional order 4/5+,7/8- (Mid-span)
Product Size :280x186x44mm
Warranty:1 year
Product Name:8-Port Gigabit PoE Switch with 4 Gigabit PoE Ports 30W
Model: ONV-POE33084P-at
Connector Type: 8*10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX)
Network Media: 10Base-T and 100Base-TX (=100m, Cat 5 cable), 100Base-FX
Bandwidth: 16Gbps (non-blocking)
Address Database Size: 8K
MTBF: 100,000 hours
Forwarding Mode: Store-And-Forward
Buffer Memory: 2M
Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3ab 1000BASETX IEEE 802.3x Flow Control IEEE 802.3af/at
LED Display : Power, Ethernet Data, PoE working status
PoE Ports: Port1-4 support PoE
PoE Port Power: 30W
PoE Standard: IEEE802.3af/at
Power Consumption : 110W
Working Environment Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Operating Humidity: 10% ~ 95%, non-condensing
Transmission Distance: =100 meter
Power Supply Type:1/2+,3/6- (End-span);Optional order 4/5+,7/8- (Mid-span)
Product Size :280x186x44mm
Warranty:1 year
