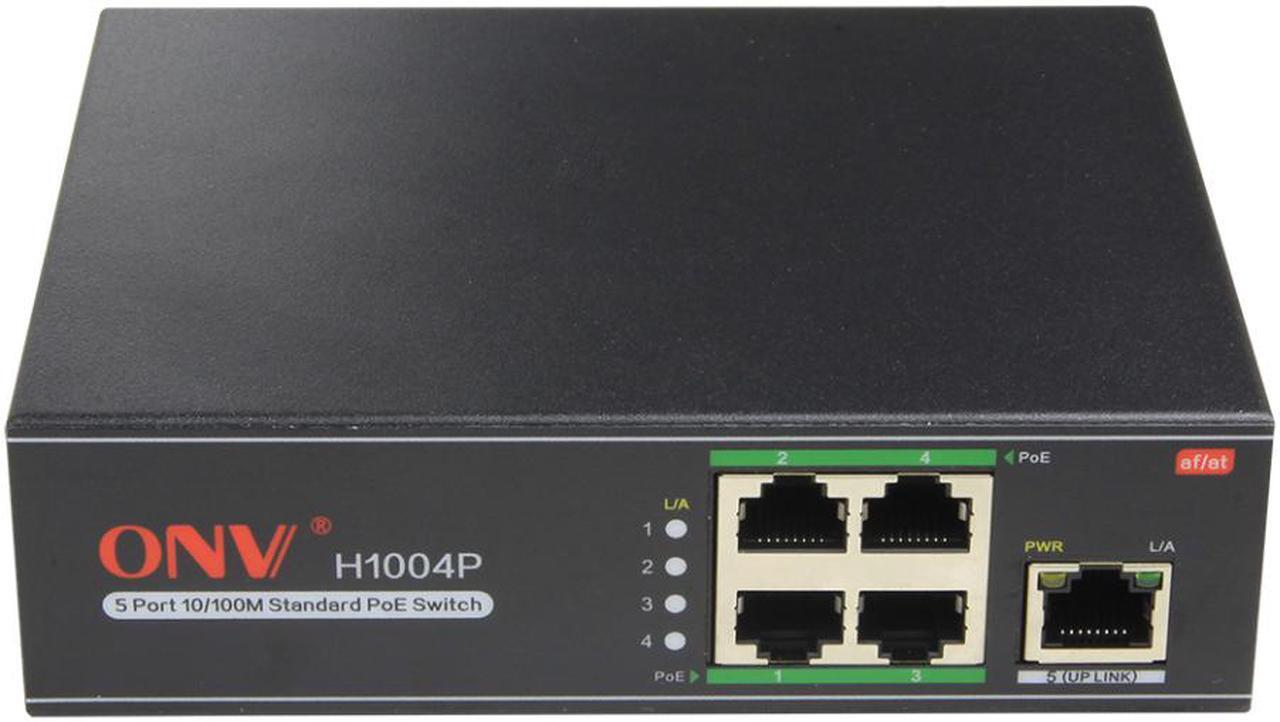

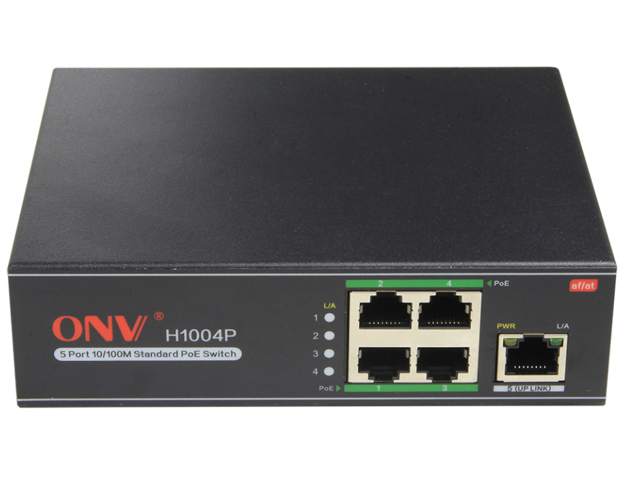

ONV-H1004P 5-Port 10/100M Standard PoE Switch

Technical parameter list
Product Name: 10/100M 5-Port Standard PoE Switch
Model: ONV-H1004P
Connector Type: 4x 10/100M Standard RJ45 PoE Ports + 1x 10/100M RJ45 Uplink Port
Network Media: 10BASE-T: Cat3,4,5 UTP(=100 meters); 100BASE-TX: Cat5 or later UTP(=100 meters);
Bandwidth: 1.2Gbps (Non-blocking)
Address Database Size: 2K
MTBF: 100,000 hours
Network Latency maximum delay less than 20 microseconds
Forwarding Mode: Store-and-forward
Buffer Memory: 384K
Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3at
LED Display: SYS: PWR EACH PORT: Connect, PoE Status
PoE Ports: 4x PoE Ports
PoE Port Power: 15.4W
Power Consumption: 60W
Working Environment Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -40 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 5% ~ 90%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)
Certification : CE Mark ,commercial CE/LVD EN60950
Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance: 100 meters
Product Size :142x113x40mm
Weight: 0.5kg
Warranty: 1 year
