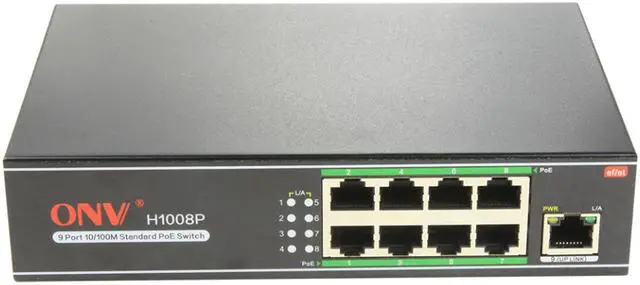

ONV-H1008P 9-Port 10/100M Standard PoE Switch
- 9-Port 10/100M Standard PoE Switch. Port 1 - 8 support PoE function, with max power for each port is 15.4W at the standard of IEEE802.3af. Total power is 120W.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical parameter list
Product Name: 10/100M 9-Port Standard PoE Switch
Model: ONV-H1008P
Connector Type: 8x 10/100M Standard RJ45 PoE Ports + 1x 10/100M RJ45 Uplink Port
Network Media: 10BASE-T: Cat3,4,5 UTP(=100 meters); 100BASE-TX: Cat5 or later UTP(=100 meters);
Bandwidth: 1.6Gbps (Non-blocking)
Address Database Size 4K
MTBF:100,000 hours
Network Latency maximum delay less than 20 microseconds
Forwarding Mode: Store-and-forward
Buffer Memory:1.25M
Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3at
LED Display SYS: PWR EACH PORT: Connect, PoE Status
PoE Ports: 8x PoE Ports
PoE Port Power:15.4W
Power Consumption: 100W
Working Environment Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -40 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 5% ~ 90%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)
Certification CE Mark ,commercial CE/LVD EN60950
Radiation:CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance:100 meters
Product Size:178.7 x 124 x40mm
Weight : 0.7kg
Warranty:1 year
Product Name: 10/100M 9-Port Standard PoE Switch
Model: ONV-H1008P
Connector Type: 8x 10/100M Standard RJ45 PoE Ports + 1x 10/100M RJ45 Uplink Port
Network Media: 10BASE-T: Cat3,4,5 UTP(=100 meters); 100BASE-TX: Cat5 or later UTP(=100 meters);
Bandwidth: 1.6Gbps (Non-blocking)
Address Database Size 4K
MTBF:100,000 hours
Network Latency maximum delay less than 20 microseconds
Forwarding Mode: Store-and-forward
Buffer Memory:1.25M
Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3at
LED Display SYS: PWR EACH PORT: Connect, PoE Status
PoE Ports: 8x PoE Ports
PoE Port Power:15.4W
Power Consumption: 100W
Working Environment Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -40 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 5% ~ 90%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)
Certification CE Mark ,commercial CE/LVD EN60950
Radiation:CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance:100 meters
Product Size:178.7 x 124 x40mm
Weight : 0.7kg
Warranty:1 year
