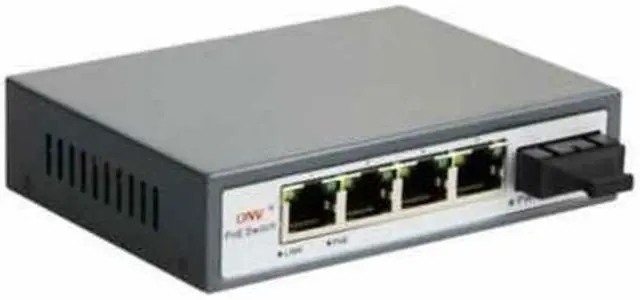

ONV-POE31004PF-at 4 PoE IEEE802.3at 5-Port SC Fiber Port Media Converter Switch

The PoE Switch ONV-POE31004PF-at provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The four RJ45 network ports + one fiber port can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3af power.
Advanced auto-sensing algorithm gives power only to IEEE802.3at end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch ONV-POE31004P automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.
Product Features
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
4 10/100 Mbps Ports with AutoUplink™
The 5 port is optical fiber SC interface of 155 Mbps
Supports PoE power up to 30W for each PoE port
Supports PoE power up to 120W for all PoE ports
Supports PoE IEEE 802.3at compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch ONV-POE31004P-at with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed

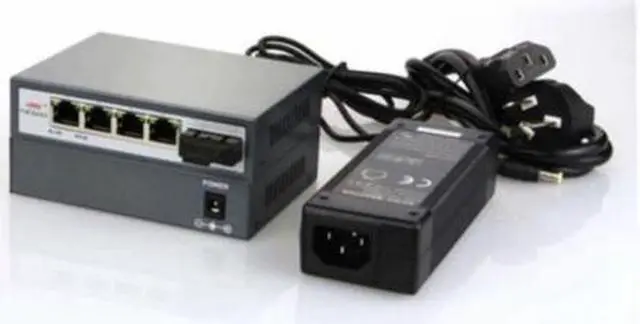

External power adapter supply
