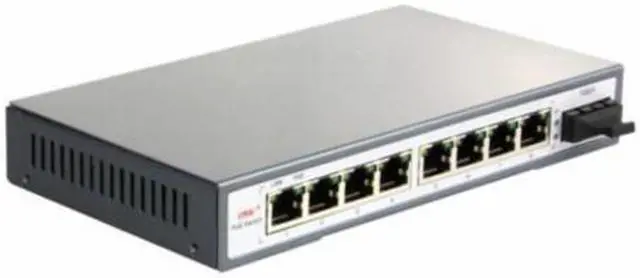

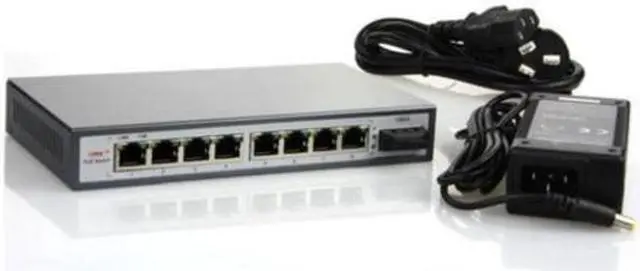

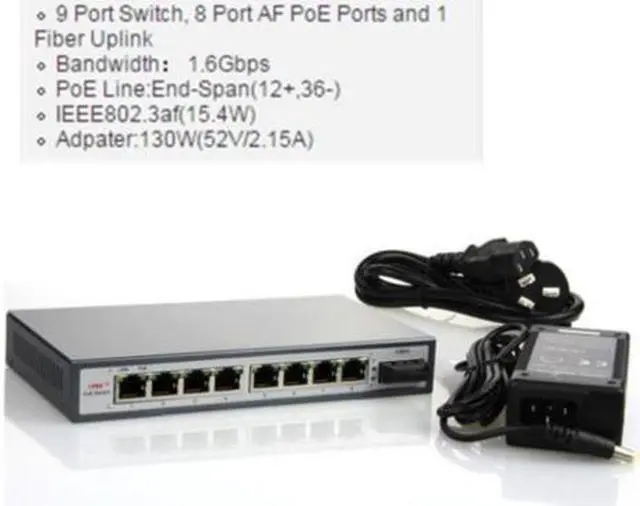

ONV-POE31008PF 8 Port IEEE802.3af PoE 1 155M Fiber Uplink Port POE Switch

Technical parameter list
Product Name: 8 Port IEEE 802.3 af PoE switch with 1
Port Fiber Model: ONV-POE31008PF
Connector Type: 9x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 8x PoE ports, 1x 155Mbps SC fiber port
Network Media:
10BASE-T: Cat3, 4, 5
UTP(=100 meter) 100BASE-TX: Cat5 or more UTP (=100 meter)
Bandwidth: 1.6G bps (non-blocking)
Address Database Size: 1K
MTBF: 100, 000 hours
Network Latency: maximum delay less than 20 microseconds
Forwarding Mode: Store-And-Forward Buffer Memory 768KB Network Protocols IEEE 802.3 i 10BASET IEEE 802.3 u 100BASETX IEEE 802.3 x Flow Control IEEE 802.3 af DTE Power via MDI IEEE 802.3 af
LED Display:
System: power supply
Every Port: connecting, PoE working status
PoE Ports: 8x PoE Ports
PoE Port Power: 15.4W
Power Consumption: 130W
Working Environment: Operating
Temperature: -20 ° ~ 55 ° C
Storage Temperature: -20 ° ~ 75 ° C
Operating Humidity: 10% ~ 95%, non-condensing
Certification: CE Mark, commercial CE/LVD EN60950, RoHS
Radiation: CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance: Data
transmission distance: 100m;
Fiber transmission: 25km
Product Size: 195x110x35mm
Weight: 0.52 kg
Warranty: 1 year
