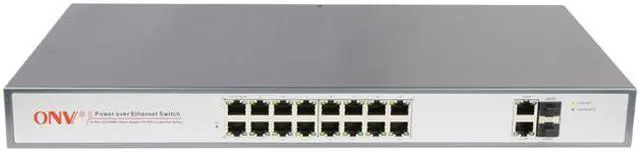

ONV-POE31016PFA 16 AF PoE Ports and 2GE/2GF Uplink PoE Line End-Span(12+,36-) PoE IEEE802.3af/at Switch

Technical parameter list
Product Name :16-Port PoE switch with 2 Gigabit TP/SFP Combo Ports
Model :ONV-POE31016PFA
Connector Type:16x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x gigabit combo ports
Network Media:10BASE-T: Cat3,4,5 UTP(=100 meter) 100BASE-TX: 5 classes and more than 5 classes(=100 meter)
Bandwidth :14.8Gbps (non-blocking)
Address Database Size:16K
MTBF:100,000 hours
Network Latency:maximum delay less than 20 microseconds
Forwarding Mode:Store-And-Forward
Buffer Memory 4M
Network Protocols: IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/at
LED Display: System: power supply Every Port: connecting, PoE working status
PoE Ports:16 * PoE Ports
PoE Port Power: Max 30W
PoE Standard: IEEE802.3af/at
Working Environment:Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft)
Certification:CE Mark ,commercial CE/LVD EN60950
Radiation:CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance: Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Product Size:440 * 225 * 44mm
Warranty :1 year
