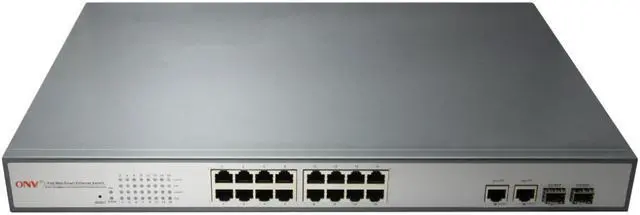

ONV-POE31016PFM-at 16x 10/100M PoE ports + 2x gigabit electrical and SPF fiber combo ports Managed PoE switch

Technical parameter list
Product Name :High Power Managed PoE Switch with 16x PoE Ports and 2x Gigabit Combo Ports
Model :ONV-POE31016PFM-at
Connector Type:16x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x gigabit electrical and SFP combo ports
Network Media:10BASE-T: Cat3/4/5 UTP(=100 meter) 100BASE-TX: 5 classes and more than 5 classes(=100 meter)
Bandwidth:64G
Address Database Size: 4K
MTBF:100,000 hours
Network Latency:maximum delay less than 20 microseconds
Forwarding Mode:Store and Forward
Buffer Memory :2.75M
Network Protocols:IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/at
LED Display:System: power supply Every Port: connecting, PoE working status
Power Supply: Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports:16*PoE Ports
Maximum PoE power: 400W
PoE Port Power:Max 30W
PoE Standard: IEEE802.3af/at
Working Environment:Operating Temperature: -20 ° ~ 55 ° C Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft)
Certification:CE Mark ,commercial CE/LVD EN60950
Radiation:CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance:Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Power Supply Type:PoE default power supply is end-span (1/2, 3/6 line pair), mid-span (4/5, 7/8 line pair) PoE Power supply can be customized
QoS: Yes
VLAN: Yes
Product Size :440x275x44.5mm
Warranty :1 year
