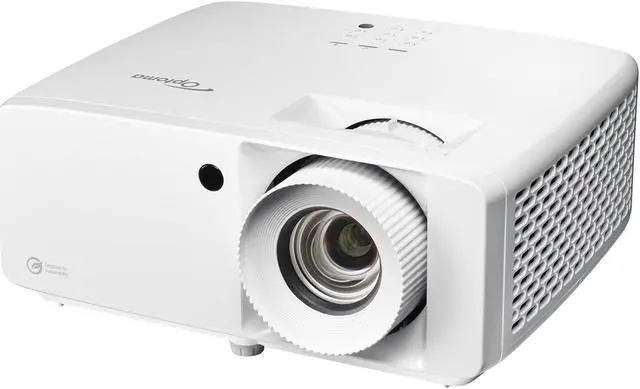

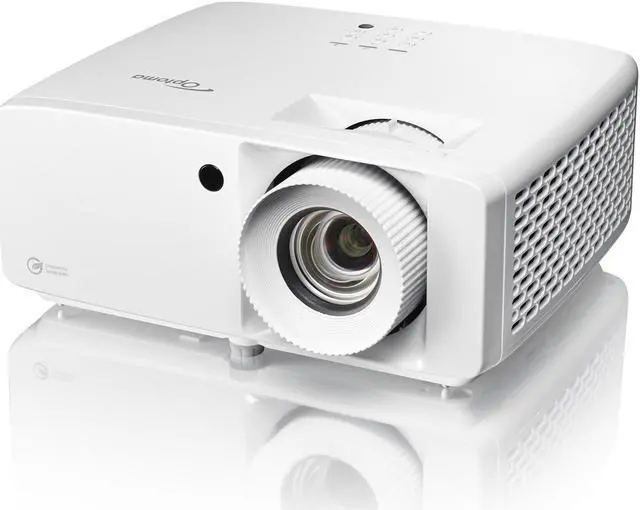

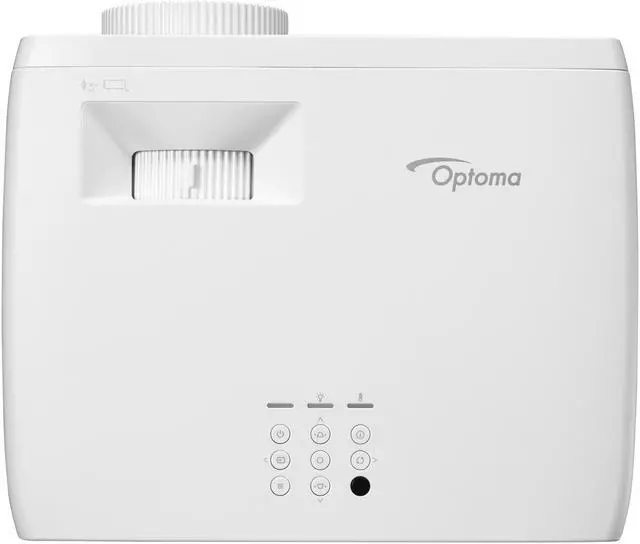

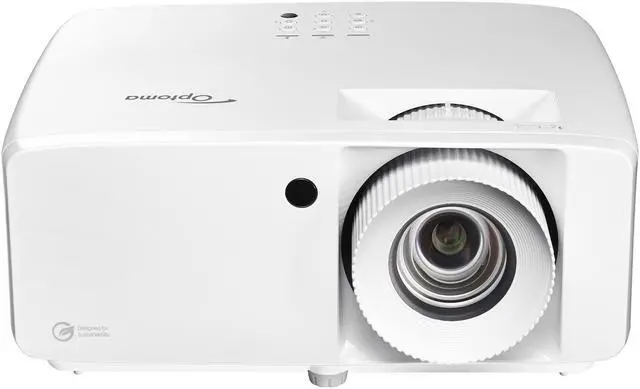

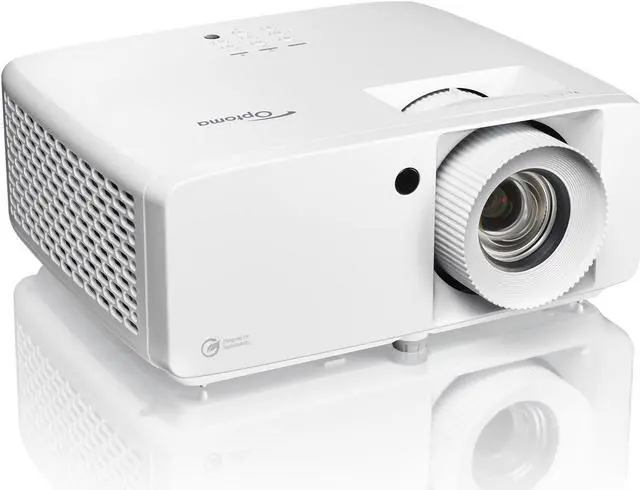

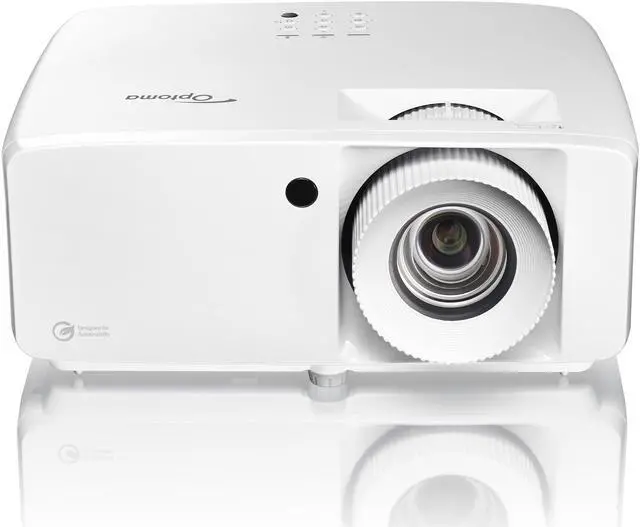

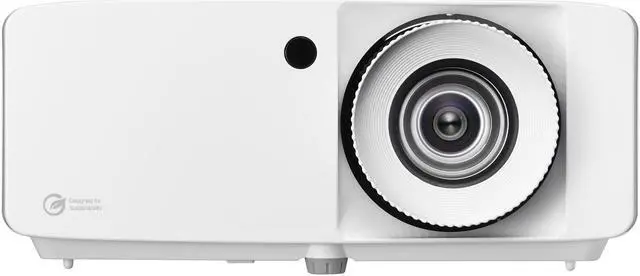

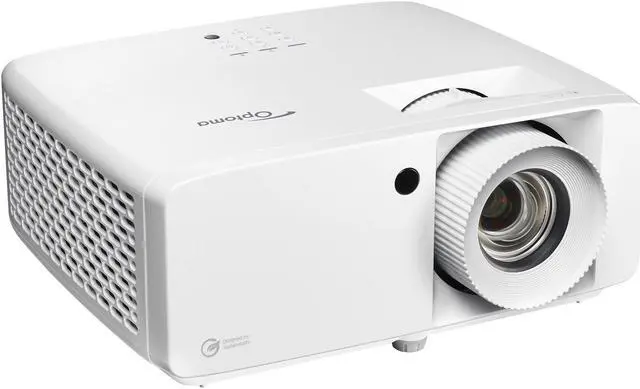

Optoma UHZ66 True 4K UHD Gaming and Home Entertainment Projector | 4,000 Lumens for Lights-On Viewing | 240Hz Refresh Rate and Ultra-Low 4.4ms Response Time
promotional gift card w/ purchase, limited offer By Electronic Express
Incredible True 4K UHD resolution and laser technology HDR and HLG compatible
Lights on viewing - bright 4000 lumens Perfect for big screen home entertainment and immersive gaming
Small form factor for easy installation 1.6x zoom, 360-degree and portrait projection
Lightning-fast gaming Supports 1080p 240Hz at 4.4ms and 4K 60Hz at 17ms
+
+
Overview
Specs
Reviews
Optoma has their eye on sustainability and has produced the DuraCore series of projectors to be more environmentally conscious than previous designs. With that in mind, the UHZ66 features a 34% more compact body, 45% reduction in power consumption, a chassis made with up to 50% post-consumer recycled plastics, and packaging that contains 97% recyclable materials.
True 4K Resolution with HDR Compatibility Ultra HD 4K resolution delivers sharper, life-like images and richer colors, allowing you to sit closer to the screen and enjoy a more immersive experience. Optoma's DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That's four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels. Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content, this Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.
Laser Light Source Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of equivalent lamp-based models. They also deliver increased efficiency to maintain consistent brightness, excellent color performance, instant on/off, and a lifespan of up to 30, 000 hours. This long lifetime is achieved using Optoma's DuraCore technology, implementing advanced laser diode cooling techniques and an IP6X dust-resistant design.
24/7 Operation Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use are required. Subject to 24-hour terms and conditions. Please note, projector warranty is based on standard business usage hours. For optimum performance, Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolong the life of your lamp.
Integrator Friendly Featuring a wide range of options, you can control and monitor the projector remotely. Optoma projectors come with an extensive set of RS-232 commands, making it simple and easy to manage using any control system. Incorporated control is available with AMX, Crestron RoomView, and Extron IPLink.
Additional Features IP6X-certified Dust Resistance Full HD 3D Support 360° Orientation for Installation Auto power off 24 FPS movie support Built-in 15W speaker
Learn more about the OPTOMA UHZ66
Model
Brand
Optoma
Model
UHZ66
Details
Cabinet Color
White
Type
DLP
Display
Brightness
4000
Native Resolution
UHD (3840x2160) 1080p 120Hz at 8.6ms 1080p 60Hz 17ms
Maximum Resolution
3840 x 2160
Aspect Ratio
16:9
Contrast Ratio
500,000:1
Display Size
26" ~ 303" diagonal
Horizontal Refresh Rate
15 ~ 140Khz
Vertical Refresh Rate
24 ~ 120Hz
Lens
Focal Length
20.91 ~ 32.62
Throw Ratio
1.4:1 ~ 2.24:1
Throw Distance
51.18" - 370.08"
Lamps & Accessories
Lamp
Laser
Lamp Life
30,000 hours
Connectivity
Input Video Compatibility
PC compatibility UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac 2D compatibility NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) 3D compatibility Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D) 3D Full 3D

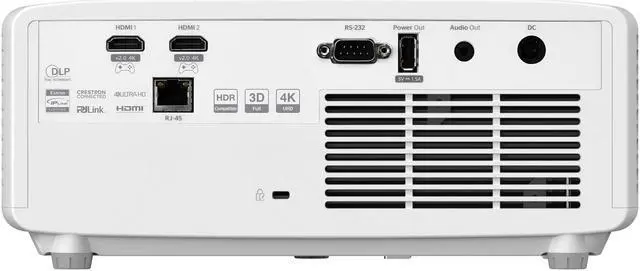

Input Video Connectors
Inputs 1 x HDMI 2.0, 1 x HDMI 2.0 (eARC)
Output Audio Connectors
1 x Audio 3.5mm
Network Connectors
1 x RJ45
USB
USB-A power 1.5A
Other Connectors
1 x RS232
Power
Power Supply

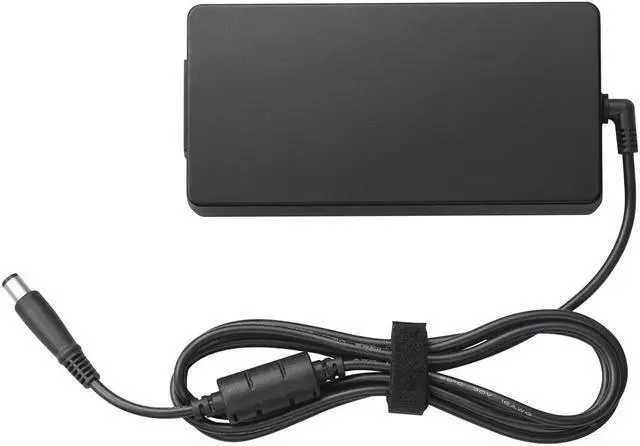

External power supply, 100V ~ 240V, 50-60Hz
Power Consumption
Power consumption (standby) <0.5W Power consumption (min) 126W Power consumption (max) 185W
Environmental
Temperature Range
0°C ~ 40°C
Humidity Range
Max. Humidity 80%
Noise Level
Noise level (min) 29dB Noise level (max) 36dB
Dimensions & Weight
Dimensions (H x W x D)
Dimensions (W x D x H) 10.79" x 8.5" x 4.49"
Weight
Gross weight 9.26 lbs Net weight 6.61 lbs
Package Contents
Package Contents
AC power cord Remote control with 1x CR2025 Battery Basic user manual
Additional Information
Date First Available
November 22, 2023
