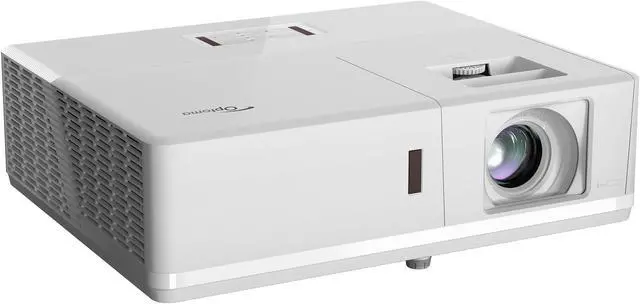

Optoma ZU506T-W 1920 x 1200 5,000 ANSI lumens DLP WUXGA Professional Installation Laser Projector 1800:1 RJ45
- Bright 5,000 ANSI lumens and WUXGA resolution
- 4K UHD HDR input with HDMI 2.0 (HDCP 2.2)
- Light source life up to 30,000 hrs
- Vertical lens shift with four corner correction
- LAN and RS232 control with Crestron, Extron, AMX and Telnet compatibility
- Integrated HDBaseT and 12v trigger
- Stereo speakers with 10W per channel
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the OPTOMA ZU506T-W
| Brand | Optoma |
|---|---|
| Model | ZU506T-W |
| Cabinet Color | White |
|---|---|
| Type | DLP |
| Brightness | 5,000 ANSI lumens |
|---|---|
| Native Resolution | 1920 x 1200 |
| Maximum Resolution | 3840 x 2160 |
| Aspect Ratio | 16:10 native, 16:9 and 4:3 compatible |
| Contrast Ratio | 1800:1 |
| Display Size | 20.8" - 331.6" |
| Lens | 1.6x optical, 0.8 - 2.0x digital |
|---|---|
| f Number | F=2.5-3.26 |
| Focal Length | f=20.91-32.62mm |
| Throw Ratio | 1.4 - 2.24 (distance/width) |
| Display Colors | 1.07 Billion |
| Throw Distance | 3.28' - 32.8' |
| Projection Methods | Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable |
| Keystone Correction | +/-30° vertical and horizontal |
| Lamp | Laser phosphor |
|---|---|
| Lamp Life | Up to 30,000 hours |
| Input Video Compatibility | Analog RGB, Digital, Composite |
|---|---|
| Input Video Connectors | 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x HDBaseT, 1x composite, 2x VGA, 1x S-video |
| Input Audio Connectors | 1x audio in, 1x mic/audio in |
| Output Video Connectors | D-Sub |
| Output Audio Connectors | 1x audio out |
| Network Connectors | RJ45 |
| USB | Yes |
| Built-in Speakers | 2 x 10W speakers (stereo) |
|---|---|
| Features | Bright 5,000 ANSI lumens and WUXGA resolution 4K UHD HDR input with HDMI 2.0 (HDCP 2.2) Light source life up to 30,000 hrs Vertical lens shift with four corner correction LAN and RS232 control with Crestron, Extron, AMX and Telnet compatibility Integrated HDBaseT and 12v trigger Stereo speakers with 10W per channel |
| Compatibility | 3D Compatibility: Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. Required 3D glasses are sold separately. Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac Video Compatiblity: PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz) |
| Power Supply | 100 - 240 VAC, 50/60Hz |
|---|---|
| Power Consumption | 353W +/-15% (Full), 321W +/-15% (Eco) |
| Noise Level | 36db (Normal) / 30db (Eco) |
|---|

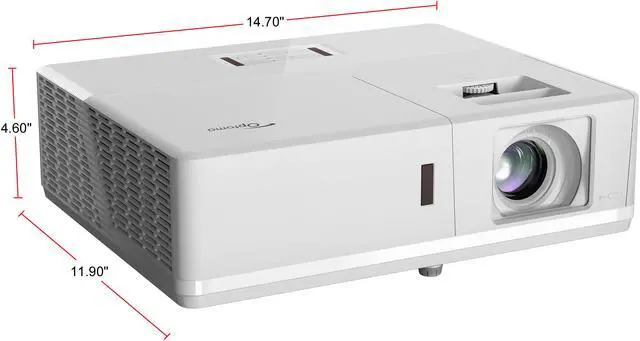

| Dimensions (H x W x D) | 4.60" x 14.70" x 11.90" |
|---|---|
| Weight | 12.12 lbs. |
| First Listed on Newegg | January 08, 2021 |
|---|
