What are the connector types for this fiber optic cable?

The C2G 33172 OM1 Fiber Optic Cable features LC Male connectors on both ends.

What is the length of the C2G 33172 OM1 Fiber Optic Cable?

The length of the C2G 33172 OM1 Fiber Optic Cable is 3.28 feet, which is approximately 1 meter.

$14^.99

$21.84

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

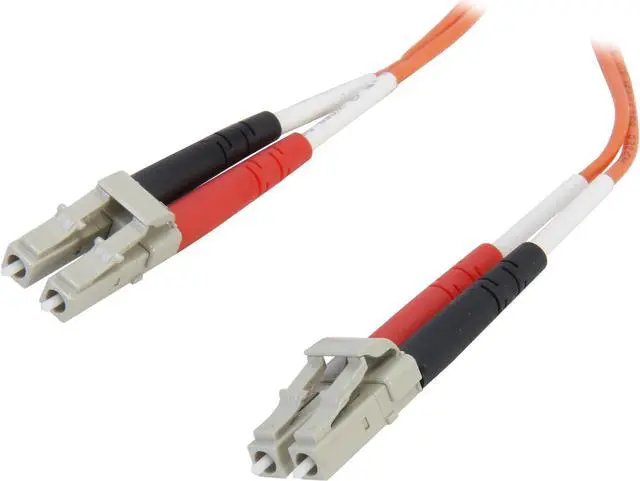

Main image of C2G 33172 OM1 Fiber Optic Cable - LC-LC 62.5/125 Duplex Multimode PVC Fiber Cable, Orange (3.3 Feet, 1 Meter)

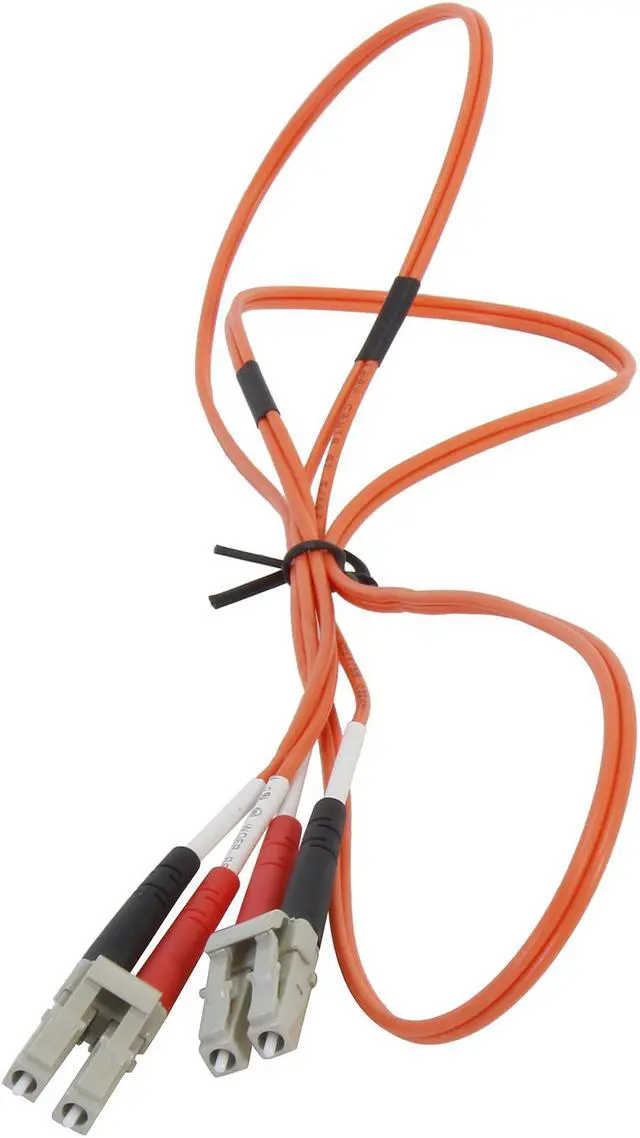

Alt view image 2 of 3 - C2G 33172 OM1 Fiber Optic Cable - LC-LC 62.5/125 Duplex Multimode PVC Fiber Cable, Orange (3.3 Feet, 1 Meter)

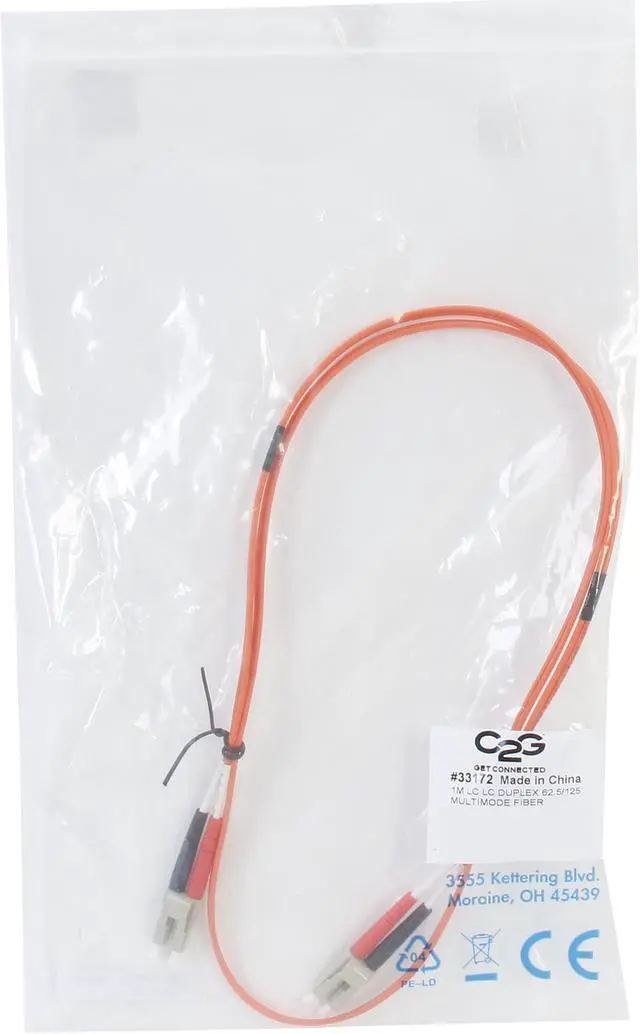

Alt view image 3 of 3 - C2G 33172 OM1 Fiber Optic Cable - LC-LC 62.5/125 Duplex Multimode PVC Fiber Cable, Orange (3.3 Feet, 1 Meter)

Shop All Cables To Go Products

C2G 33172 OM1 Fiber Optic Cable - LC-LC 62.5/125 Duplex Multimode PVC Fiber Cable, Orange (3.3 Feet, 1 Meter)

Be the first to review this product...

Orange
Fiber

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

C2G 1M LC-LC 62.5/125 OM1 FIBER-ORG

Model
Brand	C2G
Model	33172
Type	Network Cable
Type	Cable Connectors
Color	Orange

Details
Length	3.28 ft.
Connector Number	4
Connector Detail	Connector A: LC Male Connector B: LC Male

Features
Features	With LC to LC termination, this high-quality fiber optic patch cable is specifically designed for fast ethernet, fibre channel, Infiniband®, ATM and gigabit ethernet applications. The small LC connectors satisfy the need for higher port density both in the telecom room and the work area, and offer twice the port density of traditional SC and ST fiber connectors. The LC connector with its RJ-style latch clip design is easy to engage and disengage, and gives each connection greater durability in resisting pulls, strains, snags, and impacts during cabling installs and maintenance. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference. Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm.
Windows Vista	LC Connector Dimensions: 10.75mm - Height x 12.5mm - Width x 50mm - Depth (with installed duplex clip) Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -25 dB Buffer Material: PVC Buffer OD: 900 um Jacket Material: PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1,000 cycles Flex Resistance: 5,000 cycles Attenuation at 1300 nm: 1.0 dB/km Attenuation at 850 nm: 3.5 dB/km Operating Temperature: -20 Degree to +70 Degree Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A. Length: 1m Weight: 0.049 lbs. Jacket Rating: Standard

Group
Length	0.5 ft.

Additional Information
First Listed on Newegg	January 21, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 45 days

Return for replacement within: 1 year

This item is covered by Newegg.com's 45/1 Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-506-9607
Support Email: [email protected]
Support Website
