What type of connectors does the C2G 33157 OM1 Fiber Optic Cable use?

The cable uses 2 LC Male connectors on one end and 2 SC Male connectors on the other end.

What is the length of the C2G 33157 OM1 Fiber Optic Cable?

The length of the C2G 33157 OM1 Fiber Optic Cable is 16.4 feet (5 meters).

Home
Components & Storage
Cable
Fiber Optic Cables
Cables To Go
Item#: N82E16812196682

$21^.65

Free 30-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

Deal Targets

Top Rated

3.2 (2,126 total ratings)

$27^.82
+ $9.99 Shipping

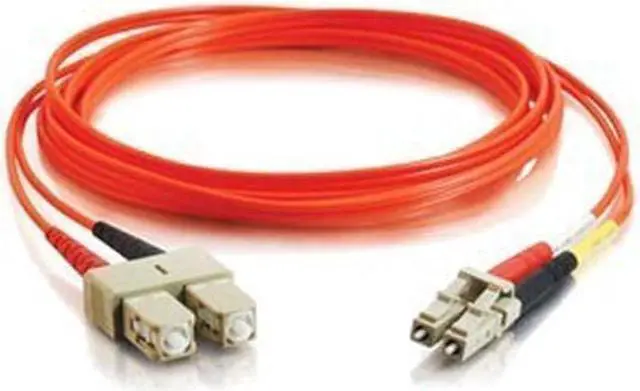

Main image of C2G 33157 OM1 Fiber Optic Cable - LC-SC 62.5/125 Duplex Multimode PVC Fiber Cable, Orange (16.4 Feet, 5 Meters)

Shop All Cables To Go Products

C2G 33157 OM1 Fiber Optic Cable - LC-SC 62.5/125 Duplex Multimode PVC Fiber Cable, Orange (16.4 Feet, 5 Meters)

Be the first to review this product...

1 Connector Number
Orange

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

ENTEGRADE OM4 FIBER OPTIC CABLE_ SC/ST_

Model
Brand	Cables To Go
Model	33157
Type	Fiber
Type	Cable Connectors
Color	Orange

Details
Length	16 ft.
Connector Number	1
Connector Detail	Connector A: 2 x LC Male Connector B: 2 x SC Male
Specifications	Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm. LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip) SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip) Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -25 dB Buffer Material: PVC Buffer OD: 900 um Jacket Material: PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1,000 cycles Flex Resistance: 5,000 cycles Attenuation at 1300 nm: 1.0 dB/km Attenuation at 850 nm: 3.5 dB/km Operating Temperature: -20ºC to +70ºC Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.

Features
Features	With LC to SC termination, this high-quality fiber optic patch cable is specifically designed for fast ethernet, fibre channel, ATM and gigabit ethernet applications. The small LC connectors satisfy the need for higher port density both in the telecom room and the work area, and offer twice the port density of traditional SC and ST fiber connectors. The LC connector with its RJ-style latch clip design is easy to engage and disengage, and gives each connection greater durability in resisting pulls, strains, snags, and impacts during cabling installs and maintenance. The SC connector features a push-pull locking system. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.

Group
Length	0.5 ft.

Additional Information
First Listed on Newegg	November 11, 2010
