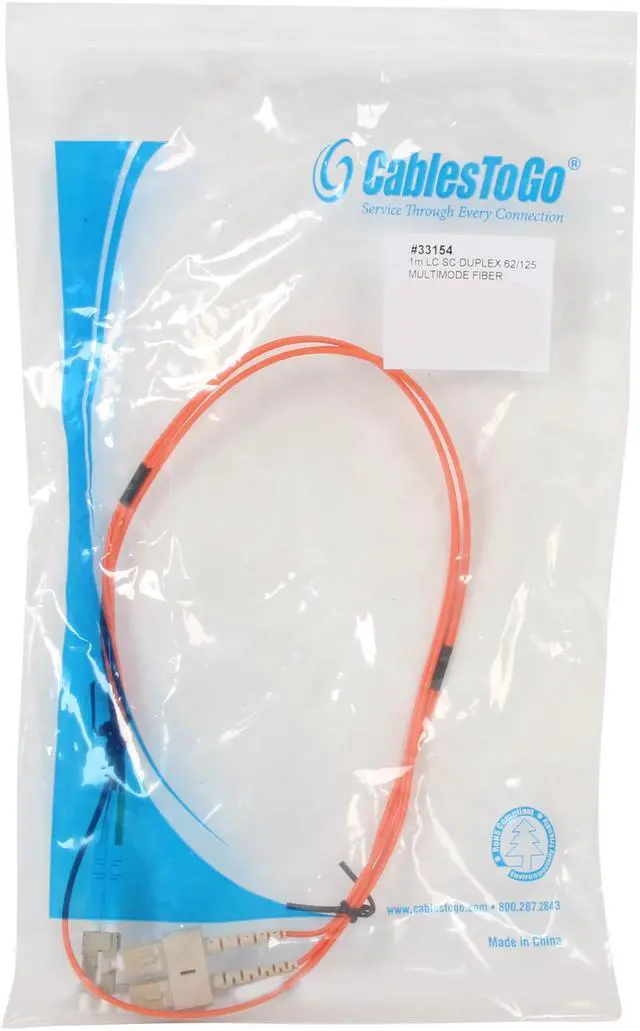

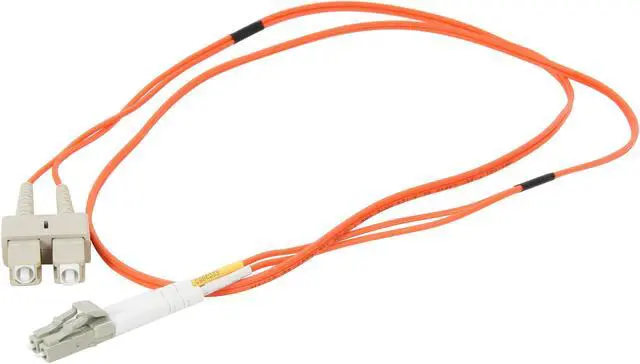

C2G 33154 OM1 Fiber Optic Cable - LC-SC 62.5/125 Duplex Multimode PVC Fiber Cable, Orange (3.3 Feet, 1 Meter)

Be the first to review this product...

Orange
Fiber

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

C2G 33154. Brand New. . Product # 33154. . C2G (formerly Cables To Go), a division of Lastar, Inc., is an industry leader in high performance cabling and connectivity solutions. Founded in 1984, the company provides end-to-end connectivity solutions serving a variety of

Model
Brand	Cables To Go
Model	33154
Type	Fiber
Type	Cable Connectors
Color	Orange

Details
Length	3.28 ft.
Connector Number	4

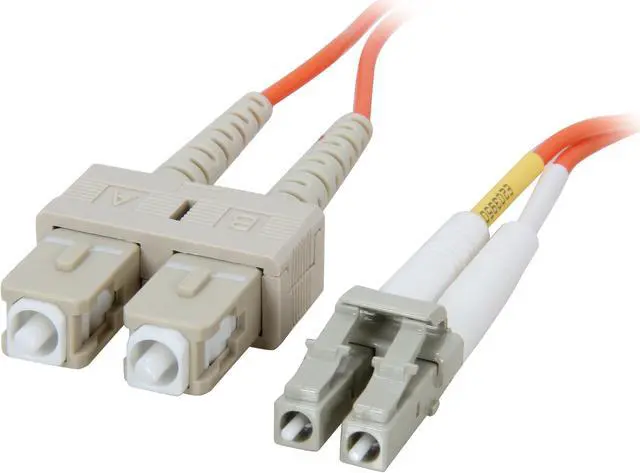

Connector Detail	Connector A: 2 x LC Male Connector B: 2 x SC Male
Specifications	Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm. LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip) SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip) Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -25 dB Buffer Material: PVC Buffer OD: 900 um Jacket Material: PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1,000 cycles Flex Resistance: 5,000 cycles Attenuation at 1300 nm: 1.0 dB/km Attenuation at 850 nm: 3.5 dB/km Operating Temperature: -20ºC to +70ºC Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.

Features
Features	With LC to SC termination, this high-quality fiber optic patch cable is specifically designed for fast ethernet, fibre channel, ATM and gigabit ethernet applications. The small LC connectors satisfy the need for higher port density both in the telecom room and the work area, and offer twice the port density of traditional SC and ST fiber connectors. The LC connector with its RJ-style latch clip design is easy to engage and disengage, and gives each connection greater durability in resisting pulls, strains, snags, and impacts during cabling installs and maintenance. The SC connector features a push-pull locking system. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.

Group
Length	0.5 ft.

Additional Information
Date First Available	November 11, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): Lifetime
Read full details

Return Policies

Return for refund within: 45 days

Return for replacement within: 1 year

This item is covered by Newegg.com's 45/1 Return Policy. Read full return policy for details.
