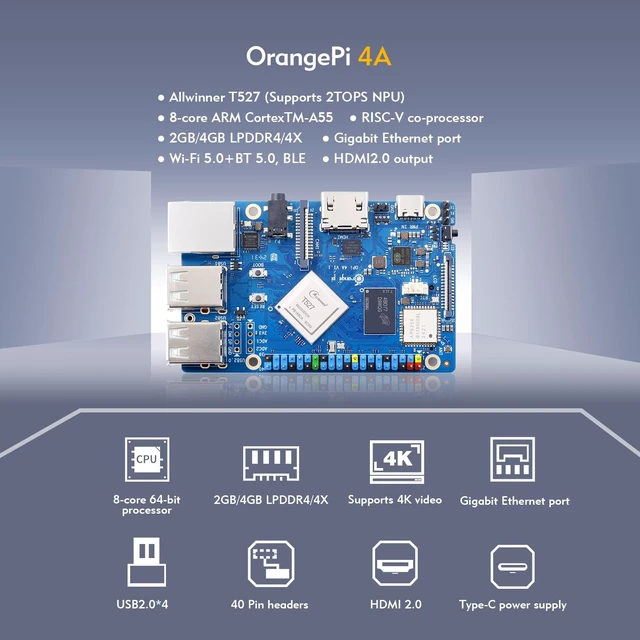

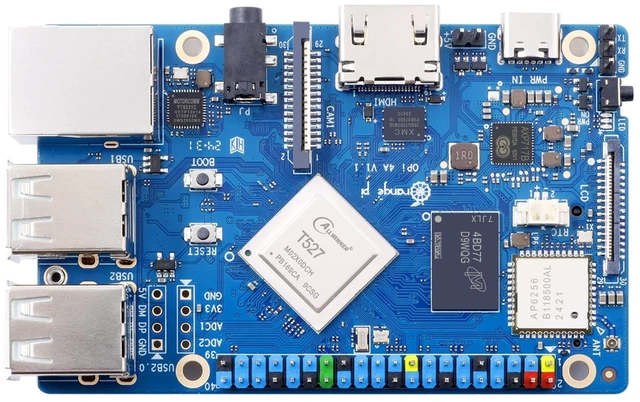

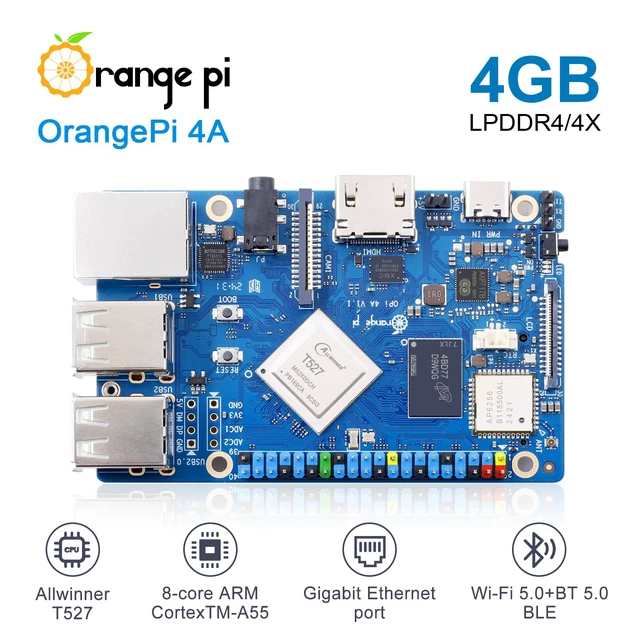

Orange Pi 4A 2GB/4GB Allwinner T527 with RISC-V Coprocessor Single Board Computer with eMMC Socket, Support WiFi 5/BT5.0, Development Board Run Ubuntu/Debian/Android 13 (4GB)
- [High-Performance Processor]: The Orange Pi 4A is powered by an Allwinner T527 octa-core Cortex-A55, featuring HiFi4 DSP and RISC-V co-processors, and supports 2GB/4GB LPDDR4/4X. With a 2TOPS NPU, its built to handle advanced edge AI acceleration needs.
- [RISC-V Co-Processors]: Designed with RISC-V architecture co-processors, it provides enhanced technology options for real-time control, efficient motion handling, quick startup, low-power standby, and improved system security.
- [Comprehensive Connectivity]: Offers extensive connectivity with Gigabit Ethernet, PCIe 2.0, USB 2.0, dual MIPI-CSI and MIPI-DSI ports, and a 40-pin expansion interface, allowing versatile integration.
- [Multi-OS Compatibility]: Supports Ubuntu, Debian, and Android 13, making it versatile for applications across industrial control, intelligent education, and beyond.
- [Diverse Application Scenarios]: Ideal for intelligent industrial control, retail payment, commercial robotics, smart education, vehicle terminals, and edge computing, providing a robust solution for a wide array of industrial and AI applications.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Hardware Parameters
Master Chip: Rockchip RK3588 (8nm LP process)
CPU: 8-core 64-bit processor 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz
GPU: Integrated ARM Mali-G610 Built-in 3D GPU Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2.
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU: RK806-1
RAM: LPDDR5 496PIN4GB8GB16GB optional
Memory: eMMC flash socket eMMC IC Note: Either eMMC flash socket or eMMC IC, support: 32GB, 64GB, 128GB, 256GB optional QSPI nor flash: 16MB MicroSD card slot M.2 M-KEY slot: support NVMe SSD (PCIe 3.0 4Lane)
USB: 2USB3.02USB2.0
Video: 1* HDMI 2.1 out up to 8k@60FPS 1* HDMI 2.0 in up to 4k@60FPS 1* MIPI DSI TX 4 Lane
Camera: 2* MIPI CSI 4 Lane 1* MIPI D-PHY RX 4 Lane
AudioCODECES8388 1* Audio 3.5mm jack with mic 1MIC In 1HDMI 2.1 eARC
Ethernet: 1PCIe 2.5G LANRTL8125BG )
Wi-Fi+BT Module: Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611Wi-Fi interface: SDIO3.0BT interface: UART/PCM
Expansion Port: Dual-row pin: 2.54mm 40PinSupports DC 5V and 3.3V power outputConfigurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1 MaskRom key, 1 On/Off key
Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED side Illumination
FAN: 5V 2PIN 1.25mm socket
RTC: 3V 2PIN 1.25mm socket
Debugging: Debug serial UART included in 40PIN expansion port
Supported OS: Orangepi OS(Droid)Orangepi OS(Arch)Orangepi OS(OH)UbuntuDebianAndroid13
PCB: 89mm57mm*1.6mm
Weight:60.5g
