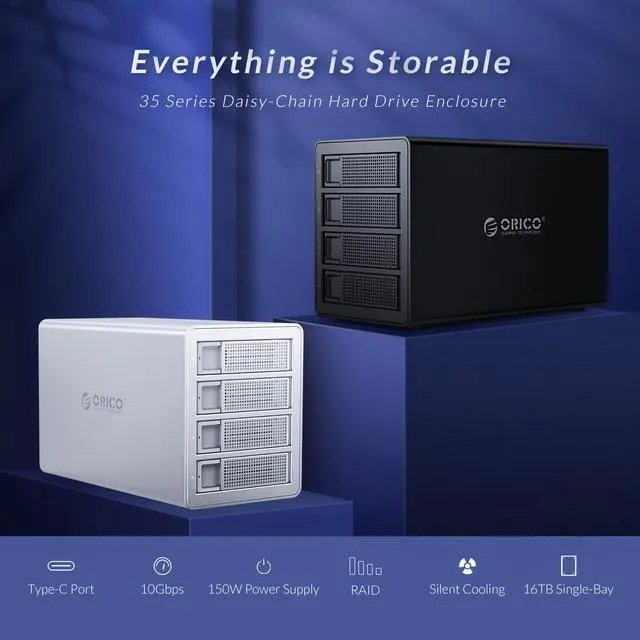

ORICO 4 Bay Daisy Chain Hard Drive Enclosure Aluminum USB3.1 Gen2 10Gbps Type-C Hard Drive Docking Station for 2.5/3.5 HDD SSD Support Storage Expansion Up to 192 TB for Data Storage
Daisy Chain Expansion: The ORICO external hard drive enclosure supports daisy-chaining, allowing you to connect additional units to expand your storage capacity. With this feature, you can reach a maximum capacity of up to 192TB by connecting three devices with 64TB each.
Effective Cooling System: The enclosure is constructed from thick aluminum alloy, which not only gives it a sturdy build but also aids in heat dissipation. The built-in silent fan and honeycomb design promote airflow, keeping drives cool during operation.
High-Speed Data Transfer: Equipped with a USB C 3.1 Gen 2 port, the enclosure offers transfer speeds of up to 10 Gbps. However, due to the SATA III interface, actual transfer rates for the hard drives are capped at 6 Gbps, which is still quite fast for most applications.
+
+
Overview
Specs
Reviews (16)
ORICO 3549C3 is an enterprise class 4-bay high-capacity external hard disk storage cabinet. It upgrades dual USB 3.1 Gen2 Type-C 10Gbps interface, supports-daisy chain serial connection function, and can connect 2 sets of 3549C3 or other Type-C devices downward in series, with a maximum transmission rate of 10Gbps. It is fully compatible with different specifications of 2.5 -inch & 3.5 -inch SATA HDD / SSD hard disks, and can be used in many application scenarios, such as data storage for small and medium-sized enterprises, server expansion, security monitoring storage, video clip storage, etc.
Features: The fuselage shell is made of aluminum alloy with thickness of 3mm. Sandblasting and anodizing process are used to create metal texture; Fully compatible with different specifications of 2.5 -inch & 3.5 -inch SATA HDD / SSD hard disk; It supports daisy chain serial connection function, supports downward serial connection of 2 sets of 3549c3, and reads 3 sets of * 5 HDD / SSD hard disks at the same time; Soft RAID array can be set up through MAC system, and the transmission speed can reach up to 10Gbps; Support intelligent Sleep Technology (idle for 10 minutes to enter sleep state), energy saving and environmental protection, improve the service life of hard disk; Built in low-noise, high-speed 80 * 80mm cooling fan, front and rear panels with air convection cooling duct design, effectively improve the heat dissipation performance of the whole machine; A single hard disk can support 16TB, a total of 64tb large mass storage; No installation driver, support hot swap, plug and play; LED indicator monitoring, monitor the working state of the hard disk at any time, the blue light is always on when the power is on, and the blue light flashes when reading data; Built in 150W high-power power module, support multiple safety protection of over-current, over-voltage, short circuit, overheating and leakage; Fully compatible with Windows / MAC / Linux multi platform operating system
What's in the box 1 x ORICO 4 Bay USB 3.0 Hard Drive Enclosure 1 x 150W Internal Power Adapter 1 x USB Cable 1 x User Manual 1 x Service Card
ORICO 5 Bay Hard Drive Enclosure Type C USB3.1 Gen2 (10Gbps) 2.5/3.5 inch HDD SSD Enclosure, Support Daisy Chain Series-Connection
Specifications
Compatible: 2.5" and 3.5" SATA HDD/SSD
Support: Daisy Chain Series-Connection (up to 3 devices, Total 240TB)
Output Interface: USB3.1 Gen2 Type-C x2
Transmission rate: 10Gbps Max
Support capacity: 16TB Single Bay,Max 80TB
Power Supply: 150W Built-in Power Adapter
Support system: Windows / Mac / Linux
NOTE:
Total 240TB = 16TB/bay * 5 bay *3 devices
USB3.1 Gen2 (Main interface): Connect to computer port or uplink to a 3549C3 / 3559C3 HUB interface.
USB3.1 Gen2 (HUB interface): Downlink two 3549C3 / 3559C3 or other Type-C devices.
Transfer Speed up to 10Gbps
USB 3.1 Gen2 Type-C 10Gbps fast and reliable data transfer speed which is 2 x faster than USB 3.0, Reversible USB Type C connection.

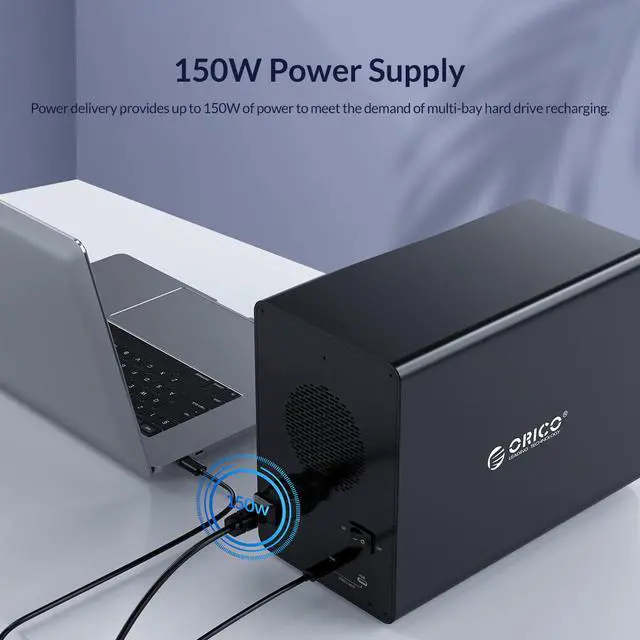

150W Internal Power Supply
Built-in dual-core chips Main Control system, with 150 W Internal Power Supply to provide sufficient power to ensure Data storage and Transferring's Safety and Stability.
Auto-Sleep Function
Automatic enter sleep mode after 10 minutes without operation, Power-saving, effectively reduce hard drive wastage, prolong it's service life.

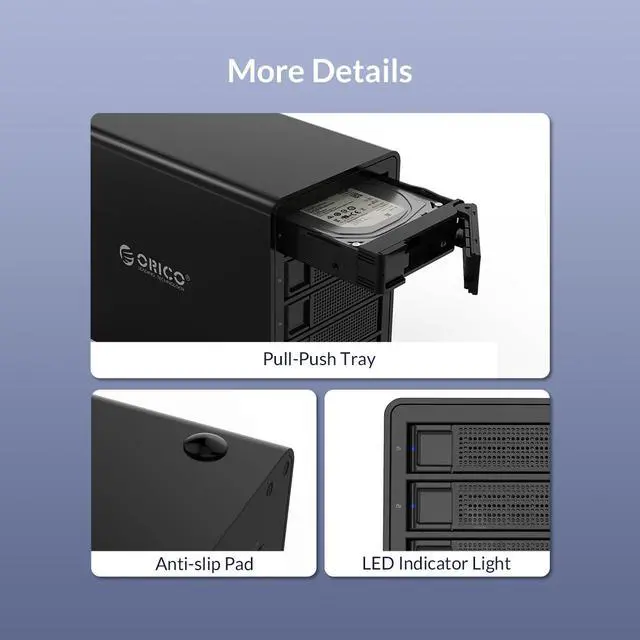

LED indicator
The LED indicator monitoring the working status of the hard disk, the blue light is always on when the power is on, and the blue light flashes when reading data.
Compatiblility

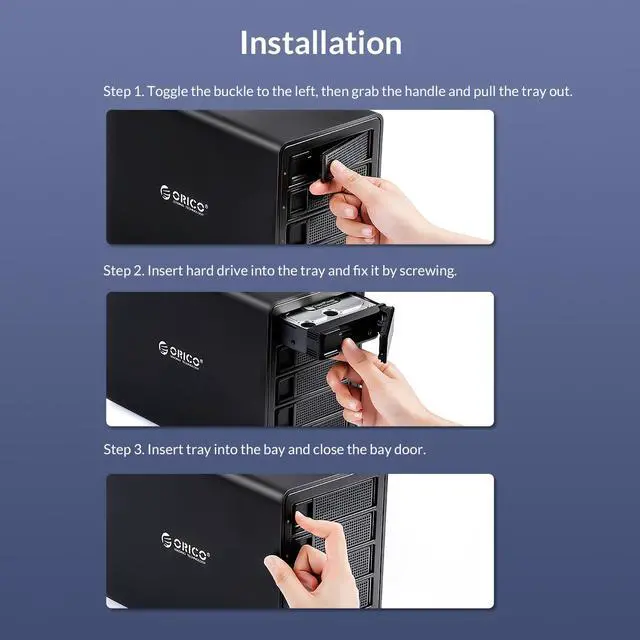

Compatible with 2.5/3.5 inch SATA HDD or SSD, with Independent BRACKET for each drive, fix hard drives through screws, Solid and Stable.
