The first step
Open the disk bay by pulling buckle to the left
The second step
Pull the tray out
The third step

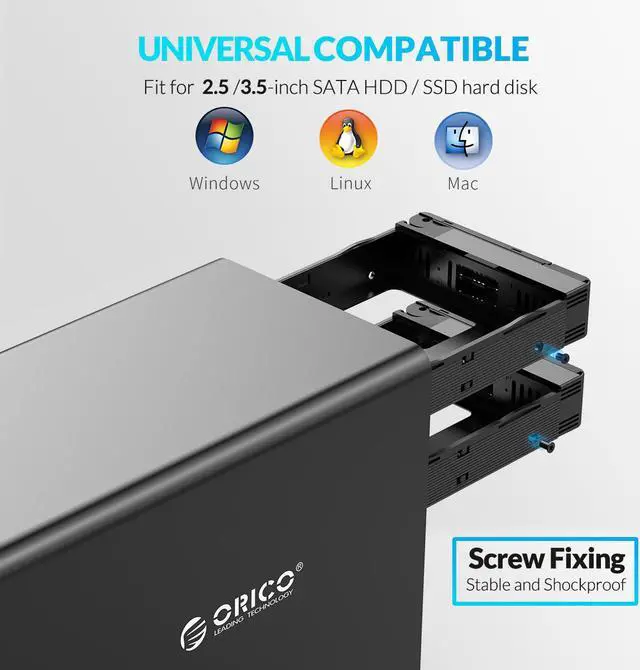

Insert hard disk into the tray and fix it by screwing
The fourth step
Close it and it can be normally used
ORICO 5 bay USB3.0 SATA External Enclosure is a good solution to expand storage capacity. It's suitable for enterprise data storage, gaming files storage, security monitoring and server expansion.
Features:

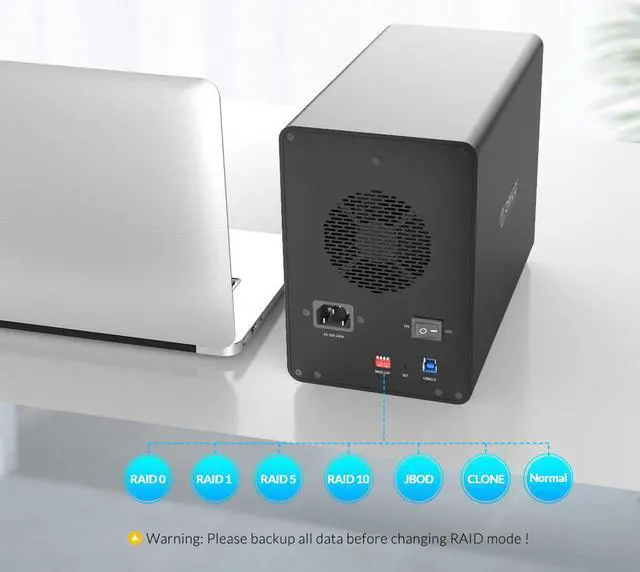

1.The 5 Bay usb 3.0 hard drive enclosure Support RAID 0/1/3/5/10/JBOD/ClONE/Normal Exclusive RAID Mode which can meets different work requirements.

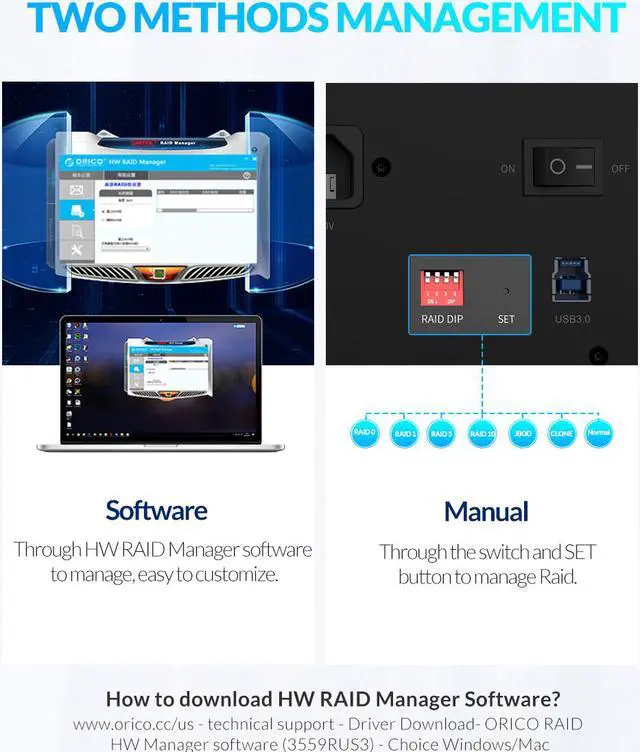

There are 2 Methods to Set RAID Mode for your choice. (Manual Method or Software Manager Method)

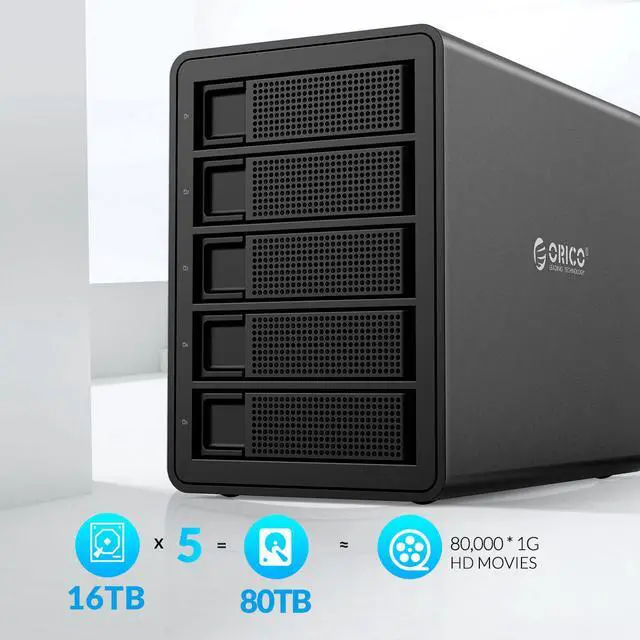

2. Support 80TB (16TB x 5 ) Large Capacity Storage .Single disk supports 16TB enterprise-class hard drive ;It is more safer for large-capacity hard disks to remove and store. (support RAID function, Not NAS)
3. Super Speed Transfer Rate. Compatible with all 2.5inch and 3.5 inch SATA I, II, III HDD or SSD , Adapting USB3.0 to SATA III 5Gbps main control program with high-speed interface and supporting 5Gbps data transfer rate, to save your waiting time.
4. Made of aluminum alloy. Designed with honeycomb heat dissipation holes, The fan that exhausts air away from the internal drives.
ORICO 3559RU3 is a desktop 5-bay hard drive enclosure with RAID, which supports read and store data of five hard drives simultaneously, and the case is made of high quality aluminum alloy with sandblasted anodizing treatment surface. Internal use of high-speed SATA 3.0 6Gb/s bridge scheme, support multiple RAID modes includes RAID 0, RAID 1, RAID 5, RAID 10, JBOD, CLONE and Normal, single hard drive can support 16TB, total of five hard drive supports 80TB, meet all you needs for data storage.
Features: Made of aluminum alloy material, sandblasted anodizing process, exquisite metal texture; Adopts RAID control scheme, supports multiple RAID modes includes RAID 0, RAID 1, RAID 5, RAID 10, JBOD, CLONE and Normal. External USB 3.0 output interface, support transfer rate up to 5Gbps; Supports intelligent sleep, (Idle for 10 minutes will automatically enter suspend mode), energy-saving, prolong the service life of hard drive. Built-in cooling fan, the front and rear cooling holes are designed with air convection, which improve heat dissipation. Compatible with 2.5 and 3.5 -inch SATA HDD/SSD; User-friendly RAID management, you can easily through the hardware dial bar or special software to manage RAID functions; Single hard drive support 16TB capacity, five hard drive supports 80TB; Built-in 75W power adapter; Drive-free, support hot-swapping, plug and play; LED indicator, clearly monitoring work status of hard drive, blue light lights when power on and flashes when reading data. Compatible with Windows/Mac/Linux systems;
Specifications:
Name: External Hard Drive Enclosure with
RAID Model: 3559RU3
Material: Aluminum
Alloy Color: Black/Silver
Output Port: USB 3.0 Type-B
Transfer Rate: 5Gbps
Dimension: 264.8 mm (L) * 137mm (W) * 200.7 mm (H)
Compatible Disk Type: 2.5 and 3.5 -inch SATA HDD / SSD Supported
RAID Modes: RAID 0, 1, 5, 10, JBOD, CLONE, Normal
Capacity: Single disk 16TB, supports 80TB
Max Installation: Removable tray, screwing.
Supported Systems: Windows / Mac /
Kindly Note:
It can only recognize 1 Bay HDD/SSD under Linux operating system.
Linux What in the box: 1 x ORICO 5 Bay USB 3.0 Raid Hard Drive Enclosure 1 x 150W Internal Power Adapter 1 x 3.3F t. USB 3.0 Cable 1 x User Manual 1 x Service Card
