Massive Storage Capacity: With a maximum capacity of 110TB (22TB per single bay), users have ample space to manage extensive work documents or entertainment content libraries with ease.
Versatile RAID Support: Featuring 7 RAID array modes, users can configure the setup according to their needs, enhancing data storage performance, security, and reliability.
Efficient Heat Dissipation: The all-aluminum alloy body, high-speed silent fan, and heat dissipation design ensure professional heat dissipation, vital for stable device operation over extended periods.
Reliable Power Supply: Equipped with a built-in 150W power supply, uninterrupted power is guaranteed for continuous business and data processing operations.
Secure Data Protection: The enclosure includes an independent latch-type door with a safety lock, providing secure hard drive protection to prevent accidental ejection and falling, ensuring data safety.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ORICO multi-bay hard drive enclosure, the preferred choice for small and medium-sized enterprise storage! With flexible layout and efficient backup, the 110TB space meets all your needs. The all-aluminum body ensures professional heat dissipation, guaranteeing stable 24/7 operation. Supporting RAID modes for performance and security. Equipped with an independent security lock for worry-free data safety. Choose ORICO for robust protection of your data, and enjoy convenience and reliability!

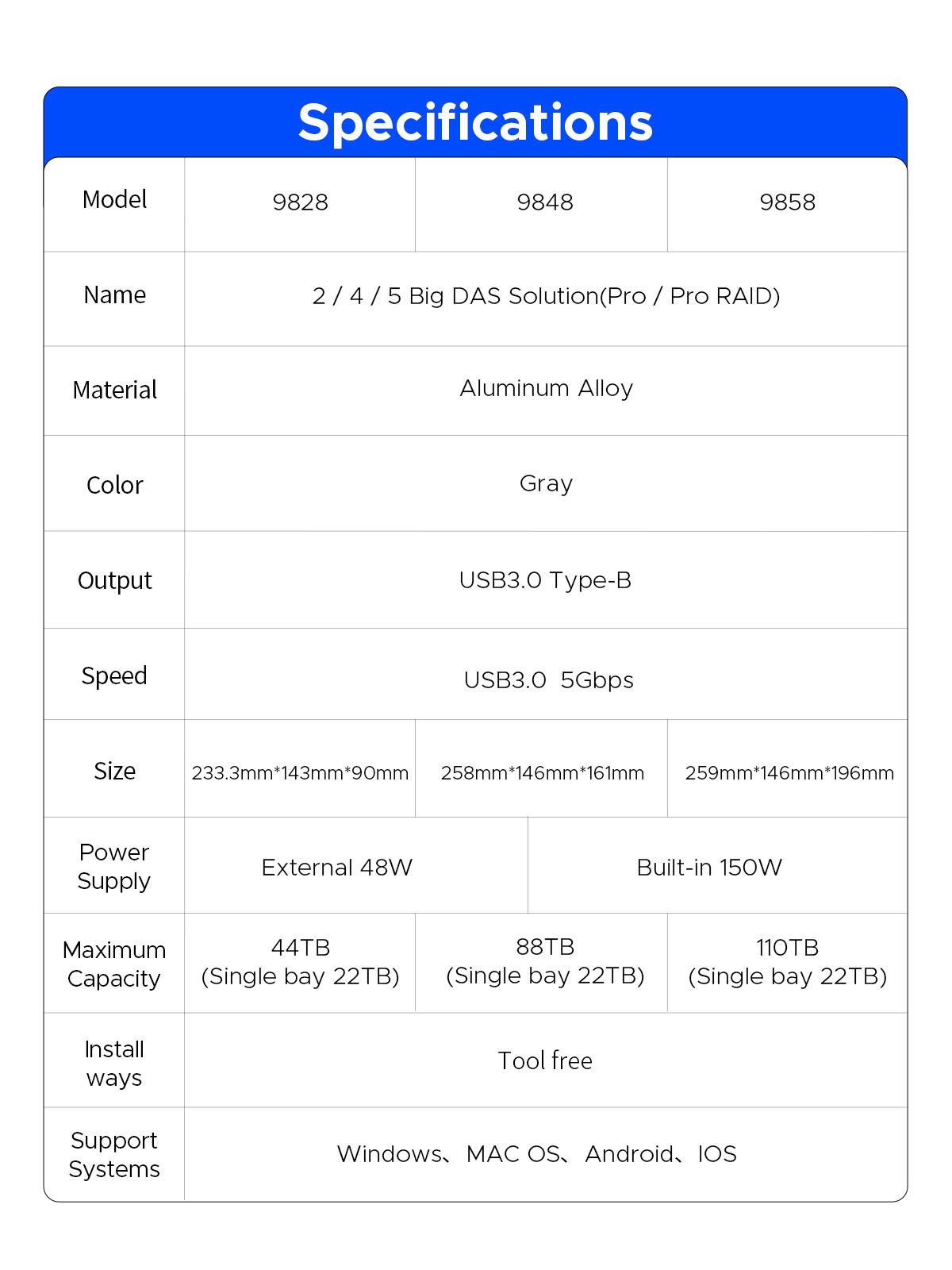

Model: ORICO-9858RU3 Material: Aluminum Alloy Output: USB 3.0 Type-B Speed: USB 3.0 5Gbps Size: 259mm*146mm*196mm Power Supply: Built-in 150W Maximum Capacity: 110TB (Single bay 22TB) Install ways: Tool free
1. Worry-Free Storage Space: With expandable space of up to 110TB, whether it's extensive work documents or a vast entertainment content library, everything can be easily managed and stored. For small and medium-sized businesses, worry-free expansion of operations is ensured, while individual users can securely store precious data.
2. Disk Array: Supporting 7 RAID array modes, users can flexibly configure according to work requirements, effectively enhancing data storage performance, security, and reliability. This feature is particularly crucial for small and medium-sized businesses that require high data integrity and business continuity.

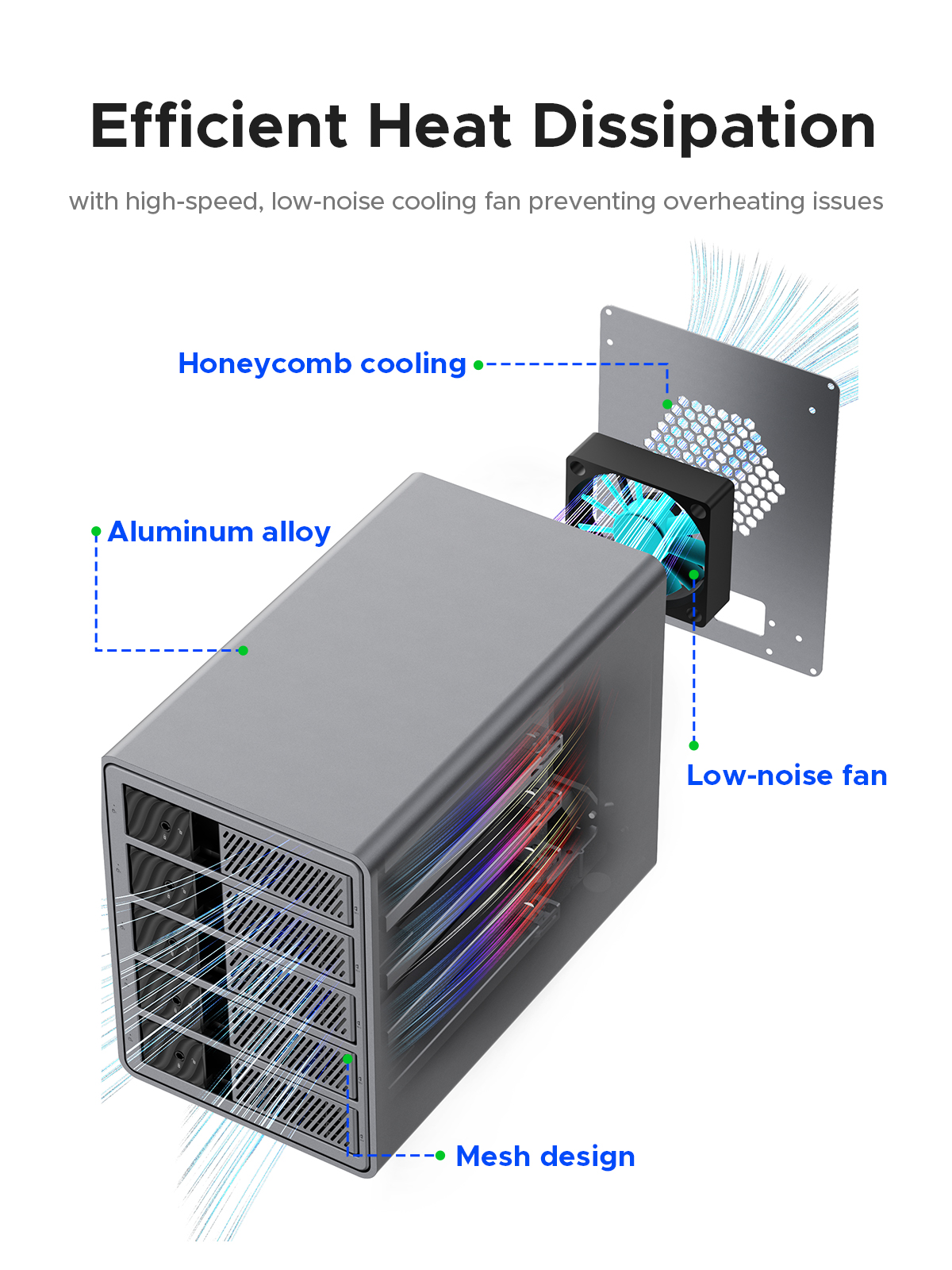

3. Professional Heat Dissipation: Featuring a high thermal conductivity all-aluminum alloy body, high-speed silent fan, and heat dissipation holes design, this is indispensable for professional users seeking long-term stable device operation.
4. Large Power Supply: Equipped with a built-in 150W power supply, ensuring stable power supply for extended periods. Business and data processing will not be interrupted due to power issues.
5. Secure Hard Drive Protection: The independent latch-type door, coupled with a safety lock design, securely locks with a key to prevent accidental hard drive ejection and falling, ensuring the safety of your data.
What will you get? 01. Packaging box 02. Products 03. Power adapter 04. A to B data cable 05. Screws 06. Screwdriver 07. User Manual
You may have the following questions:
1. How do I know if my hard drive is malfunctioning? If one of the hard drives is damaged or malfunctions, the corresponding LED indicator will turn red, and the hard drive enclosure will emit a warning sound.
2. How do I replace a hard drive or add a hard drive to the enclosure while in use? Eject the hard drive from the computer, then power off the hard drive enclosure and remove the hard drive. (Make sure to eject the hard drive from the computer first to avoid data loss! )
3. Can I connect my devices to my computer through a hub? We recommend connecting the hard drive enclosure directly to the computer as connecting through a hub may be unstable.
4. Why does the hard drive show as dynamically invalid in disk management after being removed from an old computer? This is due to a system issue. Reinstall the hard drive into the original computer motherboard, back up the data, format it, or if your old computer is no longer functional or cannot boot into the system, you can download dynamic disk conversion software to convert it to basic disk directly.
5. The hard drive is detected but does not have a drive letter? Add a disk name for use. In disk management, right-click on the disk partition section and select "Change Drive Letter and Paths. "
6. The connection is automatically disconnected during transmission, then reconnects after a while? In such cases, it could be due to issues with the computer's USB interface, USB data cable, computer USB driver, hard drive, or hard drive enclosure. Contact our technical support to troubleshoot each one.
7. Why can't I find the hard drive after connecting a brand new one to the computer, and it doesn't show a drive letter? A brand new hard drive must be formatted for the system to recognize and use it. Instructions: Right-click on "Computer, " then click on "Manage, " open "Disk Management, " find the newly added hard drive, right-click on it, select "Initialize" and choose "MBR (for hard drives up to 2TB) " or "GPT (over 2TB), " then "Create Simple Volume, " proceed with default partition formatting, once formatted, the hard drive will be usable and display the new drive letter.
8. When a hard drive appears as RAW format in disk management due to improper ejection or power failure, what should be done? To recover, use the chkdsk command; the operation method is as follows: run cmd as an administrator, enter CHKDSK i: /f (where i is the disk drive letter), press Enter, once the scan and repair are complete, restart the computer to display the results.

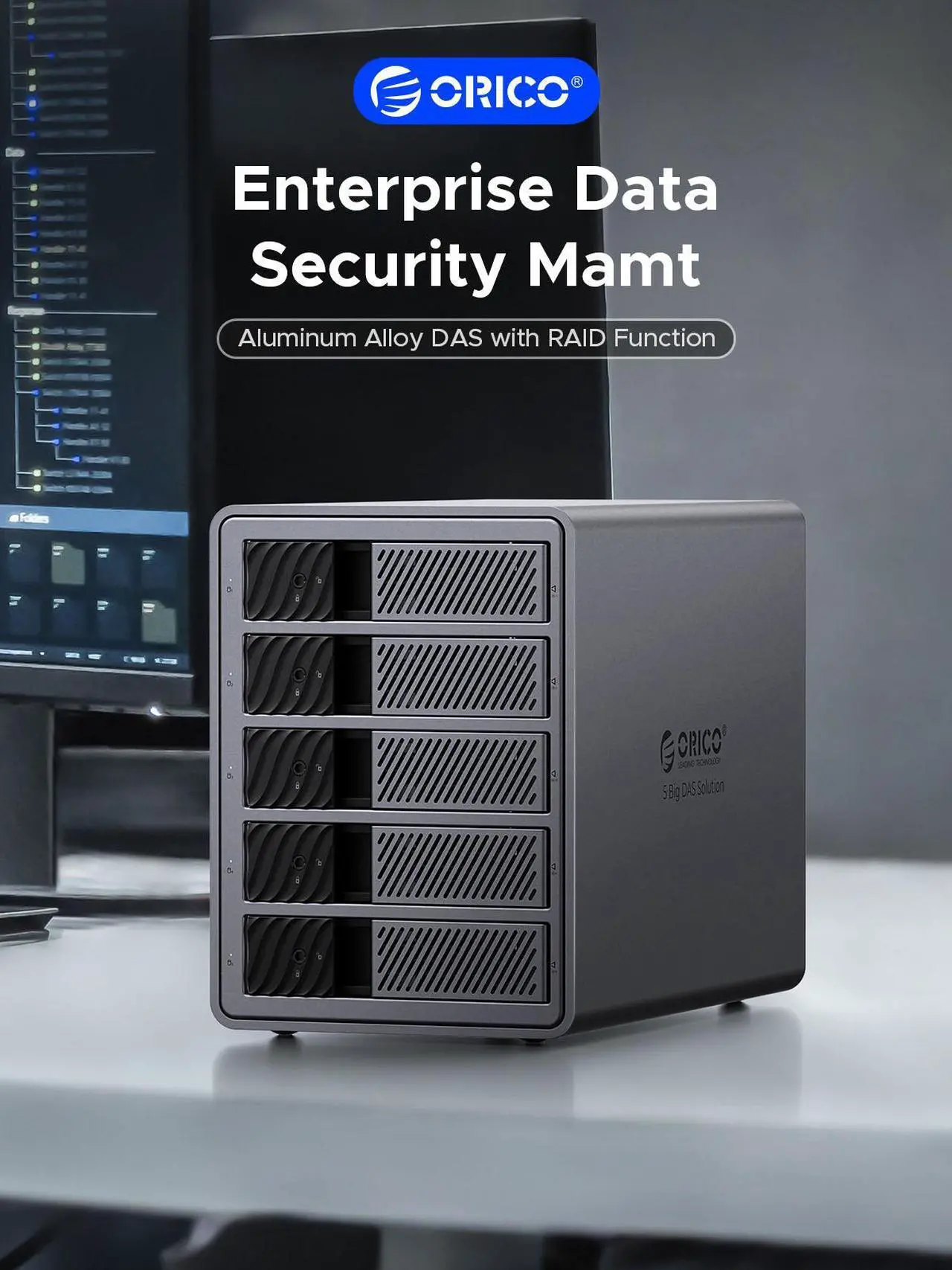

ORICO 5 Bay DAS Hard Drive Docking Station-ProRAID
Large capacity storage system designed for small and medium-sized businesses
The ORICO 5 Bay DAS Hard Drive Docking Station is a high-capacity and secure storage system designed specifically for small and medium-sized businesses. With support for up to 110TB of storage (5 drive bays) and 4 RAID modes, it offers ample space to easily manage and store large work documents or entertainment content libraries. The innovative tool-free sliding hard drive trays, equipped with independent locks, ensure the security of your valuable data.
ORICO 5 Bay DAS Hard Drive Docking Station-ProRAID

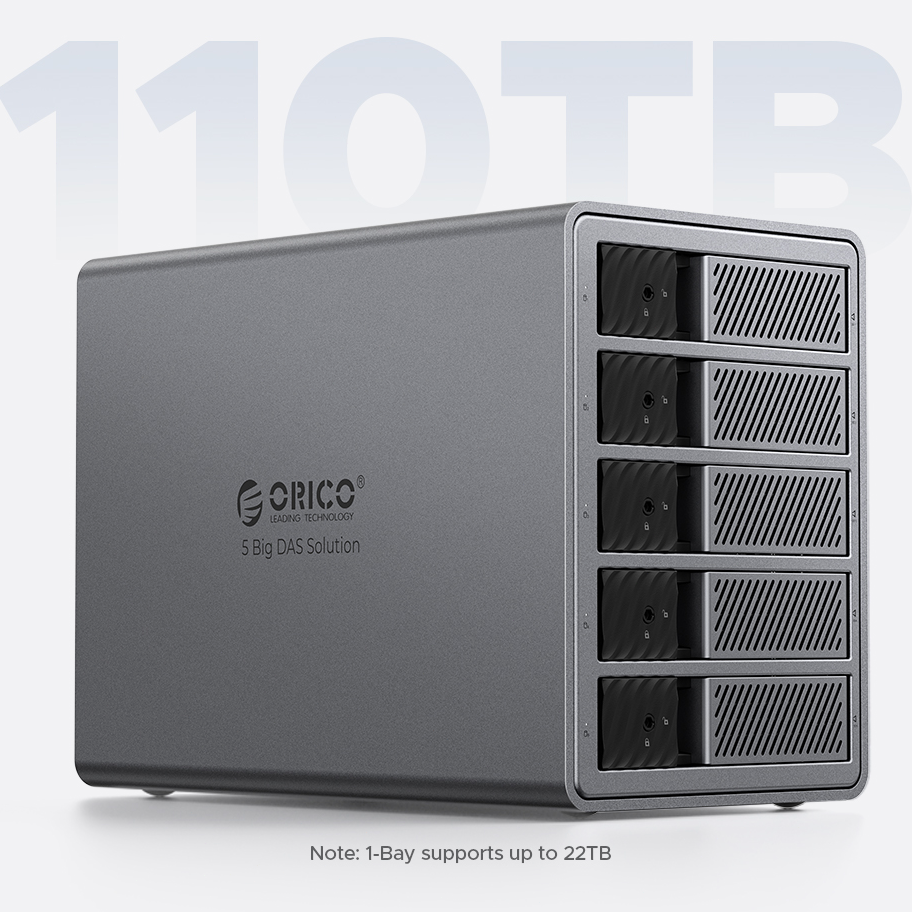

Supporting up to 110TB storage (5 bays),1 bay supports a maximum of 22TB

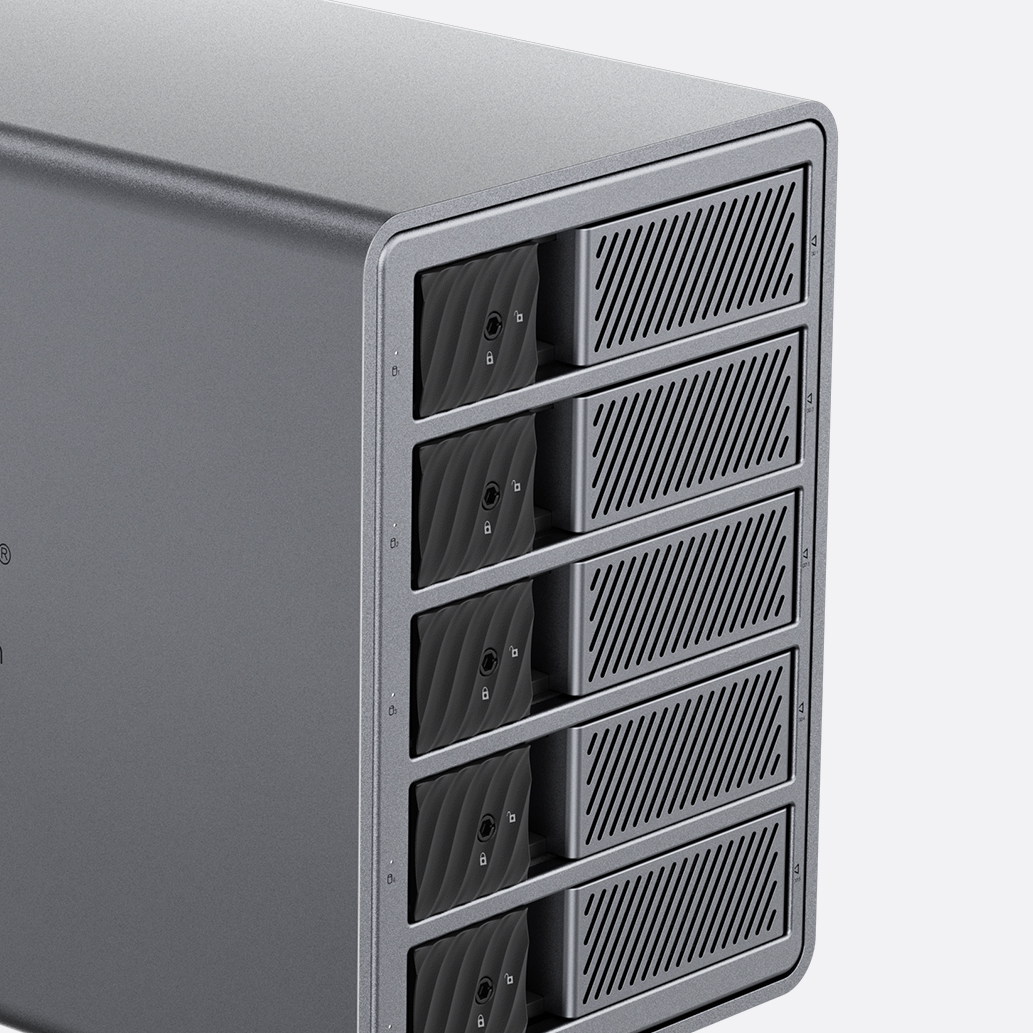

Tool-free trays with locks,Keep your valuable information safe
Flexible array support with 7 RAID modes.
Efficient heat dissipation with aluminum body, built-in fan, and ventilation.
150W power supply for uninterrupted operation.

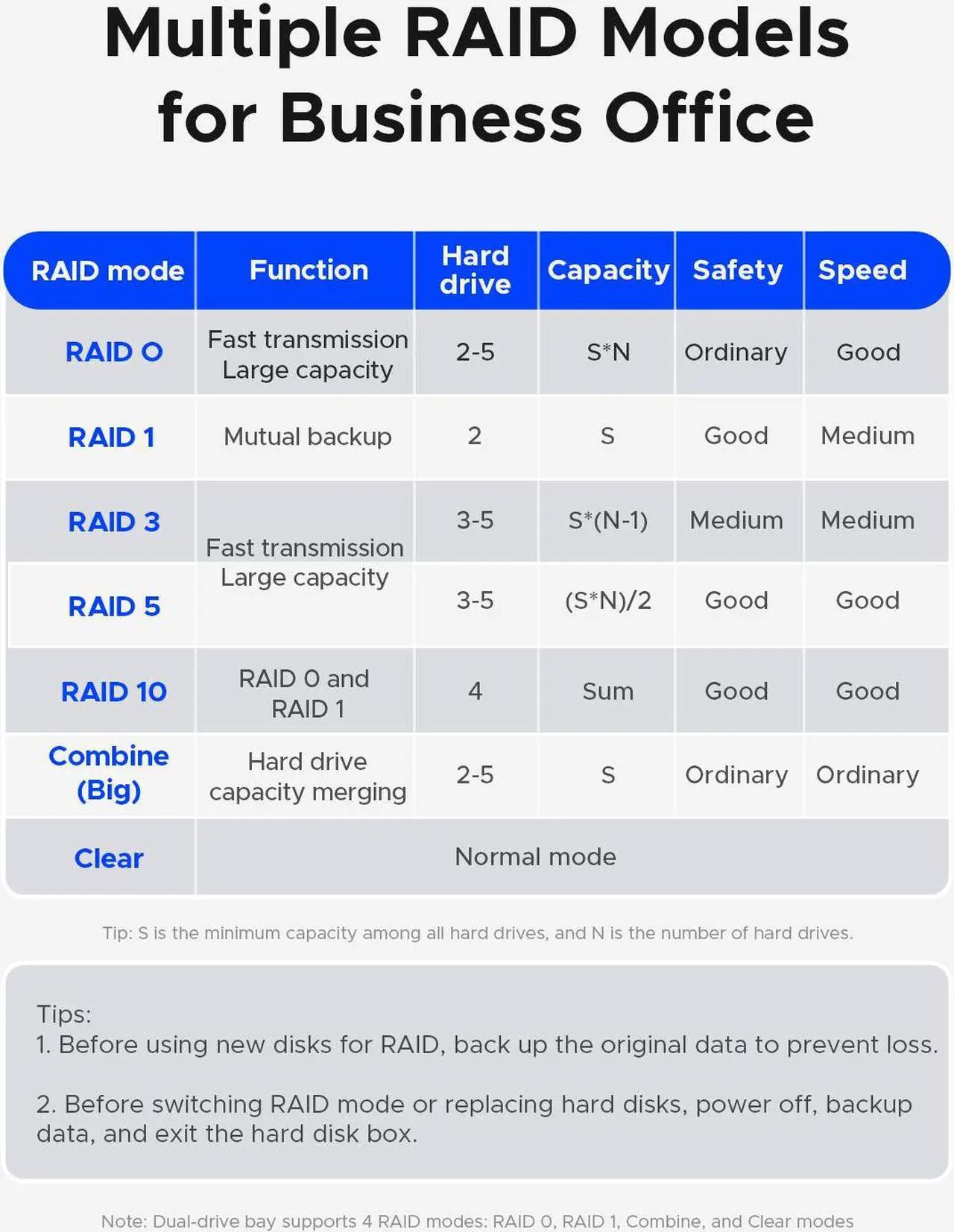

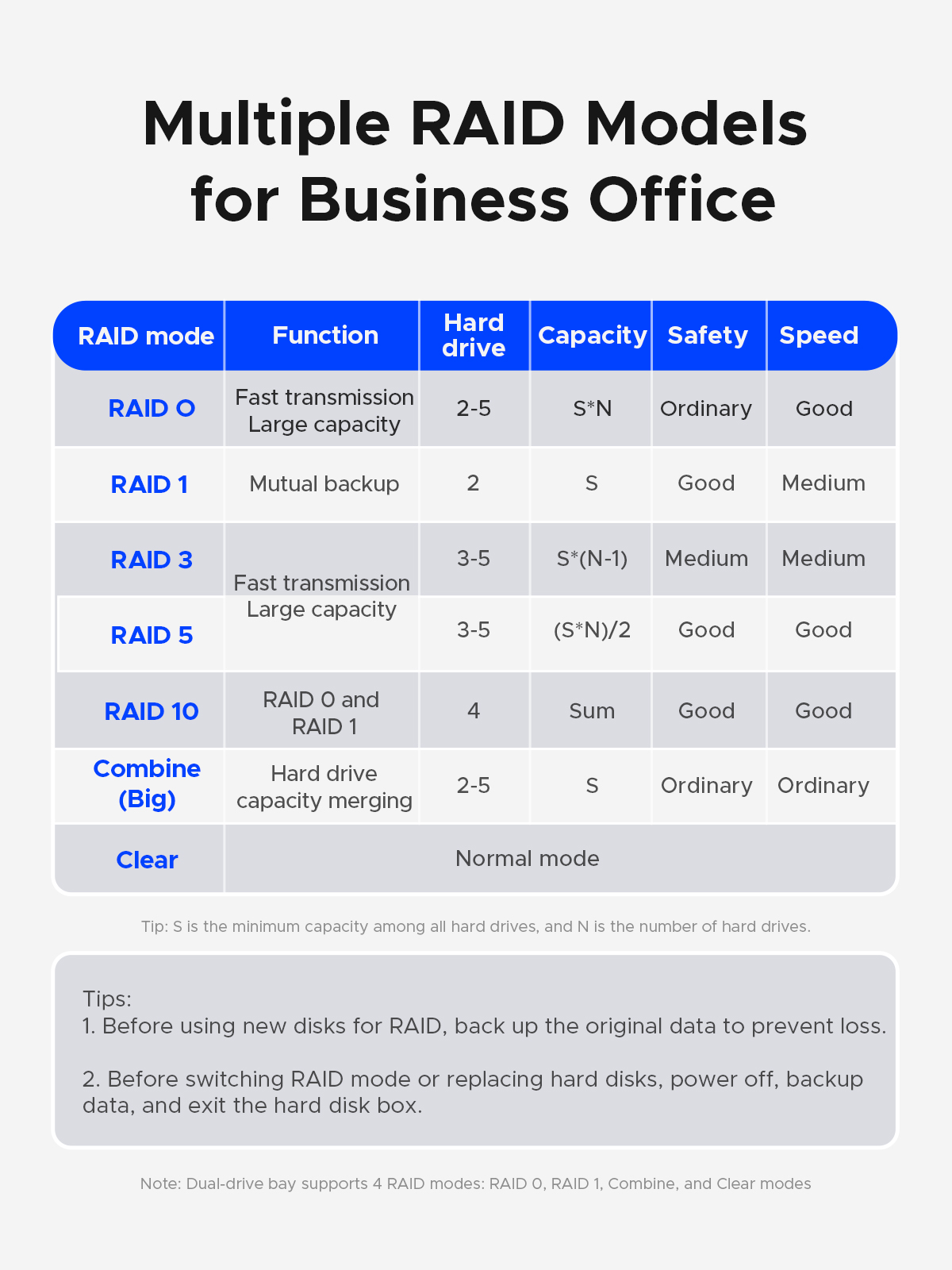

Multiple RAID modes-Pro RAID

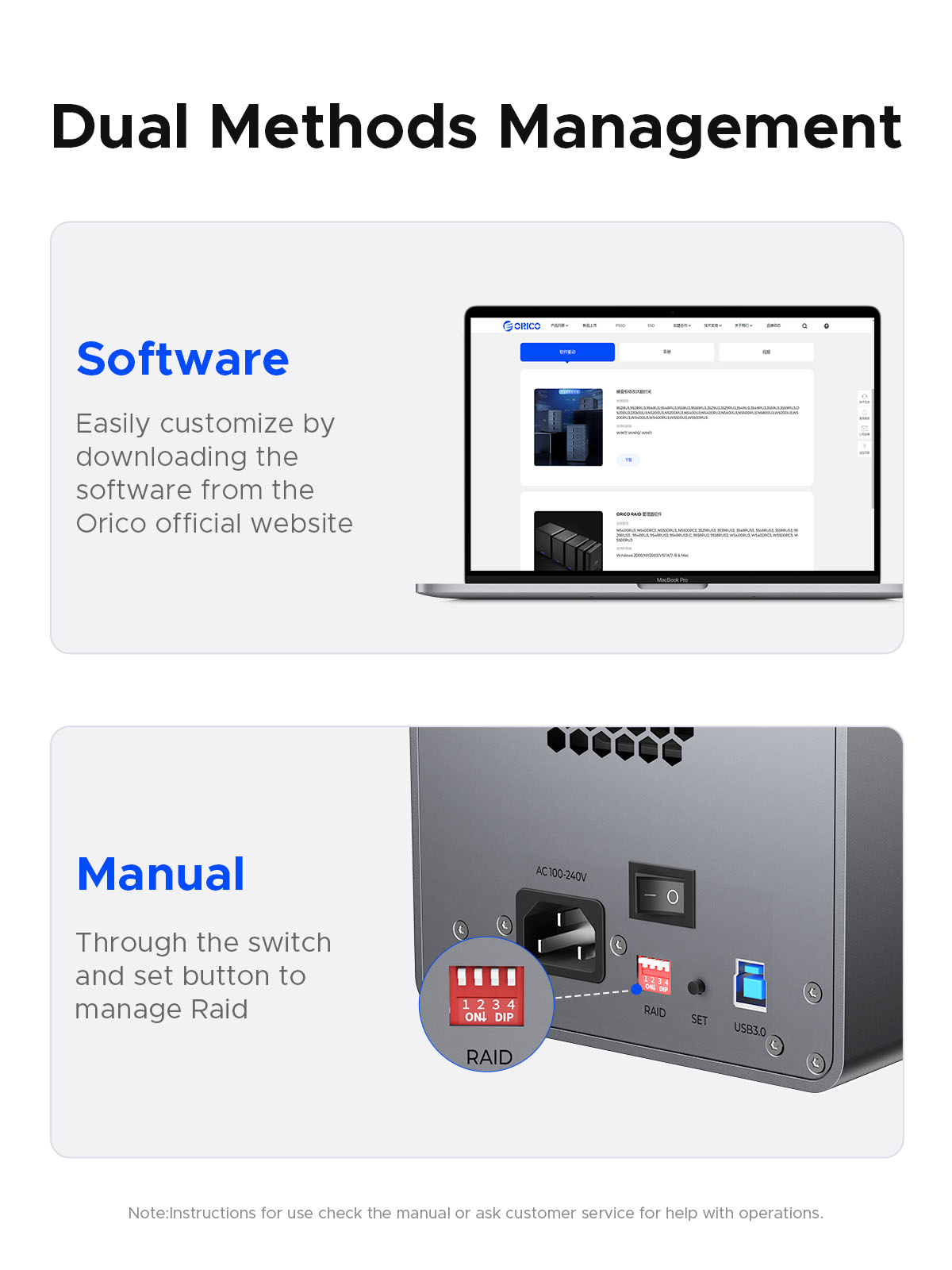

Supports 7 RAID modes to meet various work requirements.
Improved data storage performance, security, and reliability

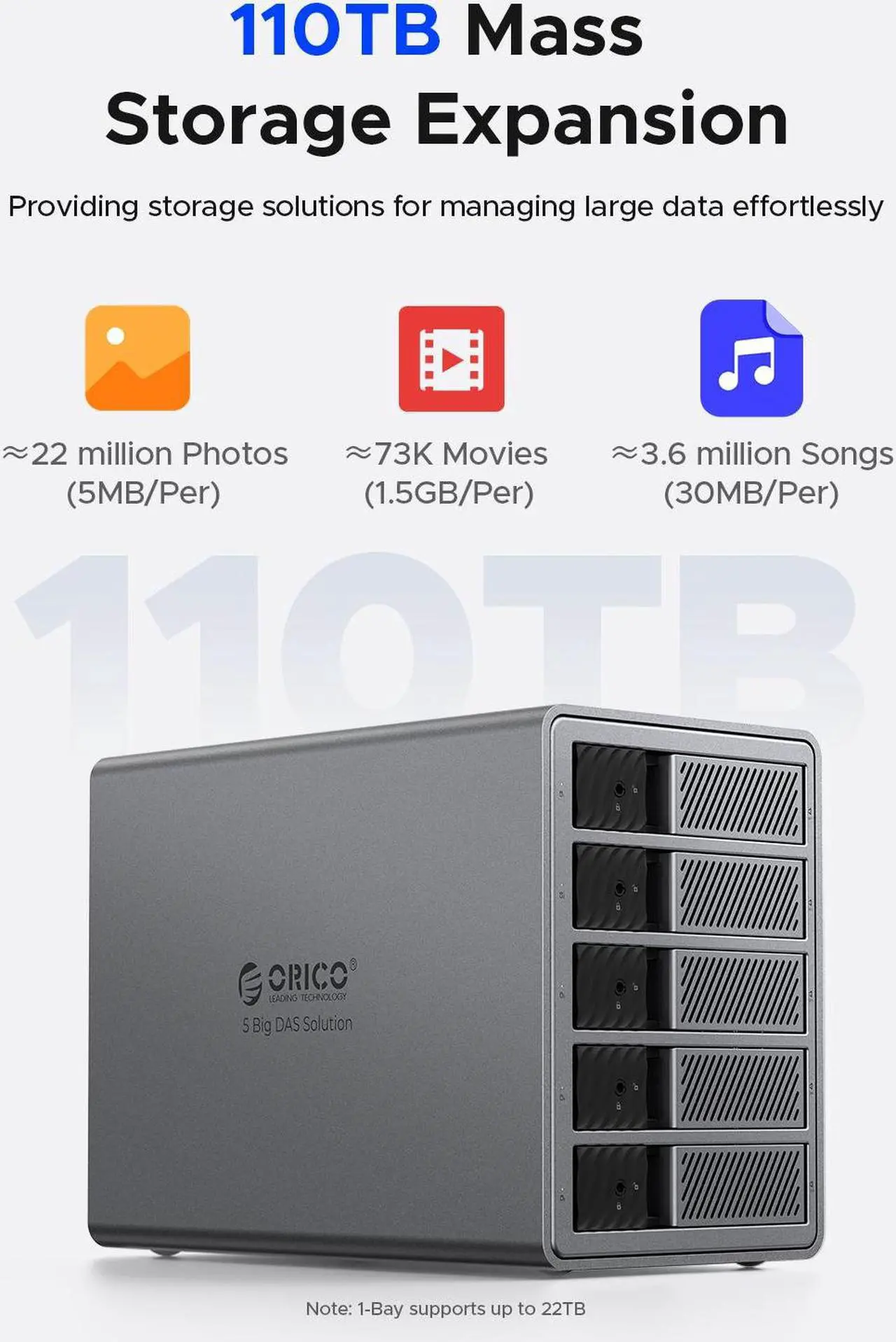

110TB Mass Storage Expansion
Providing storage solutions for managing large data effortlessly
Smart Chip Fast & Stable
Excellent chip designed for high performance and reliability,capable of enduring continuous 24/7 use
Sturdy and Durable
Aluminum alloy body with a cooling fan and pressure resistance toprotect the hard disk from damage
150W Built-in Power Supply
12V/12.5A power adapter supports to multiple disks,reliable performance and space saving

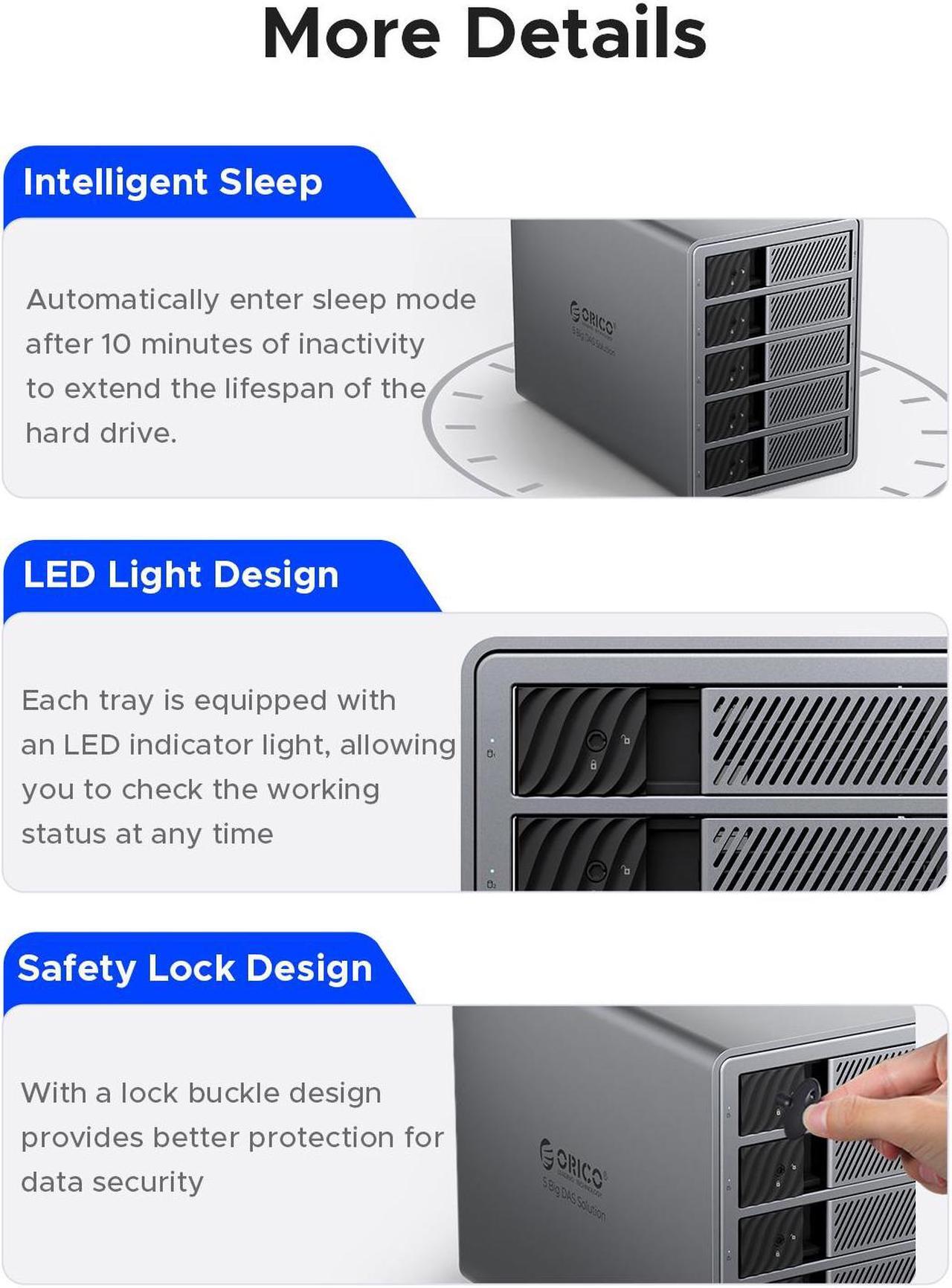

More Details

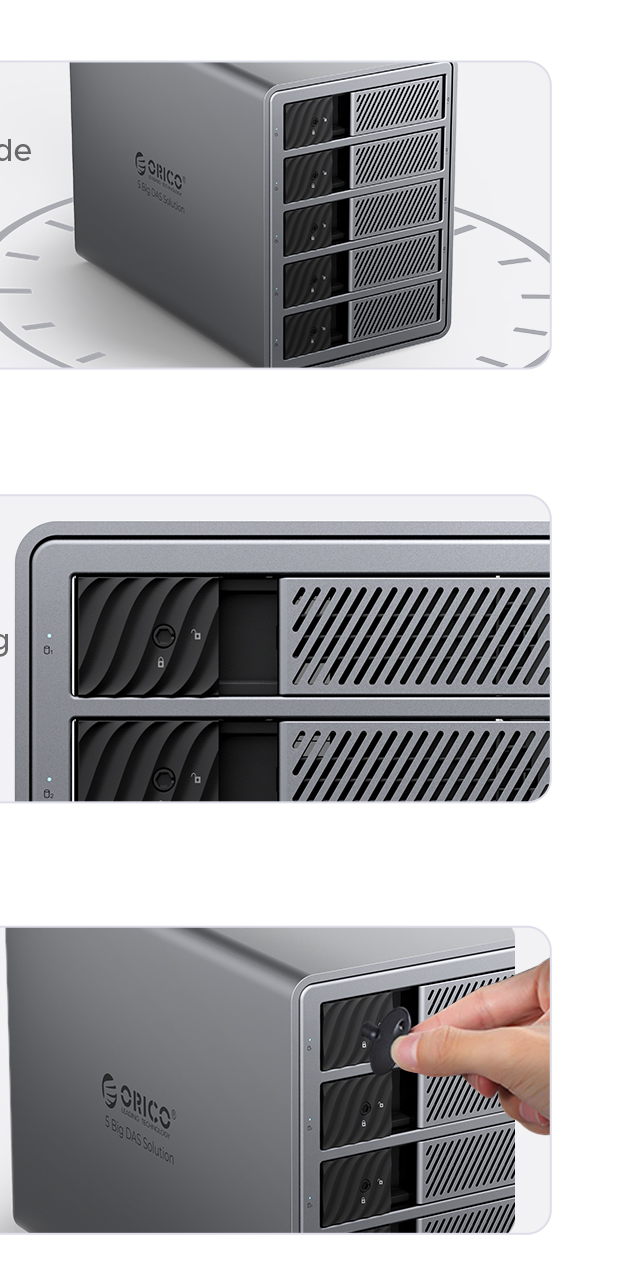

Intelligent Sleep Automatically enter sleep modeafter 10 minutes of inactivityto extend the lifespan of thehard drive.
LED Light Design Each tray is equipped withan LED indicator light, allowingyou to check the workingstatus at any time
Safety Lock Design With a lock buckle designprovides better protection fordata security

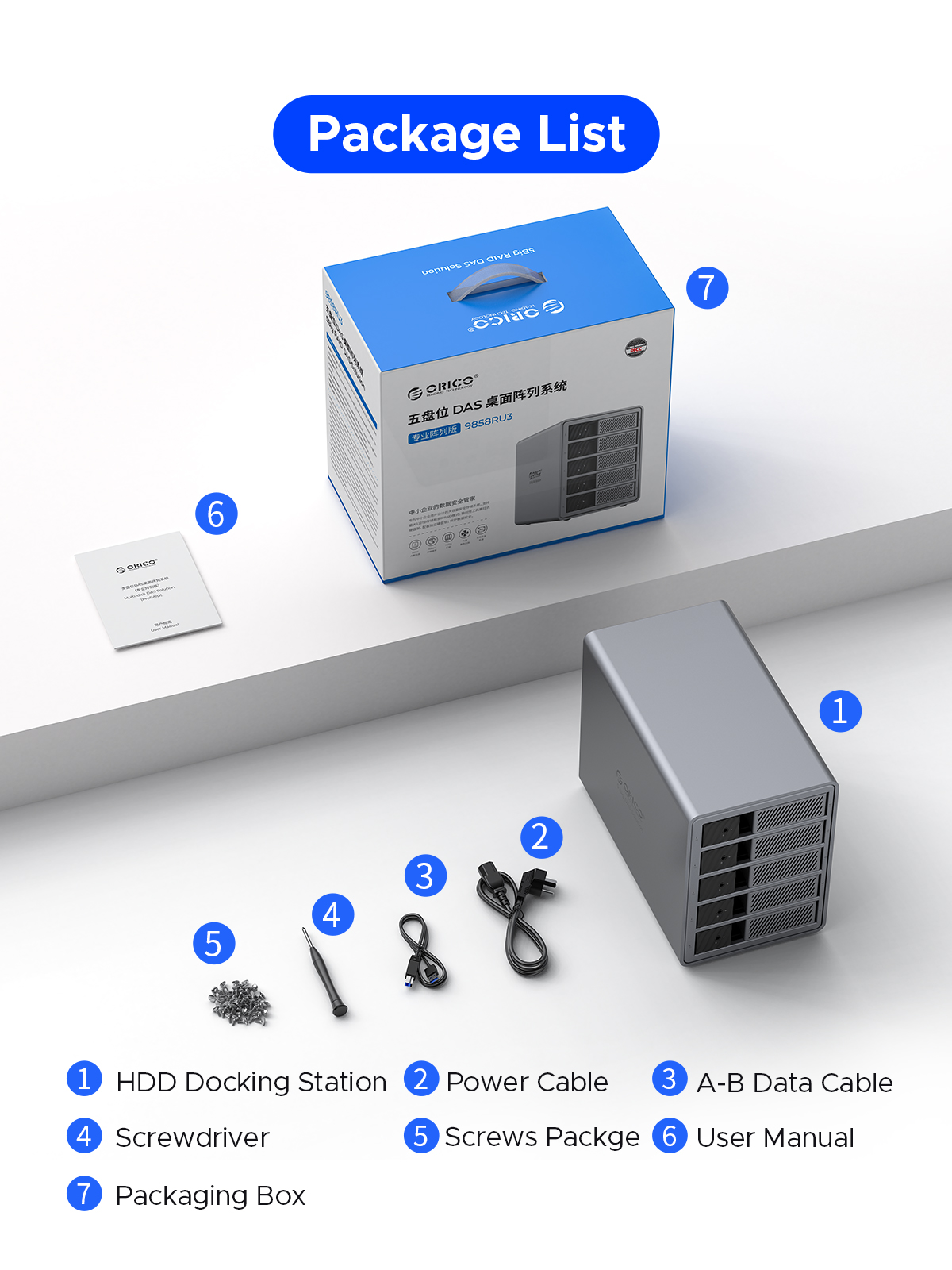

Package contents
1*HDD Docking Station 1*Screwdriver 1*Power Cable 1*Screws Packge 1*A-B Data Cable 1*User Manual 1*Packaging Box
Learn more about the Orico ORICO-9858RU3-US-GY-BP
Model
Brand
ORICO
Series
ORICO DAS Pro 98 Series
Model
ORICO-9858RU3-US-GY-BP
Part Number
6942227108692
Details
Type
Dock
AC Adapter
150W Power
Material
Aluminum
External Interface
USB 3.0
Dimensions & Weight
Dimensions
259mm*146mm*196mm
Additional Information
Date First Available
June 15, 2024
