ORICO 5 Bay 3.5inch Hard Drive Enclosure USB 3.0 to SATA Magnetic Tool-Free External HDD Docking Station Case with 12V/6.5A Power Adapter for Family Storage Expansion Up to 90TB (5x18) - DS500U3

Free gift w/ purchase, limited offer By ORICO Official Store

  • USB-C
  • USB-A

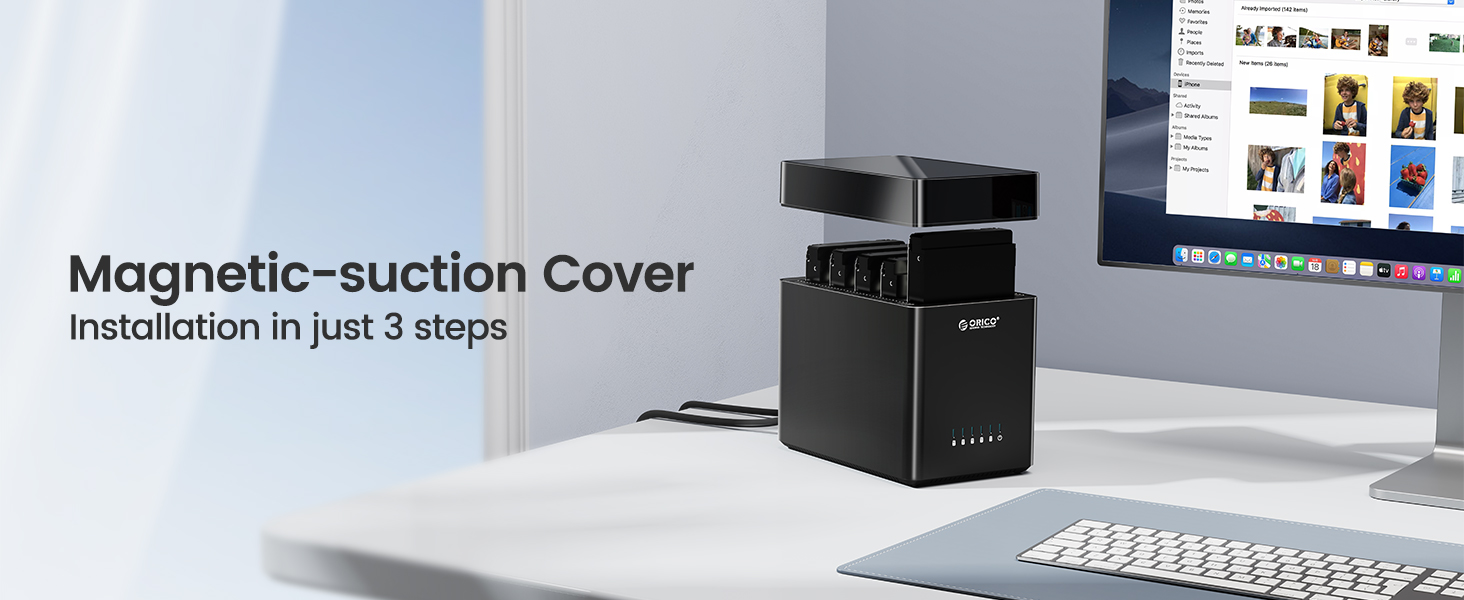

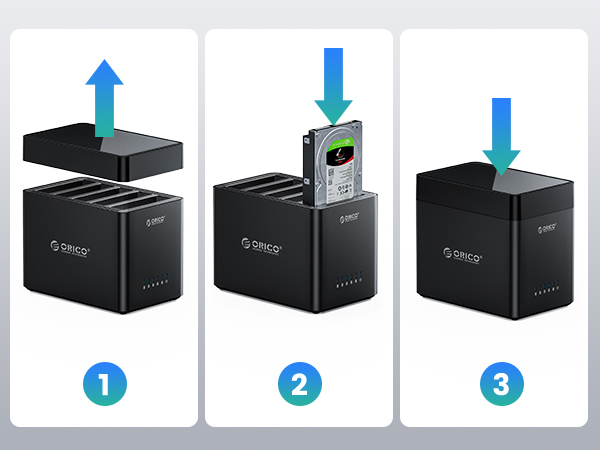

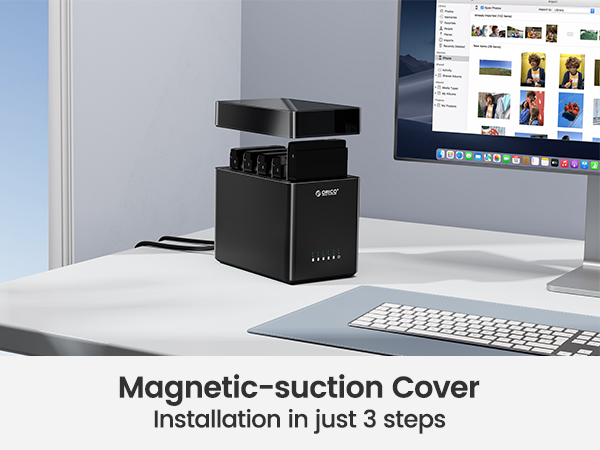

  • Tool-Free & Quick Setup: Magnetic cover with no screwseasy access in seconds. Plug and play; hard drives recognized in 3 seconds for instant use. (Note: On Linux, only one drive accessible at a time in multi-HDD mode.)

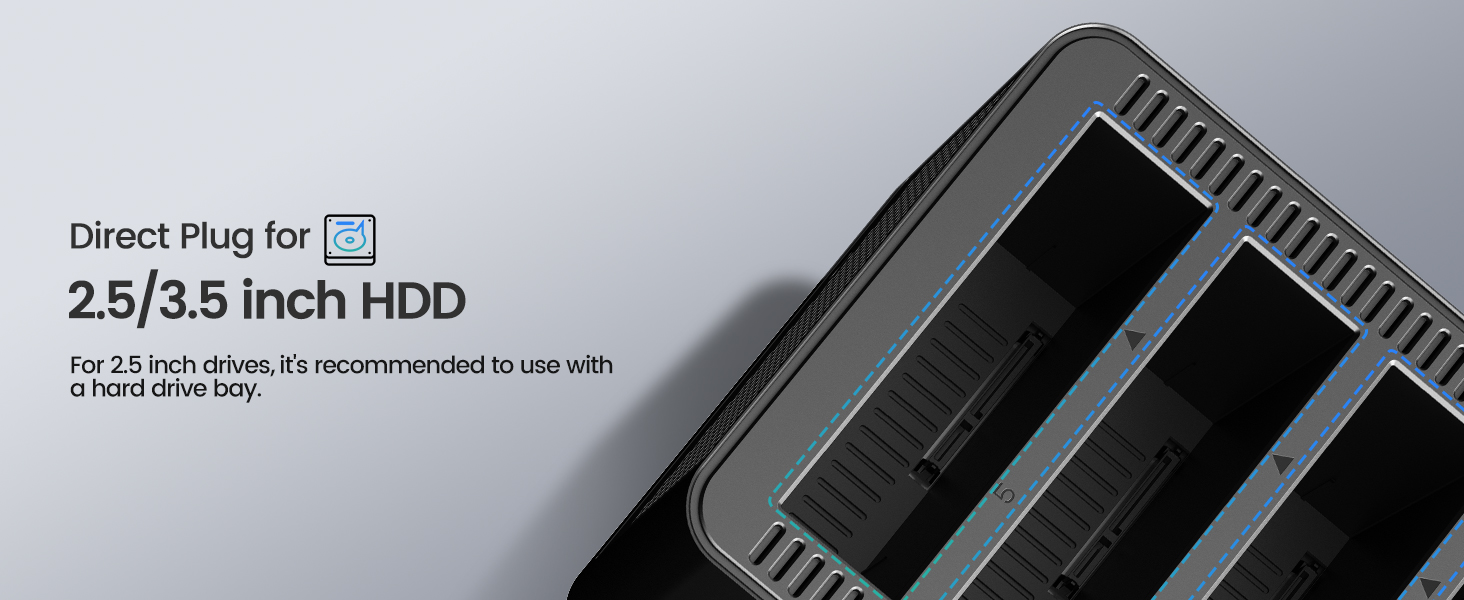

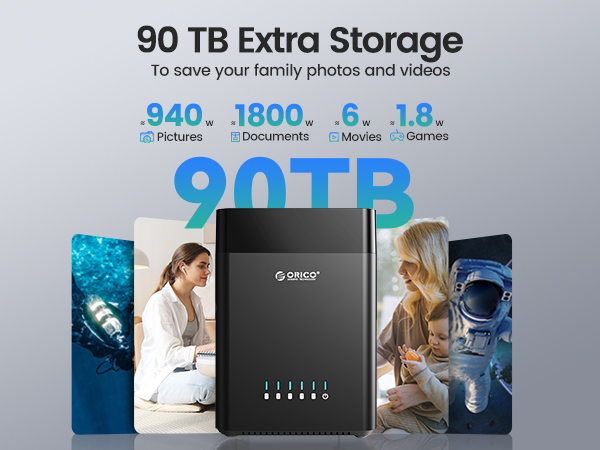

  • Up to 90TB Capacity: Supports five 3.5-inch SATA HDDs (up to 18TB each)ideal for home backup, media storage, and large file archives.
  • 5Gbps Fast Transfer: USB 3.0 interface with SATA III delivers up to 5Gbps transfer speedmove 1GB files in ~3 seconds. Backward compatible with USB 2.0.

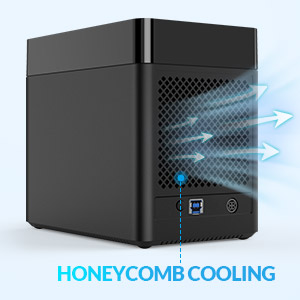

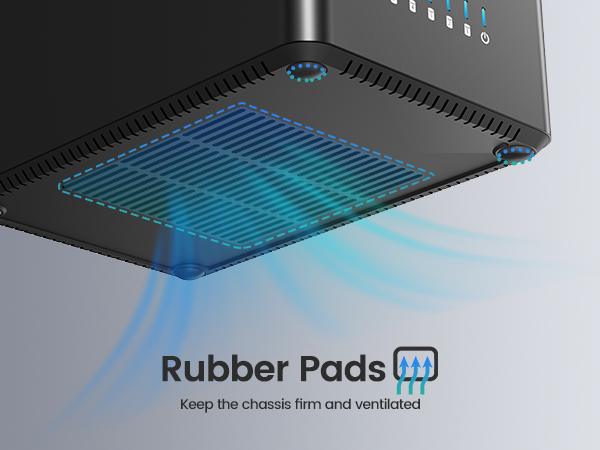

  • Efficient Cooling: Built-in 60mm double-ball bearing fan + honeycomb vented rear panel ensure stable heat dissipation during prolonged use.

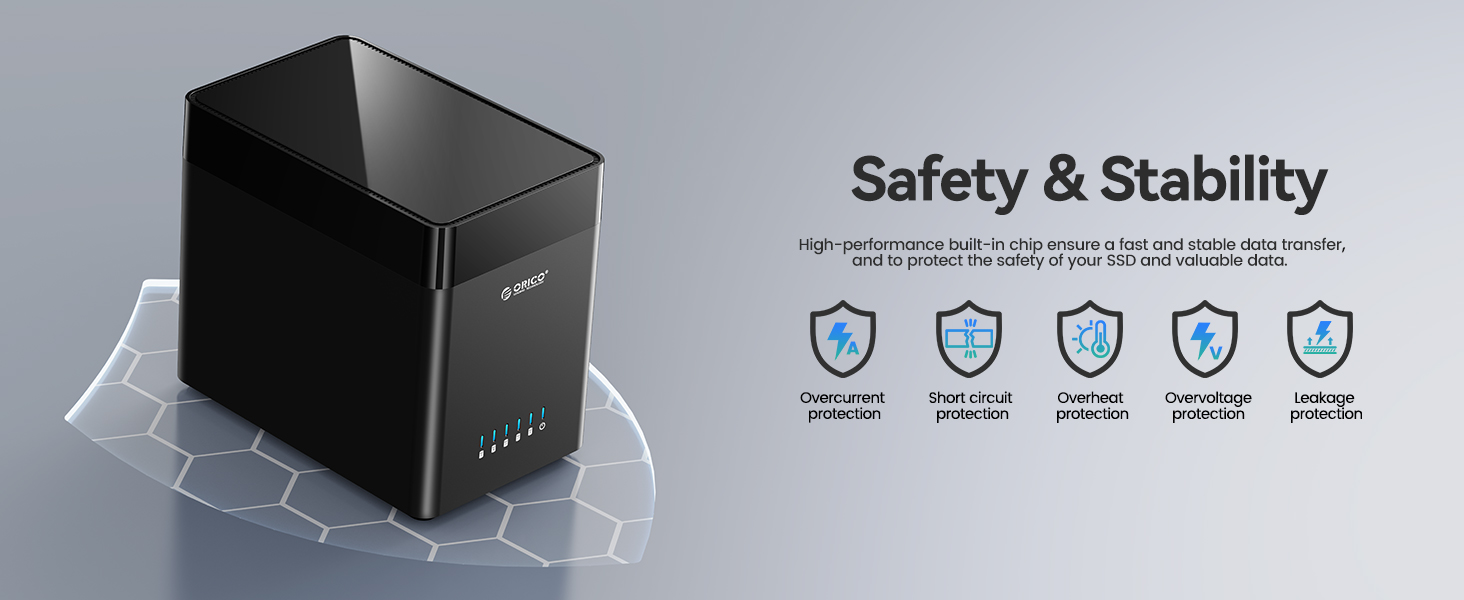

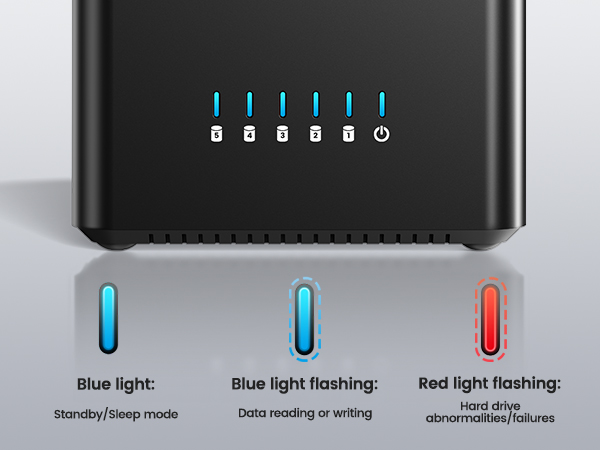

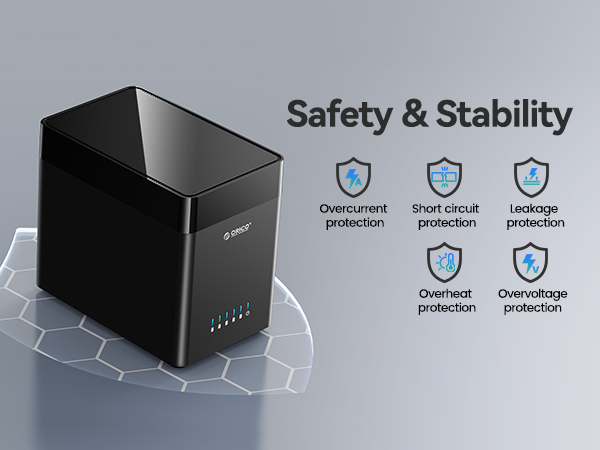

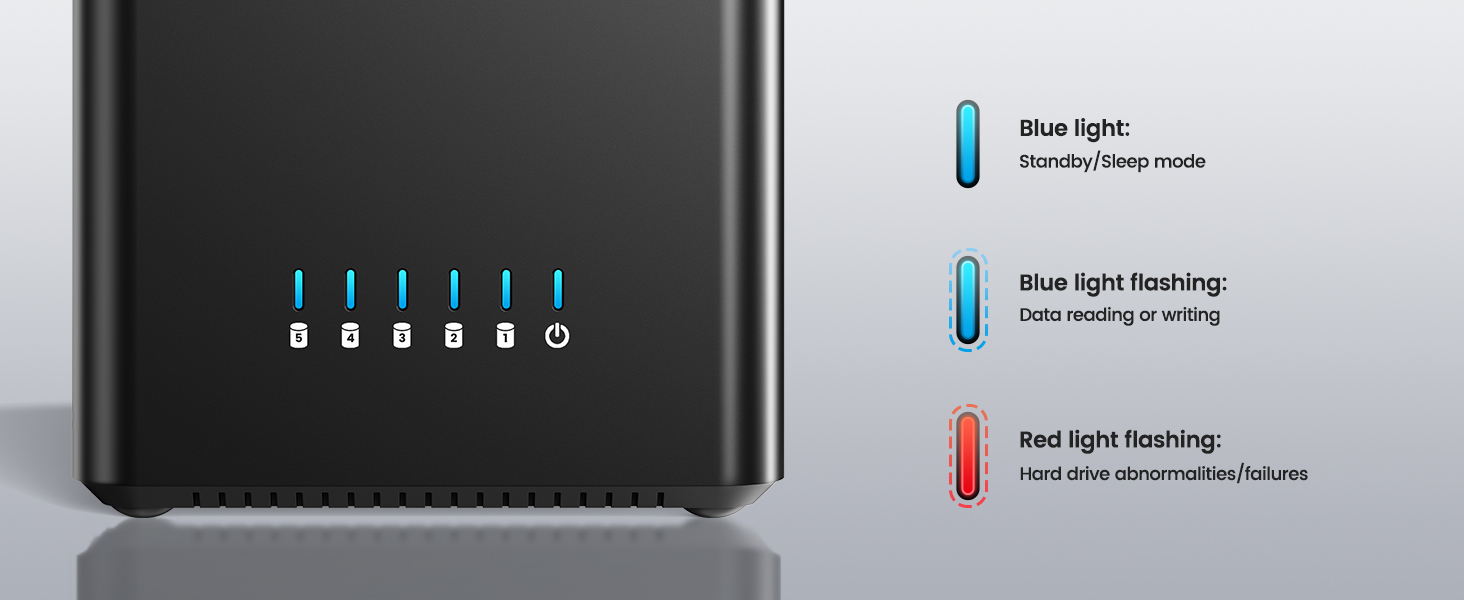

  • Comprehensive Protection: Defends against over-voltage, over-current, overheating, short circuits, and leakage. Four LED indicators monitor drive status in real time.

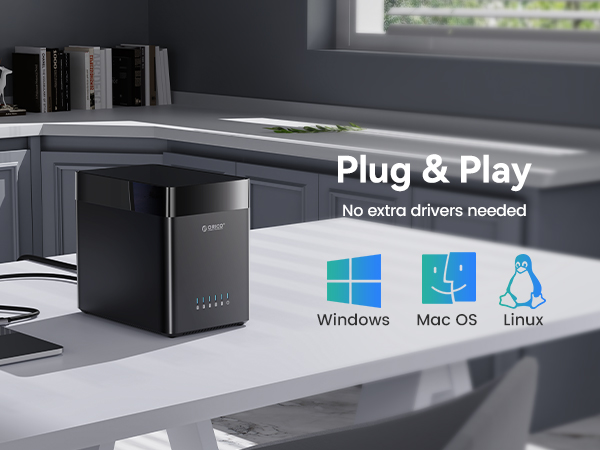

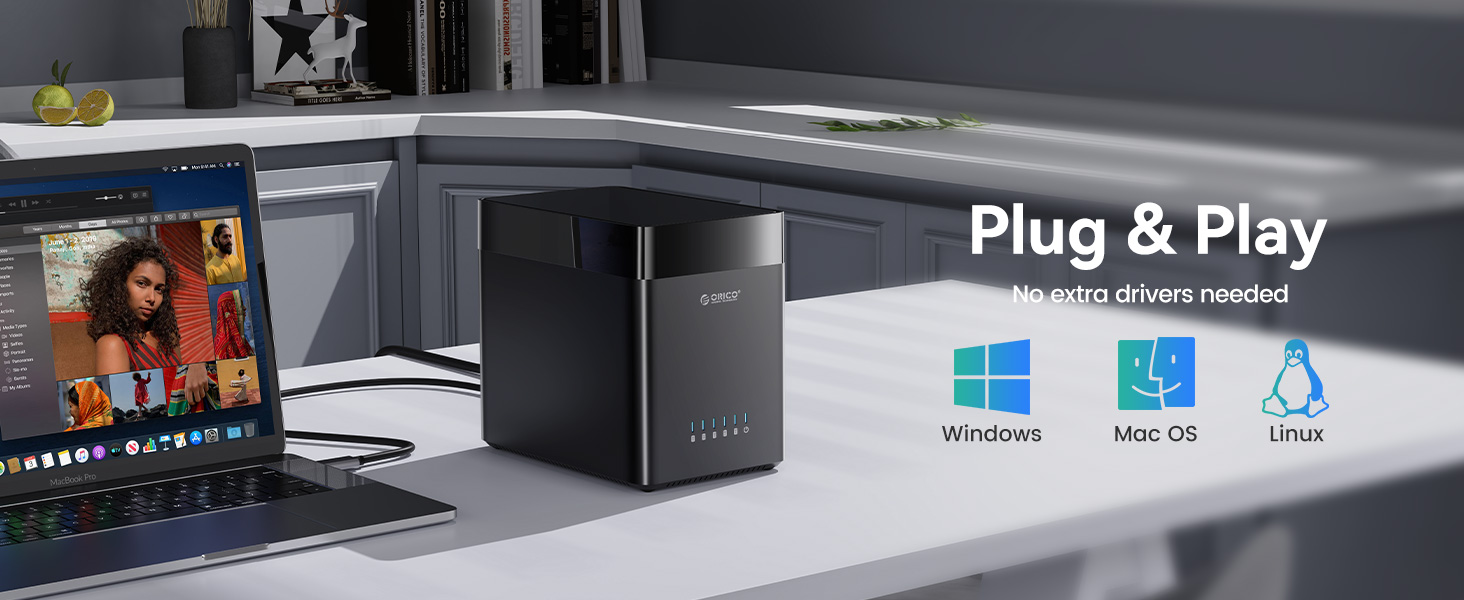

  • Wide Compatibility: Works with Windows XP/Vista/7/8/10/11, Mac OS X 10.2+, and Linuxno drivers needed.
+
+
Overview
Specs
Reviews (56)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

the new miele wireless router for the new miele wireless router

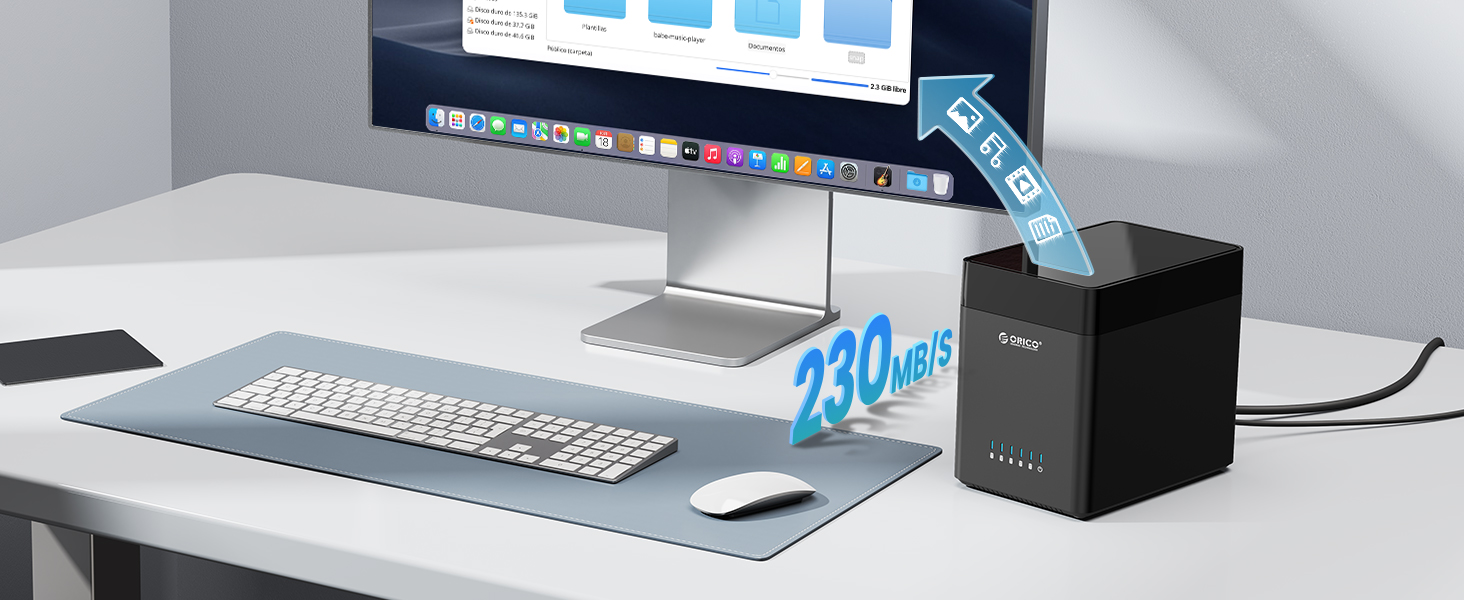

Desktop setup with computer monitor, keyboard, mouse, and small black device. Blue hologram-like text '230 m/s' floats above desk.

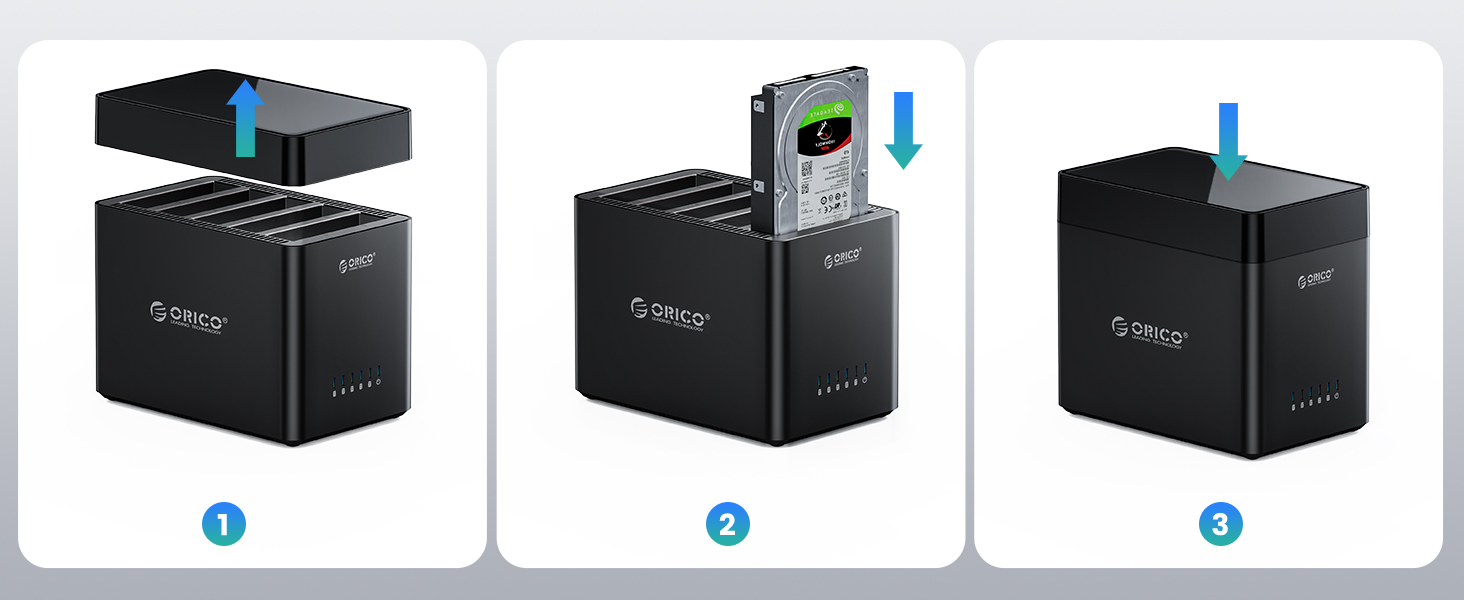

tool free dock

Multi Bay DAS Hard Drive Enclosure

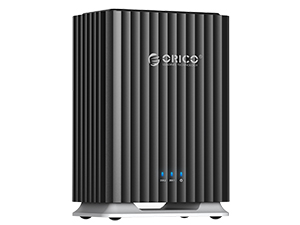

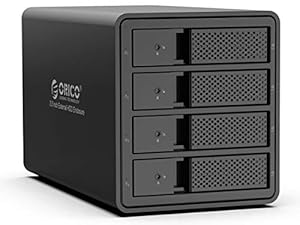

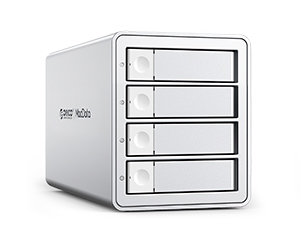

ORICO 5 Bay Hard Drive Enclosure USB 3.0 to SATA Magnetic Tool-Free External HDD Docking Station Cas...

5 Bay DAS-9758C3

ORICO 5 Bay Hard Drive Enclosure USB 3.0 to SATA Magnetic Tool-Free External HDD Docking Station Cas...

4 Bay DAS-9848RU3

ORICO 5 Bay Hard Drive Enclosure USB 3.0 to SATA Magnetic Tool-Free External HDD Docking Station Cas...

4 Bay DAS-9948C3

Material

ABS Plastic

Material

Aluminum Alloy

Material

Aluminum Alloy

Transfer Speed

5 Gbps

Transfer Speed

5 Gbps

Transfer Speed

10 Gbps

Function Supported

Independent Bracket

Function Supported

RAID Supported

Function Supported

Daisy Chain &Hub Expansion

Interface Port

USB C TO USB A/C

Interface Port

USB-B TO USB A

Interface Port

USB C TO USB A/C

Problem Elimination

One: The computer fails to recognize or read the disk.

1.1: Ensure that the power adapter is securely connected to the socket and verify that the connection is stable. 1.2: Confirm that the hard disk enclosure is powered on correctly and that the power indicator light is illuminated. 1.3: Verify that the data cable is properly connected. If necessary, replace the data cable with a functional one and test its performance. 1.4: Ensure that the computer's connection interface is functioning correctly. Check that the relevant drivers for the interface are installed and up-to-date. You may also try reseating the connections or testing with an alternative interface. 1.5: A brand-new hard disk must be initialized and formatted before it can function properly. 1.6: Ensure that the file system format of the hard disk is compatible with the formats supported by the current operating system. If not, the hard disk may need to be reformatted for proper recognition and reading. 1.7: Verify that the hard disk is functioning without faults or errors.

Two: Slow transmission speed.

2.1: Connect the device to a USB 3.0 or higher-speed interface on the computer to achieve optimal transfer speeds. 2.2: Ensure that the connection interface and its associated drivers are functioning correctly. 2.3: Use the original data cable if available. If replacement is necessary, ensure the new cable is fully functional. 2.4: Note that different computer hosts have varying configuration environments, which may affect the transmission speed. 2.5: The performance of different hard disks varies; newer or older hard disks may impact transfer speeds differently. 2.6: Use CrystalDiskMark software to test whether the theoretical maximum transfer speed is achieved. Actual transfer speeds may vary due to factors such as computer configuration, file types being transferred, etc.

Three: Equipment overheating.

3.1: Inspect whether the equipment's ventilation is adequate. 3.2: Ensure that there is no dust obstructing the heat dissipation holes. 3.3: If feasible, reduce the workload of the device by avoiding simultaneous operation of multiple large applications. 3.4: Consider using external cooling pads or fans to enhance heat dissipation.

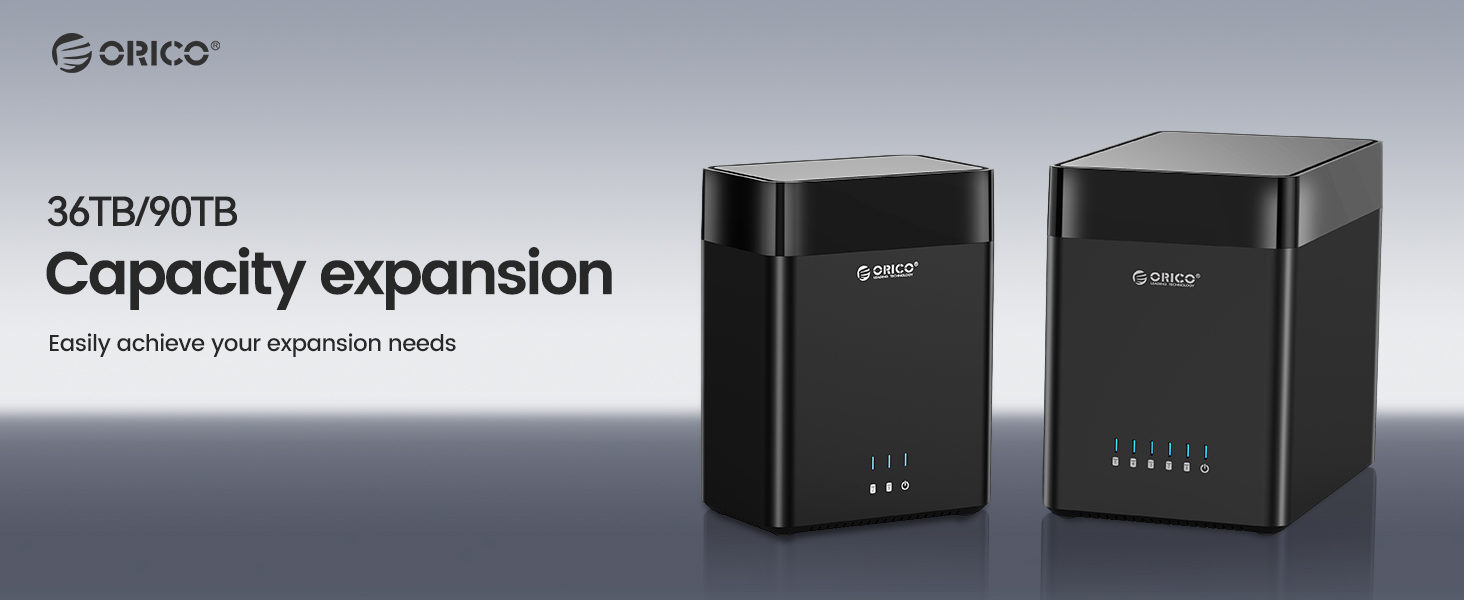

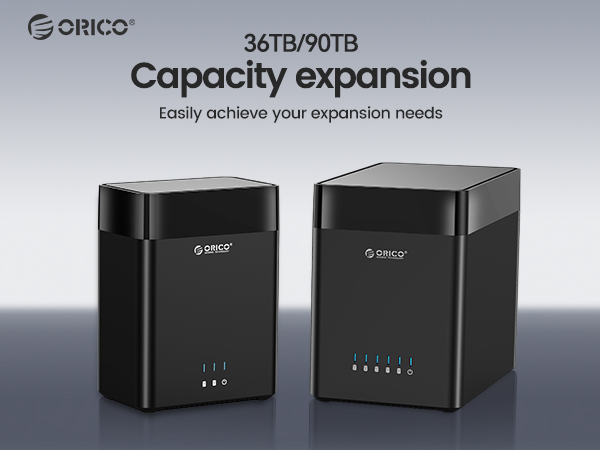

ORICO storage expansion devices. Two black cube-shaped units with capacity options of 36TB/90TB. Text highlights easy expansion capabilities.

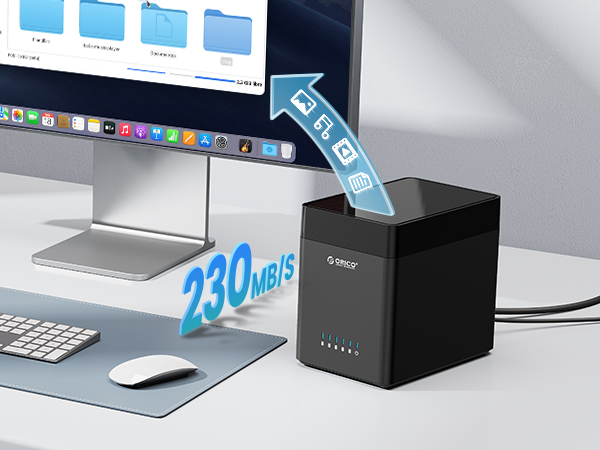

Desktop setup with monitor, keyboard, and mouse. A black cube-shaped device with glowing indicators is shown, with '230 MB/s' text and data transfer icons.
a diagram showing how to use a wireless phone.

Multi Bay DAS Hard Drive Enclosure

ORICO 5 Bay Hard Drive Enclosure USB 3.0 to SATA Magnetic Tool-Free External HDD Docking Station Cas...

5 Bay DAS-9758C3

ORICO 5 Bay Hard Drive Enclosure USB 3.0 to SATA Magnetic Tool-Free External HDD Docking Station Cas...

4 Bay DAS-9848RU3

ORICO 5 Bay Hard Drive Enclosure USB 3.0 to SATA Magnetic Tool-Free External HDD Docking Station Cas...

4 Bay DAS-9948C3

Problem Elimination

One: The computer fails to recognize or read the disk.

1.1: Ensure that the power adapter is securely connected to the socket and verify that the connection is stable. 1.2: Confirm that the hard disk enclosure is powered on correctly and that the power indicator light is illuminated. 1.3: Verify that the data cable is properly connected. If necessary, replace the data cable with a functional one and test its performance. 1.4: Ensure that the computer's connection interface is functioning correctly. Check that the relevant drivers for the interface are installed and up-to-date. You may also try reseating the connections or testing with an alternative interface. 1.5: A brand-new hard disk must be initialized and formatted before it can function properly. 1.6: Ensure that the file system format of the hard disk is compatible with the formats supported by the current operating system. If not, the hard disk may need to be reformatted for proper recognition and reading. 1.7: Verify that the hard disk is functioning without faults or errors.

Two: Slow transmission speed.

2.1: Connect the device to a USB 3.0 or higher-speed interface on the computer to achieve optimal transfer speeds. 2.2: Ensure that the connection interface and its associated drivers are functioning correctly. 2.3: Use the original data cable if available. If replacement is necessary, ensure the new cable is fully functional. 2.4: Note that different computer hosts have varying configuration environments, which may affect the transmission speed. 2.5: The performance of different hard disks varies; newer or older hard disks may impact transfer speeds differently. 2.6: Use CrystalDiskMark software to test whether the theoretical maximum transfer speed is achieved. Actual transfer speeds may vary due to factors such as computer configuration, file types being transferred, etc.

Three: Equipment overheating.

3.1: Inspect whether the equipment's ventilation is adequate. 3.2: Ensure that there is no dust obstructing the heat dissipation holes. 3.3: If feasible, reduce the workload of the device by avoiding simultaneous operation of multiple large applications. 3.4: Consider using external cooling pads or fans to enhance heat dissipation.
