It is equipped with the latest USB3.2 Gen2 master chip, and can support up to 20Gbps transmission bandwidth
ORICO Lighting-Speed Data Transmission
The Omnispeed technology standard is based on USB Type C interface, which is divided into four standards: 5, 10, 20 and 40, corresponding to the ultra-high transmission speeds of 5Gbps, 10Gbps, 20Gbps and 40Gbps respectively.
Applicable SSD
- Compatible with four different specifications of M.2 NVME 2230,2242,2260,2280 SSD, up to 2000 MB / s transmission rate.

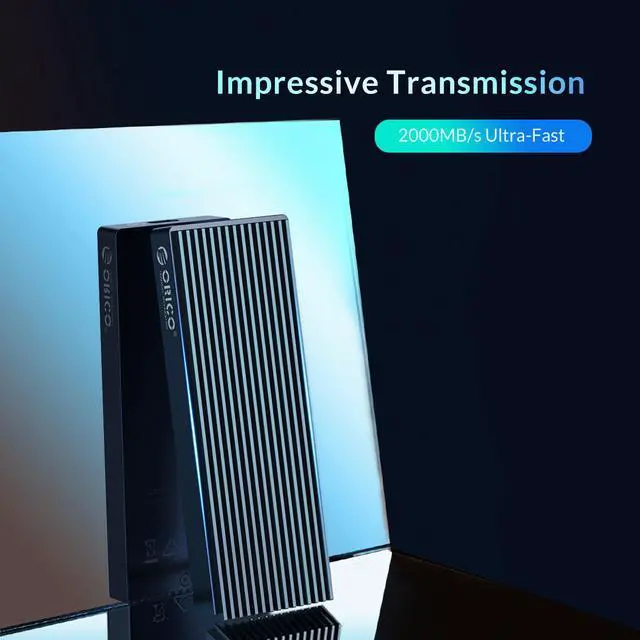

- Up to 2000MB/s transfer rate, giving you a different high-speed experience.
Intelligent Sleep Technology
- After 10 minutes, the hard disk enclosure will automatically switch to the sleep state to minimize the damage to the hard disk.

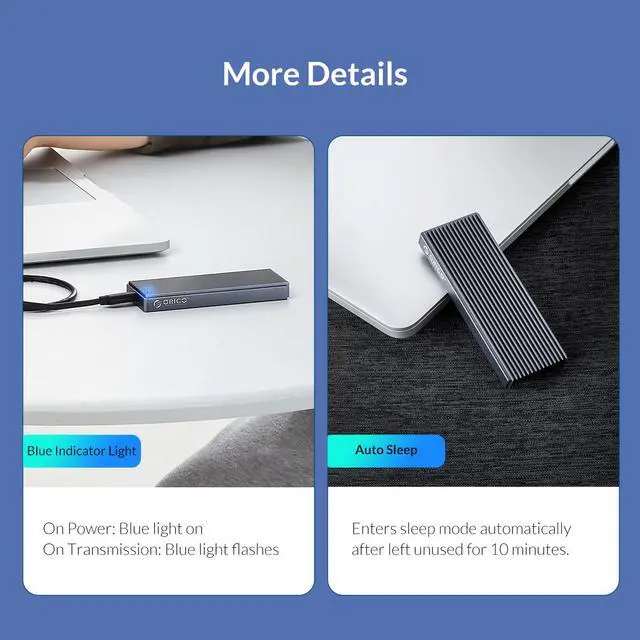

- The LED indicator monitors the working status of the hard disk at any time.
What in the Box
- 1 X ORICO 20Gbps hard drive enclosure
- 1 X Silicone thermal pads
- 1 X Screwdriver 2 X Screw
- 1 X Type-C to Type-C cable
- 1 X Type-C to USB 3.2 cable

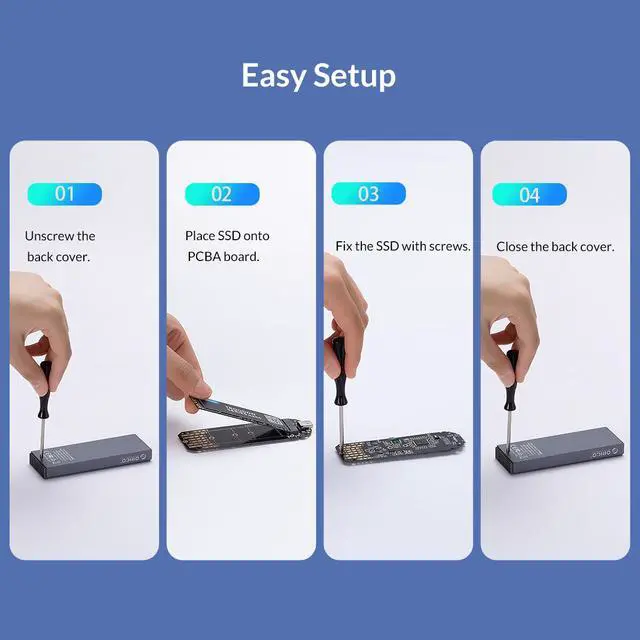

- Unscrew the screw and open the cases
- Tighten the screws to fix the SSD and install screws on the back of PCBA board
- Align the interface and screw the enclosure
The M.2 enclosure can be used to connect to PCs, laptops, smart TVs, smart routers, PS4 and other devices.
As a technology enterprise that constantly exploring and developing USB technology, the LSDT (Lightning-Speed Data Transmission) standard has officially introduced by Yuanchuang Era. The LSDT technology standard is based on USB Type C interface, which is divided into four standards: 5.0, 10.0, 20.0 and 40.0, corresponding to the ultra-high transmission speeds of 5Gbps, 10Gbps, 20Gbps and 40Gbps respectively.
Product Introduction
1. ORICO M2PAC3-G20 is a M. 2 NVME SSD Hard Disk box that supports USB 3.2 20Gbps speed.
It is equipped with the latest USB 3.2 Gen2x2 master chip, and can support up to 20Gbps transmission bandwidth.

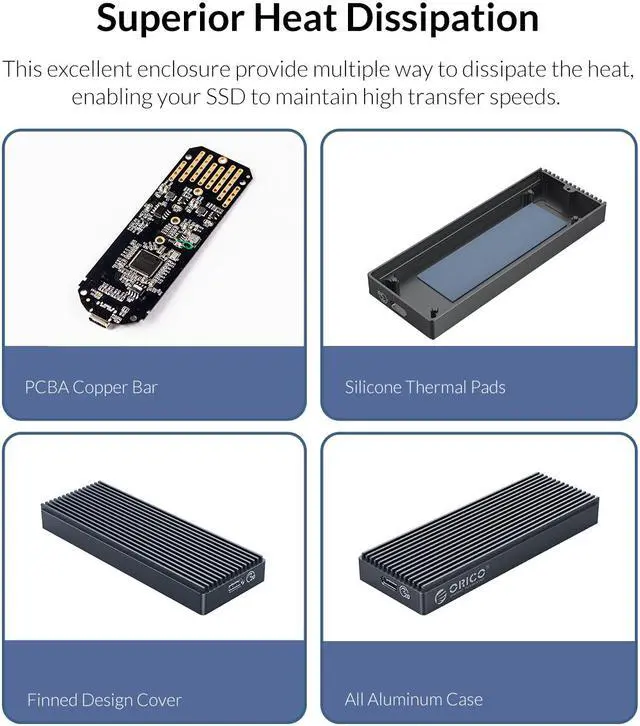

2. The shell is made of Aluminum Alloy + CNC process, and the super heat dissipation design of CPU fin type is adopted.
3. Compatible with four different specifications of M. 2 NVME 2230, 2242, 2260, 2280 SSD, up to 2000 MB / s transmission rate.
Product Features
-The shell adopts all Aluminum Alloy + CNC process;
-CPU fin type super heat dissipation design;
-Equipped with the latest USB 3.2 Gen2x2 master chip, it can support up to 20Gbps transmission bandwidth;
-The external USB 3.2 Gen2 x2 type-C Output Interface supports forward and backward pluggable, with a maximum transmission rate of 2000MB /S.
-Support intelligent sleep technology, (idle 10 minutes into sleep state) energy saving and environmental protection, improve the service life of Hard Disk;
-Compatible with four different specifications of M. 2 NVME 2230, 2242, 2260, 2280;
-Support hot plug and play;
-LED indicator monitoring, monitoring the working state of Hard Disk at any time;
-It can be used to Connect PC, Notebook Computer, Smart TV, Intelligent Router, PS4 and Other Devices;
-Fully compatible with Windows / MAC / Linux multi platform operating system;

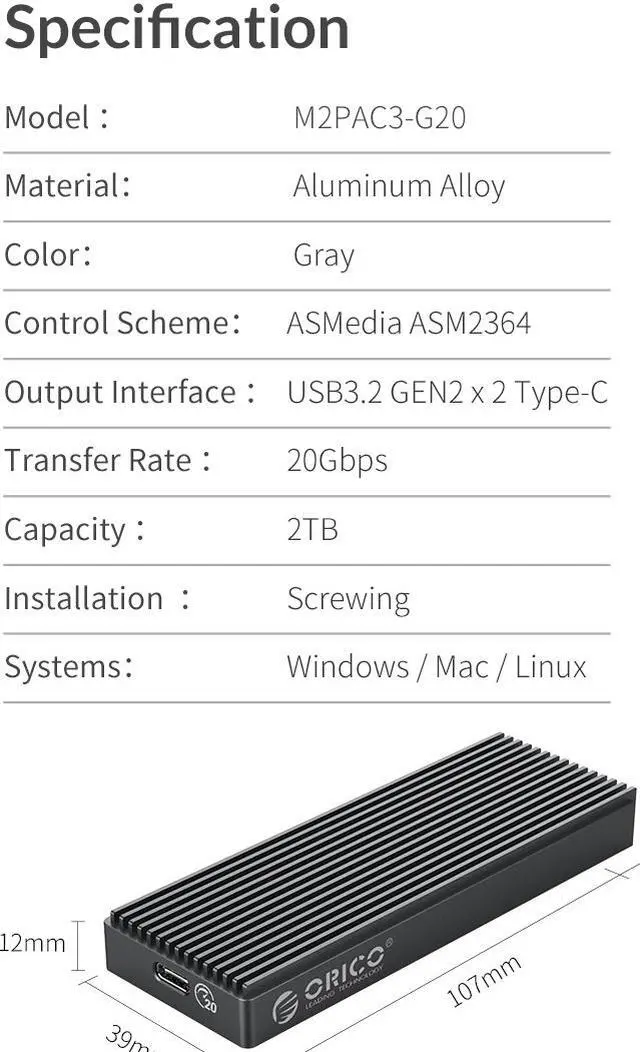

Specifacations:
Name: USB 3.2 20Gbps M. 2 NVMe SSD Enclosure
Model: M2PAC3-G20
Material: Aluminum Alloy
Color: Gray
Dimensions: 106.5 mm (L) *39mm (W) *12mm (H)
Control Scheme: ASMedia ASM2364
Output Interface: USB 3.2 GEN2 x 2 Type-C
Transfer Rate: 20Gbps
Cable: USB Type-C to Type-C, 0.15 m; USB Type-A to Type-C, 0.15 m
Capacity: 2TB Max
Installation: Screwing
Systems: Windows / Mac / Linux
What in the package:
1 x ORICO USB 3.2 20Gbps M. 2 NVMe SSD Enclosure
1 x 15cm USB 3.0 A to C Cable
1 x 15cm USB 3.1 C to C Cable
1 x screws set
1 x User Manual
1 x Service Card
