ORICO Aluminum M.2 SSD Enclosure Dual Protocol Support M.2 NVMe SATA(NGFF) SSD Disk For PCIE M Key B+M Key USB C 10Gbps Solid State Drive Enclosure M2PJM-C3
Save even more w/ promo code MKTC4SERE9XG, limited offer By ORICO TECHNOLOGIES CO.,LTD

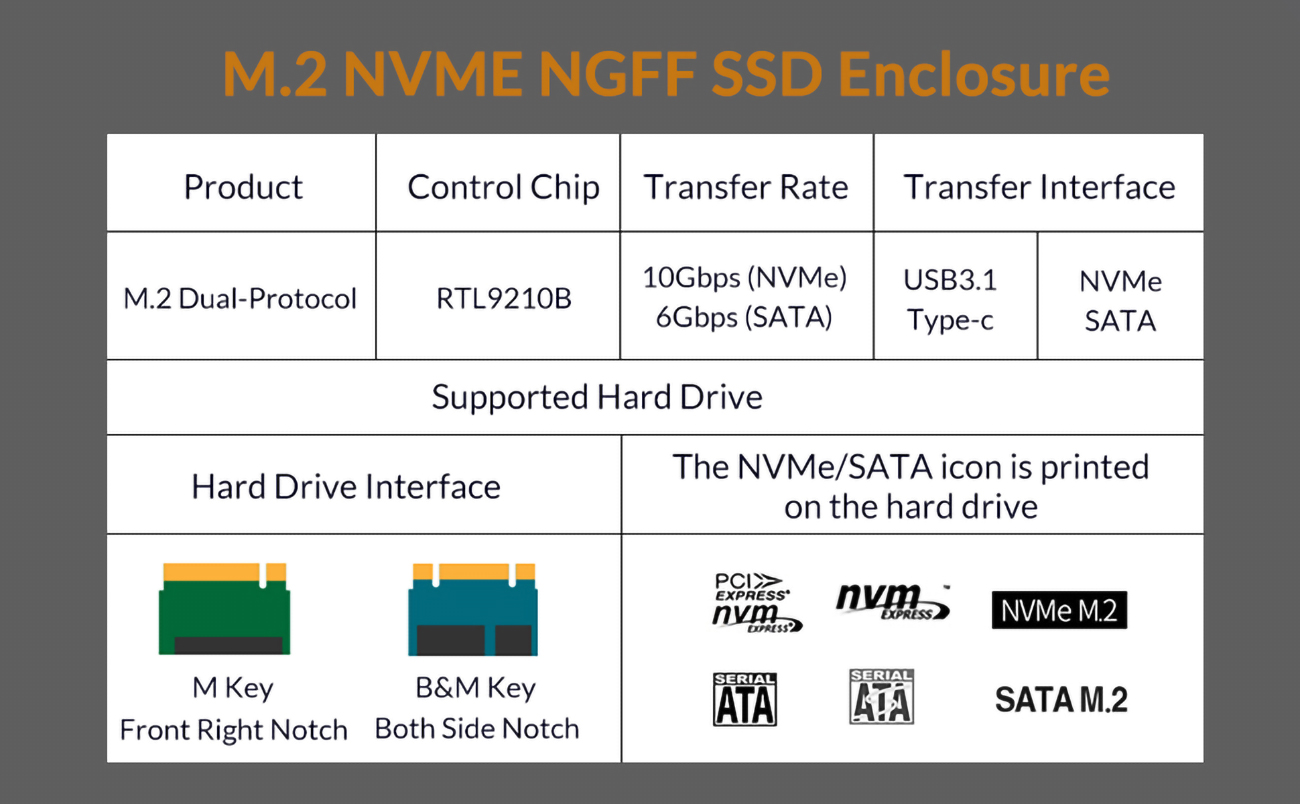

- Compatible with 2230, 2242, 2260 2280 M.2 NVME and NGFF (SATA) SSD solid state drive, support NGFF or NVME protocol memory card.

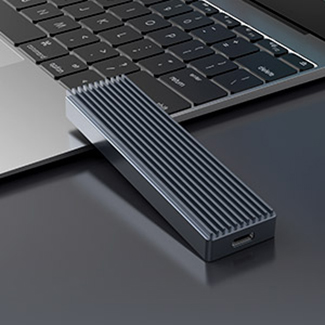

- This Aluminum M.2 NVME SSD Enclosure is a M.2 SSD mobile hard disk enclosure made of all aluminum alloy, aluminum alloy stripe high performance heat dissipation design.
- Adopt high-level master control scheme, support UASP acceleration protocol, and have stable and high-speed data transmission; the SSD equipped with NVMe protocol has a theoretical speed of 10Gbps, while the SSD equipped with NGFF (SATA) protocol has a theoretical speed 6Gbps.

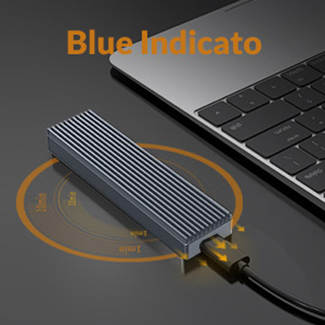

- Support intelligent sleep function, energy saving and environmental protection, reduce hard disk heating, extend hard disk life, sleep for 10 minutes; drive-free, support hot swap, plug and play; LED indicator monitoring, monitor hard disk at any time In working state.
ORICO Aluminum NVME NGFF(SATA)M.2 (M-Key B-Key and B+M Key) Screws SSD Enclosures USB3.1 Gen2 High-Speed Type-C Case Storage up to 2TB for 2230 2242 2260 2280 M.2 SSD-Grey
SLEEP MODE: It will automatically enter into sleep mode when there is no operation within 10 minutes. This helps to prolong the service life of your hard drive.
EASY TO USE: Hot-swappable, Plug & Play, No Driver required. And you can use it widely on computers and Android phones(Android device should have USB-C port and supports OTG)
- 2TB of storage capacity
- Good Heat Dissipation Aluminum M.2 NVMe & NGFF enclosure with thermal pad.
- Support NVMe M-Key M.2 SSD (PCIE-based) , also support M.2 SATA based SSD (NGFF).
- Transfer Rate: 10Gbps(NVMe), 5Gbps(SATA)
- Weight: 88g
- Size: 29 * 107 *12MM

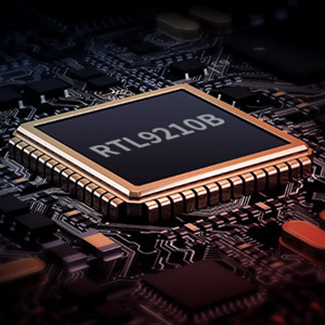

RTL9210B master controller support UASP protocol, transmission speed is faster and more stable. and just plug and play with no driver needed, very easy to Use.
Enter sleep mode automatically after left unused for 10 minutes, it can prolong the service life of SSD.

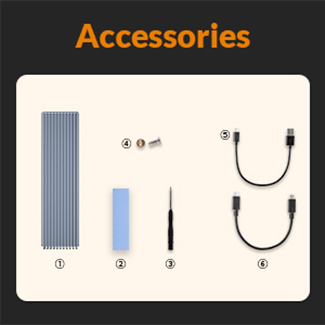

- NVME & NGFF(SATA)Enclosure*1
- Silicone thermal pad*1
- 15cm C to A cable*1
- 15cm C to C cable*1
- It is normal that the aluminum case heats up, for the high-speed NVMe M.2 drives generate much heat while working.
- For the brand new SSD drive, it may not find the drive, because the brand new SSD drive should be formatted before first time using. And also need to make the SSD drive partition.
Unscrew the screws from rear end.
Sliding backwards to open, then Insert hard drive.
lock the set screws.
Insert SSD to the Enclosure and close cover.
|Thunderbolt 3 NVMe SSD External Enclosure Grey||Thunderbolt 3 NVMe SSD External Enclosure Silver||Type-C Gen2 10Gbps NVMe PCI-e M.2 SSD Enclosure Grey||Type-C Gen2 10Gbps NVMe PCI-e M.2 SSD Enclosure Silver|
|Theoretical Speed||Thunderbolt 3 ( 40Gbps)||Thunderbolt 3 ( 40Gbps)||10Gbps (C to C), 5Gbps (C to A)||10Gbps (C to C), 5Gbps (C to A)|
|Supported||Only compatible with Thunderbolt 3 ports & Only PCIe NVMe M-Key M.2 2280 SSD is supported||Only compatible with Thunderbolt 3 ports & Only PCIe NVMe M-Key M.2 2280 SSD is supported||for 2230 / 2242 / 2260 / 2280 PCIe NVMe M-Key SSD||for 2230 / 2242 / 2260 / 2280 PCIe NVMe M-Key SSD|
|Compatible System||Windows / Mac / Linux||Windows / Mac / Linux||Windows / Mac / Linux||Windows / Mac / Linux|
