OSD Audio AMP200 2-Channel High Current Power Amplifier

OSD Audio AMP-200
2 CHANNEL HIGH CURRENT

The OSD-AMP200 is a high current 2-channel amp that lets you home run (directly to the back of the amp) two pairs of speakers or four speakers total. Like the AMP300, because it's high current, you can add up to four pairs of speakers (8 speakers total) with the addition of OSD speakers selectors such as the DSM4.

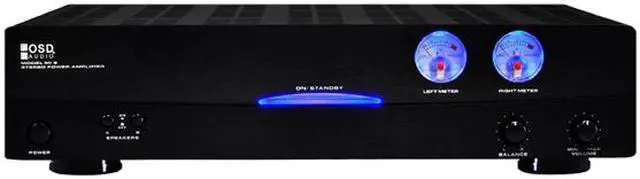

A team OSD favorite, the AMP200 is a high current 2-channel amp with loads of features. This amp lets you home run (directly to the back of the amp) two pairs of speakers or 4 speakers total. Since it's high current, you can add up to 4 pairs of speakers (8 speakers total) by adding OSD speakers selectors such as the DSM4. Rated at 80 Watts per channel at 8 ohms, the OSD-AMP200 is overload stable so it ideal for use anywhere clean power is needed. It also includes a dual source switching circuit. When you connect two independent sources number (say your iPod and a TV in another room) source one takes priority when it is active. When source one is turned off, source number two comes on. Note: You cannot play two sources simultaneously. For this feature you need a multi-channel amp like our MX1260. Step-up features rarely seen in amps of this price range include a built-in voltage meter, and front mounted volume and balance trim controls.

Specifications

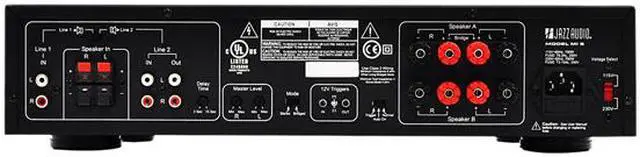

• Two sets of speaker outputs selectable from the front panel
• 2 stereo low-level (RCA) inputs and 1 high-level (speaker) input
• 80W per CH into 8 ohm loads with less than 0.2% THD+N
• 125W per CH into 4 ohm loads with less than 0.2% THD+N
• 200W per CH into 2 ohm loads with less than 0.2%THD+N
• 250W Bridged Mono into 8 ohms with less than 0.2% THD+N
• Crosstalk: >65dB @ 1kHz, ref. to rated power into 8 ohms
• Frequency Response: (20Hz to 20kHz)+0.0dB, -0.5dB
• Signal to Noise ratio: -103dB ref. to rated power into 4 ohms
• AC Power Consumption: 700W (all channels driven)
• Dual Voltage 110/220V
• Front-panel power switch
• 12-volt trigger
• Auto-signal sensing function
• <1W Standby Power Consumption
