OSD Audio 100W In-Wall Home Theater Speaker Volume Control – Knob Style - SVC100
- HIGH POWER: The SVC100 is rated at 100 Watts per channel with minimal bass roll-off. It includes front mounted adjustable jumpers to add up to eight pairs of 8 ohm speakers simultaneously.
- VOLUME CONTROL: The controls allow you to adjust the volume of a pair of speakers independently of other speakers in a house audio system. They are ideal for both softer and higher volume locations.
- IMPEDANCE PROTECTION: This feature of SVC100 assists in stabilizing the ohm load going back to the amp or receiver with parallel connections to avoid overheating and damaging expensive equipment by matching the impedance.
- KNOB: Wire a 12-step linear rotary-style knob for a wide range of listening volumes. Includes junction box and screws as well as white, ivory and almond trim plates to match any room decor.
- DESIGN: For dedicated audio zones, the décor plates install easily into a wall and work with almost any system. It accepts up to 14 gauge wiring and fits in a standard gang box with a 2.9” depth.
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
OSD Audio SVC100
100W IMPEDANCE MATCHING VC
Volume Controls are a must for any multi-zone music system and OSD Audio's line of indoor and outdoor volume controls makes it easy to find the perfect model for your application. OSD Audio's vast line of indoor volume controls includes in-wall impedance matching and resistor-based models which are available in both round knob and slider options. We even offer a table-top style indoor volume control, as well as an in-wall commercial 70v model. Our volume control line is made complete by a variety of outdoor offerings. Our outdoor volume controls are available in both impedance matching and resistor-based designs, with multiple power handlings to choose from. All OSD outdoor volume controls have a sealed, all-weather enclosure to protect them from the elements. With OSD Audio volume controls, you'll enjoy great sound throughout your home, indoors and outside, without having to run from room to room to turn the volume up or down.

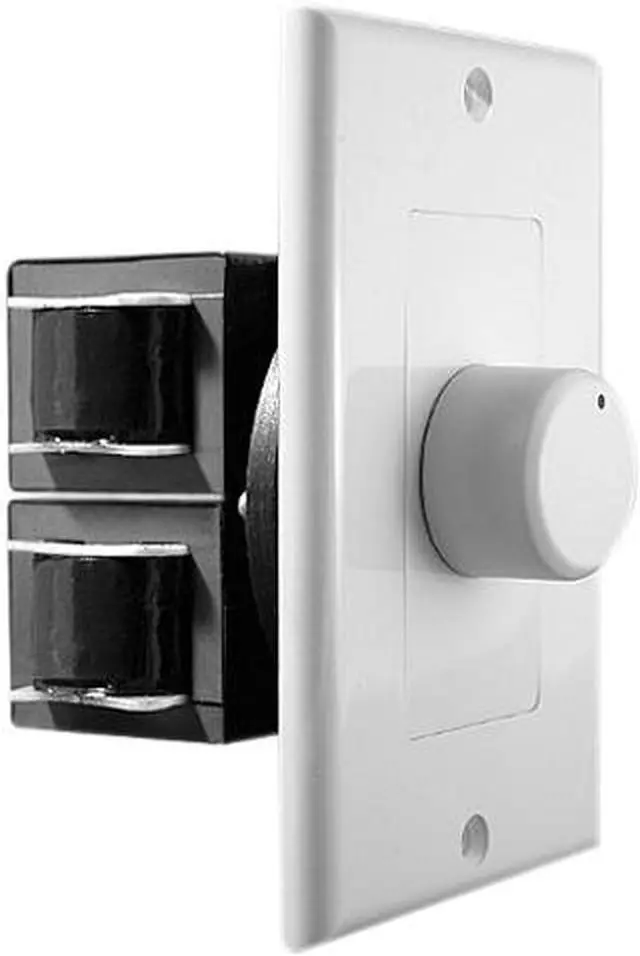

The OSD Audio SVC100 Knob-style Volume Control is one of our most popular models. Rated at 100 Watts peak, this unit shares the same capabilities as the slider version and is built with close attention to performance, reliability and durability. Some folks prefer the knob control over the slider type which is why we offer both. As you can see by the many reviews, the result is a blend of transparency and functionality, with low distortion and ruler flat frequency response. The unit comes with White, Ivory or Almond faceplates and whether you go with knob control or soft-touch sliders, OSD Audio offers convenience and style with colors to match any decor.
- Control volume from any room
- Wall-mounted volume controller works with any audio/video system
- Low distortion and ruler flat frequency response
- All installation materials included
Decor Options: White, Ivory, Almond
SVC100/SVC300
Impedance Matching Switch
Specifications

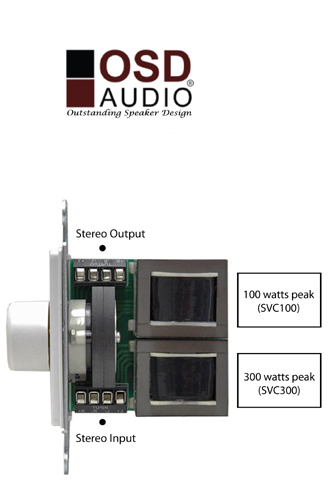

- Impedance matching volume controller with Autoformer
- Power handling: 100W per channel
- Frequency Response 20Hz - 20kHz
- Front-mounted switch allows for easy adjustment when multiple pairs of speakers are connect to a single receiver or amplifier

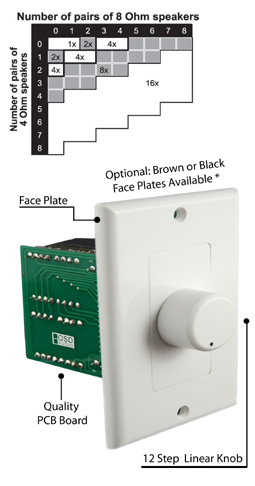

- Impedance matching for 2, 4 or 8 pairs of speakers and can be used as non-impedance matching if leaving default on jumper setting at 1X.
- Steps: 12 (make before break)
- Total Attenuation: 42 dB (Max)
- Includes White, Ivory and Almond Plates, Inserts and Knobs
- Fits in a standard gang box; measures 4.125cm W x 6.35cm H x 6.35cm D
- 5-yr warranty
There are two types of volume controller - Impedance matching and Non-impedance matching. If you connect your speaker parallel to the receiver or connect the speakers into an impedance protection speaker selector, use impedance matching volume controller. The SVC100 allows you to match the impedance with the number of speakers being controlled with the capabilities of your amp.
-Installs easily and works with almost any audio system
-Helps create a rich, full sound performance without bass roll-off
-Accomplishes detailed audio tasks
-Installs easily and works with almost any audio system
-Helps create a rich, full sound performance without bass roll-off
-Accomplishes detailed audio tasks
