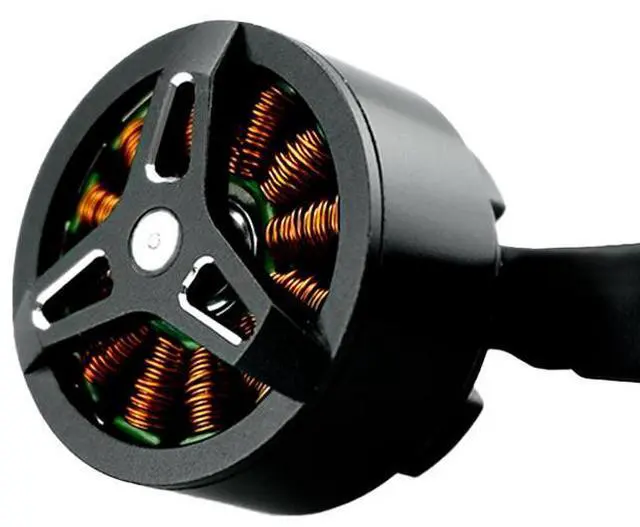

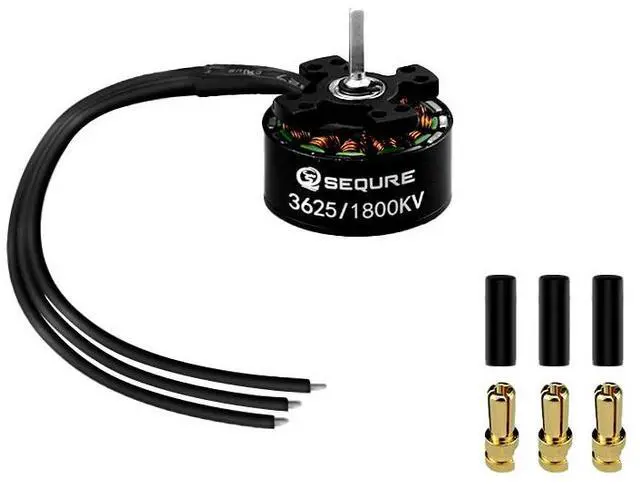

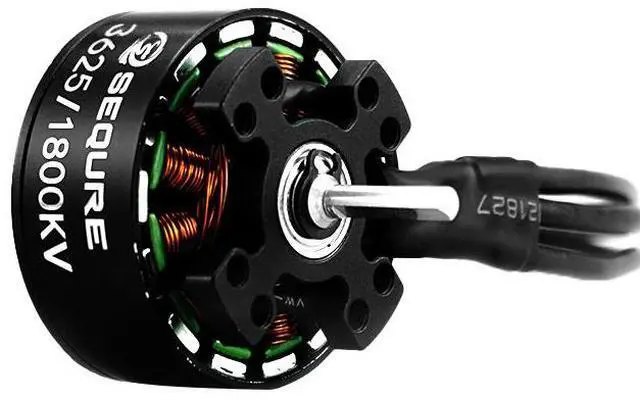

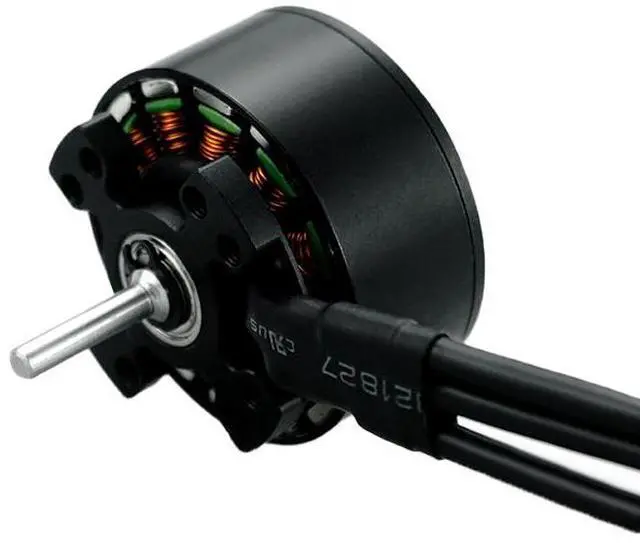

SEQURE 3625 outer rotor brushless motor with small size and high torque outrunner motorsuitable for 1/10 RC climbing vehicle rocky crawler vehicle
- SEQURE 3625 is a high-performance brushless outer rotor motor specially designed for 1/10 remote-controlled climbing crawler cars. Features with the smallest size, highest power, and largest torque.
- The motor has a volume of 36*25mm and adopts a 12-slot stator of 30*12mm, combined with high-purity copper wire winding, which greatly improves the motor power and explosive force.

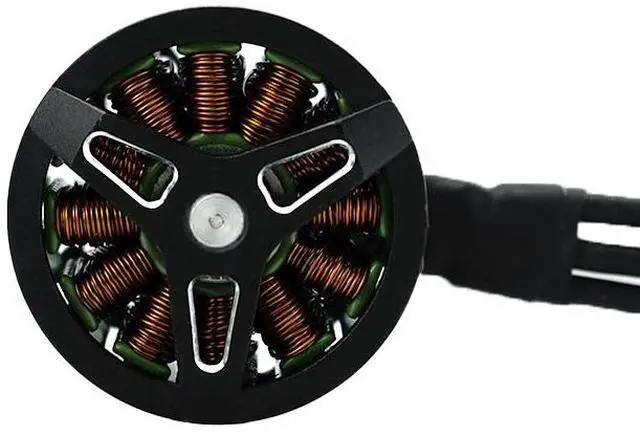

- The ultra-strong magnetic array composed of 14-pole curved high-temperature resistant magnets provides extraordinary rotor torque and powerful and fast braking response.
- The shell is made of high-hardness aluminum alloy and high-precision CNC processing, and the structure is stable and reliable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Model: SEQURE 3625 Brushless Motor
Working Voltage: 2-4S Lipo
Slot Pole/Magnetic Pole: 12N/14P
Stator Size: 30*12mm
Output Shaft Diameter: 3.17mm
KV Value: 1800KV
Motor Wire: 16AWG 200mm
Mounting Hole Spacing: 24.5mm
Banana Plug: 3.5mm Male

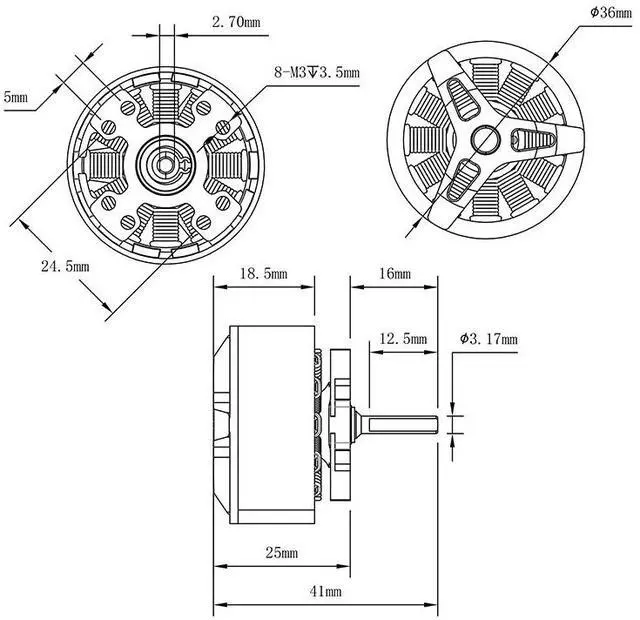

Size(Without Shaft ): 36*25mm

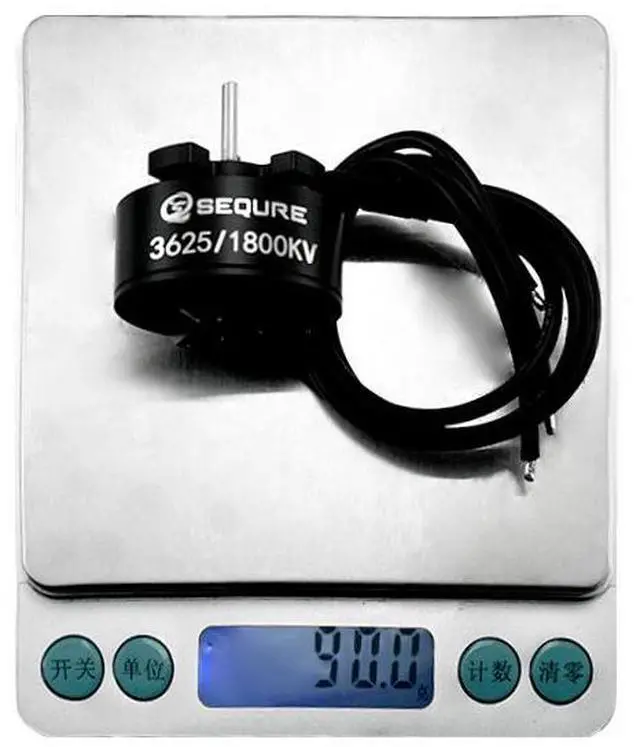

Weight(With Wire): 90g
Recommend ESC: 70A ESC (or above)
Features:
High-strength stainless steel motor shaft, high-precision high-quality bearings, the motor is durable.
Eight-angle mounting holes eliminate any interference in the installation space.
Silent and denoise design to lower the operating noise greatly. No worry about the breaking wind noise at high speed.
Lightweight design, weight about 90g (including 16AWG 200mm motor wire), maximizes the reduction of vehicle weight and lowers the center of gravity.
Model: SEQURE 3625 Brushless Motor
Working Voltage: 2-4S Lipo
Slot Pole/Magnetic Pole: 12N/14P
Stator Size: 30*12mm
Output Shaft Diameter: 3.17mm
KV Value: 1800KV
Motor Wire: 16AWG 200mm
Mounting Hole Spacing: 24.5mm
Banana Plug: 3.5mm Male
Size(Without Shaft ): 36*25mm
Weight(With Wire): 90g
Recommend ESC: 70A ESC (or above)
Features:
High-strength stainless steel motor shaft, high-precision high-quality bearings, the motor is durable.
Eight-angle mounting holes eliminate any interference in the installation space.
Silent and denoise design to lower the operating noise greatly. No worry about the breaking wind noise at high speed.
Lightweight design, weight about 90g (including 16AWG 200mm motor wire), maximizes the reduction of vehicle weight and lowers the center of gravity.
